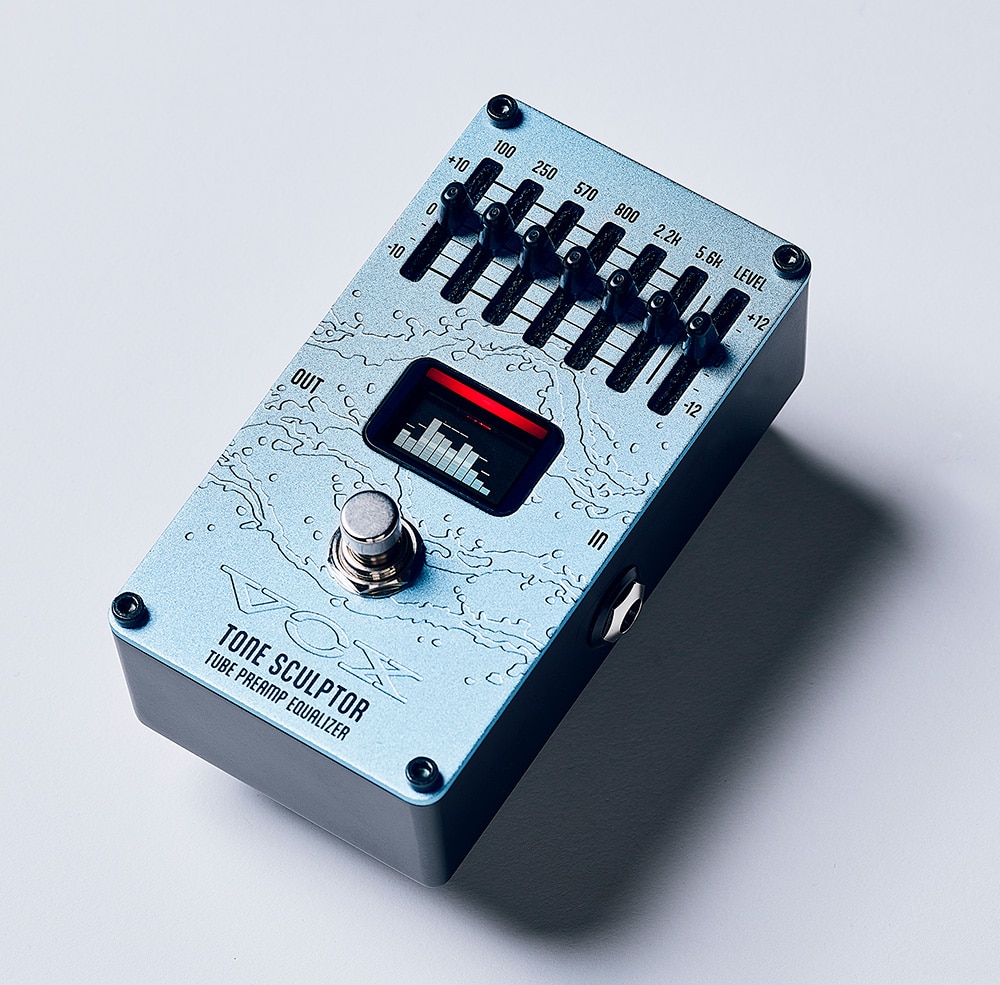

VOX / VE-TS　Valvenergy

Graphic equalizer with Nutube in the preamp section to add musical distortion

Graphic equalizer with frequency range and Q-width settings for guitar tone shaping. The preamap section is equipped with a Nutube, which adds unique tube overtones and compression when the level is increased. The frequency bands 100Hz/250Hz/570Hz/800Hz/2.2kHz/5.6kHz are selectable and designed for intuitive tone shaping. To facilitate active tone shaping, the frequency bands are set more effectively by widening the Q width compared to typical graphic equalizers. Switching between backing and soloing and overall adjustment is also easy. The Nutube in the preamp provides musical distortion when the level is turned up. No center click is intentionally provided for easy fine-tuning.

For clean-tone arpeggios, set the bass register low and the treble register high so that each string can be heard clearly. Boost the midrange for easy solo articulation or set it sharp to create sharp sounds with heavy backing. Versatility allows you to create a wide variety of sounds.

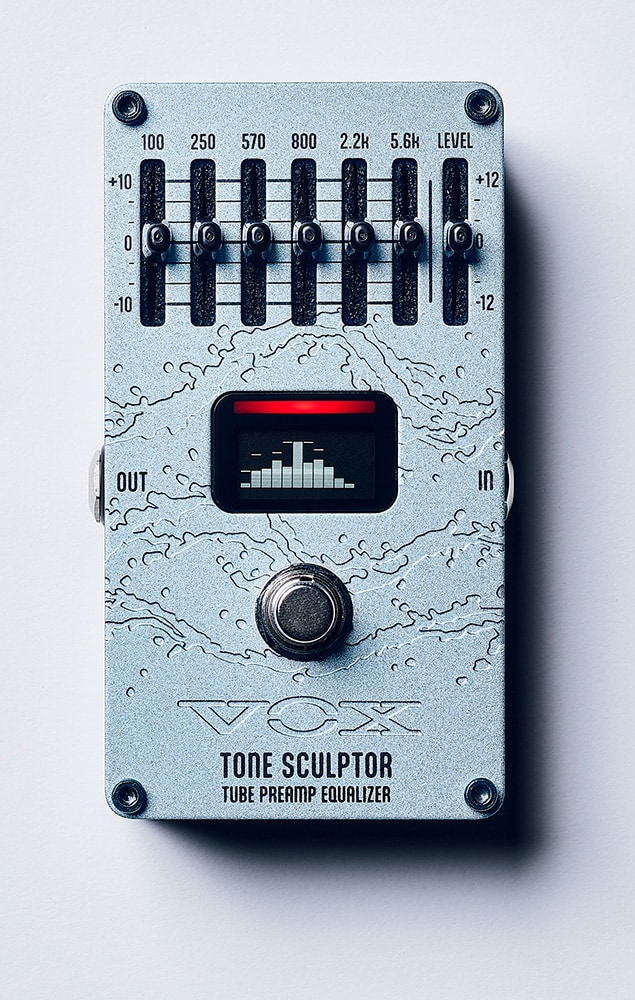

Controls
Frequency Adjustment
100Hz to 5.6kHz: ±10dB adjustment for each
LEVEL: ±12dB adjustment of output volume

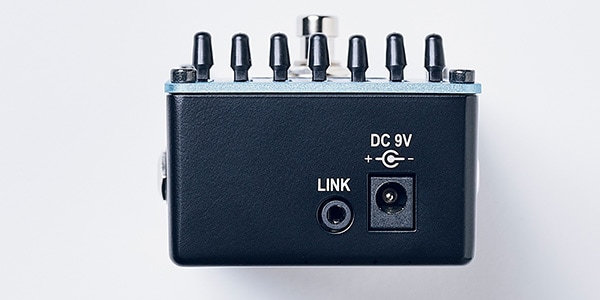

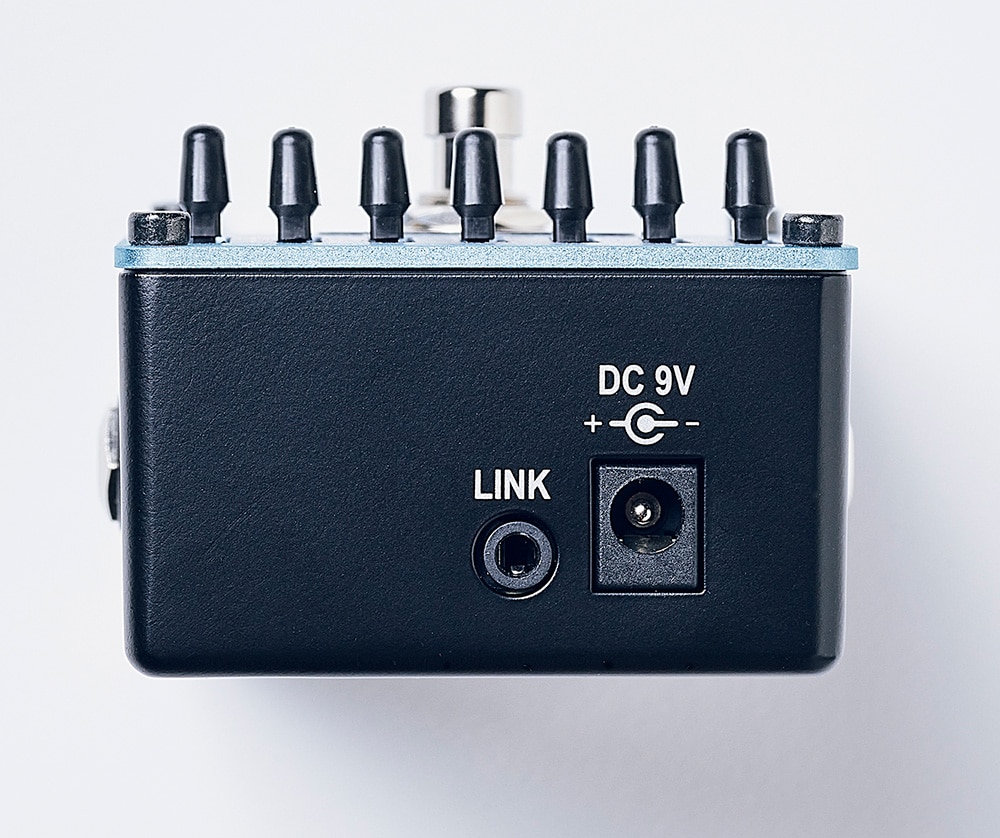

■Connections
Input terminal, Output terminal, DC9V terminal

Power Supply
9V alkaline battery (6F22/6LR61) x 1 or AC adapter
The use of an AC adapter is recommended due to the relatively high power consumption of this unit. If you wish to use batteries, please use alkaline batteries.

Dimensions (W x D x H)
72mm x 120mm x 55mm

Weight
300 g (excluding batteries)

■Accessories
Accessories (sold separately): AC adapter KA181 (9V)
