BOSS / KATANA-HEAD GEN 3

The KATANA-HEAD GEN 3 is a 100W head amp that packs a wide range of effects and outstanding functionality into a classic amp tone with a built-in 5-inch custom speaker.

■Head amp with 5-inch (12 cm) custom speaker and 100W output
■Advanced BOSS "Tube Logic" delivers even more dynamic sound
■Six amp types including the newly developed PUSHED, with two different variations to choose from
■BLOOM function for elastic response
5 independent effect categories (BOOSTER/MOD/FX/DELAY/REVERB)
■Three types of CONTOUR that accentuate the contours of the sound
■Switchable CABINET RESONANCE to change the sound of the speaker cabinet (VINTAGE/MODERN/DEEP)
■Special app BOSS TONE STUDIO (Windows/macOS) with improved customizability and operability
■Up to eight tones created can be saved and recalled as TONE SETTINGS
■POWER CONTROL function that delivers dynamic cranked-up sound even at low volume
■Online platform BOSS TONE Users can freely share tones with each other using EXCHANGE.

Specifications:
■Rated output: 30W (when built-in speaker is operating), 100W (when external speaker is connected)
■Standard input level
INPUT: -10dBu (1MΩ)
AUX IN: -10dBu (20kΩ)
RETURN IN: -10dBu (100kΩ) 12cm speaker

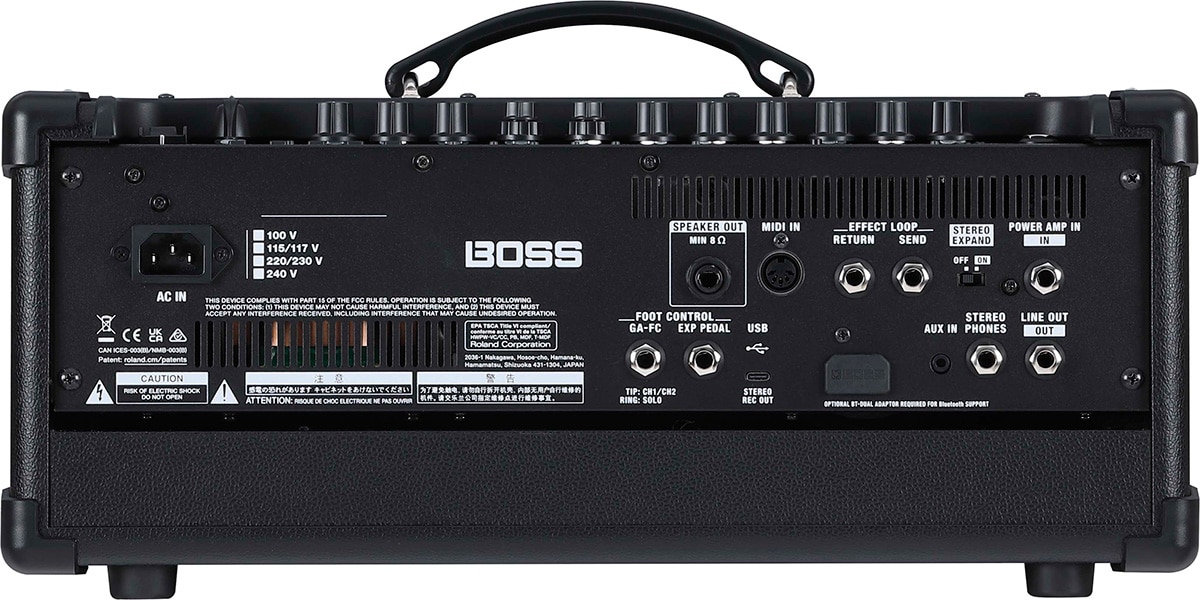

■Connection terminals
INPUT terminal: Standard type
POWER AMP IN: Standard type
LINE OUT terminal: Standard type
SEND terminal: Standard type
RETURN terminal: Standard type
SPEAKER OUT terminal: Standard type (MIN8Ω)
STEREO PHONES terminal: Stereo standard type
EXP PEDAL terminal: Standard TRS type
GA-FC/CTL CH1/CH2 SOLO terminal: Standard TRS type
AUX IN terminal: Stereo mini type
USB terminal: USB C type
MIDI IN terminal
Bluetooth ADAPTOR SLOT: Bluetooth? Audio MIDI Dual Adaptor
AC IN terminal
■Power supply AC100V (50/60Hz)
■Power consumption 77W
■Accessories: Instruction manual, power cord, 2P-3P converter, warranty card, GA-FC seal
■Dimensions: W47cm x D22.8cm x H21.5cm
■Weight: 8.8kg
