BOSS / KATANA-100 GEN 3

The BOSS KATANA-100 GEN 3 is a combo amp that packs legendary amp tones, versatile effects, and superior functionality into a single 12-inch custom speaker and 100W of output.

■Combo amp with 12-inch (30 cm) custom speaker and 100W output
■Advanced BOSS "Tube Logic" delivers even more dynamic sound
■Six amp types including the newly developed PUSHED, each with two different variations to choose from
■Five independent effect categories (BOOSTER/MOD/FX/DELAY/REVERB)
■Special app BOSS TONE STUDIO (Windows/macOS) with improved customizability and operability
■Up to four tones can be saved and recalled as TONE SETTINGS
■POWER CONTROL function delivers dynamic cranked-up sound even at low volume
■Users can freely share tones with each other on the online platform BOSS TONE EXCHANGE
■Supports loading of TONE SETTINGS created with the KATANA series
*Excluding KATANA:GO, KATANA-MINI, and KATANA-AIR series

■Rated output: 100W
■Regulated input level
INPUT:-10dBu(1MΩ)
AUX IN:-10dBu (20kΩ),
RETURN IN:-10dBu(100kΩ)
■Speaker: 30cm x 1

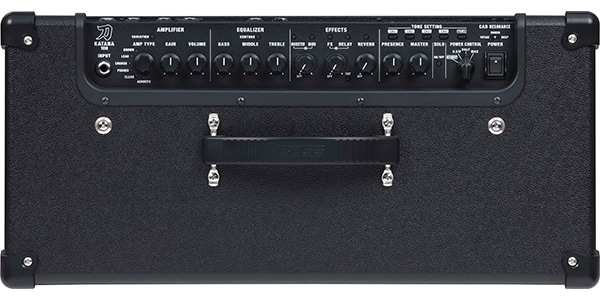

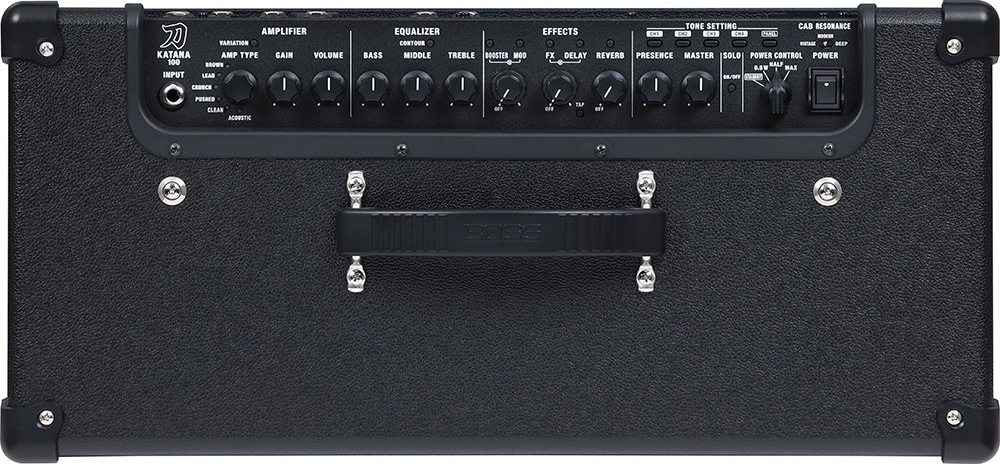

■Controls POWER switch, PRESENCE knob, MASTER knob, SOLO button, POWER CONTROL switch (STANDBY, 0.5W, HALF, MAX), CAB RESONANCE switch (VINTAGE, MODERN, DEEP)

< AMPLIFIER >
VARIATION button, AMP TYPE switch (ACOUSTIC, CLEAN, PUSHED, CRUNCH, LEAD, BROWN), GAIN knob, VOLUME knob

< EQUALIZER >
CONTOUR knob, BASS knob, MIDDLE knob, TREBLE knob

< EFFECT >
BOOSTER button, MOD button, FX button, DELAY button, REVERB button, TAP button, BOOSTER knob, MOD knob, FX knob, DELAY knob, REVERB knob

< TONE SETTING >
CH1 button, CH2 button, CH3 button, CH4 button, PANEL button

< STEREO EXPAND >
STEREO EXPAND switch

■Indicators: VARIATION, ACOUSTIC, CLEAN, PUSHED, CRUNCH, LEAD, BROWN,
CONTOUR, BOOSTER, MOD, FX, DELAY, REVERB, TAP, SOLO, CH1, CH2, CH3, CH4, PANEL

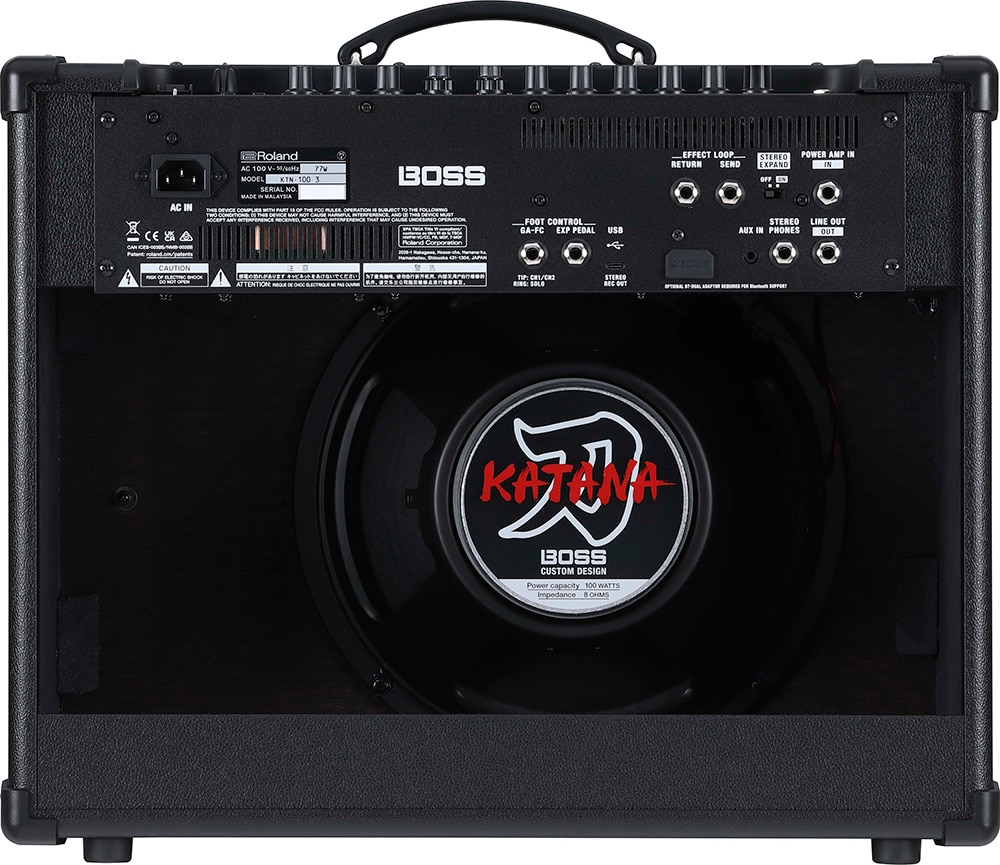

■Connection terminals
INPUT terminal: Standard type
POWER AMP IN: Standard type
LINE OUT terminal: Standard type
SEND terminal: Standard type,
RETURN terminal: Standard type
STEREO PHONES Terminals: Standard stereo type
EXP PEDAL terminal: Standard TRS type,
GA-FC/CTL CH1/CH2 SOLO terminal: Standard TRS type
AUX IN terminal: Stereo mini type
USB terminal: USB C type
Bluetooth ADAPTOR SLOT: Bluetooth R Audio
MIDI Dual Adaptor
AC IN terminal
■Power supply: AC100V (50/60Hz)
■Power consumption: 77W
■External dimensions (including handle and rubber feet): 530 (width) x 248 (depth) x 484 (height) mm
■Weight: 14.8kg
■Accessories: Instruction manual, power cord, 2P-3P converter, warranty card, GA-FC sticker, Roland user registration card
