AZDEN / FMX-42u

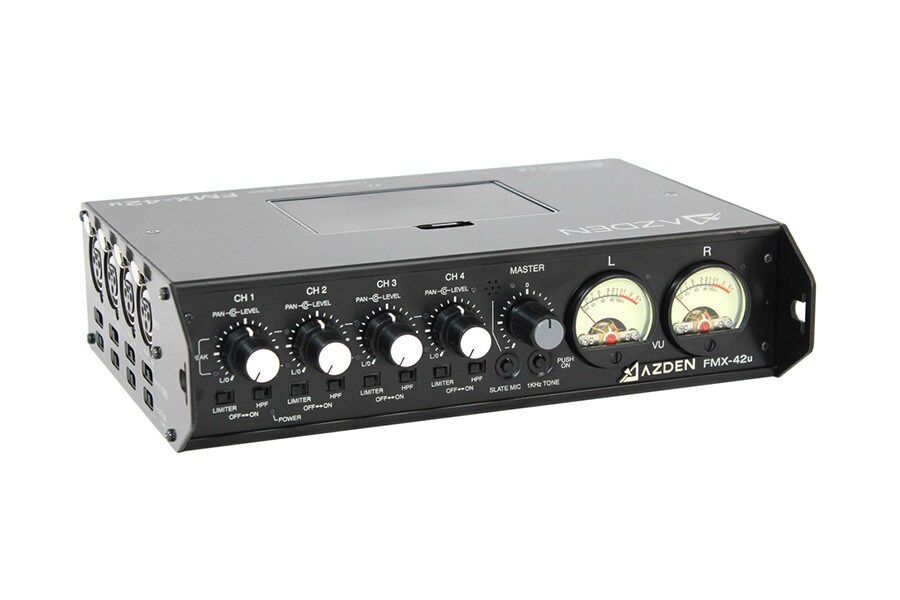

The AZDEN/FMX-42u is a 4-channel portable mixer.

■4-Channel Portable Mixer

Features

A versatile mixer featuring 4 channels of XLR balanced microphone/line inputs, XLR balanced line-level L/R outputs, a φ3.5 unbalanced microphone-level output, and a φ6.3 headphone monitor output.

Includes phantom power with ON/OFF switch, limiter, and low-cut filter. Level monitoring is provided by input peak indicators and VU meters with peak indicators for line-level outputs.

Furthermore, it includes panning function, an announcement mix microphone, and a built-in 1kHz reference sound source. Power is supplied by 6 AA batteries or two external inputs (DC 10.5-17V).

* 4-channel XLR balanced inputs with line level/microphone level (Lo/Hi) switchable independently for each channel.

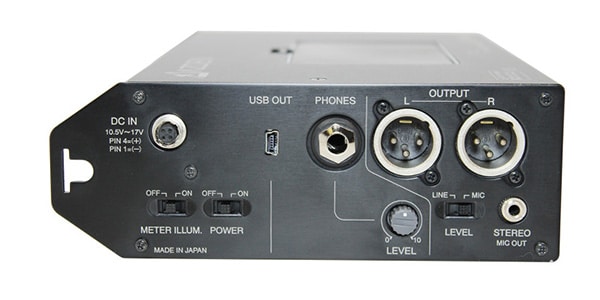

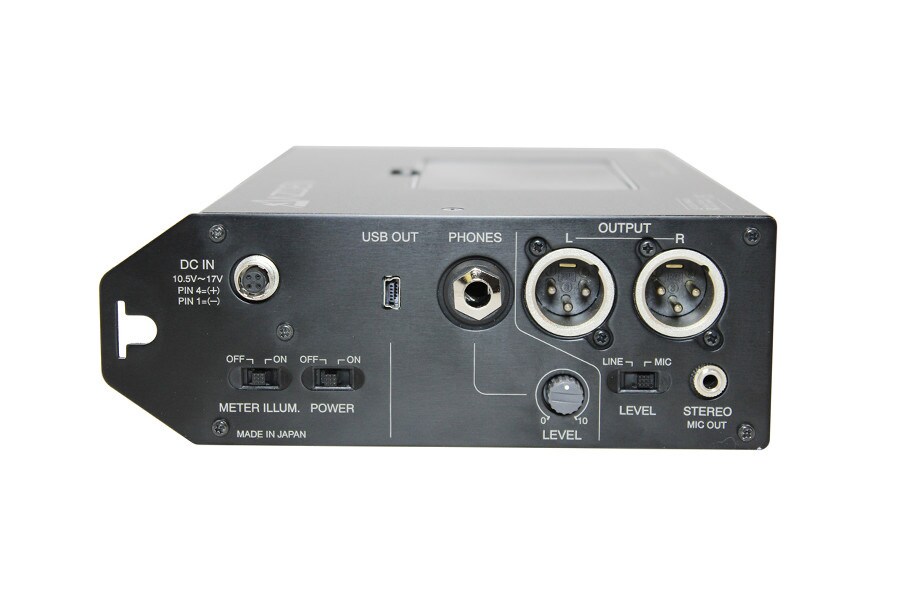

* 2-channel XLR balanced line outputs, φ3.5 stereo jack unbalanced output, φ6.3 stereo jack headphone monitor output.

* Balanced line outputs with line/microphone level selector switch.

* 48V phantom power with independent ON/OFF switch for each channel.

* Low-cut filter to cut frequencies below 100Hz, with independent ON/OFF switch for each channel.

* Over-input is indicated by an input peak indicator for each channel.

* Low-distortion limiter function to suppress over-input levels without clipping, with independent ON/OFF switch for each channel.

* Line output level is displayed on a VU meter with a peak indicator.

* Channel faders to control the mix level of each input channel signal, and a master fader to control the line output level.

* Pan function to continuously position each input channel signal between the Lch and Rch of the line output, independently controllable for each channel.

* Built-in microphone for announcement mixing, with ON/OFF switch.

* Built-in 1kHz reference sound source for level setting, with ON/OFF switch.

* VU meter illumination with ON/OFF switch.

* Power supply: 6 x AA batteries (internal) or external DC 10.5-17V power input.

* Low power indicator when internal battery voltage is low.
