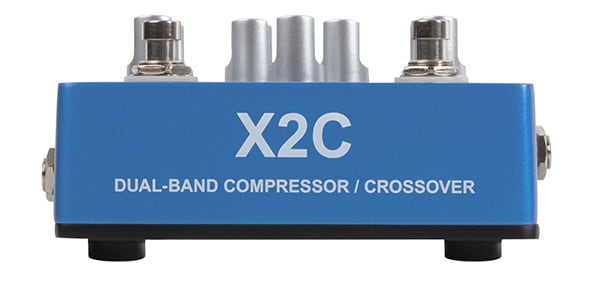

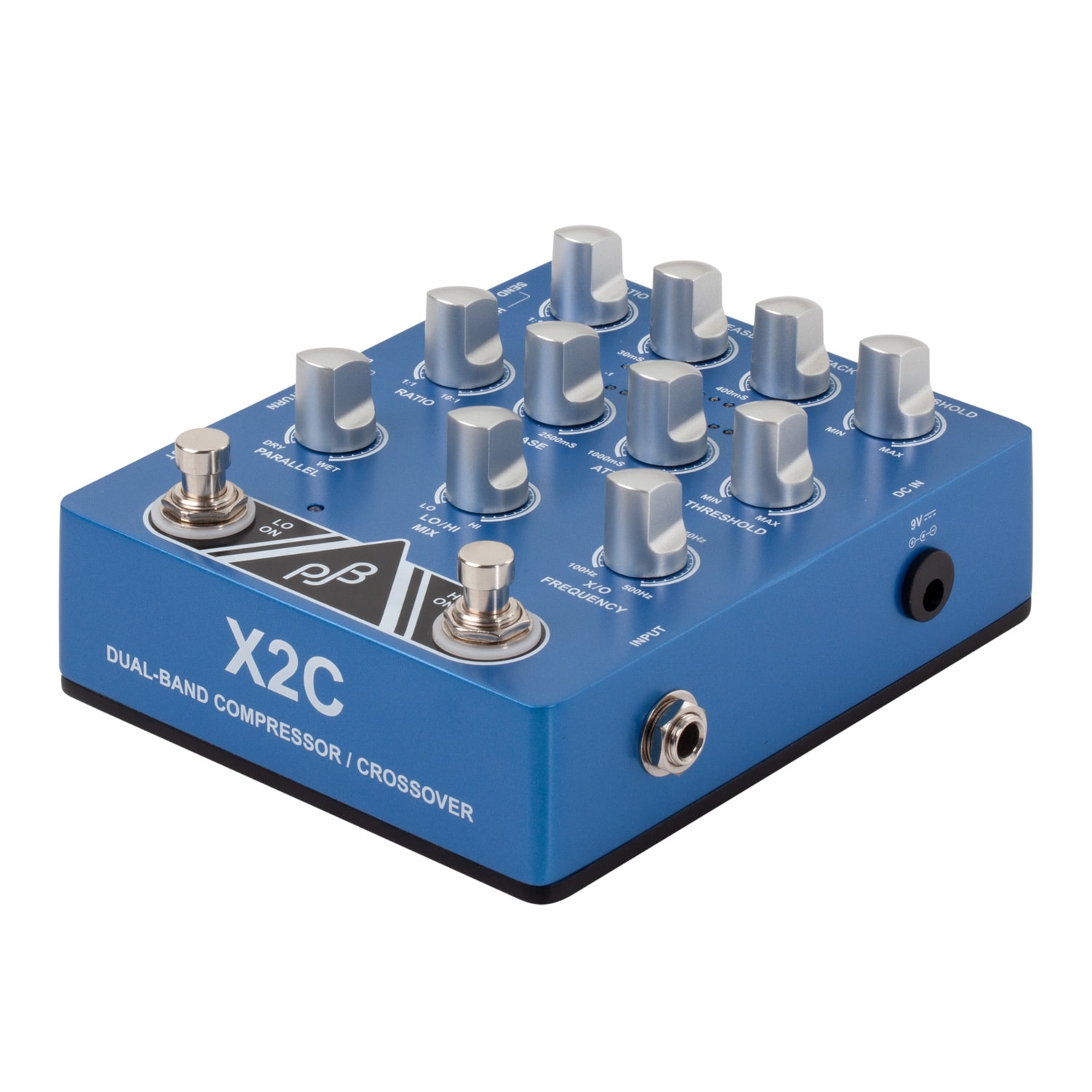

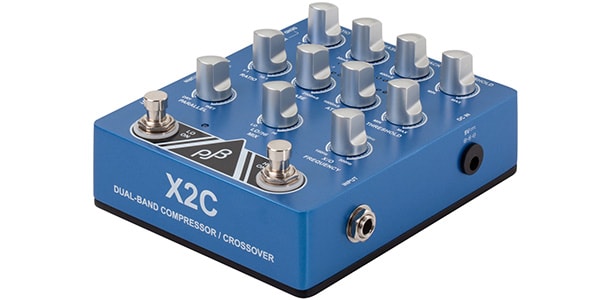

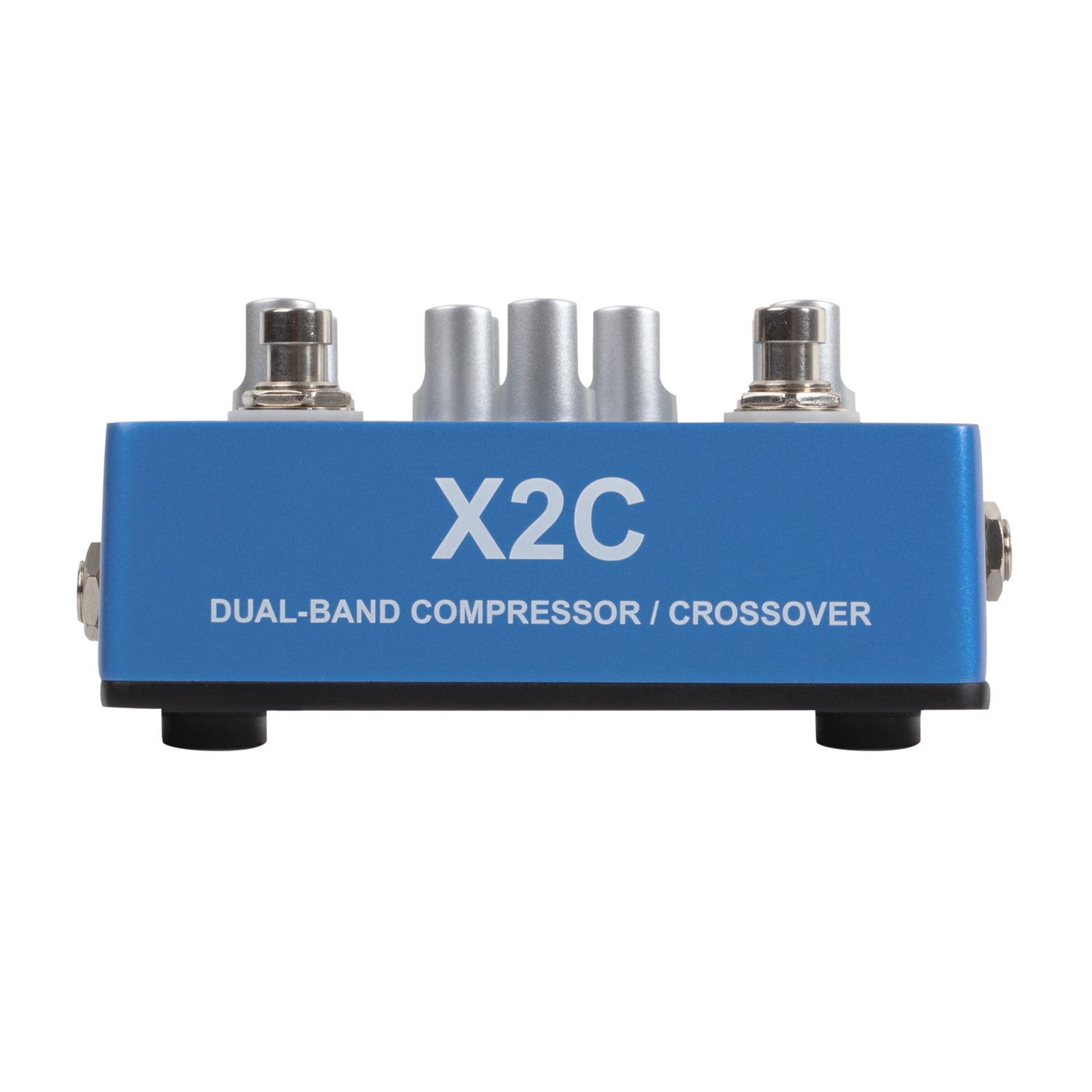

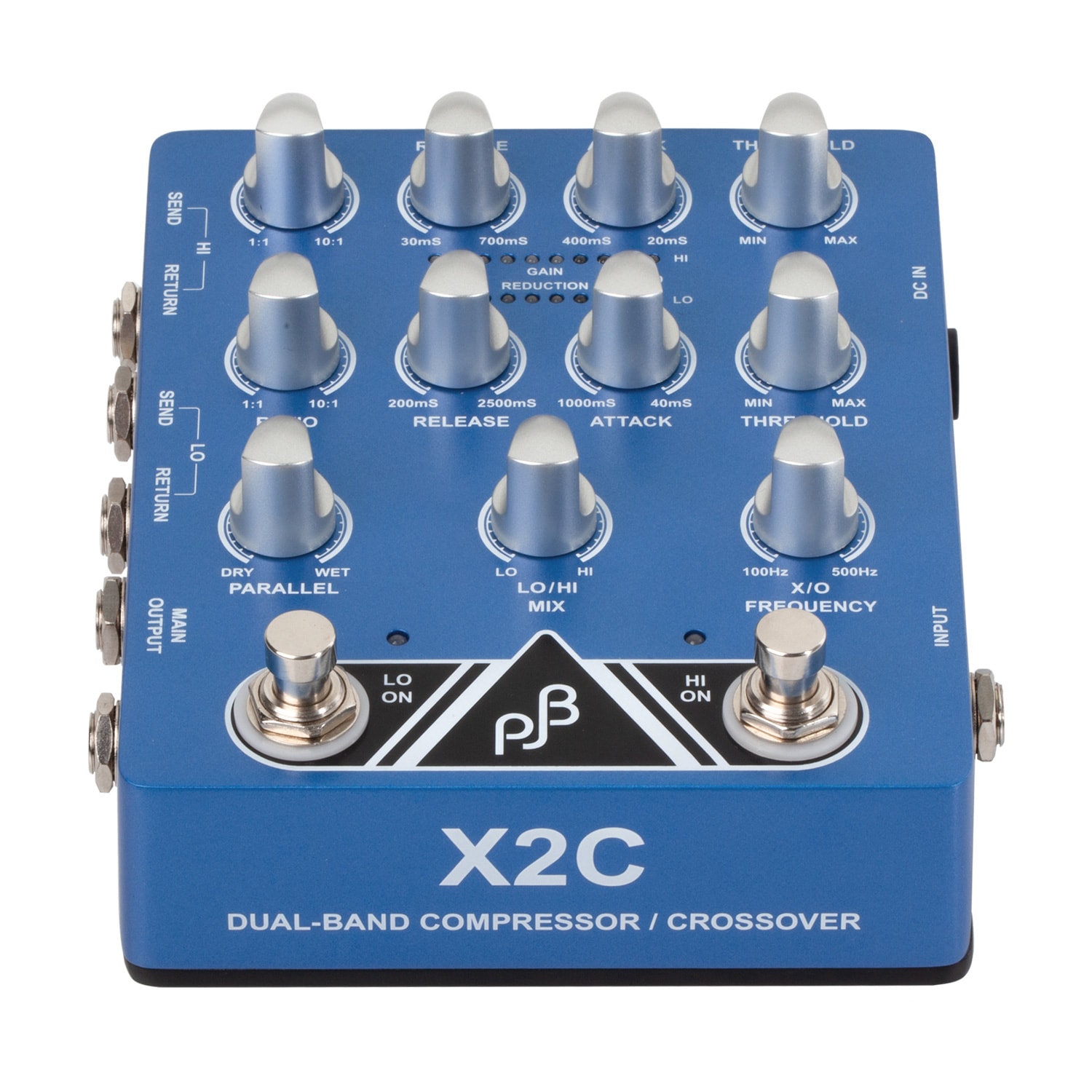

PJB（PHIL JONES BASS） / X2C

This pedal splits the signal into high and low and applies a compressor to each. It has a loop for each band, so you can use it in a variety of ways depending on your ideas, such as applying drive or filtering only to the highs while leaving the power of the lows that tend to be lost by pedals intact, or suppressing excessive low-frequency swell to clarify the pitch and sound quality. You can freely mix the dry and wet sounds and balance each band.

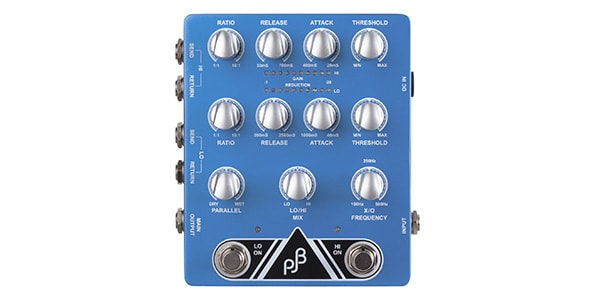

・RATIO...Adjust the compression ratio when the compressor is activated.
・RELEASE...Adjust the time from when the compressor starts until it stops.
・ATTACK...Adjusts how quickly the compressor operates.
・THRESHOLD...Adjust the volume level at which the compressor operates.
・PARALLEL...Blends the original input signal and compressed input signal.
・LO/HI MIX...Adjust the ratio of the HI and LO compressed signals to be blended and output from the OUTPUT. Acts as a tone adjustment.
・X/O FREQUENCY...This control determines the frequency by which the input signal is divided and sent to the high and low frequencies.
・HI ON/OFF...High frequency compressor ON/OFF switch.
・LO ON/OFF...Low frequency compressor ON/OFF switch.

・GAIN REDUCTION LED... Visually displays the effect of the compressor on the audio signal.
・LO ON LED...Lamp of the low frequency compressor.
・LO ON/OFF....Low frequency compressor ON/OFF switch.

・INPUT...Connect an instrument or the output from another pedal.
・MAIN OUTPUT...HI and LO signals are mixed and output.
・LO/RETURN...Returns the signal sent from the LO send to the external effector. When a plug is connected to this jack, the LO send signal is internally cut off, so the signal from this LO return will be output from the main out.
・LO/SEND...This terminal can be used for two purposes.
One is to use it as a general effects loop. Connect the high frequency signal that has passed through the compressor to an external effector from this LO send jack, and then return it to the LO return jack. The second use is as a crossover pedal, which can send high frequency signals to another external amplifier. Even if you connect to this jack, the internal signal will not be cut off, so it will also be output from the main output.
・HI/RETURN...Works the same as LO return in high frequency bands.
・HI/SEND...Works the same as LO send in high frequency bands.

■Effector for bass
■Compressor
■Input impedance: 220KΩ
■Gain width: -16dB to +16dB
■Noise: -85dBu(Level at Max)
■Frequency response: 10 - 25KHz
■Compressor type: VCA compression
■Threshold: 1:1 - 10:1
■Attack-Release:
HIGH attack (400mS-20mS), release (30mS-700mS)
LO attack (1000mS-40mS), release (200mS-2500mS)
■Crossover type: 2-dimensional RC divider 100Hz-500Hz

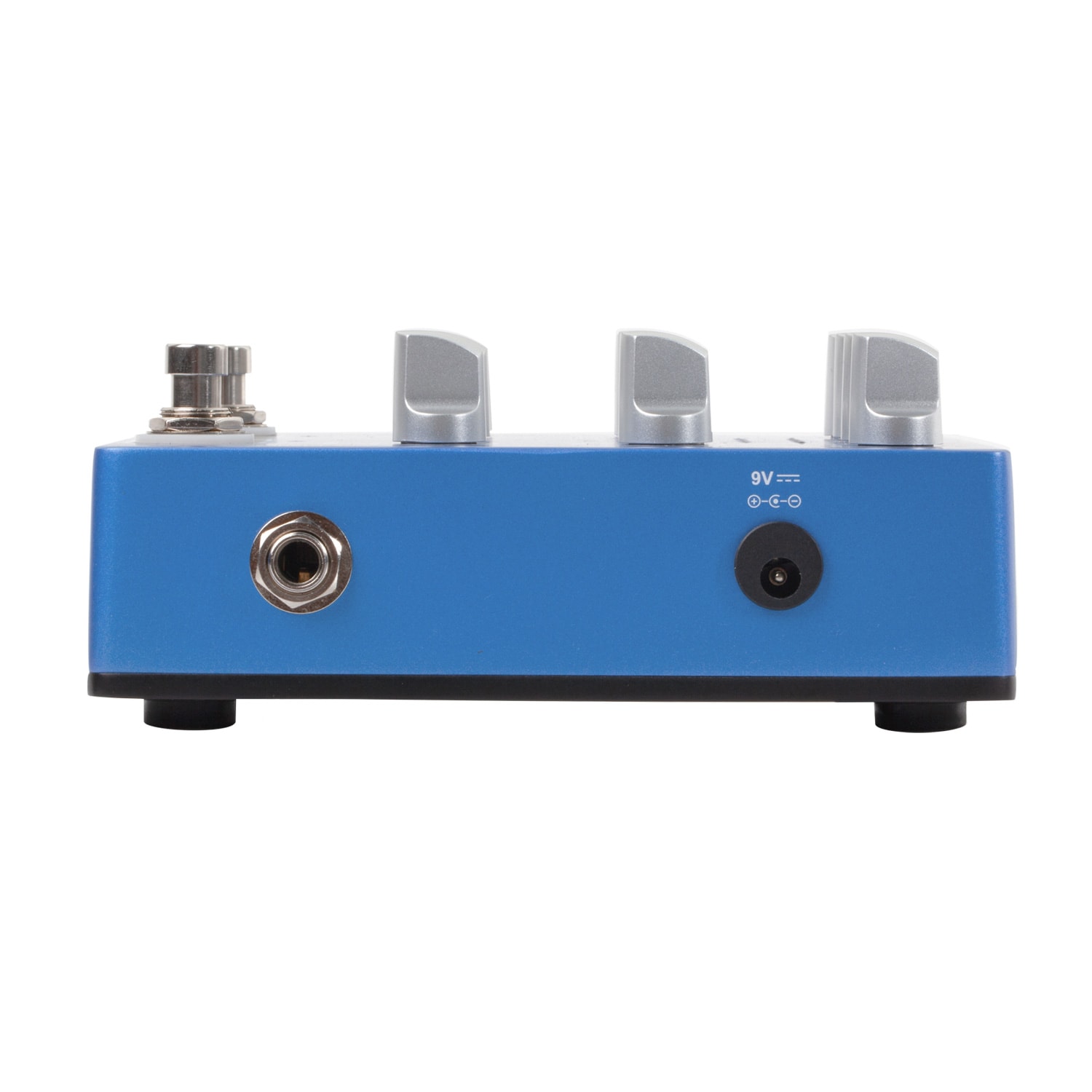

■Power supply: DC9V adapter center negative 1000mA or more recommended
■Power consumption: maximum 680mA
■Size: 120(W) x 40(H) x 144(D)mm (excluding protrusions)
■Weight: 550g
