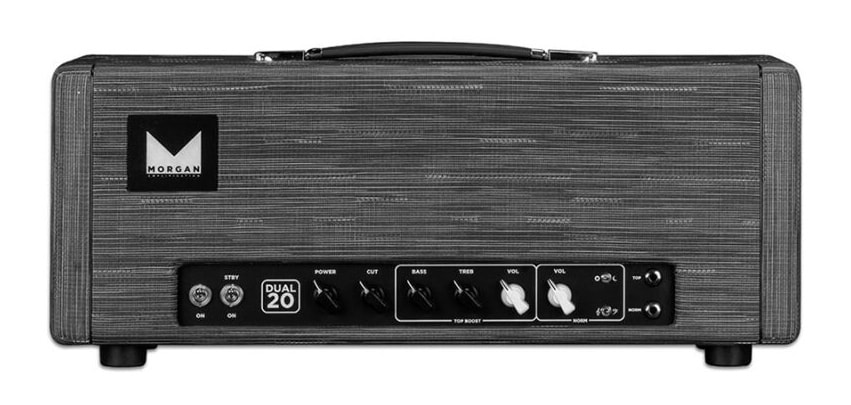

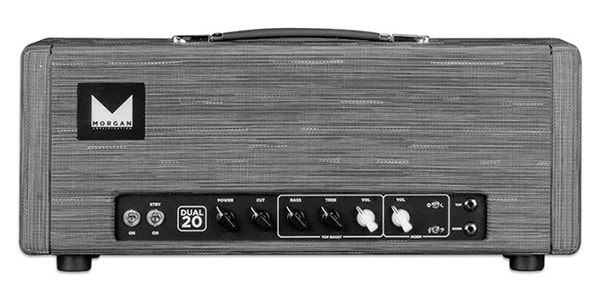

Morgan Amplification / DUAL20 HEAD

American boutique guitar amplifier brand Morgan Amplification has released the American-made, hand-wired amplifier "DUAL 20 Head"!

This all-tube amp is equipped with two EL84 power tubes, and has a variable output with a power level control, with an output of 0.25 to 20W.

The POWER control allows you to adjust the output value from 0.25 to 20W without changing the tone, which is common to the master volume, and the CUT control cuts the high frequencies. The top boost channel is equipped with a VOL control and two tone controls, and the normal channel is equipped with a VOL control and two switches to correct the tone.

Each channel incorporates the design of two original models of Morgan Amplification.
The top boost channel is based on the "Abbey" model, and the normal channel is based on the "AC20 Deluxe" model, and is characterized by a sound like a British amp from the early 1960s.
It is also designed to produce the best sound no matter what effect you connect, such as reverb, delay, or modulation pedals.

＜Specifications＞
■Output (RMS): 1/4W to 20W
■Output (Peak): 25W@16Ω(Max), 50W@8Ω(Max)
Preamp tubes: EF86 x 1, 12AX7 x 3
■Power tubes: EL84 x 2
■Rectifier tubes: 5AR4 (GZ34)
■Controls: Power Switch, Standby Switch, Power Control, Cut Control, [Top Boost Section] Bass Control, Treble Control, Volume Control, [Normal Section] Volume Control, Bright Switch, Bass/Treble Switch Preamp Tube Selector Switch
■Compatible power supply: 100VAC, 50/60Hz

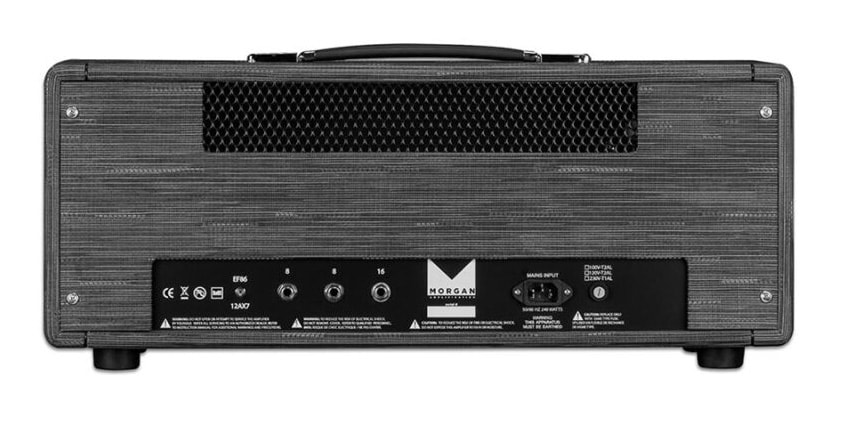

■Speaker output terminals: 16Ω x 1, 8Ω x 2
■External dimensions: 7.5″ (D) x 17″ (W) x 9.75″ (H)
■Weight: Approx. 11kg
