JBL / EONONECOMPACTSET3

A great value set of JBL battery built-in PA speaker EON ONE Compact and AKG wireless microphone set DMS100. If you use the dedicated USB power cable, you can use the wireless microphone even in places where there is no power source.

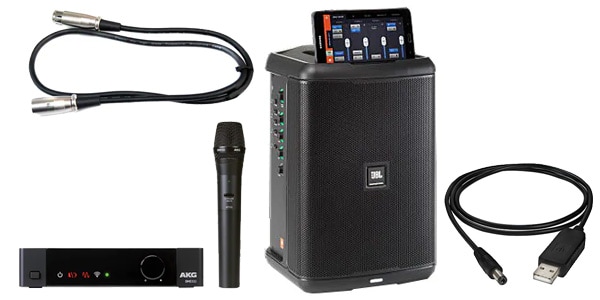

■Set contents
JBL EON ONE Compact x1
AKG DMS100 wireless microphone set x1
5V→9V USB power cable x1 for JBL EON ONE Compact
CLASSIC PRO MIX010 XLR female to XLR male cable x1

■JBL EON ONE Compact
JBL EON ONE Compact is a rechargeable portable PA speaker. It weighs only 8kg and is portable. Equipped with an 8-inch speaker, 4-channel mixer, Bluetooth control function, and a battery that can run for up to 12 hours in a compact body. Recommended for street live performances.

JBL EON ONE Compact packs professional speakers, a full-featured 4-channel mixer, and Bluetooth control into the most compact battery-powered PA weighing just 8kg. Achieve great sound in seconds without a professional sound engineer with professional effects and presets from Lexicon and dbx on your smartphone or tablet using the JBL PRO CONNECT app. Presenters, fitness instructors, and hosts will love EON ONE Compact's ducking feature, which lowers the volume of background music when audio input is detected. You can also play music using Bluetooth. Plus, the easy-to-replace battery provides 12 hours of continuous operation, so you can keep the party going for a long time. If you're a singer-songwriter, DJ, MC, fitness instructor, or want to enjoy great sound on the go, look no further than JBL EON ONE Compact.

■Powered
■2 way
■Woofer: 8 inches
■Tweeter: 1 inch
■150W(PEAK)
■Sensitivity (SPL): 112dB
■Frequency characteristics: 37.5Hz-20kHz

■4 channels
■Input: 2xXLR/TRS combo, 1x1/4 Hi-Z, 1x1/8 aux
■Output: 1x1/8 headphones, 1x1/4 TRS phone
■Effects: Reverb, chorus, delay

■Charging time: 2.5 hours (no signal), 6 hours (with signal)
■Battery life: 12 hours (1/8 volume), 4 hours (max volume)

Coverage: 100°x60°
■Size (L x W x H): 291 mm x 255 mm x 399 mm
■Weight: 8kg

■Bluetooth
Ver5.0
Profile: AVRCP, A2DP
Codec: SBC, AAC

■Best output sound pressure level in its class 112 dB
■8-inch woofer that can reproduce low frequencies up to 37.5 Hz
■Super lightweight unit weighing only 8kg
■Quick and easy setup using presets in the JBL EON Control app (up to 20m)
■Achieve the best sound with professional effects such as EQ, reverb, chorus, and delay
■4-channel mixer to balance volume levels
■ Optimize your sound with 8-band EQ that can be customized with presets
■Smartphone or tablet sound sources can be played from up to 4 EON One Compact devices via Bluetooth.
■Operate two EON ONE Compacts in stereo mode
■Two professional preamplifiers provide rich sound from various microphones
■Two XLR/TRS combo jacks for connecting microphones, instruments, and playback devices, 1/4"" Hi-Z guitar input, 3.5mm (1/8"") Aux input
■Phantom power that enables use of condenser microphones (ch1 only)
■One-touch ducking function that automatically attenuates the BGM volume when audio input is detected
■Two USB 3.0 ports allow fast charging of external devices
■Battery that can play up to 12 hours
■Fast battery charging - only 2.5 hours
■You can select the installation mode from monitor or vertical. Sound tuning and mixer display adjust automatically
■Headphone output useful for monitoring practice and setting presets
■1/4 inch through output (TRS phone, monaural) allows you to expand your system by adding EON ONE Compact.
■Pole mount compatible
■External battery charger sold separately
■Ergonomic handle allows for easy transportation

■AKG DMS100 wireless microphone set
AKG wireless microphone set. Up to 4 units can be used in the same area. Adopts diversity method to achieve stable transmission and reception. Includes receiver, handheld transmitter, microphone holder, 2 AA alkaline batteries, power adapter, and English instruction manual.
■Used band: 2.4GHz
■Number of receiving channels: 1ch
■Number of simultaneous use: 4 waves
■Antenna method: Diversity
■Antenna input: 50Ω
■Audio output connector: Phone, XLR
■RF sensitivity: 10mW
■Reach distance: approx. 30m
■Accessories:・Receiver
・Handheld transmitter
・Microphone holder
・AA alkaline battery x 2
・Power adapter
・English instruction manual
■Features
・Up to 4 devices can be used in the same area
・Since audio information is encrypted and transmitted using AES256bit, the risk of leakage to the outside is kept low.
・Adopts diversity method. Realizes stable transmission and reception. Furthermore, it is equipped with a DFS function that automatically switches the transmitting and receiving frequency according to the surrounding radio wave conditions.
- Adopts 24bit/48kHz digital transmission method. It clearly reproduces the captured sound without degrading it.
-Equipped with XLR terminal and TS phone terminal on the back.

■System specifications
Carrier frequency: 2.4GHz band (2402MHz-2480MHz)
Encryption: 256-bit AES
Maximum number of systems used: Up to 4 systems can be used in the same area *1
Maximum reach distance: Approximately 30m *The radio wave range varies depending on radio wave conditions and the presence or absence of reflections and interference.
Latency: 2.9ms or less
Radio wave format: F1D
Modulation method: GFSK (Gauss filter shift keying)
Number of tuners: 1ch
RF power: 10mW
THD: 0.05% or less
Frequency characteristics: 70Hz-20kHz(+1/-3dB)
Dynamic range: 116dB
AD-DA conversion: 24bit, 48kHz

■Receiver
Number of tuners: 1ch
Output terminal: XLR or TS phone
Maximum output: XLR: +15dBu, TS phone: +9dBu
Power supply: Power adapter (AC100V, 50/60Hz), DC 9V (1.3A),
Dimensions (W x H x D): 200 x 44 x 141 mm (excluding protrusions)
Mass: 368g

■Handheld transmitter
Format: Dynamic type
Polar pattern: supercardioid
Antenna type: built-in
Power source: AA alkaline batteries x 2
Battery life: Approximately 12 hours *Varies depending on usage conditions and environment.
Dimensions: φ51×250mm
Weight: 248g (excluding battery)

Because it uses a frequency in the 2.4 GHz band, the communication distance may be shortened or the sound may be interrupted if there is an obstacle between the transmitter and receiver, if the transmitter or receiver is placed directly on the ground or floor, if the transmitter or receiver is placed directly on the ground, if used outdoors in the rain, or if used in a location where equipment that transmits radio waves, such as a wireless LAN or microwave oven, is used. If it does not work properly, remove obstacles or change the location of use.

■5V→9V USB power cable for JBL EON ONE Compact
USB power cable for EON ONE Compact
Can also be used with EON ONE Mk2 and PRX ONE
5V→9V
center minus
Supports up to 1300mA
1m
For AKG/DMS100,300
*Please do not use it with other than compatible products.

■CLASSIC PRO MIX010
■Type: Microphone cable
■Plug shape: XLR (male) - XLR (female)
■Length: 1m
