Benidub / DS71：ダブサイレン

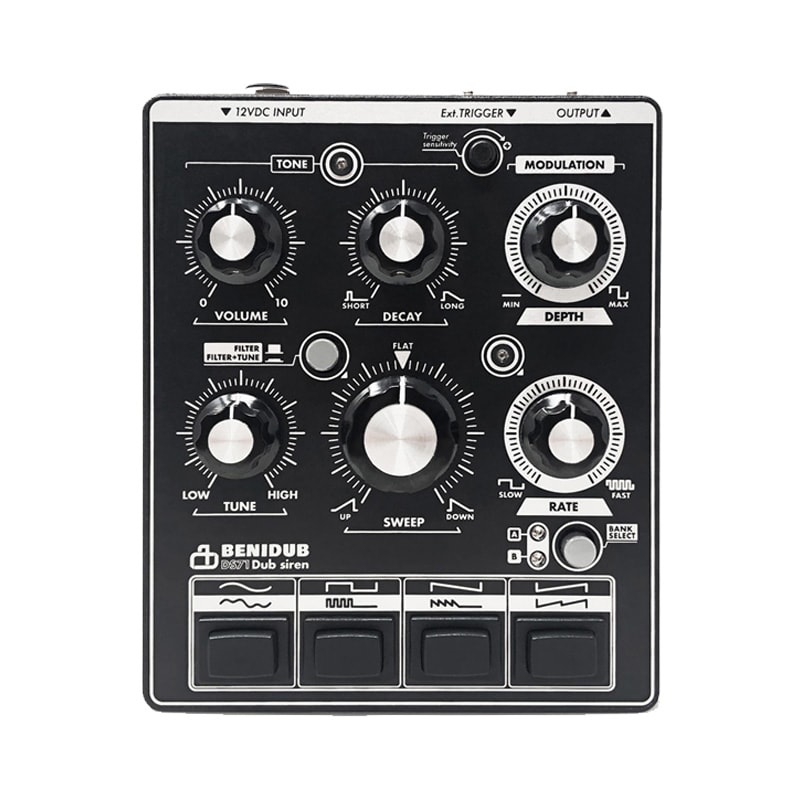

The [DS71 Dub Siren] is an analog synthesizer designed to make it easy to create a wide variety of dub siren sounds with your fingertips.

It is made up of an analog synthesizer sound signal circuit that allows you to access eight different waveforms instantly by pressing one of the trigger buttons, and a control signal circuit that includes a powerful digital LFO (low-frequency oscillator).

It is also possible to use it like a synth drum instrument by generating a siren sound using various trigger sources such as electronic drum pads and audio input, using an external trigger input.

Features
Analog square wave oscillator
Analog 12dB/oct low-pass VCF (filter) + fixed resonance
Analog VCA (noise reduction) using discrete transistors
Digital LFO modulation for instant control of 8 different waveforms

Specifications
Audio output: 1/4“ phone jack (balanced/unbalanced)
Trigger input: 1/4” phone jack (unbalanced)
Power input: 100-240V, 12VDC, 500mA
Dimensions: 120 x 150 x 60mm (*including knobs and connections)
Weight: 580 grams

Accessories
AC-DC adapter (input: AC100-240V 50/60Hz, output: DC12V 500mA, plug: 2.1mm)
User manual (Japanese)
Warranty (6-month warranty)
