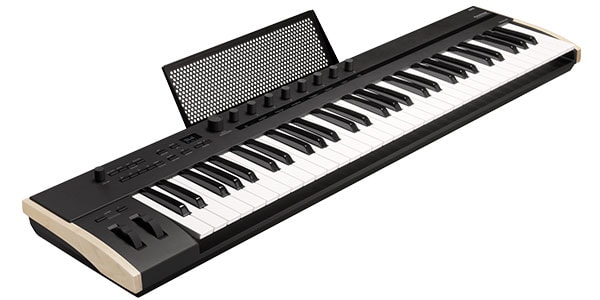

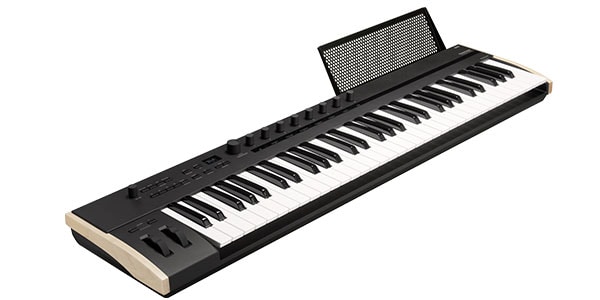

KORG / Keystage 61鍵 MIDIコントローラー

KORG / Keystage is a MIDI keyboard with an audio interface that supports MIDI 2.0. It is equipped with MPE and polyphonic aftertouch, and can be used not only for music production but also for live performances. It also has a plate that can be used as a place for a laptop computer, ensuring expandability. Seamless DAW control is achieved by adding scripts. 61-key model.

■MIDI keyboard
■61 keys
■MIDI 2.0 compatible

The world's first Keystage with MIDI 2.0 property exchange enables unparalleled coordination and control, taking your music production to a new level.
With excellent touch response, polyphonic/channel aftertouch, and MPE (MIDI Polyphonic Expression), Keystage provides intuitive, visual control via its OLED display. It also features a powerful arpeggiator, a variety of chord mode functions, a built-in audio interface, and extensive compatibility with Ableton Live.
Whether you're in the studio or on stage, you can focus on your performance without letting your inspiration get in the way.

Specifications
Keyboard
Poly-touch keyboard, 61 keys
Velocity sensitive, with aftertouch and polyphonic aftertouch
Velocity curve: 21 (-10 to 0 to +10)
Octave range: 7 (-3 to 0 to +3)

Controller
Pitch bend wheel, modulation wheel, parameter control knobs x8
VOLUME knob, SETTINGS button, WRITE button, EXIT button, SHIFT button, ARP button, CHORD button, VALUE^/ button,
VALUE dial, PAGE?/+ button, transport buttons, TEMPO button, OCTAVE?/+ button

Display
Main display: OLED (electroluminescent) display
Sub display: 8 OLED displays

Scenes
Number of scenes: 16

Arpeggiator
Arpeggio rhythm patterns: 20

Chord Mode
Preset Chord Set: 32
User Chord Set: 32

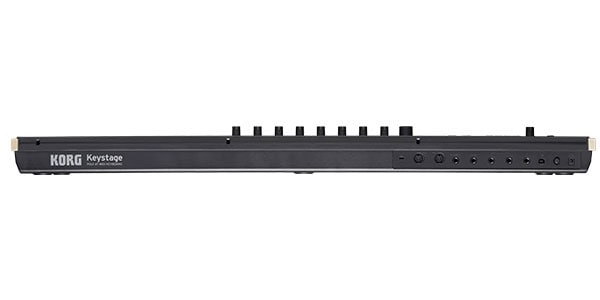

Input/Output Jacks and Ports
USB port, MIDI (IN, OUT) ports, EXPRESSION port, DAMPER port, AUDIO OUT (L/MONO, R) ports, headphone port

Audio Output
AUDIO OUT (L/MONO, R): 6.3 mm TS phone jack (unbalanced)
Headphones: 6.3 mm stereo phone jack

Control Input
DAMPER (half-damper compatible)
EXPRESSION

MIDI
IN, OUT

USB
Type B
MIDI/audio interface
MIDI: 1 in/1 out
Audio: 2ch output
Audio format: 44.1kHz, 16-bit

Power supply
USB bus power or AC adapter (9V DC: Korg KA350, sold separately)
Power consumption: 5V/500mA or less (when powered by USB), 4W (when using AC adapter)

Dimensions (W x D x H), weight
Keystage-61: 979 x 234 x 82 mm, 5.0kg

Included items
USB cable (Type A-Type B), plate, quick start guide, precautions

Included software
Korg Gadget Producer Bundle, wavestate native LE, Ableton Live, etc.
* The specifications of the included software, etc., are subject to change without notice.
