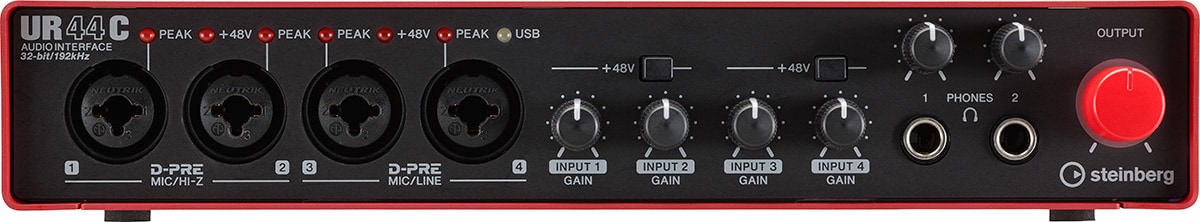

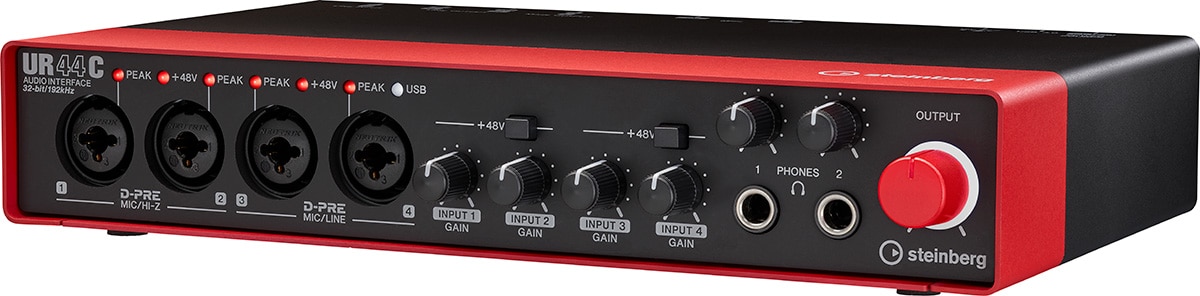

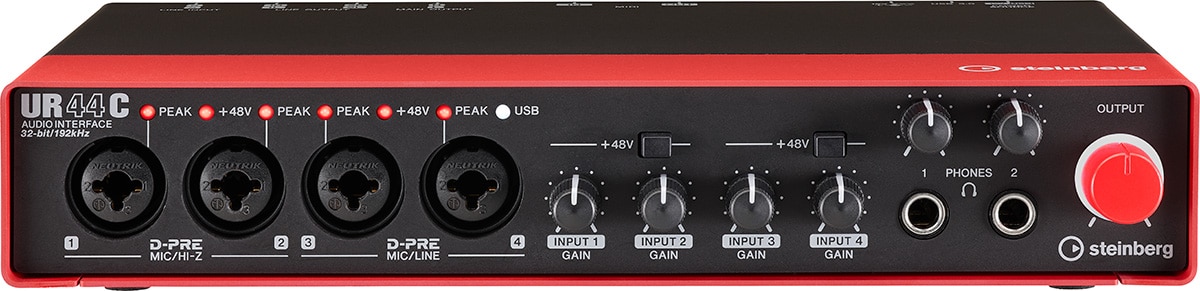

STEINBERG / UR44C Red model Audio interface

An audio interface with 6-in/4-out input/output, 32-bit/192 kHz high resolution, and USB 3.0 Type-C. It comes with a 3-year Sound House warranty! This model has red added to the casing that surrounds the front panel.

■Audio interface
■Red model
*The part surrounding the chassis is painted red
■USB 3.0 (Type-C) compatible
■6 in/4 out
■Cubase AI

■Main features
1. Up to 32-bit recording and playback
The overwhelming amount of information provided by 32-bit integers accurately captures performances and reproduces sound details.

In addition, Cubase AI, which supports 32-bit/192 kHz recording and playback, is included (downloadable), so you can start creating high-resolution audio sources as soon as you purchase the device.

2. USB 3.0 (USB Type-C) compatible
In addition to being equipped with a USB Type-C terminal, it also supports USB 3.0 (USB 3.1 Gen 1) SuperSpeed mode. USB 3.0 (Type-C), which increases transfer speeds and power supply, is the driving force behind the UR-C's high sound quality and advanced functionality.

The dspMixFx technology, which enables a latency-free monitoring environment and DSP effect processing, is available on all models, including the UR22C. What's more, the UR22C and UR44C (*1) can be used with bus power.

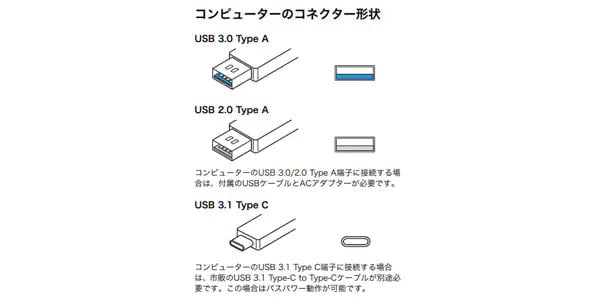

1 The UR44C can only be bus-powered when connected to a computer's USB-C port using a commercially available USB 3.1 Type-C to Type-C cable.
When connected to a USB Type A port (USB 2.0 or 3.0 port), power is supplied from the included power adapter.

You can control DSP in Cubase from the Inspector in the Project window that you access most frequently, and you can also control it in the dspMixFx mixer application when Cubase starts up.

4. Other features
◇Common to all models
・Increased DSP processing power thanks to the newly developed custom chip “SSP3
・The combination of “SSP3” and the latest drivers reduces latency and also improves stability
・Improved headphone amp output
・The exterior has been finished in a two-tone dark gray and black for a calm atmosphere
・The volume knob has been enlarged and LED lights have been added around it, making it easier to adjust the volume even in dark spaces

■Specifications
Connection method: USB 3.0 (USB Type-C)
Maximum bit rate: 32-bit
Maximum sampling rate: 192 kHz
Total input/output: 6 in / 4 out
Analog input: 4 combo
Mic input: 4 (D-PRE)
HI-Z input: 2
Analog output: 4
Headphone jack: 2 (100mW+100mW @ 40Ω)
Monitoring setting for stereo input: ○: Set using the “MONO” button on the front panel
Digital input/output: ×
SSPLL: ×
HA mode: ×
Loopback function: ○
dspMixFx technology: ○ ・iOS/iPadOS devices: ○: When using with an iPad/iPhone, the “Apple iPad Camera Connection Kit” or “Lightning - USB Camera Adapter” is required
dspMixFx Remote Bridge: ○

*About bus power
When using bus power to drive the UR44C, a commercially available USB 3.1 Type-C to Type-C cable (sold separately) is required
Bus power can be used with iPad Pro equipped with USB Type-C

Bundled software: DAW “Cubase AI” with 64-bit floating-point audio engine, VST/AU effect bundle “Basic FX Suite” (“Sweet Spot Morphing Channel Strip” / “REV-X” / “Guitar Amp Classics”), multi-touch DAW “Cubasis LE” for iPadOS, mixer app “dspMixFx UR-C” for iOS/iPadOS

Size (W x H x D) / Weight: 252 x 47 x 159 mm / 1.5 kg
Included items - Startup Guide
CUBASE AI DOWNLOAD INFORMATION (paper)
ESSENTIAL PRODUCT LICENCE INFORMATION (paper)
USB 3.0 cable (3.1 Gen1, Type-C to Type-A, 1.0 m)
The UR22C Recording Pack includes the above items, plus a condenser microphone (ST-M01), monitor headphones (ST-H01), microphone holder, and microphone cable.
A power adapter is included (UR44C: PA-150B).


■Operating Environment
Mac: macOS Sierra, macOS High Sierra, macOS Mojave, macOS Catalina
Windows (64-bit): Windows 7, Windows 8.1, Windows 10
iOS: iOS 10, iOS 11, iOS 12, iOS 13

Ports: USB Type-C, USB 3.0, USB 2.0
CPU (required): Intel Core i-series multicore processor 2 GHz or faster, or AMD equivalent processor
RAM (required): 2 GB
Disk space: 1200 MB
Display resolution (recommended minimum): 1280 x 800
Internet environment: license activation, additional downloads, bundled software downloads, user registration, etc., installer downloads, user registration, etc.

Please refer to the manufacturer's website for the latest system requirements.

Cubase AI System Requirements
Mac
Supported OS: macOS 10.12 / macOS 10.13 / macOS 10.14
CPU: 64-bit Intel / AMD multi-core processor (Intel i5 or higher recommended)
Required memory: Recommended RAM size: 8 GB (minimum 4 GB)
Hard disk: 30 GB or more free space
Display: Recommended display resolution: 1920 x 1080 (minimum 1440 x 900 or higher)

Windows
Compatible OS: Windows 7 / 8.x / 10 (64-bit version only)
CPU: 64-bit Intel / AMD multi-core processor (Intel i5 or higher recommended)
Memory required: Recommended RAM size: 8 GB (minimum 4 GB)
Hard disk: 30 GB or more free space
Display: 1280 x 800 pixels or more - full color
Hard disk: Recommended display resolution: 1920 x 1080 (minimum 1440 x 900 or more)
Display: 1280 x 800 pixels or more - Full color
Other: Internet environment: Downloading, installation, license activation, user registration, etc.
* Applications and related data will need to be downloaded during installation
* A high-speed broadband Internet environment is recommended
