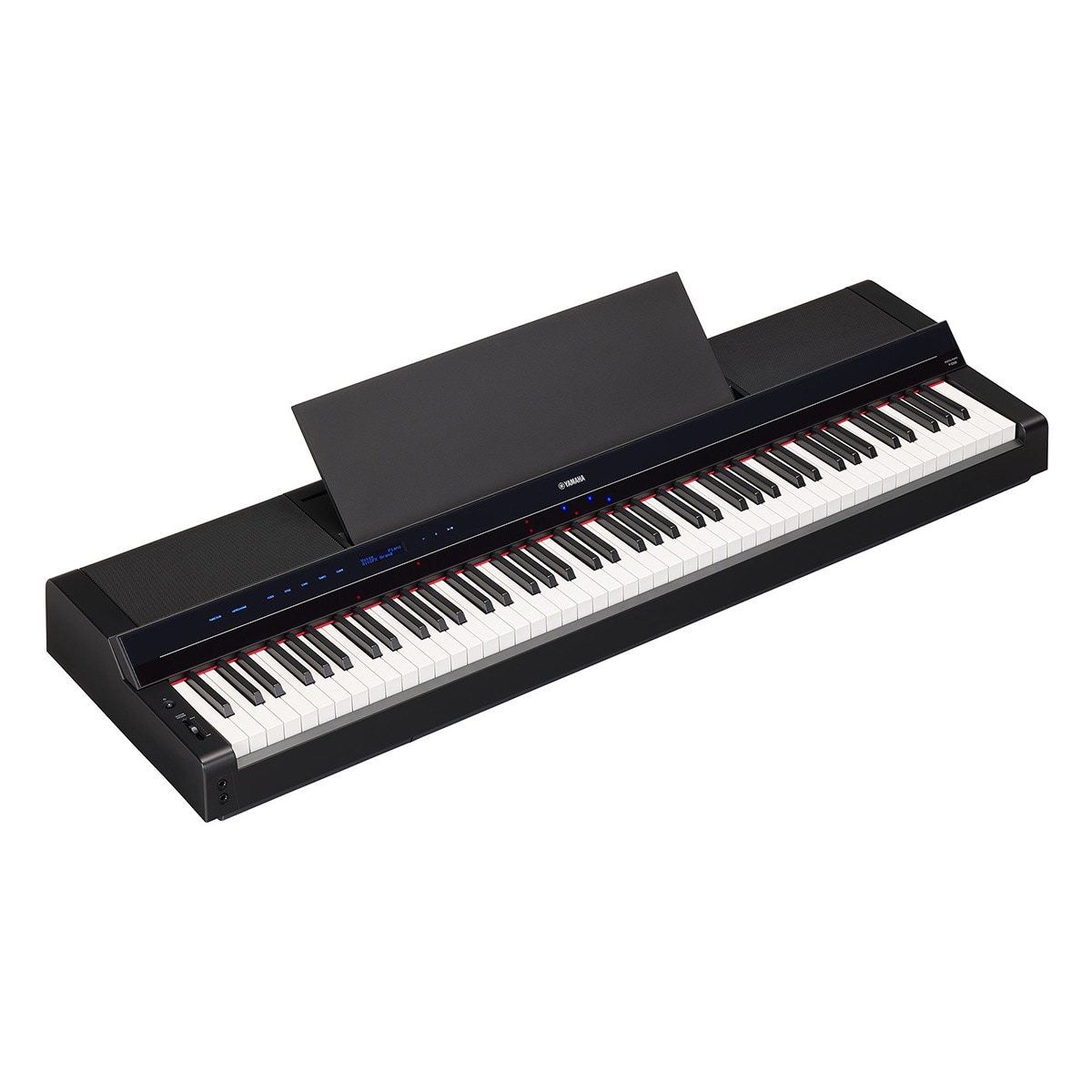

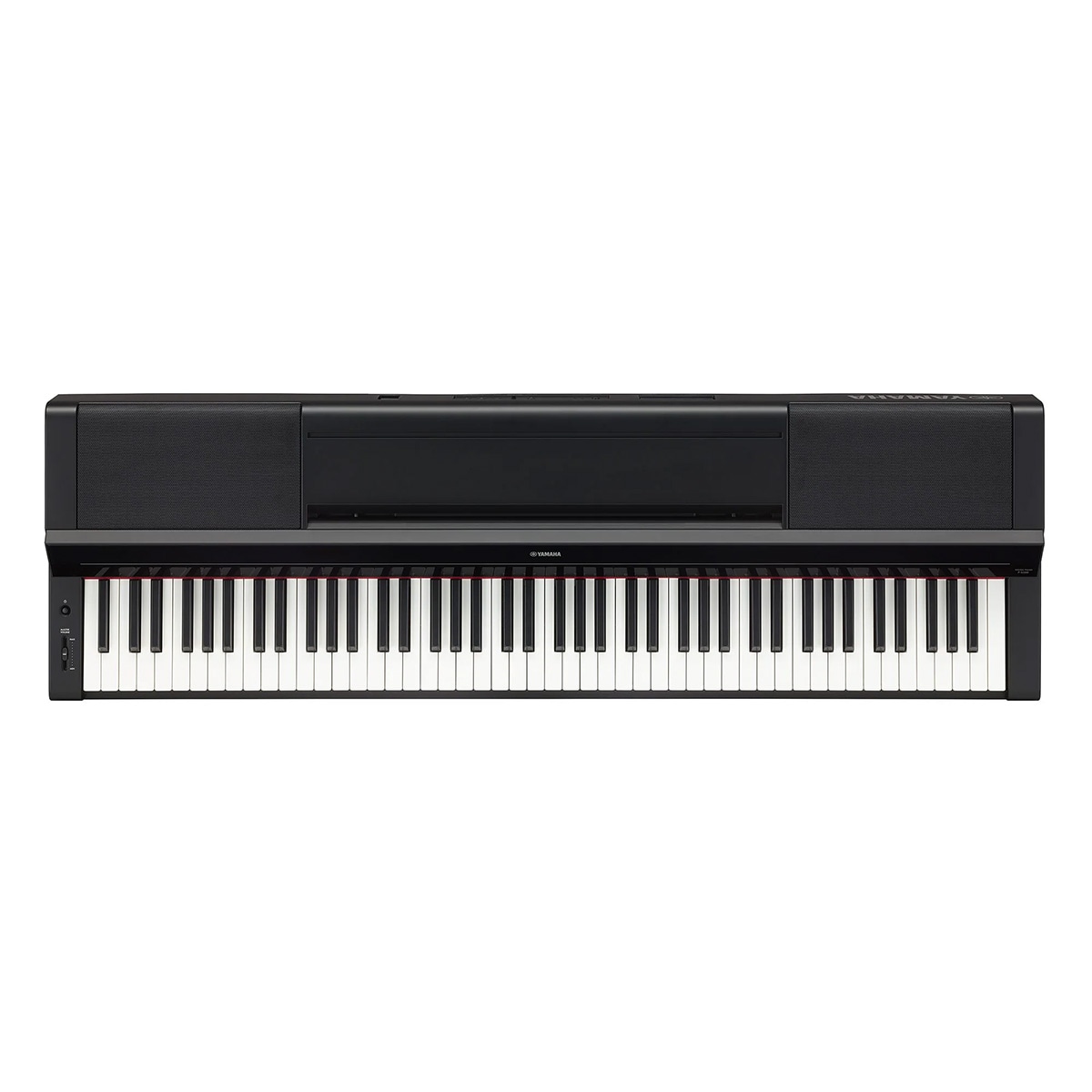

YAMAHA / P-S500B Digital Piano

This 88-key portable smart piano delivers the joy of playing. It features a touch panel display that offers both excellent visibility and operability. It also comes with “stream lights” - red and blue lights above the keys - so you can practice while watching the lights, making it possible to enjoy practicing without having to read sheet music.

■By connecting to a smart device and using the free app “Smart Pianist”, you can intuitively operate a variety of functions. It also supports your performance with many functions, such as analyzing the chord progression of your favorite songs on your smart device and automatically creating piano accompaniment sheets. *Pedals are sold separately.

■Stream Lights guide your performance
The red and blue lights above the keyboard flow from above to indicate the position and timing of the keys you are playing, supporting your performance. You can practice with fun just by looking at the lights, without having to read sheet music.

■Play built-in songs and your favorite songs
There are 403 built-in songs in a wide range of genres, from pop to classical. You can play melodies along with full band arrangements. What's more, you can use the “Audio to Score” function to automatically create piano accompaniment sheets from your favorite songs on your smart device, so you can enjoy playing piano accompaniment to your songs even if you don't have sheet music. *The stand, pedal and chair are sold separately.

■Specifications
Size: Dimensions: Width 1,329 mm, Height 167 mm, Depth 410 mm
Weight: 21.8 kg
Number of keys: 88
Keyboard: Graded Hammer Standard (GHS) keyboard, black keys with matte finish
Touch sensitivity: Hard 2/Hard 1/Medium/Soft 1/Soft 2/Fix
Display: Full dot LCD
Size: 80 x 16 dots
Language: Japanese, English
Panel: Touch sensor
Sound source: Piano sound Yamaha CFX sampling, Bösendorfer Imperial sampling
Binaural sampling: ○ (CFX grand tone only)
Key-off sampling: ○
VRM: ○
Maximum polyphony: 256
Number of voices: 660
Voice types: 13 VRM voices, 111 Super Articulation voices, etc.
Compatible formats: XG, GS, GM, GM2 (all playback only)
Effects: 58 types of reverb, master EQ, 44 types of vocal harmony, intelligent acoustic control (IAC), stereo phonic optimizer, etc.
Functions: Dual 〇, Split 〇
Accompaniment styles: 370 preset styles
Chord detection area: Full/Lower
Number of built-in songs: 403
Number of recording tracks: 16
Data capacity: Depends on the capacity of the smart device
Playback format: SMF (Format 0, Format 1), XF
Recording format: SMF (Format 0)
Registration memory: ○
Lessons/guides: Correct key, Any key, Your tempo
Guide lamp: ○ (Stream Lights)
USB audio recorder: Playback Formats supported by the smart device, recording WAV/AAC
Metronome: ○
Tempo: 5 to 500, tap tempo
Transpose: -12 to 0 to +12
Tuning: 414.8 - 440.0 - 466.8 Hz (approx. 0.2 Hz increments)
Scale: 9

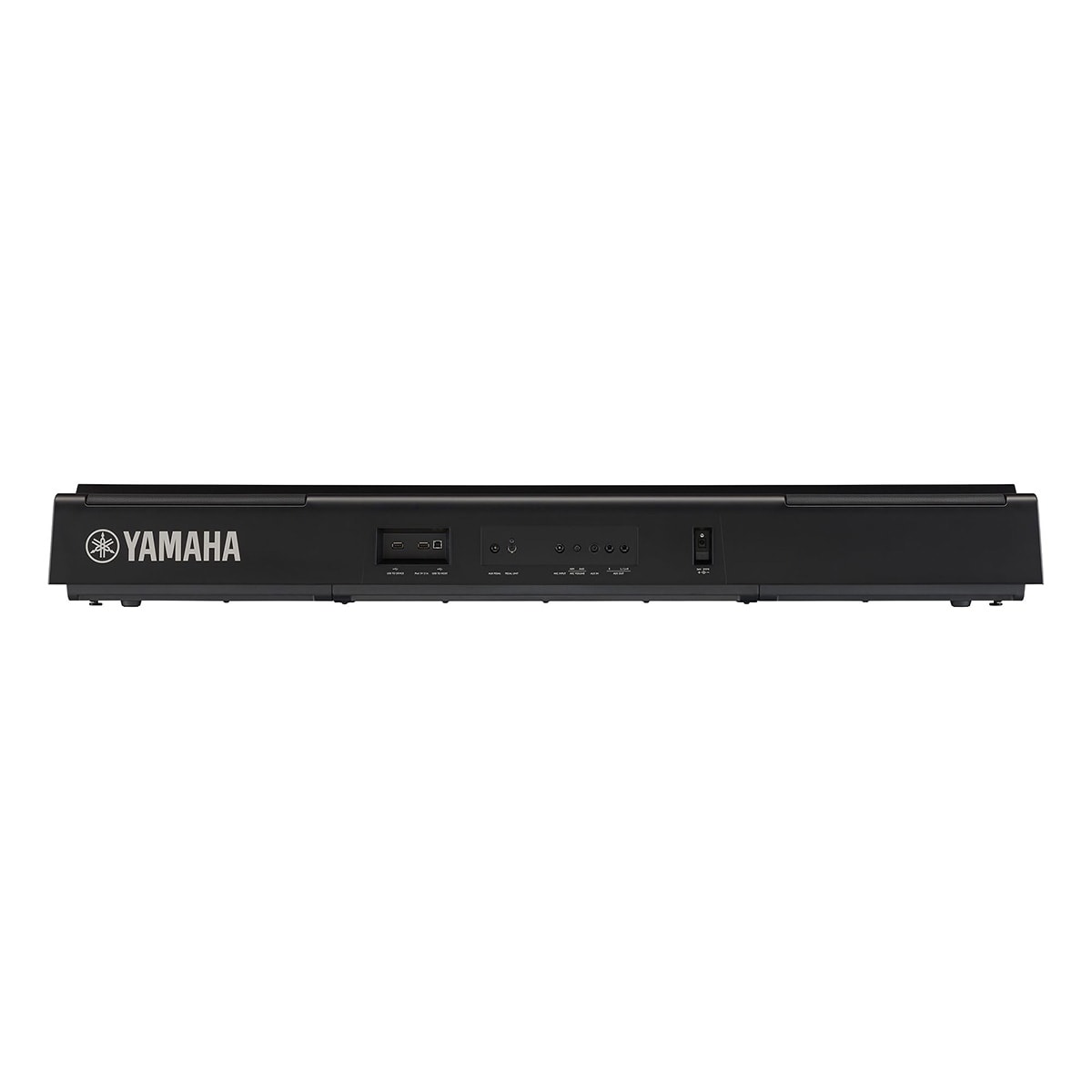

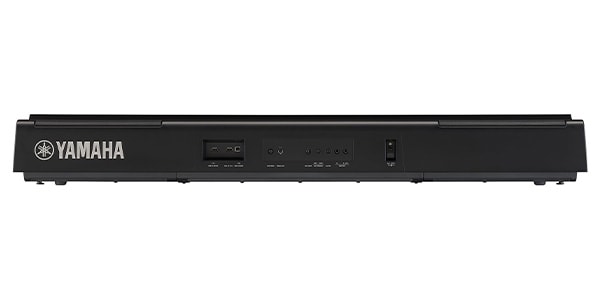

Connection terminals: Headphone stereo standard phone jack (x2), microphone input (mono standard phone jack), input volume, DC IN 24 V, AUX PEDAL 〇, pedal unit 〇 , AUX IN stereo mini jack, AUX OUT standard phone jack (R, L/L+R), USB TO DEVICE 〇, USB TO HOST 〇, iPad 5 V, 2.1 A
Amplifier: (20 W + 6 W) × 2
Speaker: (elliptical (12 cm × 6 cm) + 2.5 cm (dome type)) × 2
Power supply: PA-500 (or equivalent product recommended by Yamaha)
Power consumption: 40 W
Auto power off: Yes
Accessories: music stand, pedal/foot switch, power adapter PA-500 (or equivalent product recommended by Yamaha), warranty card, instruction manual, USB cable (Type A-Type B), USB conversion cable (Type A-Micro B/Type C)
