The Orion32+ | Gen 4 is a Thunderbolt/USB audio interface with up to 130 dB dynamic range, enabling low latency recording of up to 128 channels via Thunderbolt and 32 channels via USB. Digital inputs and outputs include MADI, ADAT and S/PDIF. Comes with a 3-year Soundhouse warranty for peace of mind!
■Audio interfaces.
Thunderbolt3, USB 2.0
ADAT/MADI & SPDIF
An ever-evolving audio legacy of excellence The Orion 32 series has been revolutionising professional production for over a decade, and the latest version of this iconic 1U studio core has taken the best of the past and stepped it up a gear to meet the industry's growing needs and standards. Orion 32+ Gen4 introduces the latest technology from Antelope Audio and significantly increases its potential.
Industry-standard conversion Antelope Audio interfaces have a worldwide reputation for industry-leading AD/DA conversion and clocking, and the new Orion 32 is no exception. Its AD/DA converters have the ability to deliver up to 130dB of dynamic range, making it one of the top high-end multi-channel interfaces. High-performance conversion is also achieved through its unique 64-bit Acoustically Focused Clocking technology and jitter management algorithms, which have proven indispensable in countless productions over the years.
Rich audio inputs and outputs.
Orion 32+ Gen4 doubles the channel streaming and MADI connectivity via Thunderbolt compared to its predecessor, with 128 channels available for daisy-chaining up to four devices over a single computer connection, for large-scale recording Ideal for sessions, live sound, complex post-production set-ups and broadcast facilities. It works well with large mixing consoles, hardware effects processing, analogue summing boxes, open-reel setups and hardware synthesisers.
Compatible with the latest production formats Fully Atmos-enabled surround and immersive audio monitoring systems are supported, with support for over 23 audio formats from stereo to Dolby Atmos 9.1.6. It features accurate speaker and room calibration tools, intuitive monitoring controls and fast preset recall.
MRC.
As a physical extension to the system, the compatible Antelope MRC hardware controller (sold separately) makes it easier to achieve the smooth, tactile control that is key to advanced monitoring.
Enriched features in stylish looks As well as a significantly enhanced look and hardware, the Orion 32+ Gen4 also features an all-new software control panel for a smooth workflow. It features a powerful preset recall system that can recall a variety of settings, including signal routing, level adjustment, mixer settings and monitoring controls. A monitoring pop-out widget has also been introduced for convenient output level control and preset recall, with the ability to always be displayed at the forefront. The routing matrix is now fully customisable for more convenient patching and reduced complexity.
Easy integration of any set-up The Orion 32+ Gen4 is designed for quick and easy integration into a variety of studio configurations based on Thunderbolt or USB connectivity. The interface is compatible with both Windows and macOS and features options such as ADAT ports, so it can be used for everything from recording, mixing, interfacing and AD/DA conversion to advanced patchbays and monitor controllers, making it It is suitable for. The Orion 32+ Gen4 also features DC Coupled I/O, allowing you to send CV signals from your DAW directly to your hardware instruments, making it a perfect match for modular synths.
Designed for perfection.
Since 2012, the Orion 32 has been a favourite in prestigious studio facilities around the world. Continuing this impressive legacy, the fourth generation is designed and manufactured at the company's headquarters in Europe. Each and every unit is rigorously inspected and shipped in perfect condition to provide the best performance and user experience.

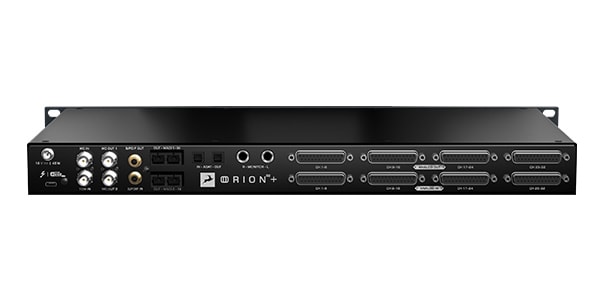

■ Connectivity.
- 32 analogue inputs (4 x D-Sub25 with AC/DC coupling switching) (TASCAM standard)
- 32 analogue outputs (4 x D-Sub25 with DC coupling, TASCAM standard)
- 1 dedicated stereo monitor output via 1/4 TRS
- One USB-C port for computer connection via Thunderbolt 3 or USB 2.0 (128 and 32 channels of I/O at up to 192 kHz respectively) (also Thunderbolt 2 compatible via Thunderbolt 3 to 2 adapter)
- Custom macOS & Windows drivers for low-latency performance in native DAW applications over both Thunderbolt and USB
- Digital I/O: 128 optical MADI channels (up to 48kHz, lower with higher SR), 8 ADAT channels (up to 48kHz, lower with higher SR), 2 S/PDIF channels (up to 192kHz)
- Clocking I/O: 1 word clock input, 2 word clock outputs, 1 10М input
■ Clocking and conversion.
- Proprietary 64-bit Acoustically Focused Clocking (AFC) technology for spacious stereo imaging and clear separation
- High-resolution A/D and D/A conversion ensures 130dB dynamic range on line and monitor outputs and 122dB dynamic range on line inputs for artefact-free audio.
■ Optional multi-channel monitoring system*.
- Support for over 23 formats, from stereo to surround and immersive audio.
- Speaker calibration process for up to 16 channels or 9.1.6 Dolby Atmos
- Extensive monitoring and control features for seamless workflows
- Optional MRC remote controller can be added.
*Licences available from the software store, or you can unlock features by purchasing an MRC Remote Controller.
■ Workflow-enhancing features
- Customisable virtual patchbay allows complex input and output signal routing via drag and drop
- Comprehensive preset system including signal routing, level adjustment, mixer settings and effects
- Convenient monitoring pop-out widget with output level control and five quick preset recall buttons
- Four on-board low-latency stereo mixers with 32 input channels each, with adjustable level, pan and reverb settings
- Ideal for monitoring and summing
- All analogue and digital ports can be used simultaneously for easy integration into multiple systems and different setups;

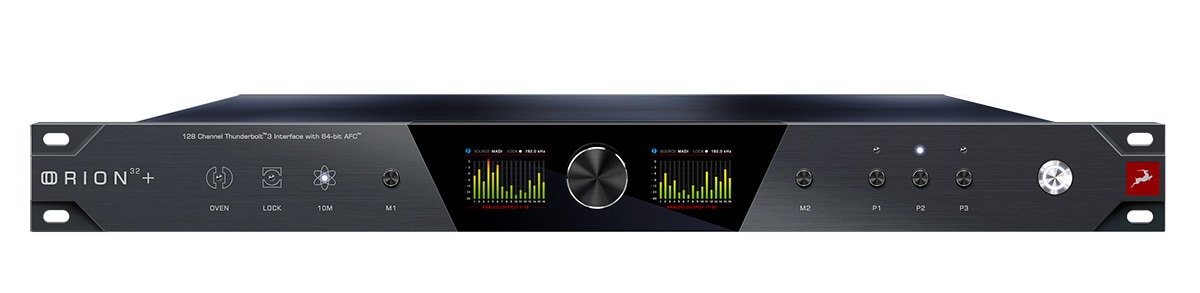

- Two 1.8′ IPS display screens for independent signal metering
- Routing, metering and monitoring can be controlled from the two front panel displays.
■ Included.
- Orion 32+ Gen4
- Getting started guide
- Power adapter
- USB cable
■ Dimensions
Device.
Width: 48.3 cm, depth: 28 cm, height: 4.4 cm, weight: 3.4 kg
Box
Width: 63.6 cm, Depth: 34 cm, Height: 11 cm, 5 kg
