BOSS / SDE-3000EVH

The SDE-3000EVH is a collaborative pedal with EVH that faithfully reproduces Eddie Van Halen's signature stereo delay sound.

Guitarist Eddie Van Halen used three cabinets to create a powerful stereo wet/dry/wet delay sound.
EVH and BOSS have collaborated to develop the SDE-3000EVH Dual Digital Delay to faithfully reproduce that sound.
Two Roland SDE-3000 rack delays are mounted in a floor-type chassis. The SDE-3000EVH is equipped with a full range of inputs and outputs that can be used to realize wet/dry/wet setups.
In addition, eight EVH presets were created by EVH using the SDE-3000 that Eddie actually used as a reference.
You can experience the expansive stereo delay sound that Eddie loved with this unit.

1. special dual digital delay developed by EVH and BOSS
2. faithful reproduction of the Roland SDE-3000 rack delay from the 1980s
3. 8 dedicated presets created by EVH (parameters cannot be checked or adjusted except for output level) 4.
4. input and output jacks for Eddie's wet/dry/wet setup as well as standard mono and stereo connections

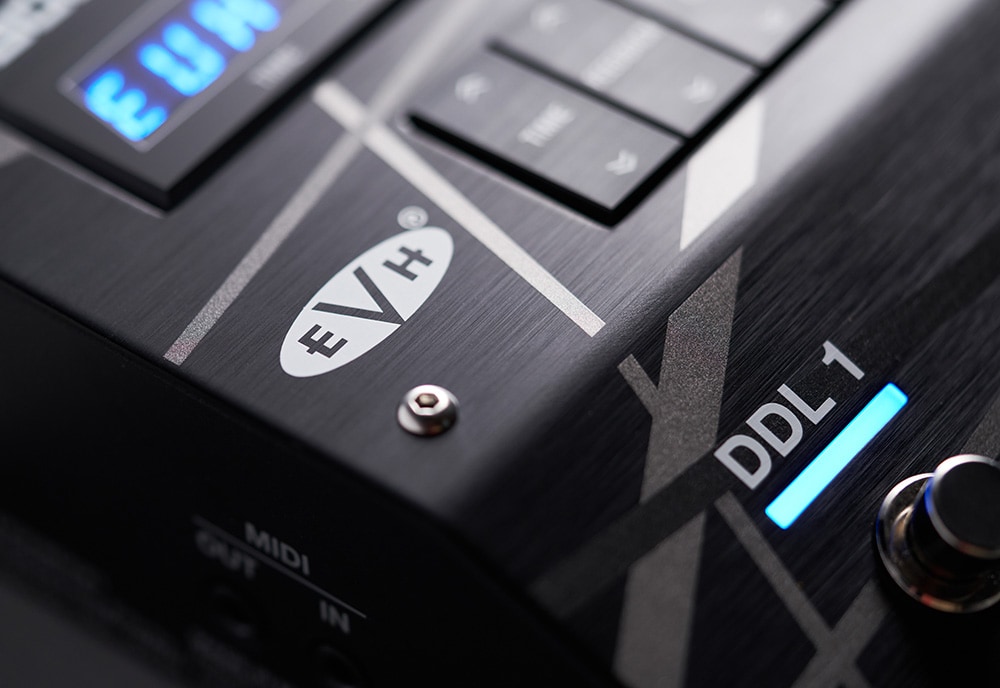

5. distinctive design decorated with EVH logo and stripes
Clear yet warm vintage digital delay sound

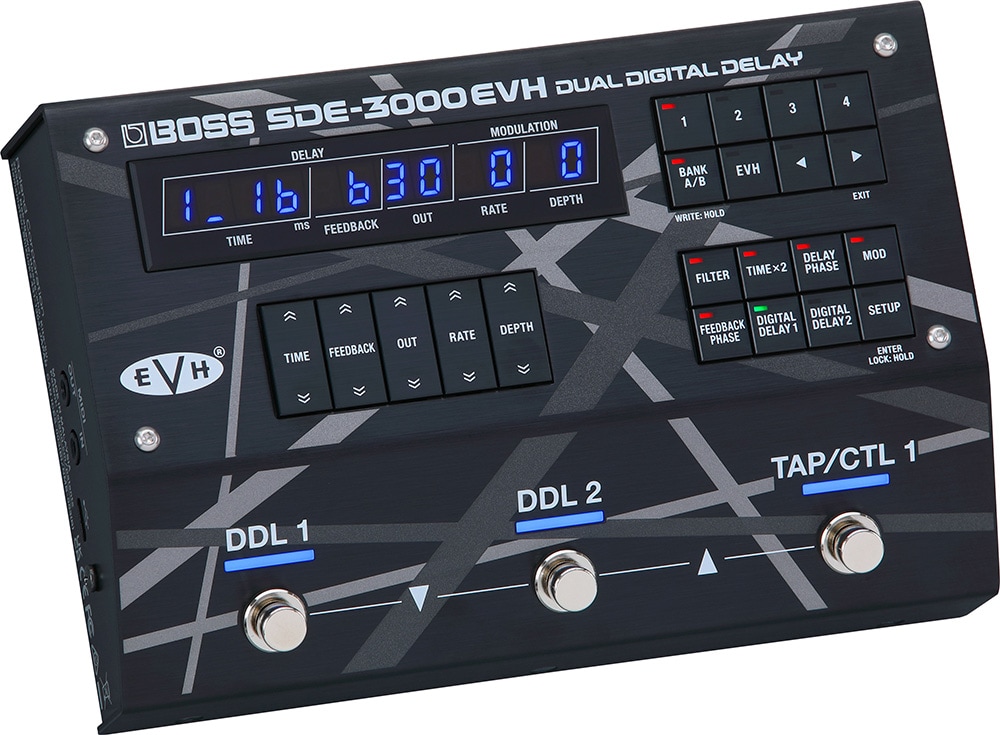

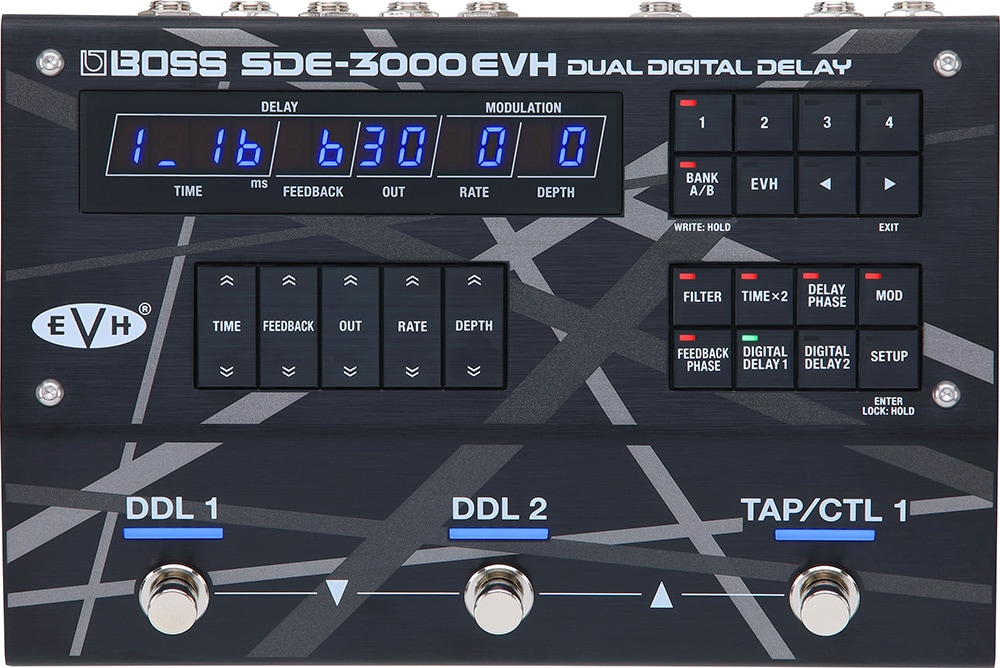

User interface based on the original panel design 8.
Two stereo-compatible SDE-3000s in a pedal-type enclosure 9.
X2 switch to change delay time range from 0 - 1,500 ms to 0 - 3,000 ms
MODULATION switch for beautiful shimmering delay sound
Phase inversion of the delay sound to accentuate the modulation effect. 12.
Low/high cut filter for adjusting the delay sound
SEND/RETURN jacks for external pedal import and 4-cable method
14. switchable impedance on RETURN jack to match the connected device
15. two SDE-3000s can be connected in series or parallel
16. up to 92 favorite settings can be stored
17. built-in noise suppressor 18.
Footswitches on the main unit can be assigned to hold tap tempo or delay sound
19. up to 4 footswitches or 2 expression pedals or GA-FC foot controllers can be connected
20. extensive control expansion jacks for connection of up to four footswitches, two expression pedals, or GA-FC foot controllers
20. TRS mini-type MIDI jacks
21. three ground lift cables included to avoid hum when connecting multiple amplifiers

■Main Specifications
●Sampling frequency: 48 kHz
●AD conversion: 24-bit + AF method * AF method (Adaptive Focus method) is a Roland/Boss proprietary method that dramatically improves the signal-to-noise ratio of the AD converter.
●DA conversion: 32 bits
●Internal arithmetic: 32-bit floating point
●Effect type: SDE-3000 STEREO DELAY × 2, noise suppressor, foot volume
●Memory: 100
●Input Level INPUT MONO jack: -10dBu, INPUT L/MONO jack: -10dBu, RETURN/INPUT R jack: -10dBu
●Maximum input level INPUT MONO terminal: +12dBu, INPUT L/MONO terminal: +12dBu, RETURN/INPUT R terminal: +12dBu
●Input impedance INPUT MONO pin: 1M Ω, INPUT L/MONO pin: 1M Ω, RETURN/INPUT R pin: 1M Ω /180k Ω switchover
●OUTPUT DIRECT, OUTPUT EFX L, OUTPUT EFX R: -10dBu
OUTPUT L/MONO, OUTPUT R: -10dBu
SEND: -10dBu
●Output impedance OUTPUT DIRECT, OUTPUT EFX L, OUTPUT EFX R: 1k Ω
OUTPUT L/MONO, OUTPUT R: 1k Ω
SEND: 1k ohm
●Recommended load impedance OUTPUT DIRECT, OUTPUT EFX L, OUTPUT EFX R: 10k Ω or more
OUTPUT L/MONO, OUTPUT R: 10k Ω min.
SEND: 10k ohms min.
●Controls: TIME button, FEEDBACK button, OUT button, RATE button, DEPTH button, 1 - 4 buttons, BANK A/B button, EVH button, LEFT button,
RIGHT button, FILTER button, TIME x 2 button, DELAY PHASE button, MOD button, FEEDBACK PHASE button, DIGITAL DELAY1 button,
DIGITAL DELAY2 button, SETUP button, DDL1 switch, DDL2 switch, TAP/CTL1 switch, GND LIFT switch,
RETURN IMPEDANCE switch
●Display: 7-segment, 12-digit LED

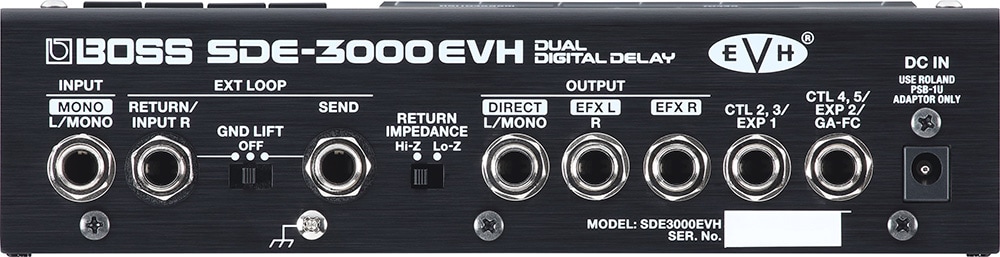

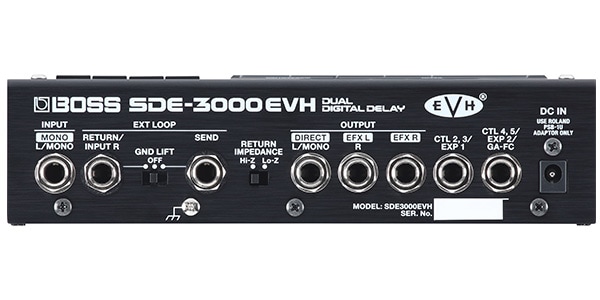

●Connections INPUT MONO pin, INPUT L/MONO pin, OUTPUT DIRECT pin, OUTPUT EFX L pin, OUTPUT EFX R pin, OUTPUT L/MONO pin, OUTPUT R pin,
SEND, RETURN/INPUT R: Standard type, CTL2, 3/EXP1, CTL4, 5/EXP2/GA-FC: TRS standard type,

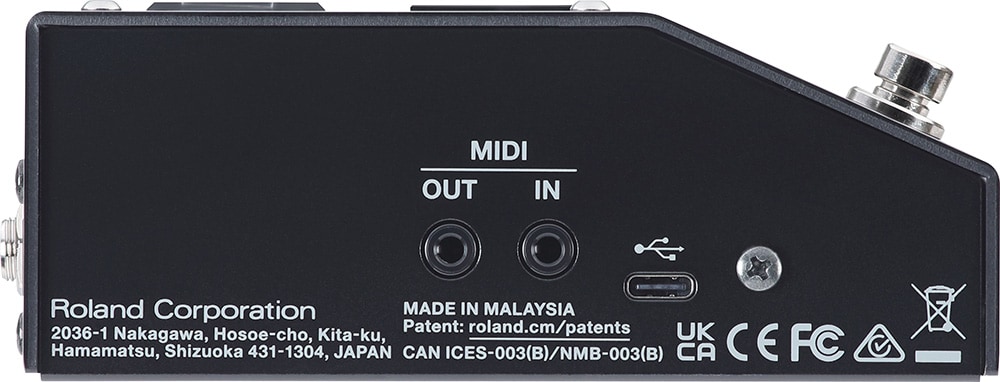

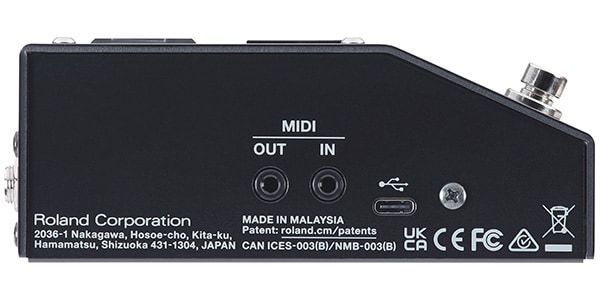

MIDI (IN, OUT) jacks: stereo mini type, USB COMPUTER jack: USB Type-C, DC IN jack
●Power supply: AC adapter
●Current consumption: 450mA
●External dimensions: 199 (W) x 135 (D) x 54 (H) mm (including rubber feet)
●Weight (excluding AC adapter): 1.1 kg
●Accessories: AC adapter (PSB-1U + power cord), ground lift cable x 3, startup guide, “Safety Precautions” leaflet
Ground Lift Cable Precautions” leaflet, rubber feet × 4, Warranty card
●Foot switch: FS-5U, FS-5L
Dual footswitch: FS-6, FS-7
Expression pedals: Roland EV-5, EV-30, FV-500L, FV-500H
Foot controllers: GA-FC, GA-FC EX
TRS/MIDI connecting cables: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535
