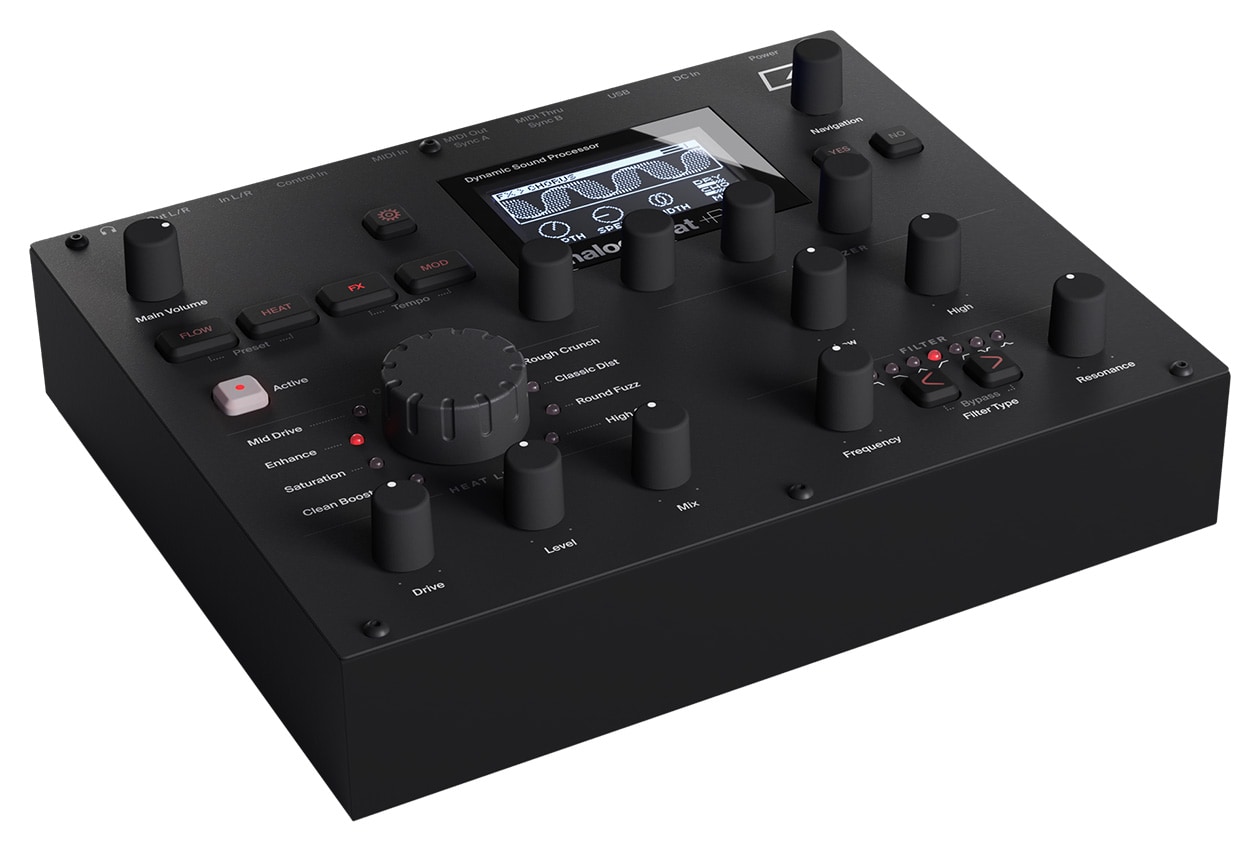

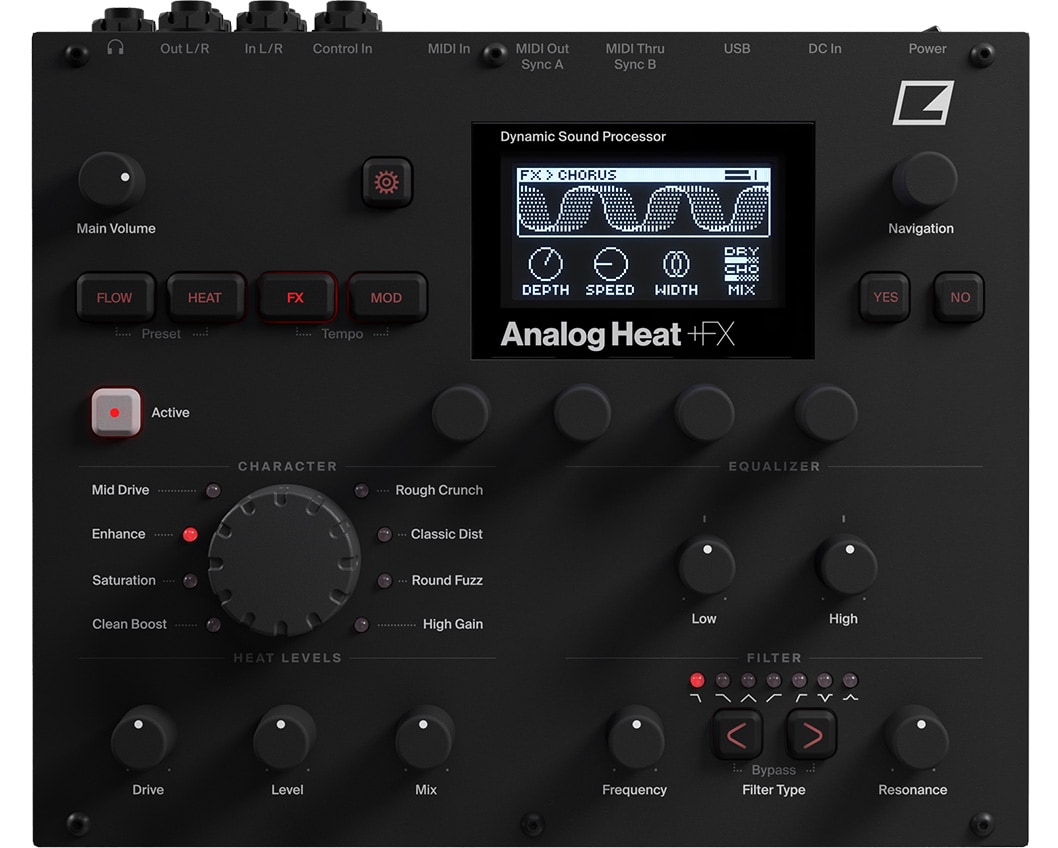

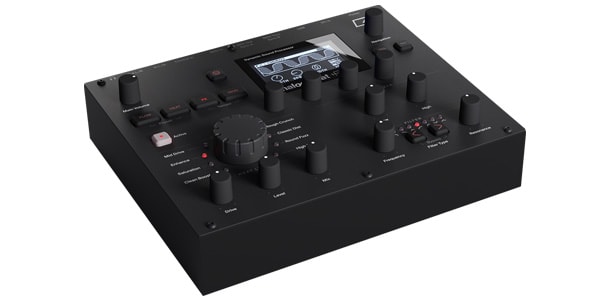

ELEKTRON / Analog Heat +FX

ELEKTRON/Analog Heat +FX is a dynamic sound processor and effects unit that adds a wide range of changes to beats, melodies and sounds.

Dynamic Sound Processor

■Evoke the Sound of Color
Drop sonic paint on your beats, melodies and sounds. Analog Heat +FX is a versatile sound coloring and manipulation box. It allows you to process a wide color palette. Get real playfulness in your ears. Wherever the source is, wherever the destination is. Let your sound be your canvas.

■Heat Block
Add warmth, depth and character with eight fully analog stereo distortion circuits, from subtle clean boost to complete annihilation.

Shape and sculpt your material with the multi-mode filters. Choose from seven types of filters, including classic low-pass and high-pass, band-pass, notch and peak.

Turn the knobs of the 2-band adaptive EQ to add and subtract bass and treble. Then split up your sound with the noise gate.

■Digital Effects
Drift away with chirping effects. Let nostalgic magnetic media inspire you. Continue that journey with a chorus.

Use delay and reverb to create rich, immersive soundscapes. Drip in grit with a touch of bit and sample rate reduction for a lo-fi glitchy feel.

Use the compressor to narrow or fine-tune the dynamic range of your signal, locking the bass focus to mono in the stereo field at the crossover point of your choice for a thick, focused low end.

■Flow
Experiment with rearrangement of effects to find your own unique signal flow with its own special timbre. Add depth, dimension, complexity and color to your music. Re-arrangeable signal paths let you express all its nuances. The options are endless. No matter how wild your explorations are, you can save them in one of 512 preset slots for instant recall.

■Modulation
Have fun experimenting with numerous modulation options, each with two destinations. Shape the incoming sound into a modulation source using an envelope follower.

Use any of the 3 LFOs to modulate or chaotically shimmer and weave your parameters, all with their own multiple waveforms and modulation destinations. Complex or simple? The decision is yours.

Analog Heat +FX - Explore a dynamic analog and digital sound processor.

Product Specifications
Audio Processing

8 x stereo analog distortion circuits

Noise Gate
Reverb
Delay
Chorus
Warble
Bits
Compressor
Bass focus

Modulation

1 x assignable envelope follower with 2 destinations 3 x assignable LFOs with 2 destinations per LFO

512 user preset slots

Hardware

128 x 64 pixel OLED screen

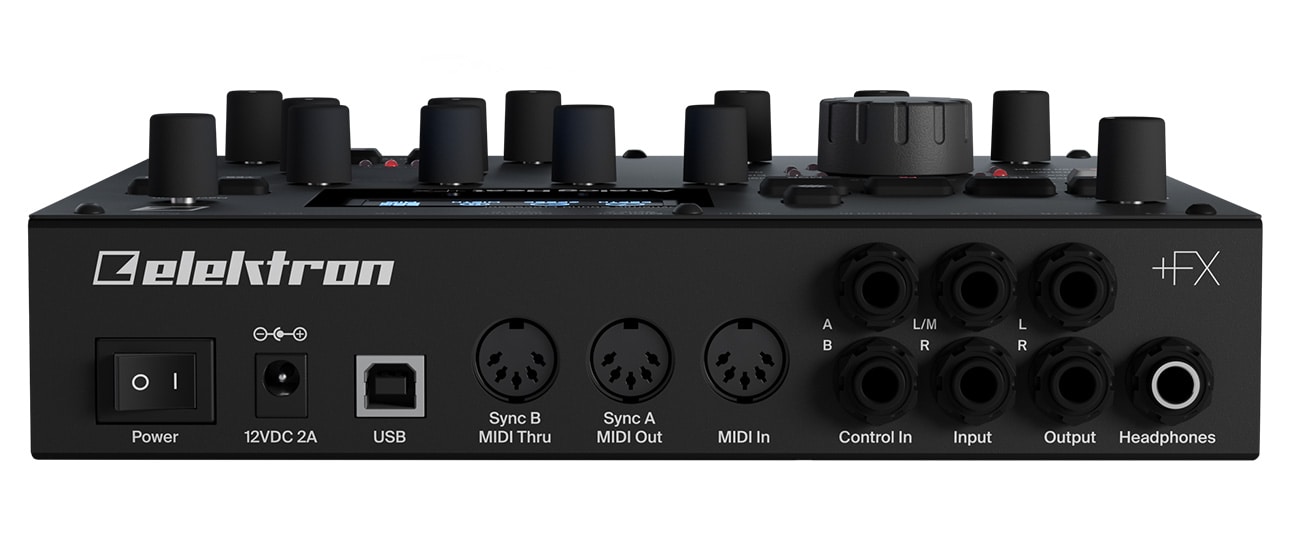

MIDI in/out/thru, DIN sync out

2 x 1/4 inch balanced audio output jacks

2 x 1/4 inch balanced audio input jacks

1 x 1/4 inch stereo headphone jack

2 x 1/4'' CV/Expression pedal input jacks

48 kHz, 24-bit D/A and A/D converters Hi-Speed ​​USB 2.0 port
