IK MULTIMEDIA / AXE I/O ONE Audio Interface
Variations

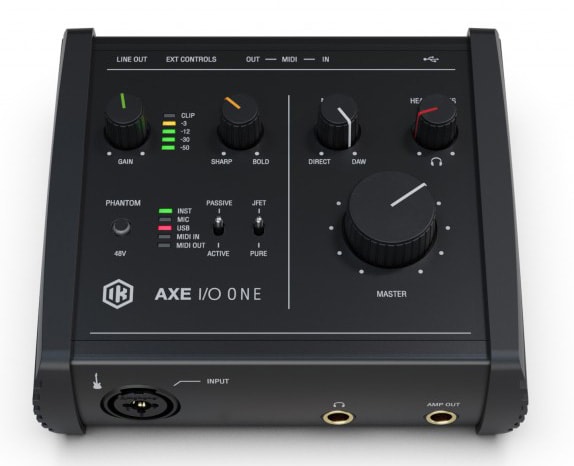

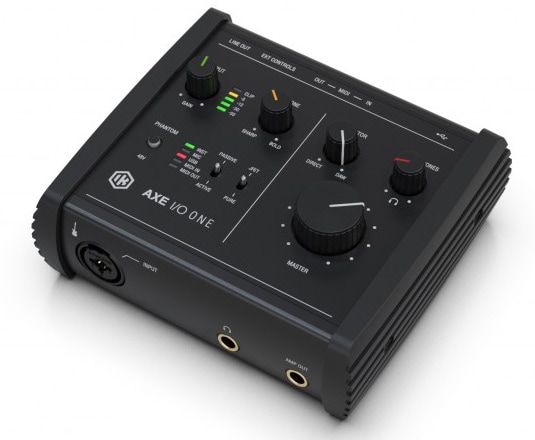

The IK MULTIMEDIA / AXE I/O ONE is a 1 in / 3 out, 24-bit / 192 kHz USB-C audio interface, thoughtfully designed to the specifications required for guitar and bass recording. It comes with a 3-year Sound House warranty for peace of mind!
Released on May 17, 2023
■USB Audio Interface
First Step into a New Era of Tone

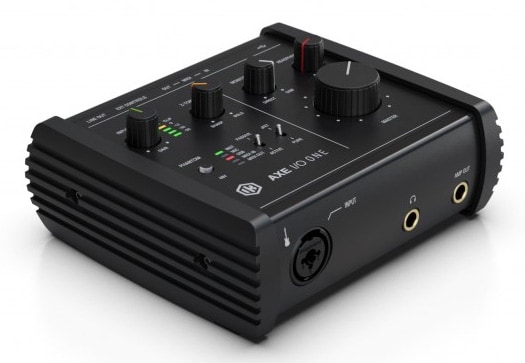

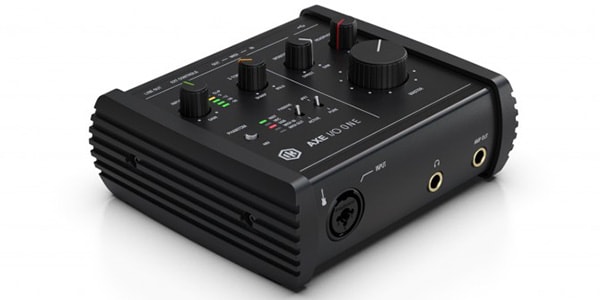

AXE I/O functions in a compact package AXE I/O ONE is a 1 IN / 3 OUT, 24-bit / 192 kHz USB-C audio interface designed with the specifications required for guitar and bass recording in mind. Z-TONER technology continuously adjusts input impedance. Two modes: JFET for warm, tube-like sound, and PURE for transparent, accurate sound. Pickup selector to choose the best active/passive circuit configuration. AMP OUT for easy reamping, and an external controller input for connecting a footswitch or volume pedal. And with the AXE I/O ONE, you can record, reamp, and mix your guitar with the best tone and the best results, with bonus software such as AmpliTube 5 SE, TONEX SE, and countless presets on ToneNET.
For Guitarists/Bassists The AXE I/O ONE's Z-TONE circuit allows you to continuously adjust the input impedance between 2.2 kΩ (BOLD) and 1 MΩ (SHARP). A larger impedance value (turned toward SHARP) produces a sharper, more incisive sound, while a smaller impedance value (turned toward BOLD) produces a softer, fatter sound.
The JFET / PURE switch allows you to select the mode of the preamp: PURE is completely transparent and accurate with no coloration, while JFET is a Class A discrete JFET mode that adds slight harmonics and warmth and punch to the midrange. In addition, the PASSIVE / ACTIVE switch allows for optimal settings for each pickup type.

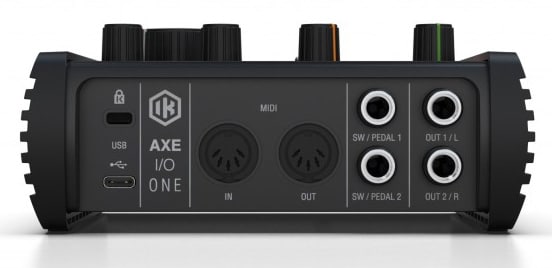

External controller can also be connected The AXE I/O ONE is equipped with two controller inputs on the rear panel, allowing you to control software parameters such as AmpliTube at your feet. The MIDI IN / OUT jacks can also be used to easily build a system that combines a standard MIDI keyboard, MIDI controller, or iRig Stomp I/O.

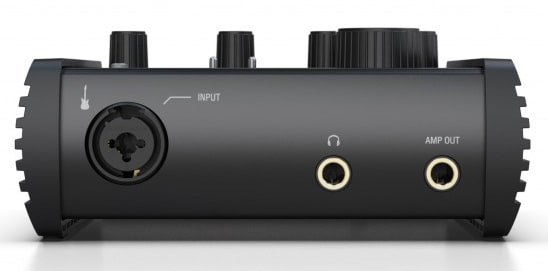

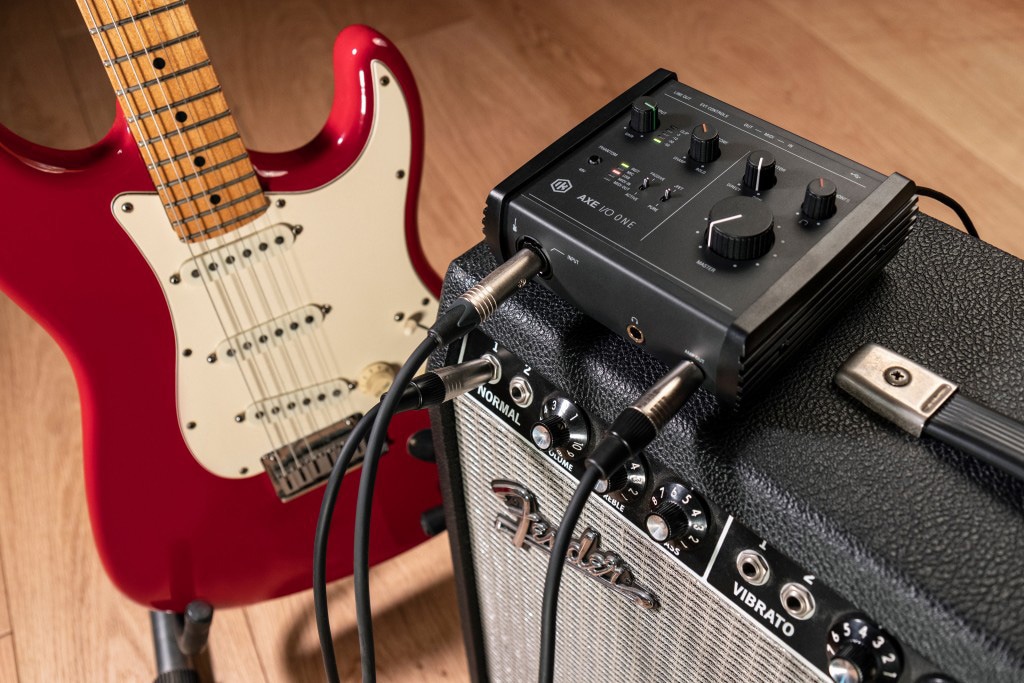

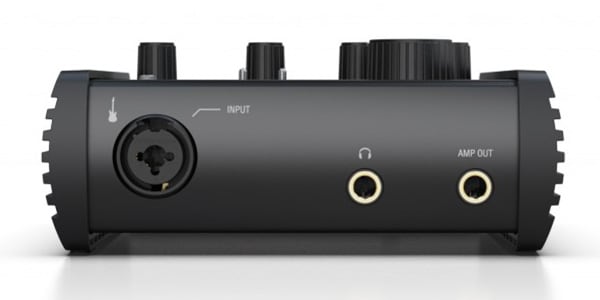

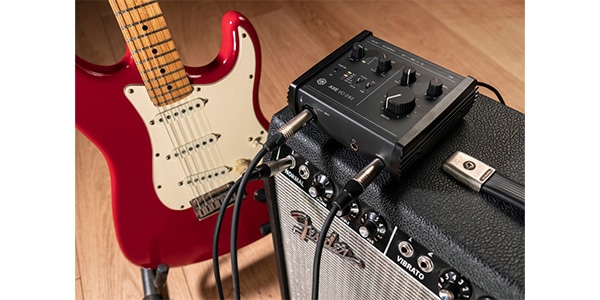

AMP OUT for Reamping and Capture The AXE I/O ONE features an AMP OUT jack for sending signals directly to the input of an amplifier or stomp. This is ideal for capturing a rig including your favorite stomp, amp, or cabinet with the TONEX software, or for reamping a recorded dry guitar signal to an external amp for re-recording.
A comprehensive range of bundled software AXE I/O ONE comes with licenses for AmpliTube 5 SE and TONEX SE, so you can play, record, and mix with the sounds of thousands of guitar and bass amps and effects pedals right out of the box.
AmpliTube 5 SE includes 80 gear models, including stomps, rack effects, amps, cabinets, speakers, mics, rooms, and more. Complex series/parallel rig chains can be easily built with drag-and-drop to emulate any type of sound.
TONEX SE includes many premium Tone Models of amps and pedals captured with AI Machine Modeling™ technology. You can also capture amps, cabinets, distortions, overdrives, EQs, fuzz, and more with the TONEX software to bring the tone of your favorite gear to TONEX and AmpliTube 5.
ToneNET, an online tone-sharing platform, has over 6,000 AmpliTube presets and an ever-growing (currently over 10,000) user Tone Models that can be accessed and downloaded to expand your tones. You can also access and download them to expand your tones.

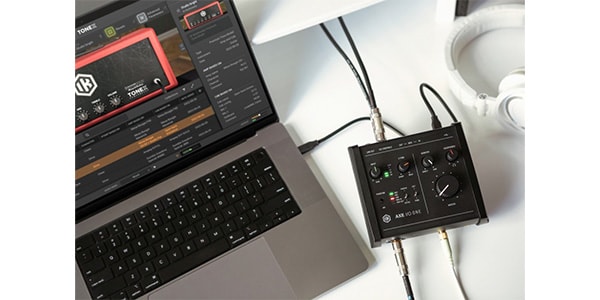

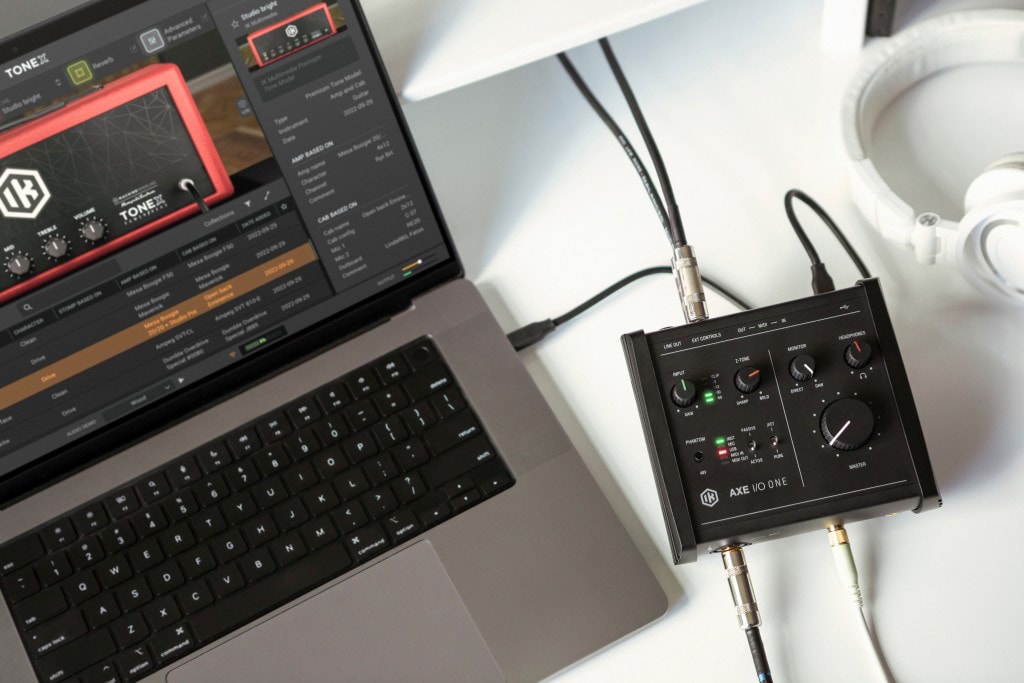

Plug & Play, Ready to Use AXE I/O ONE is USB-C bus-powered and requires no external power supply. Recording is also quick and easy with AXE I/O ONE Control Panal, Ableton Live Lite, AmpliTube 5 SE, and TONEX SE, all of which are provided upon user registration and are Mac/PC compatible. Simple setup and a full range of benefit software create a production-ready environment as soon as you have an idea.
AXE I/O ONE is also compatible with the latest iPads equipped with a USB-C port, allowing you to play and record with apps such as the free AmpliTube CS, GarageBand, TONEX, etc. Register your AXE I/O ONE serial number in the TONEX app, and you're ready to go! AXE I/O ONE also features MIDI IN and OUT for use as a MIDI interface for Mac/PC and iPad. The AXE I/O ONE also features MIDI IN and OUT for use as a MIDI interface for Mac/PC and iPad.
The AXE I/O ONE's XLR inputs are equipped with PURE Class A mic preamps with high-grade phantom power for transparent, clean recording without unwanted coloration, preserving the original sound character of vocals, acoustic guitar, piano, and other instruments.
Compact and portable in a backpack or gig bag, the AXE I/O ONE is the perfect interface for recording on the go.
Digital Control & Routing AXE I/O ONE provides powerful and convenient Control Panel software for configuring inputs, outputs, routing, and connected external controllers.
The INTERFACE tab allows you to view and set the active inputs, phantom power on/off, AMP OUT ground lift, output volume, sample rate settings, and more.
The CONTROLLER tab allows you to set the behavior (relative/absolute, latch/unlatch, etc.), MIDI channel, MIDI CC number, minimum/maximum value, etc. when operating pedals connected to the two controller inputs, for optimal settings for the software you wish to control.
With the AXE I/O ONE Control Panel, you can easily control AXE I/O ONE and achieve a quick and free workflow that allows you to focus more on your work.
■Key Features
・1 IN / 3 OUT USB audio interface
・Z-TONE circuit for continuously adjustable input impedance・JFET/PURE mode switching
・ACTIVE/PASSIVE pickup switching
・High-resolution Class-A mic preamps for acoustic guitar and vocals
・Converters with resolutions up to 24-bit / 96 kHz
・AMP OUT jack with ground lift
・MIDI IN/OUT jacks for connecting keyboards, controllers, etc.
・Two inputs for expression pedals and single/double switches
・High-quality software is bundled.
Please refer to the manufacturer's page for the latest operating environment.
■USB Audio Interface
First Step into a New Era of Tone
AXE I/O functions in a compact package AXE I/O ONE is a 1 IN / 3 OUT, 24-bit / 192 kHz USB-C audio interface designed with the specifications required for guitar and bass recording in mind. Z-TONER technology continuously adjusts input impedance. Two modes: JFET for warm, tube-like sound, and PURE for transparent, accurate sound. Pickup selector to choose the best active/passive circuit configuration. AMP OUT for easy reamping, and an external controller input for connecting a footswitch or volume pedal. And with the AXE I/O ONE, you can record, reamp, and mix your guitar with the best tone and the best results, with bonus software such as AmpliTube 5 SE, TONEX SE, and countless presets on ToneNET.
For Guitarists/Bassists The AXE I/O ONE's Z-TONE circuit allows you to continuously adjust the input impedance between 2.2 kΩ (BOLD) and 1 MΩ (SHARP). A larger impedance value (turned toward SHARP) produces a sharper, more incisive sound, while a smaller impedance value (turned toward BOLD) produces a softer, fatter sound.
The JFET / PURE switch allows you to select the mode of the preamp: PURE is completely transparent and accurate with no coloration, while JFET is a Class A discrete JFET mode that adds slight harmonics and warmth and punch to the midrange. In addition, the PASSIVE / ACTIVE switch allows for optimal settings for each pickup type.
External controller can also be connected The AXE I/O ONE is equipped with two controller inputs on the rear panel, allowing you to control software parameters such as AmpliTube at your feet. The MIDI IN / OUT jacks can also be used to easily build a system that combines a standard MIDI keyboard, MIDI controller, or iRig Stomp I/O.
AMP OUT for Reamping and Capture The AXE I/O ONE features an AMP OUT jack for sending signals directly to the input of an amplifier or stomp. This is ideal for capturing a rig including your favorite stomp, amp, or cabinet with the TONEX software, or for reamping a recorded dry guitar signal to an external amp for re-recording.
A comprehensive range of bundled software AXE I/O ONE comes with licenses for AmpliTube 5 SE and TONEX SE, so you can play, record, and mix with the sounds of thousands of guitar and bass amps and effects pedals right out of the box.
AmpliTube 5 SE includes 80 gear models, including stomps, rack effects, amps, cabinets, speakers, mics, rooms, and more. Complex series/parallel rig chains can be easily built with drag-and-drop to emulate any type of sound.
TONEX SE includes many premium Tone Models of amps and pedals captured with AI Machine Modeling™ technology. You can also capture amps, cabinets, distortions, overdrives, EQs, fuzz, and more with the TONEX software to bring the tone of your favorite gear to TONEX and AmpliTube 5.
ToneNET, an online tone-sharing platform, has over 6,000 AmpliTube presets and an ever-growing (currently over 10,000) user Tone Models that can be accessed and downloaded to expand your tones. You can also access and download them to expand your tones.
Plug & Play, Ready to Use AXE I/O ONE is USB-C bus-powered and requires no external power supply. Recording is also quick and easy with AXE I/O ONE Control Panal, Ableton Live Lite, AmpliTube 5 SE, and TONEX SE, all of which are provided upon user registration and are Mac/PC compatible. Simple setup and a full range of benefit software create a production-ready environment as soon as you have an idea.
AXE I/O ONE is also compatible with the latest iPads equipped with a USB-C port, allowing you to play and record with apps such as the free AmpliTube CS, GarageBand, TONEX, etc. Register your AXE I/O ONE serial number in the TONEX app, and you're ready to go! AXE I/O ONE also features MIDI IN and OUT for use as a MIDI interface for Mac/PC and iPad. The AXE I/O ONE also features MIDI IN and OUT for use as a MIDI interface for Mac/PC and iPad.
The AXE I/O ONE's XLR inputs are equipped with PURE Class A mic preamps with high-grade phantom power for transparent, clean recording without unwanted coloration, preserving the original sound character of vocals, acoustic guitar, piano, and other instruments.
Compact and portable in a backpack or gig bag, the AXE I/O ONE is the perfect interface for recording on the go.
Digital Control & Routing AXE I/O ONE provides powerful and convenient Control Panel software for configuring inputs, outputs, routing, and connected external controllers.
The INTERFACE tab allows you to view and set the active inputs, phantom power on/off, AMP OUT ground lift, output volume, sample rate settings, and more.
The CONTROLLER tab allows you to set the behavior (relative/absolute, latch/unlatch, etc.), MIDI channel, MIDI CC number, minimum/maximum value, etc. when operating pedals connected to the two controller inputs, for optimal settings for the software you wish to control.
With the AXE I/O ONE Control Panel, you can easily control AXE I/O ONE and achieve a quick and free workflow that allows you to focus more on your work.
■Key Features
・1 IN / 3 OUT USB audio interface
・Z-TONE circuit for continuously adjustable input impedance・JFET/PURE mode switching
・ACTIVE/PASSIVE pickup switching
・High-resolution Class-A mic preamps for acoustic guitar and vocals
・Converters with resolutions up to 24-bit / 96 kHz
・AMP OUT jack with ground lift
・MIDI IN/OUT jacks for connecting keyboards, controllers, etc.
・Two inputs for expression pedals and single/double switches
・High-quality software is bundled.
Please refer to the manufacturer's page for the latest operating environment.
