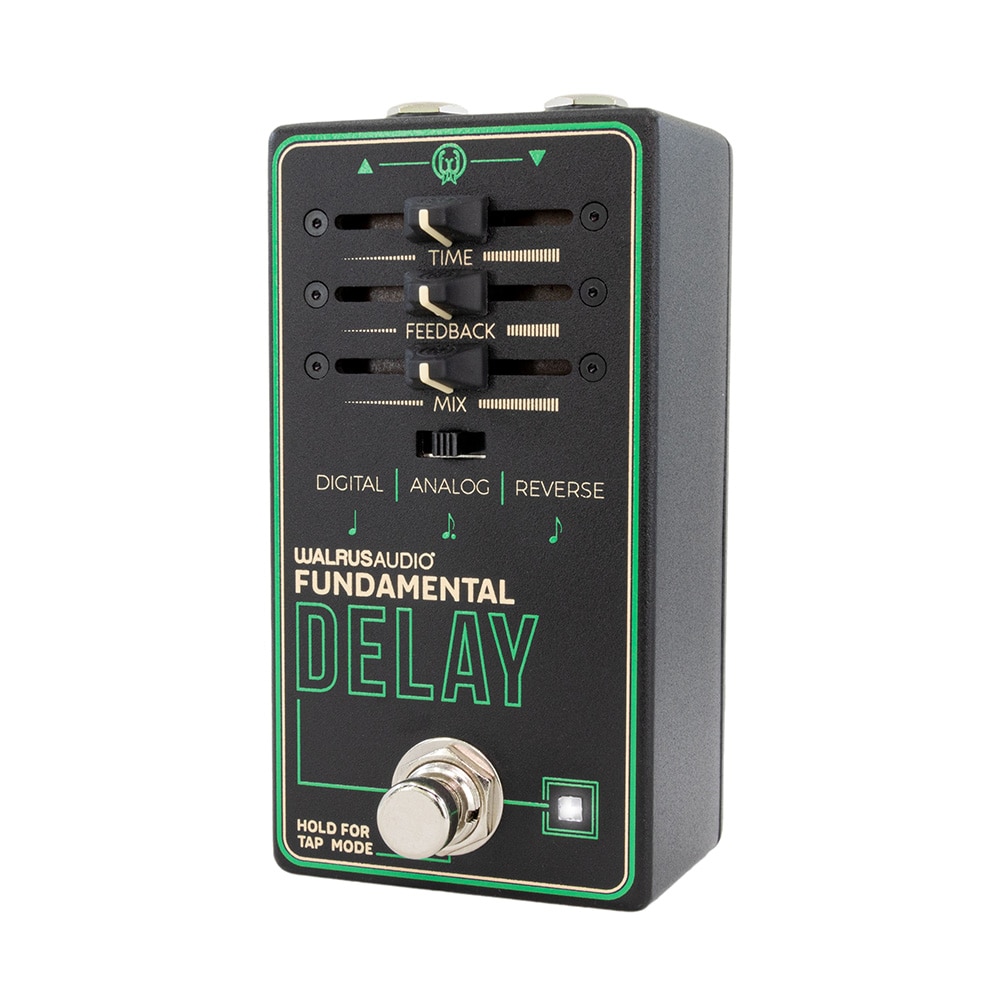

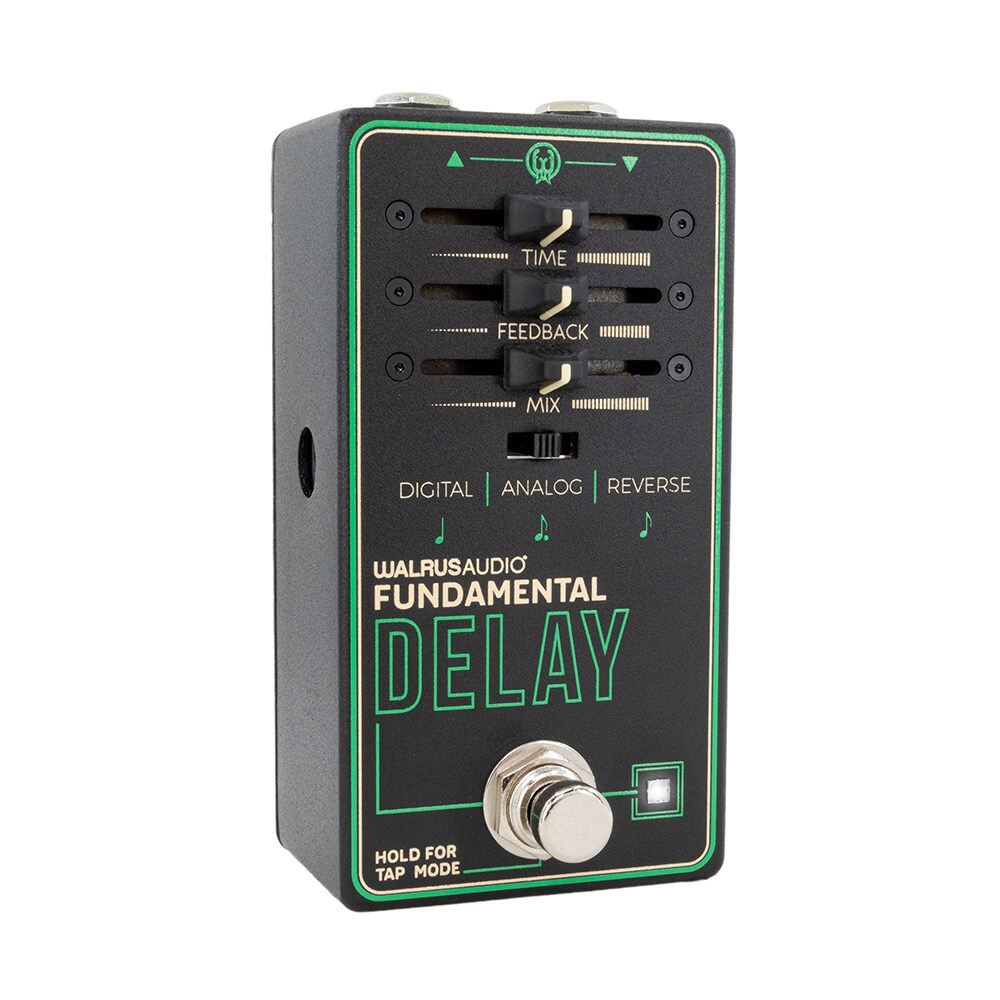

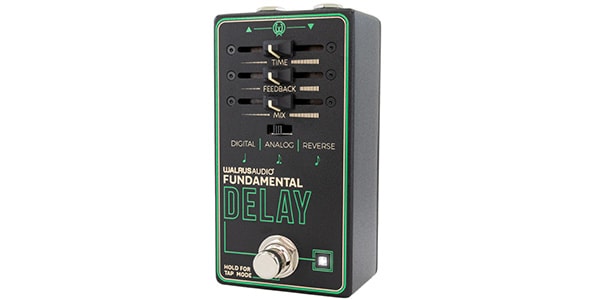

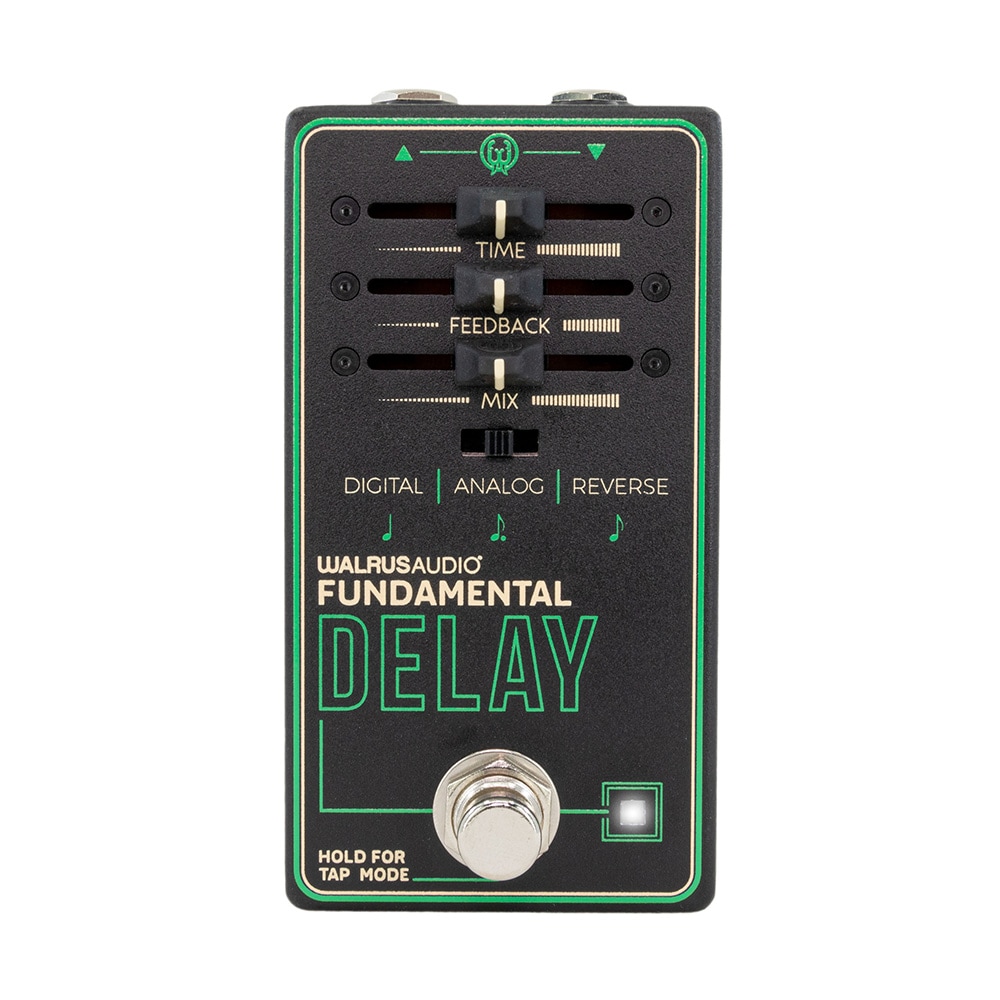

Walrus Audio / Fundamental Delay

The Fundamental Delay is a versatile delay pedal with simple controls and a reverse effect that is easy for beginners to use.

Slider controls.
●TIME - controls the delay repeat rate. The maximum delay time is 1 sec.
FEEDBACK - Controls the number of delay repeats.
MIX - MIX: Controls the mix of the original sound and the effect sound. Slide to the leftmost position to select only the clean original sound, or slide to the rightmost position to select only the effect sound.
Slide to the left-most position to mix only the clean original sound, or slide to the right-most position to mix only the effect sound (100% wet).

3-way switch - 3 delay algorithms.
DIGITAL ? Clean, rhythmic delay with clear repeats on the signal.
●ANALOG ? Adds a filtered and slightly distorted delay to the signal, reproducing repeats of a BBD chip-like nature.
●REVERSE ? Adds a reverse effect to the signal to create a gentle melody or flood it with reverse feedback.

Tap mode.
Enter TAP mode by pressing and holding the switch and the LED will blink. Once the LED starts blinking, TAP mode is activated and the switch acts as a tap tempo switch.
The set tempo is stored until the tempo or time control is re-set.
Tap Divisions.
When TAP mode is activated, the 3-way switch is not used to select the delay programme, but to select the TAP mode divisions.
Left = Quarter note.
Left = Quarter note
Centre = dotted eighth note
Right = eighth note

Power supply: 9 VDC centre-minus (adapter only) 100 mA minimum.
SIZE: 6.1 cm (W) x 5.7 (H) x 11.6 (D) cm
WEIGHT: 239g.
