BOSS / GCS-8

Gigcaster 8 is a high-quality streaming mixer developed for musicians. Equipped with an 8-channel mixer function that supports a variety of inputs, it enables fulfilling live streaming, online lessons, and recording.

Equipped with many amps/effects inherited from BOSS's flagship effects processor, the GT-1000.
By connecting your guitar or bass directly, you can instantly stream your performance with great sound. It is also equipped with high-quality vocal effects, allowing you to decorate conversations and performances during streaming.
Convenient channels for BGM and remote guest participation, and 8 pads with customizable functions further increase the freedom of distribution.
Equipped with independent faders for each channel and a color display that supports touch operations, it also provides intuitive and smooth operation.
Gigcaster 8 is an all-in-one solution for high-quality live streaming.

■Features
1. All-in-one solution tool for live streaming using musical instruments and high-quality podcasts
2. High-quality sound with 48kHz sampling rate and internal 32bit float processing
3. 8-channel mixer function that supports various inputs
4. Input compatible with Hi-Z input that allows you to directly connect a guitar or bass
5. Connect microphones and instruments to 4 combo jacks with phantom power
6. Low-noise, high-quality +70dB microphone preamp allows connection of any microphone.
7. Equipped with BOSS's high-quality guitar and bass amplifiers/effects
8. Voice effects specialized for vocals and conversations
9. Various preset patches for guitar, vocals, and conversation.
10.Equipped with essential effects for mixing, such as compressor and EQ on each channel
11. Two channels for connecting your mobile device via Bluetooth? or wired and assigning background music or remote guest audio
12. Intuitive operation with 4.3-inch color touch display
13. 8 input channels and outputs each with independent faders and mute buttons
14. 8 pads with assignable functions such as audio playback and effect control
15. Talk-back function convenient for communication between broadcasters
16. Ducking function that automatically lowers the BGM volume when an instrument or microphone signal is input
17. 4 headphone jacks, including headset compatible jack, each with independent EQ
18. Built-in stereo microphone
19. Equipped with USB audio compatible with 2MIX and multitrack recording
20. If you insert a microSD card (sold separately), you can record with one button (48kHz / 32bit float)
21. Two power supply methods using USB bus power* or the included PSD adapter *A power supply of (5V/3A or more) is required for USB bus power drive.
22. Supports expanded control with optional GA-FC, footswitch, and expression pedal
23. Gigcaster 8 App (Windows/macOS), a dedicated app that allows you to configure the main unit, back it up, and convert recorded data

■Main specifications
●Sample rate: 48kHz ●AD conversion: 24 bits ●DA conversion: 32 bits ●Internal calculation: 32 bit floating point
● USB audio Number of inputs: 20ch Number of outputs: 14ch ● Bluetooth: A2DP, HFP
●Recording data format: BWF (48kHz, 32-bit floating point, 2ch stereo/18ch Poly) Memory: microSD card (sold separately)
●Sound pad Data format: WAV (48kHz, stereo 16-bit linear) Memory: Built-in memory (16GB)
●Effect patch GUITAR: 200 (user) + 100 (preset), SING: 200 (user) + 30 (preset), TALK: 200 (user) + 30 (preset)
●Number of effects used simultaneously
GUITAR: 1 channel (DISTORTION, PREAMP, EQ, NS, PEDAL FX, FX1, FX2, FX3, DELAY/REVERB)
SING: 2 channels (COMP, ENHANCE, DESS, EQ, NS, PITCH CORRECT, HARMONY, FX1, FX2, FX3, DELAY/REVERB)
　TALK: 4 channels (COMP, ENHANCE, DESS, EQ, NS, FX1, FX2)
CONSOLE: 7 channels (COMP, ENHANCE, DESS, NS, FX)
FX; 1 channel (for sound pad)
　OUTPUT: COMP, REVERB
●Nominal input level (variable) GUITAR INPUT: -10dBu INPUT1 to 4 (XLR type): -40dBu INPUT1 to 4 (TRS standard type): -10dBu MOBILE IN: -20dBu
●Input impedance GUITAR INPUT: 1M Ω INPUT1 to 4 (XLR type): 5.6k Ω INPUT1 to 4 (TRS standard type): 27k Ω MOBILE IN: 22k Ω
●Nominal output level MAIN OUT L, R: -10dBu
●Output impedance MAIN OUT L, R: 1k Ω PHONES1 to 4: 47 Ω
●Recommended load impedance MAIN OUT L, R: 10k Ω or more
●Display: Color graphic LCD (480 x 272 dots) with touch screen
●Controls: CH1-8 edit button, OUTPUT edit button, CH1-8 mute button, OUTPUT mute button, CH1-8 monitor button,
Talkback button, REC button, mark button, EFFECTS button, pads 1 to 8, CH1 to 8 fader, OUTPUT fader,
Headphones 1-4 knobs

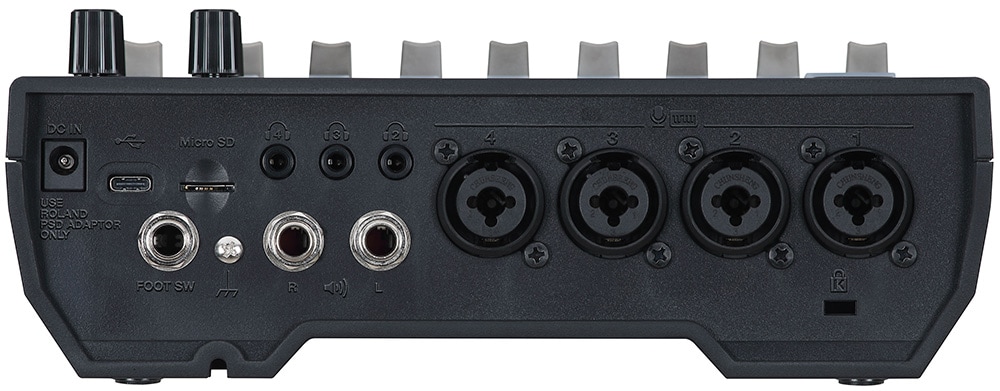

●Connection terminals Guitar terminal: Standard type Channels 1 to 4 terminals: Combo type (XLR, TRS standard), balanced Mobile terminal: Stereo mini type (CTIA)
MAIN OUT (L, R) terminals: Standard type Headphone 1 terminal: Stereo mini type (CTIA) Headphone 2 to 4 terminals: Stereo mini type
FOOT SW terminal: TRS standard type USB terminal: USB type C DC IN terminal
●Power source: AC adapter (PSD-100), USB bus power
●Current consumption: 1.8A (when phantom power is on), 1.6A (when phantom power is off)
●External dimensions: 217 (width) x 267 (depth) x 80 (height) mm
●Mass: 1.36 kg
●Accessories: AC adapter (PSD-100), instruction manual, ""Safety Precautions"" flyer, warranty card
●Optional accessories Footswitch: FS-5U Dual footswitch: FS-6 Expression pedal: FV-500L/500H, Roland EV-5
Foot controller: GA-FC
*0dBu = 0.775Vrms
*Specifications and designs are subject to change without notice due to improvements.
