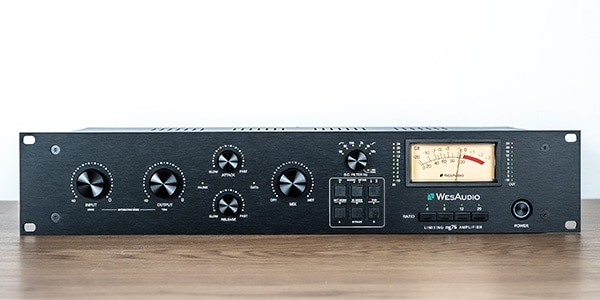

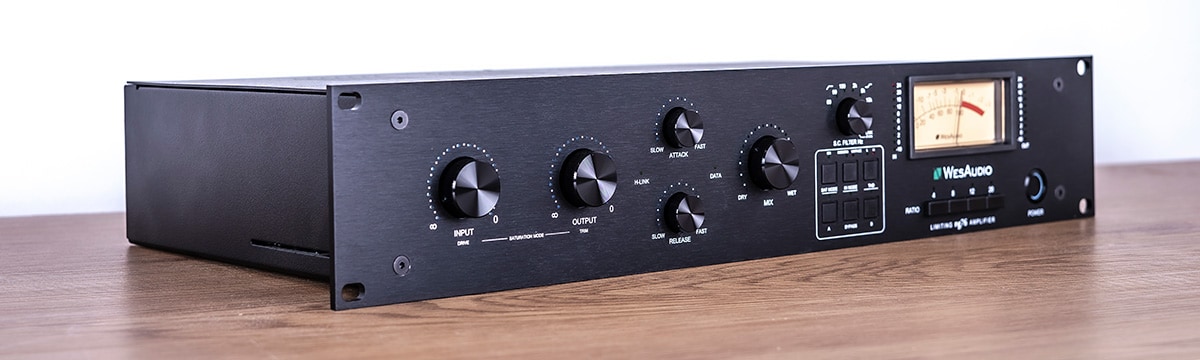

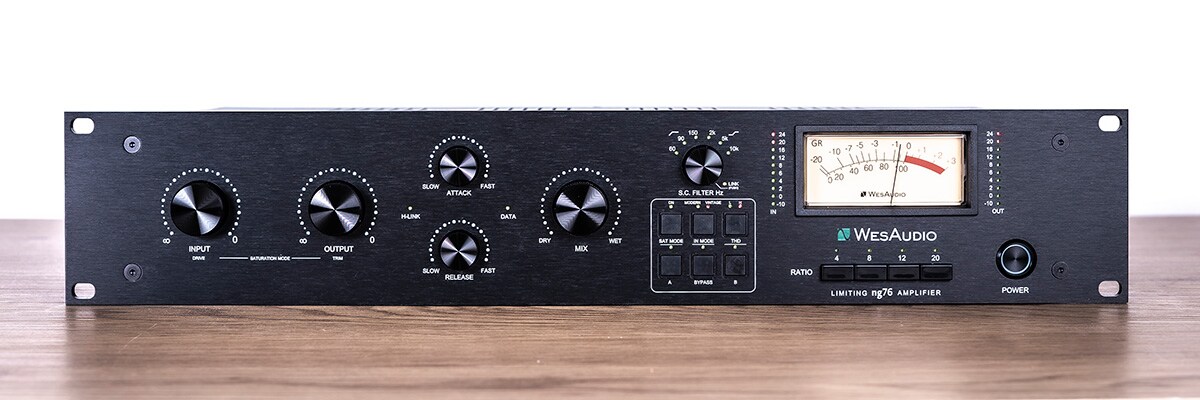

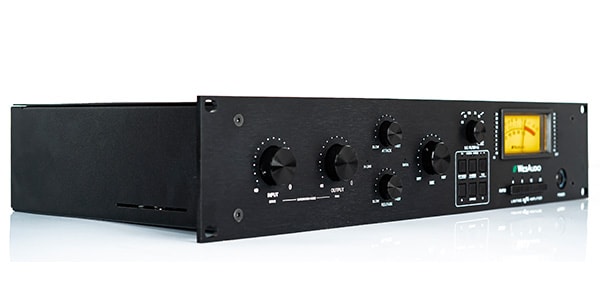

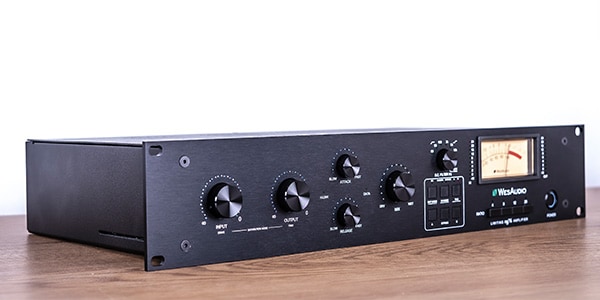

WESAUDIO / ng76

The WESAUDIO ng76 is the ideal ""1176"" with many updates added to the legendary recording equipment ""Urei 1176LN,"" and further enhanced with digital recall/plug-in control.

■Compressor, 1ch

While the audio signal passes only through completely analog circuitry, all parameters can be digitally controlled from a DAW plugin! The traditional analog sound of the 1176 remains intact, while leveraging the convenience of plugins such as recall and automation.

【Main Features of ng76】

1. 100% Analog FET Compressor: The ng76 is an analog compressor with 24dBu headroom. Despite being digitally controlled, it delivers the high-speed compression sound used on countless classic albums.

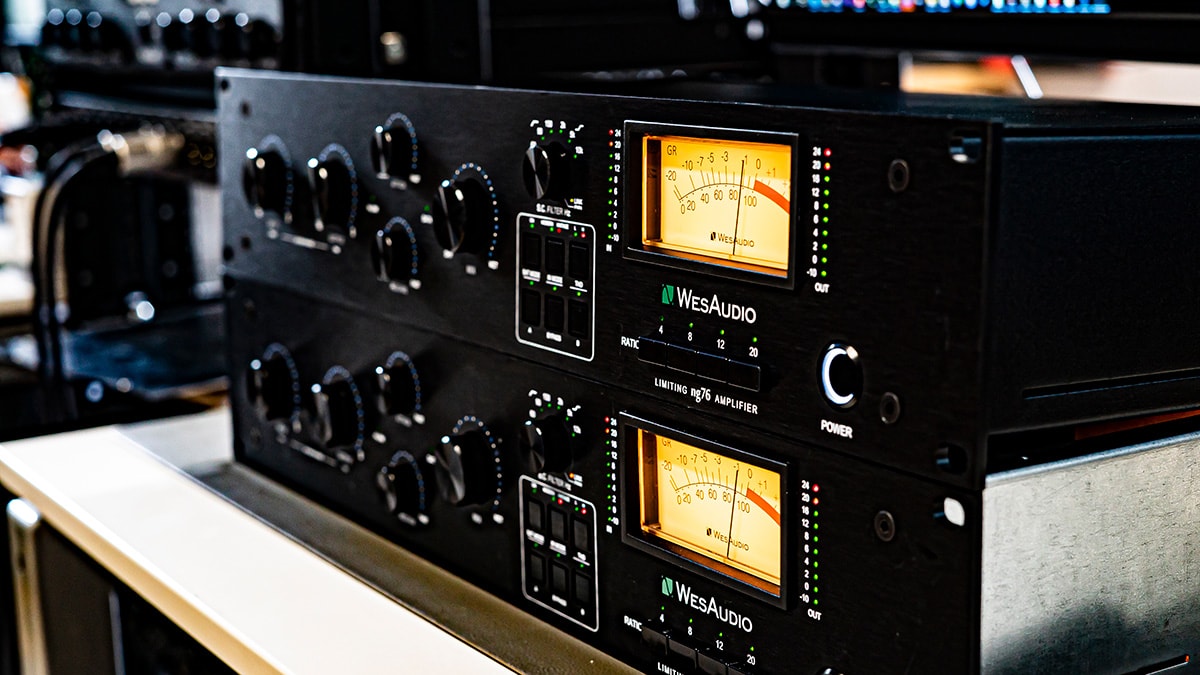

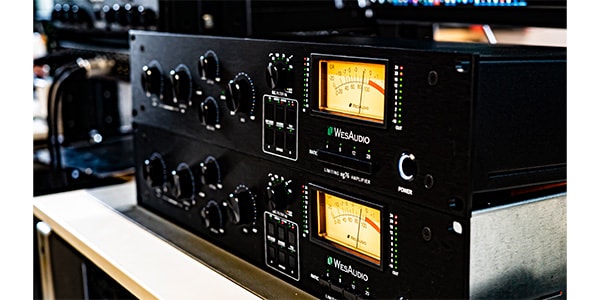

2. Full Stereo Operation (Stereo Matched Pair): ng76 units can be linked using dedicated software. By linking the compressor control signals, it can be used as a true stereo compressor with all parameters linked, or as a dual-mono compressor. (Requires the dedicated cable included with the Stereo Matched Pair.)

3. Convenient MIX Knob for Parallel Compression: As you know, FET compressors are fast, aggressive, and have a punchy character. The MIX knob allows you to adjust the amount of this wonderful flavor.

4. Total Harmonic Distortion (THD): The THD button adds a shimmering distortion, and you can choose between High and Low settings. This feature, unique to FET circuits, allows you to adjust the saturation during compression.

5. Equipped with Carnhill Transformers: Transformers are an important element in audio equipment. The Carnhill transformers, which produce superb warm saturation, add that vintage flavor to the ng76.

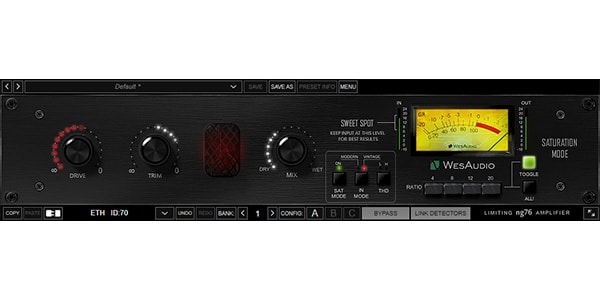

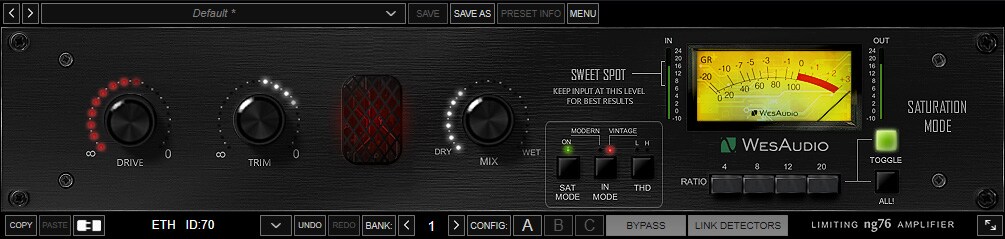

6. Saturation Mode: A special mode that adds only saturation using the FET circuit without compression, and can be controlled with a single knob that moves the INPUT and OUTPUT in opposite directions. This allows you to use the ng76 as a saturation box or clipper, adding beautiful saturation the more you turn the knob.

7. Selectable Input Stage: Modern and Vintage modes allow you to recreate two revisions of the 1176 (F and G).

? Vintage ? Transformer balanced

? Modern ? Electronically balanced

8. Sidechain EQ: A sophisticated sidechain EQ consisting of two independent sections.

? HPF 60Hz/90Hz/150Hz ? Maintains low-end information during compression.

? High Shelf 2kHz/5kHz/10kHz ? Emphasizes highs/high-mids and controls the high frequencies.

9. Hardware A/B Button for Comparing Two Independent Settings: Easily switch between two different settings with a single button, even without using a digital system.

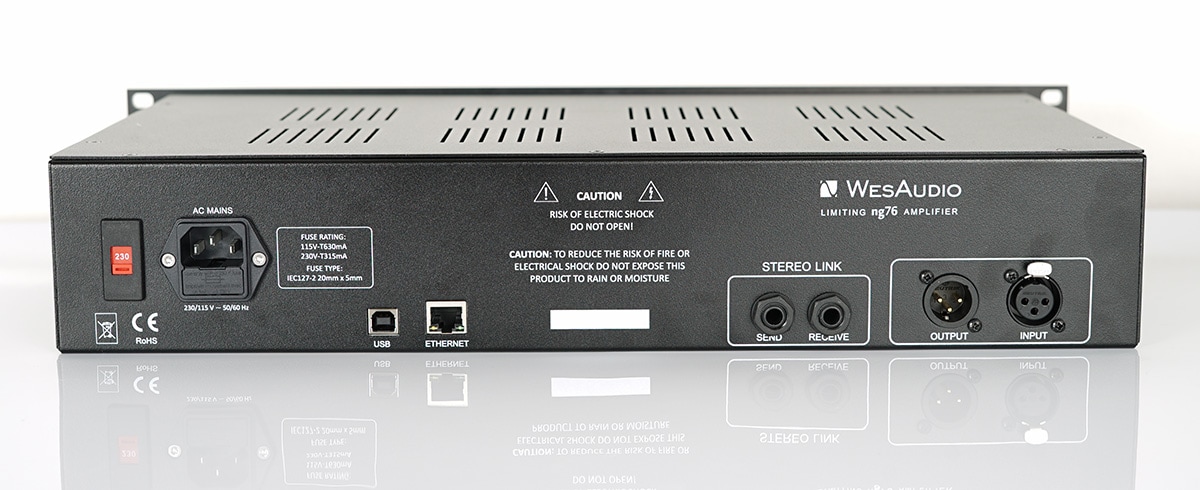

10. Connectivity via USB or Ethernet is possible.

11. Gain Reduction Meter and Input/Output Meters: The ng76 features a classic gain reduction meter. Independent, high-precision input and output level meters have also been added, providing improved visibility and usability.

12. Analog Automation: As an analog device, the ng76 can track automation written in your DAW. Automation can also be written to your DAW using the five touch-sensitive encoders.

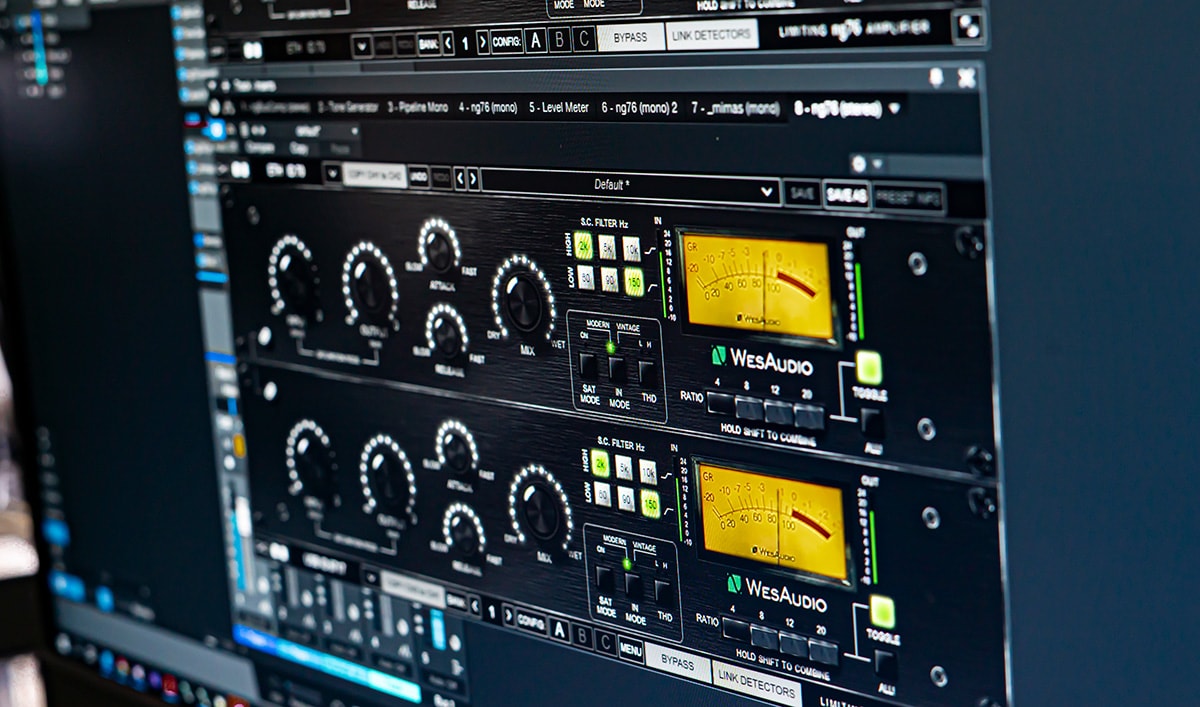

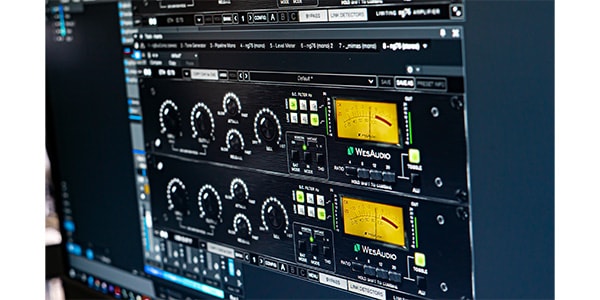

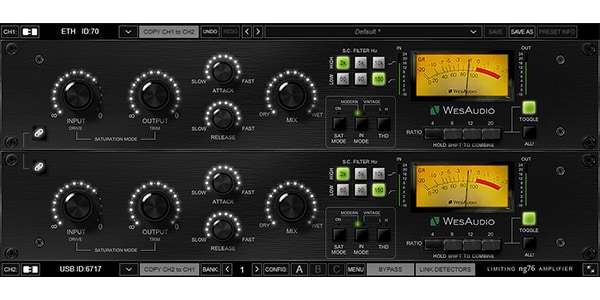

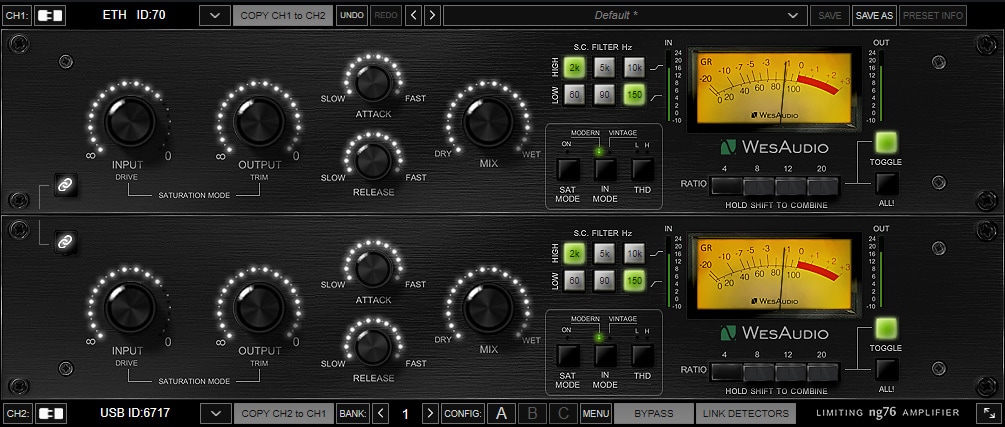

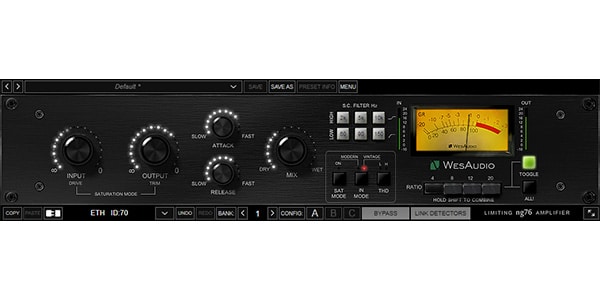

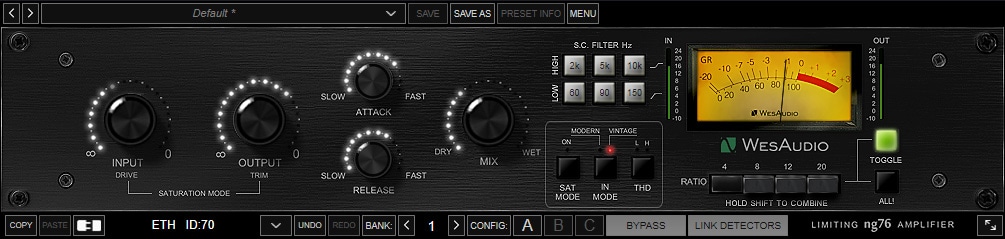

13. Total Recall and Plugin Control

● 100% analog FET mono compressor with 24dBu headroom

● Fast-responding compression reminiscent of the legendary WesAudio Beta76

● Full total recall and plugin control compatible with most DAWs

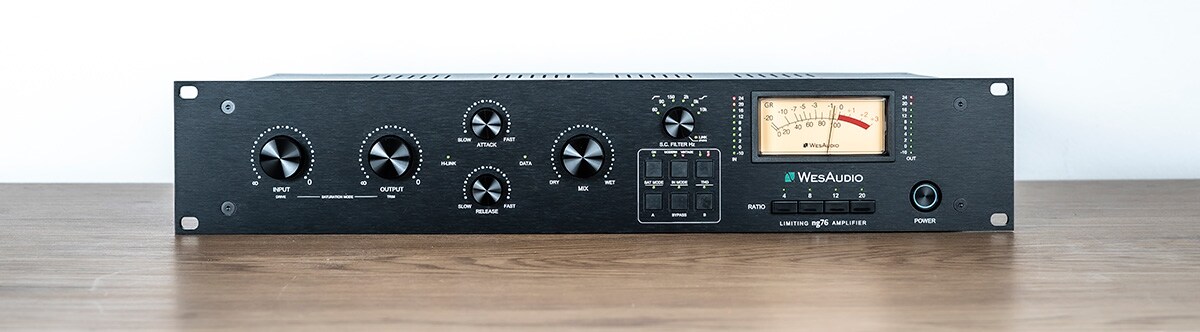

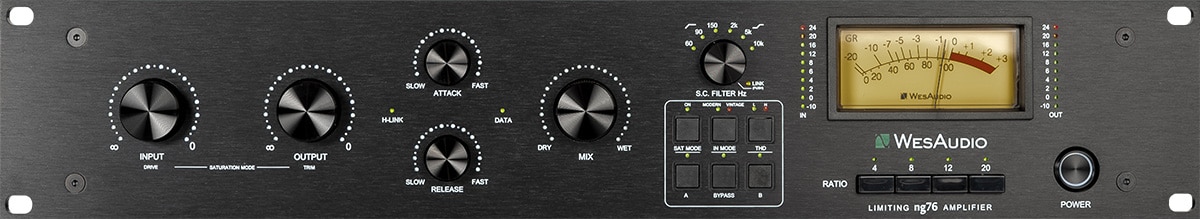

● Classic FET-style controls: INPUT / OUTPUT / ATTACK / RELEASE

● MIX control added for parallel compression

● Equipped with Carnhill transformers (input and output)

● Saturation Mode: A special mode that adds saturation via the FET circuit without compression, allowing control with a single knob that moves the INPUT and OUTPUT in opposite directions. This allows the ng76 to be used as a saturation box or clipper.

● Four selectable ratios: 4:1 / 8:1 / 12:1 / 20:1 ? All combinations possible, including ""Full Press""

● Modern and Vintage modes recreate two revisions of the 1176 (F and G):

-Vintage ? Transformer balanced

-Modern ? Electronically balanced

● Sophisticated sidechain EQ composed of two independent sections:

-HPF 60Hz/90Hz/150Hz ? Maintains low-end information during compression

-High Shelf 2kHz/5kHz/10kHz ? Emphasizes highs/high-mids and controls high frequencies

● Vintage gain reduction meter

● Precise input/output level measurement

● Hardware A/B buttons for comparing two independent settings

● THD ? Total harmonic distortion unique to FET circuitry, selectable from HIGH and LOW settings

● Fully digital control and isolated analog circuitry

● Analog automation within a DAW

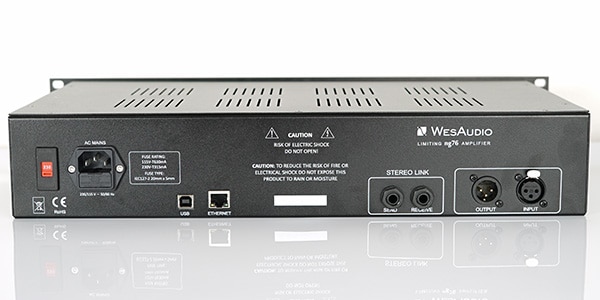

● USB and Ethernet connectivity for operation with digital plugins

● EIA 2U size
