DANGEROUS MUSIC / 2-BUS XT

A true active summing mixer developed by completely redesigning the 2-BUS LT. Expand your recording possibilities with analog summing.

・A true active summing mixer that allows you to re-experience the joy of mixing
・6-layer board summing circuit same as 2BUS+
・Two unique custom coloring circuits designed by Chris Muth

A complete redesign of the 2-BUS LT, the 2-BUS-XT delivers ultra-high-resolution depth of field for every track with a spacious soundstage, from sweeping kick drums to center-melting vocals, making final mixes organic and easy.
You'll be able to relive the joy of mixing with 2-BUS-XT, better and faster with fewer plug-ins.

The 2-BUS-XT features a 6-layer board summing circuit, which is also included in the 2-BUS+, and two unique custom coloring circuits designed by Chris Muth, providing that legendary headroom and analog-derived rich sound.

Through dozens of listening tests, the transformer was specifically chosen to provide a warm, elegant second harmonics in the low-mids while maintaining top-end clarity.

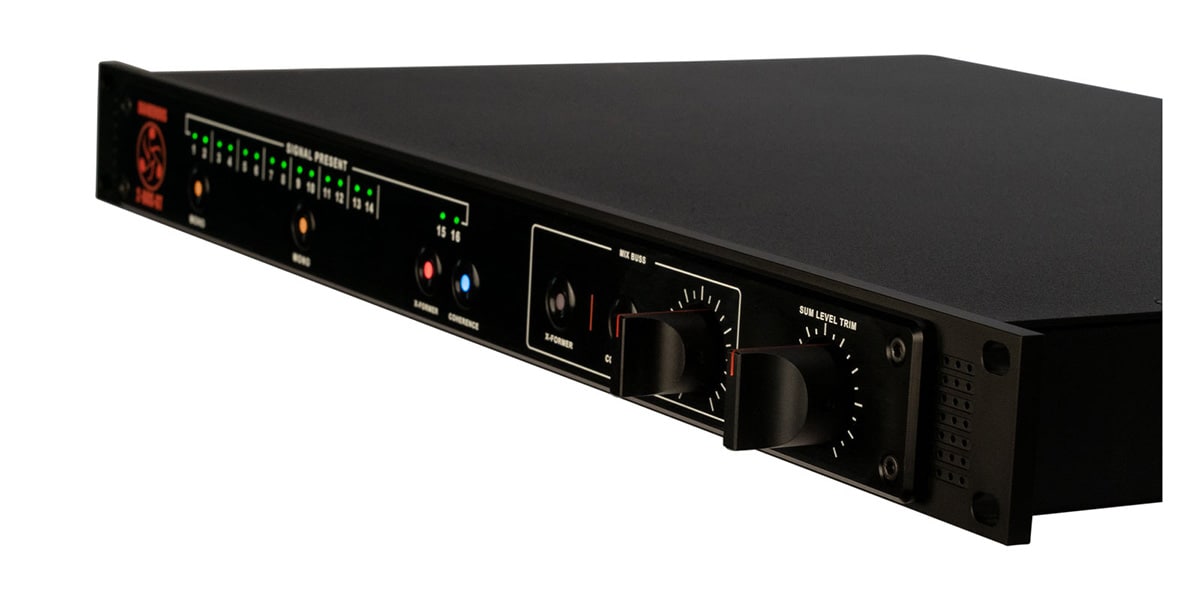

The Coherence control in the MIX BUSS section adds excitement by gradually increasing harmonic detail as the signal level decreases, blending it into the source like parallel compression.

■Main features
・Hand built in USA
・Active analog summing circuit designed by Chris Muth
・Super wide stereo imaging (crosstalk -109dB @ 1kHz)
・Headroom compatible with major DACs (+27 dBu maximum input level)
・Easily integrate analog devices
・Fully expandable with 2-BUS+, 2-BUS-XT, D-BOX+
・Compact single rack size

■Specifications
・Frequency Response:+- 0.1dB from 20Hz-50kHz
・Total Harmonic Distortion:0.004% in audio band
・Intermodulation Distortion: 0.004% IMD60 4:1
・Crosstalk @ 1 kHz: -109 dB
・Noise floor: -82 dBu total energy in audio band
・Max level:>+27 dBu
・Nominal operating level:+4 dBu
・Input impedance: 12 kohm balanced
・Output impedance: 50 ohms balanced (600 ohm drive capable)
・Power consumption: 25 watts
