Revv Amplification / Generator 100R MKIII

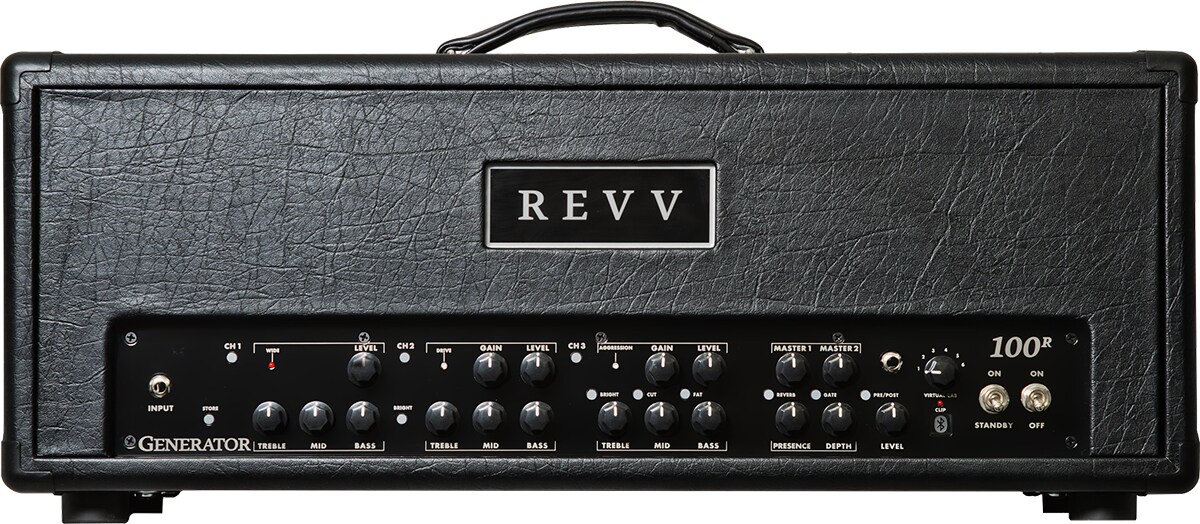

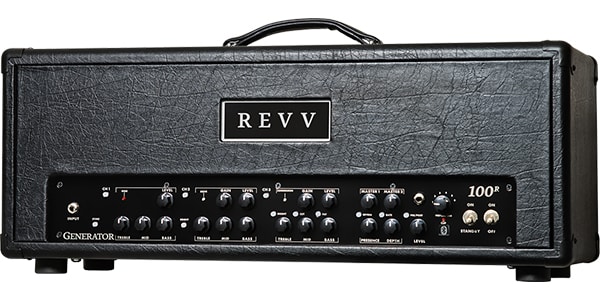

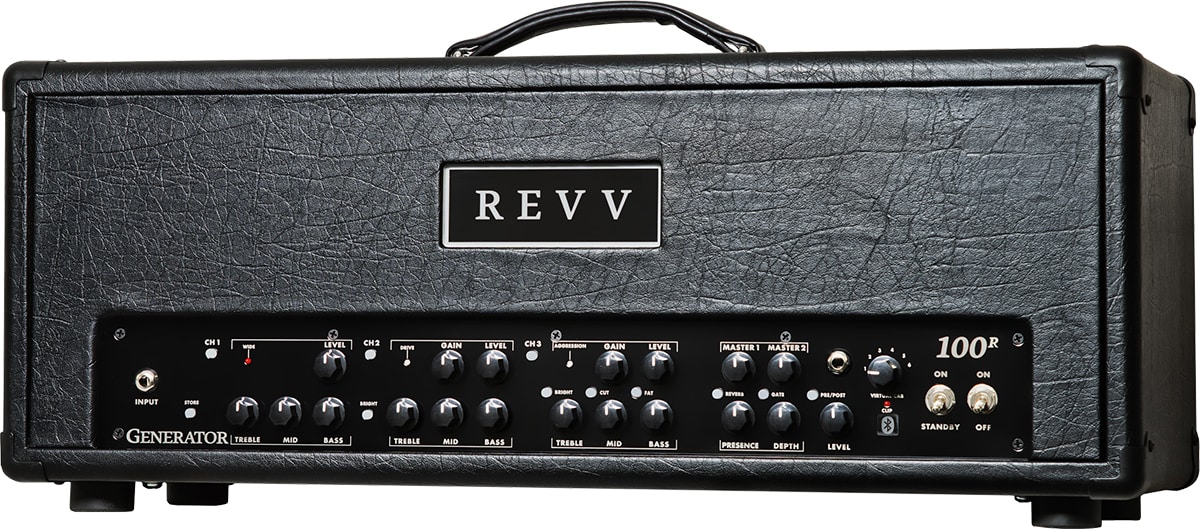

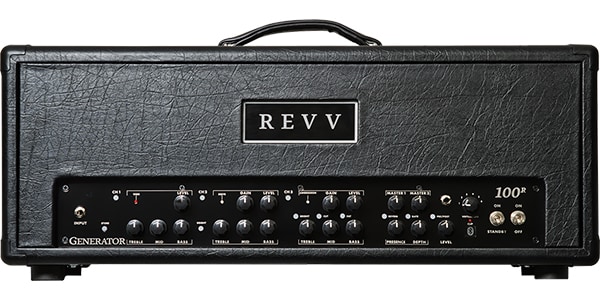

The Generator 100R MK3 is an all-tube guitar amp head that can be used for a wide range of purposes, from large-scale stages to home practice and desktop recording, with its switchable output of 120W or 10W, and allows for a wide range of sound making.

Generator 100R MK3's channel 3 (red channel) has a fat, saturated, modern high-gain sound.
Each channel has three tone controls (bass, middle, treble), allowing you to set a wide range of tone characters to suit your songs.
Channel 1 (clean channel) is equipped with a wide mode that expands the range, channel 2 (crunch channel) is equipped with a drive mode, and channel 3 (purple channel/red channel) is equipped with an aggression mode, allowing you to switch between several types of tones within the same channel (CH1 has two types, CH2 and CH3 have three types).
It also has two master volume, presence and depth controls, a reverb switch, a noise gate, and more.

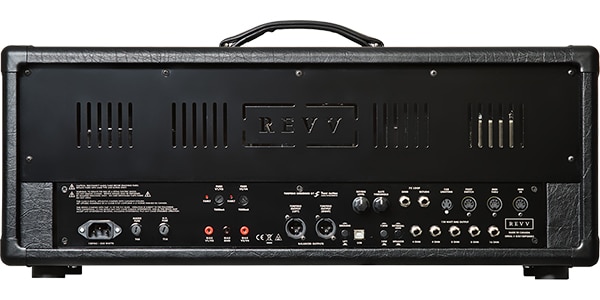

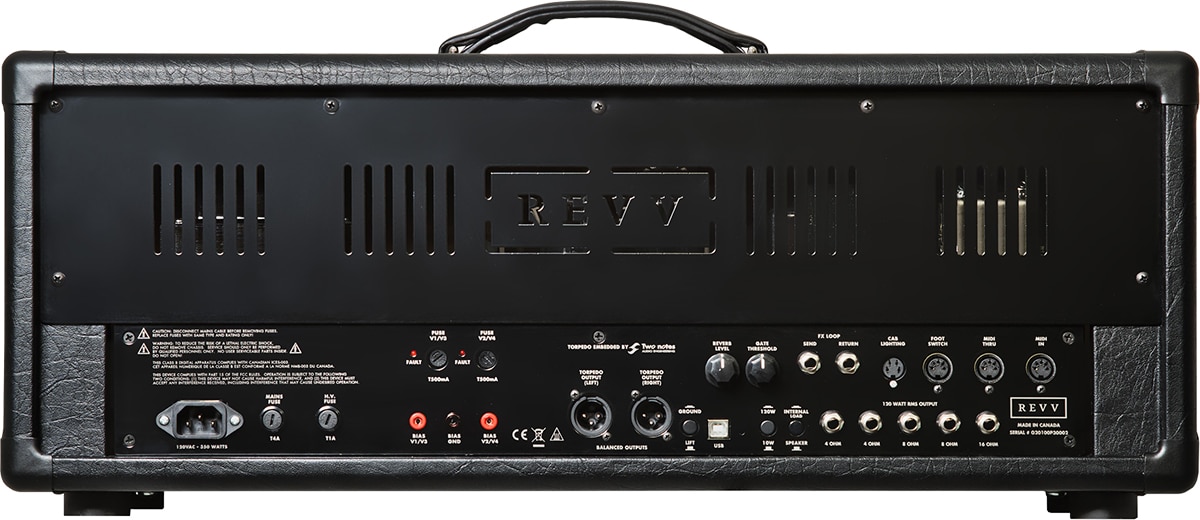

The back is also equipped with an effects loop and a MIDI terminal. Although it is a traditional all-tube guitar amp that uses five ECC83 vacuum tubes for the pre-amp and four 6L6GC vacuum tubes, it is also expandable to support digital recording.
Like a normal amp, you can connect it to your favorite external speaker cabinet, or you can use the two balanced XLR output terminals to output stereo directly to a mixer or interface without using the speaker output.
The output from the balanced XLR allows you to use the Two notes Torpedo virtual cabinet, which is very convenient for DTM.
If you connect it to a PC or mobile device using the USB terminal or Bluetooth connection, you can use Two notes' Torpedo Remote (Wireless Remote) software, which allows you to control EQ, select reverb space, and create precise sounds using the cabinet simulator and microphone simulator.
In addition, by setting up using the same software and the MIDI terminal, you can increase user settings such as virtual cabinets, channel select, and aggression switching with your MIDI controller, and perform practical program changes to suit your preferences.

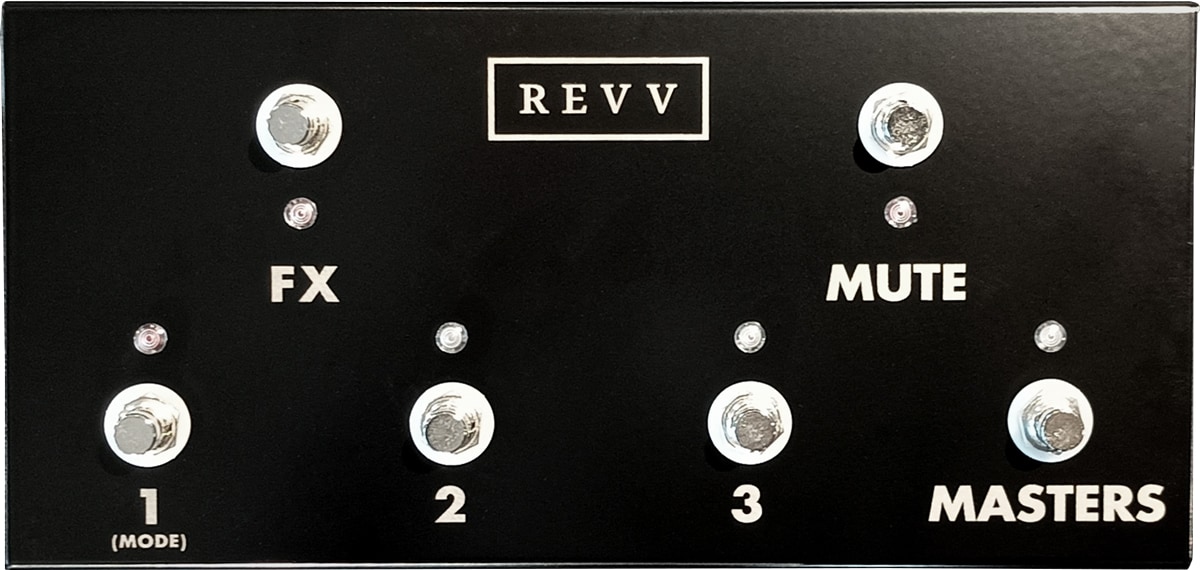

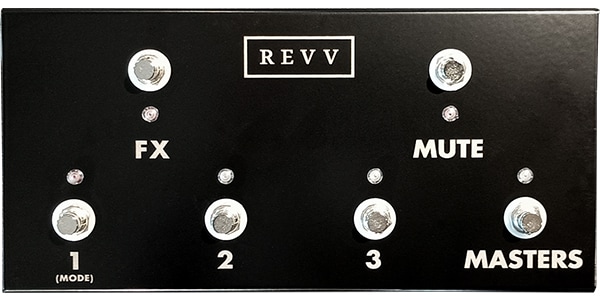

A dedicated foot switch is included that allows you to switch each channel (and switch each mode), switch the effect loop ON/OFF, switch master volume 1/2 (and mute), and save presets.

■Output (Peak):
186W@4Ω, 185W@8Ω, 192W@16Ω
16.3W@4Ω, 16.4W@8Ω, 16.8W@16Ω
■Output (RMS): 120W@4Ω, 10W@4Ω
■Vacuum tubes used: ECC83 (12AX7) × 5, 6L6GC × 4

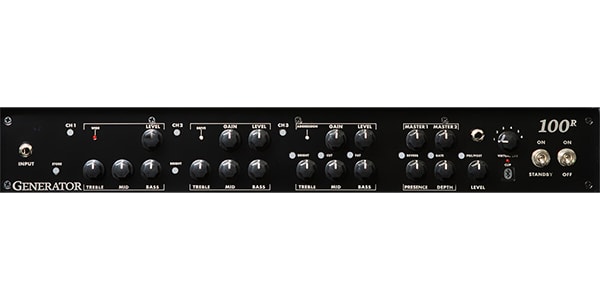

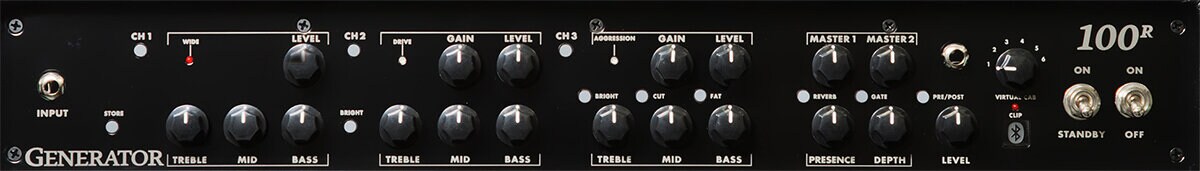

■Controls: [Front Panel] Channel Select Switch (CH1/Wide, CH2/Drive, CH3/Aggression), Store Switch, Reverb Switch, Gate Switch, Pre/Post Switch, Master1 Control, Master2
Control, Presence Control, Depth Control, Level Control, Virtual Cab Select Switch, ON/Standby Switch, ON/OFF
Switch, Bright Switch
Level, Treble, Middle, Bass
Gain, Level, Treble, Middle, Bass
Gain, Level, Treble, Middle, Bass, Bright Switch, Cut Switch,

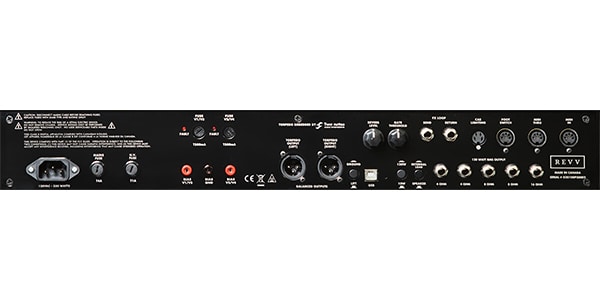

Fat Switch [Rear Panel] Ground/Lift Switch, Reverb Level
Control, Gate Threshold Control, USB, 120W/10W Switch,
Internal Load/Speaker Switch

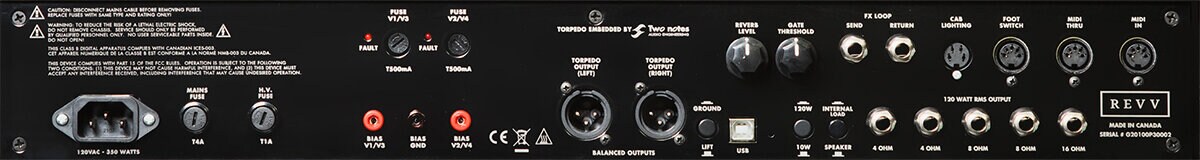

■Input/Output Terminals: [Front Panel] Input, Headphone Out [Rear Panel]
Power Input, Balanced Outputs(Left, Right), FX Loop
(Send/Return), Cabinet Lighting, Foot Switch, MIDI Through,
MIDI In, Speaker Outputs(4Ω×2, 8Ω×2, 16Ω×1)
■Supported Power Supply: 100VAC, 50/60Hz
■Size: H270 × W680 × D255mm (including protrusions, excluding handle)
■Weight: Approx. 21kg
