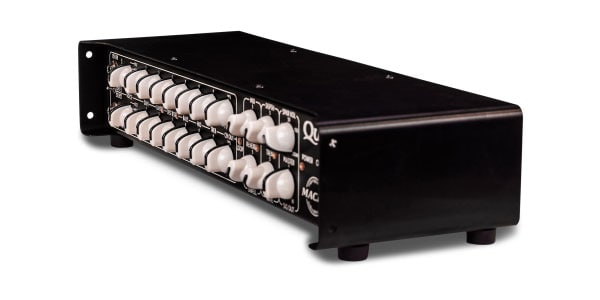

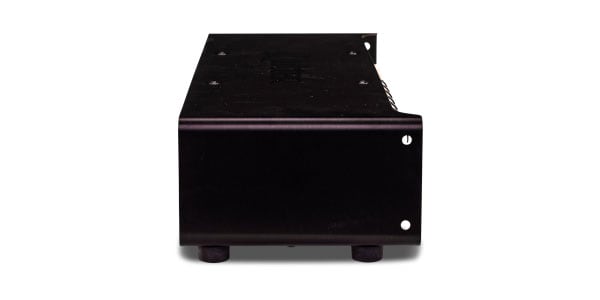

Quilter / AVIATOR MACH 3 HEAD

The Quilter Aviator Mach 3 is a two-channel head that is light and powerful in the upper echelon of head amps. Weighing only about 1.9 kg, it boasts an output of up to 200 watts.

■ELECTRONIC PERFORMANCE： INPUT 2 X 1/4" Mono, 2 meg impedance, 1.5-5Vpk (depending on EQ)
■FX LOOP：1/4" mono, 1V full scale, 1K out, 47K inp (with FX Send lifted)
■SIG OUT：1/4" TRS, balanced line, 40 ohms each leg, 2V full scale
■HEADPHONE (SIG OUT)：1/4" TRS, 40 ohms each channel, 0-6Vpk (depending on SIG VOL)
■SPEAKER OUT：0-200W (depending on SPKR VOL setting)
■AC POWER：100-240Vac, 50-60Hz, 250W maximum
■DIMENSIONS： HEAD H x W x D Height: 3.5" (8.9cm) including feet, 0.45" (1.1 cm) Width: 17" (43.2cm) Depth: 5.6" (14.3cm)
■WEIGHT (HEAD)： 4.35 lbs (1.9 kg)
■ACCESSORIES Includes Deluxe Head Case
