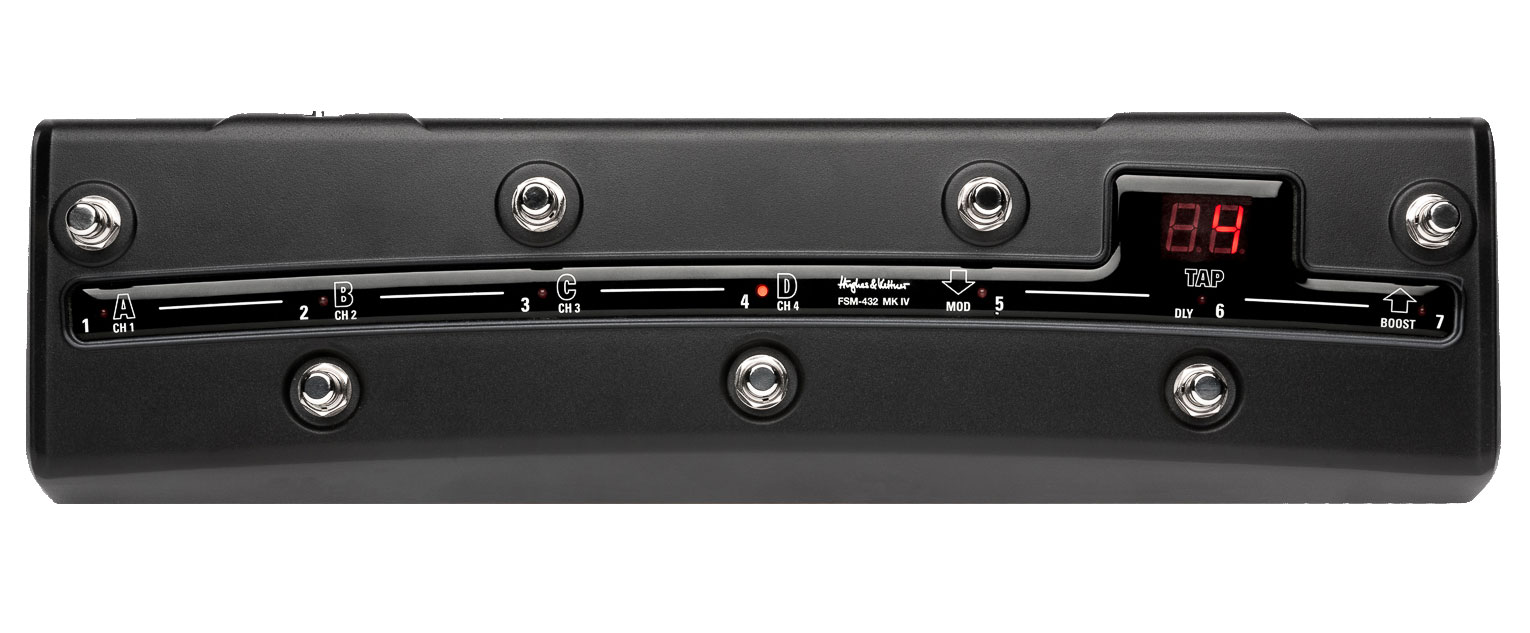

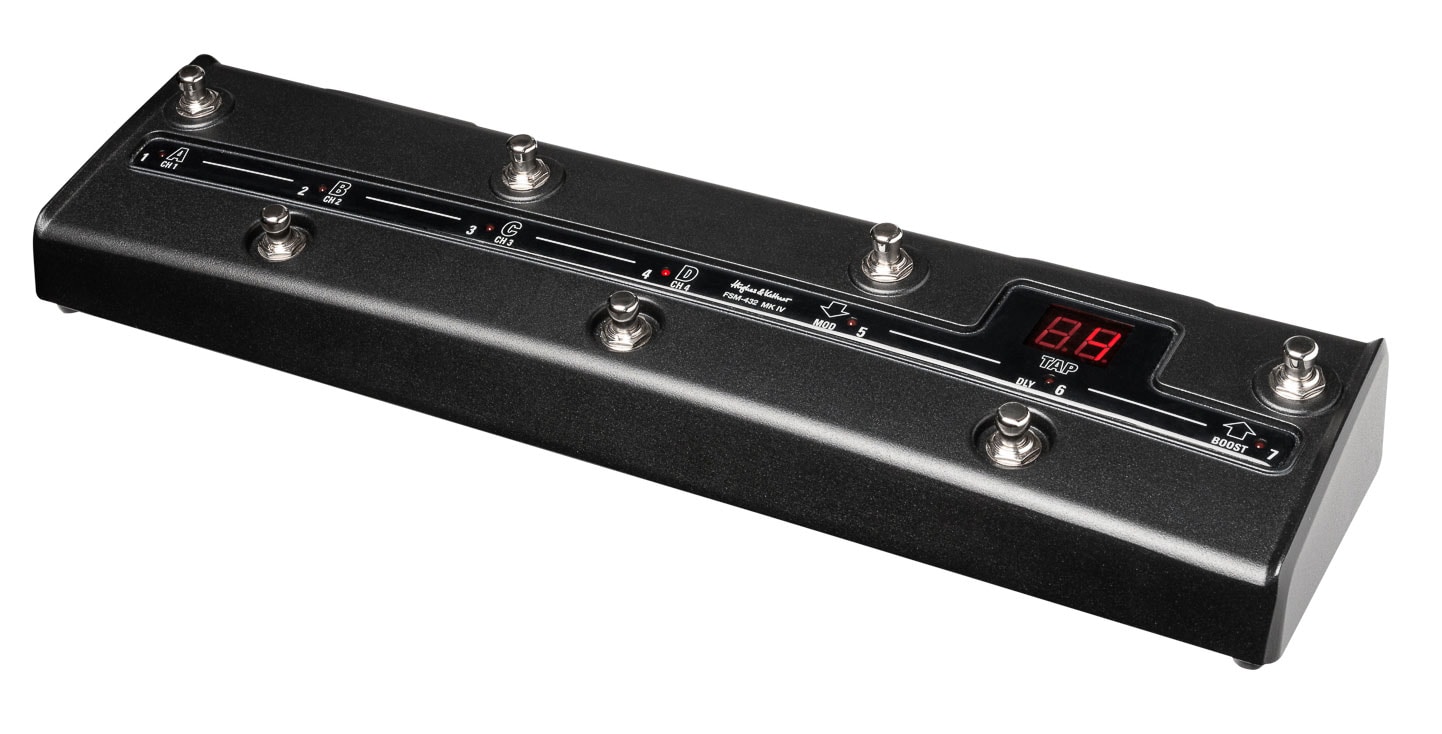

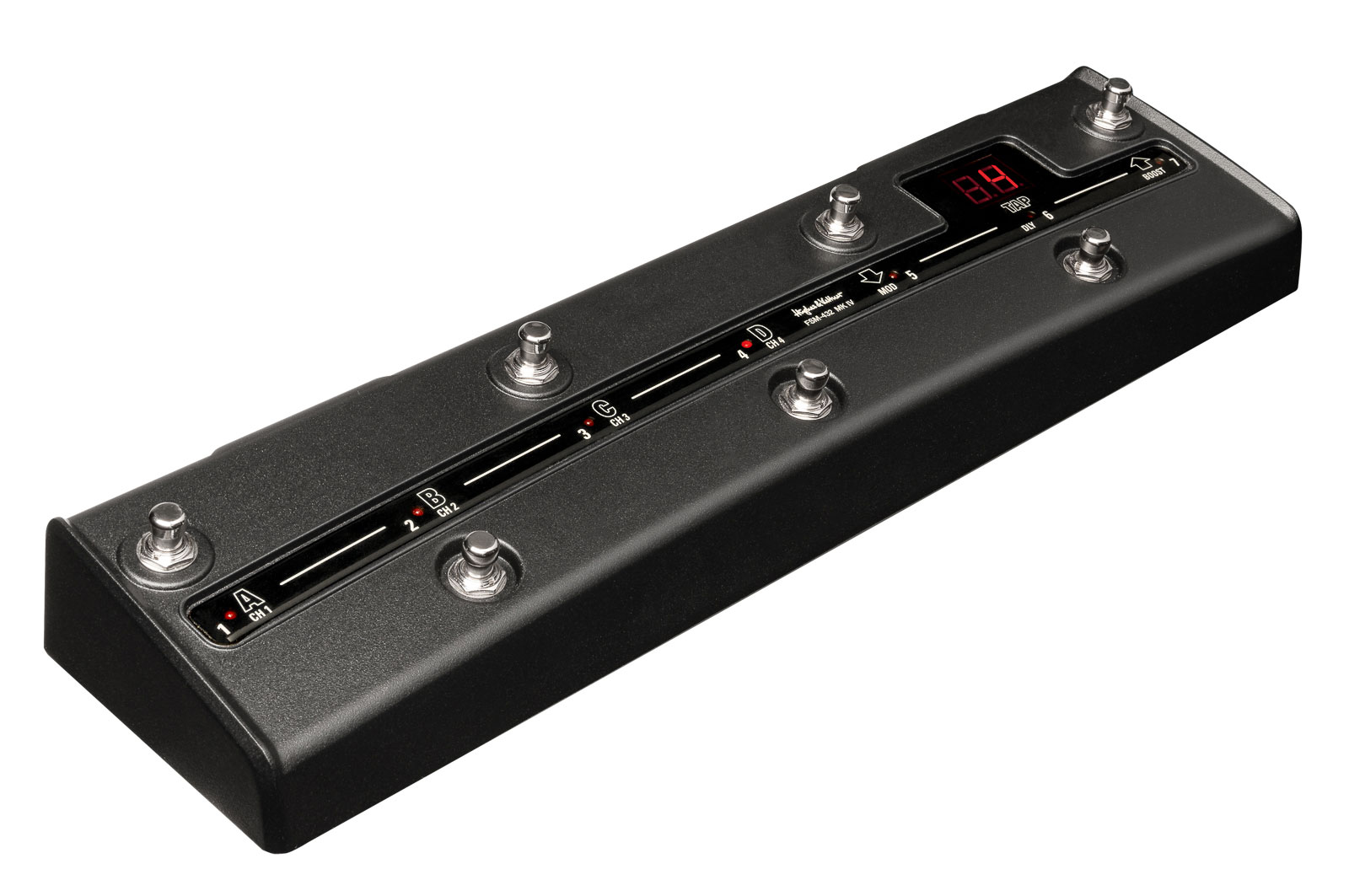

Hughes&Kettner / HUK-FSM432/4

MIDI footboard made by Hughes&Kettner. Comes with a 7-pin MIDI cable.

■Preset mode
By assigning 4 presets to each of the 32 banks, up to 128 presets can be registered.

MK IV allows you to assign controller inputs to each preset individually.

■Stompbox mode
A mode for directly switching amp channels. From MK IV, you can also set controller inputs independent of preset mode.

*Please refer to the manual for your Hughes&Kettner amp to see if stompbox mode is available.

■Direct 7 mode
A mode that allows direct access to 7 registered presets without switching banks.
You can set the tap tempo for the delay using the controller input.
This mode is suitable for assigning frequently used presets.

■Tap delay & additional connections
You can switch the delay tempo using the TAP switch.
Additional control is also possible by connecting an expression pedal or single switch to the Control 1/2 terminal.

■Firmware update
As a function of MK IV, firmware updates are possible via the MIDI port.

■Fully compatible with FSM 432 MKⅢ

Compatible with GrandMeister/BlackSpirit 200/TubeMeister Deluxe 40/TubeMeister 36/Coreblade/Switchblade.

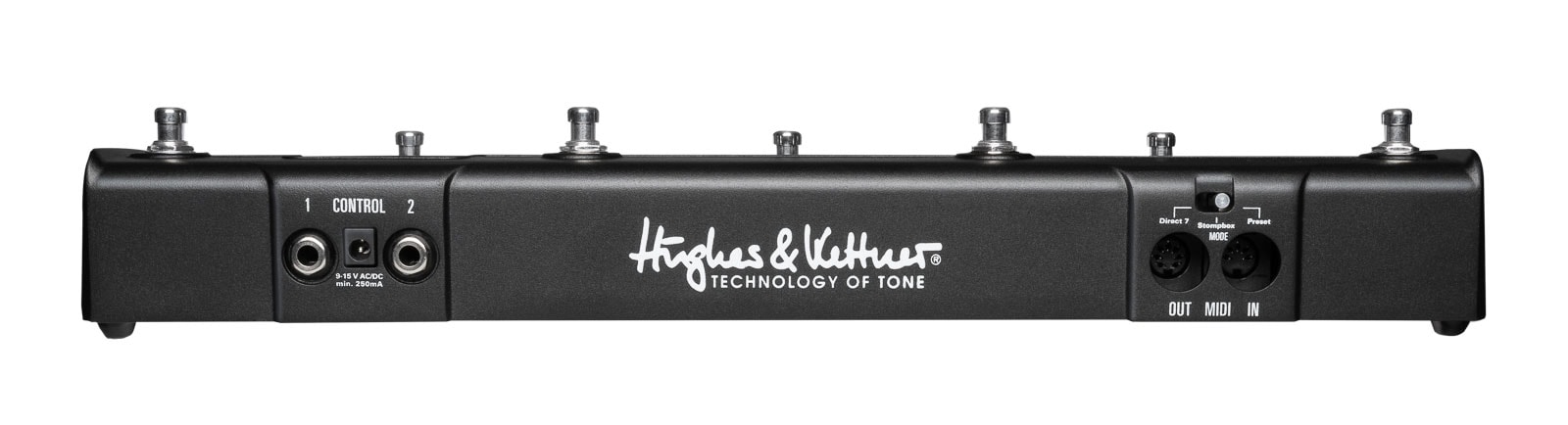

■MIDI terminal: MIDI In (5-pin)/Out (7-pin)

■Dimensions: 435 (W) x 118 (H) x 66 (D) mm

■Unit weight: 1.68 kg

■Accessories: 7-pin MIDI cable
