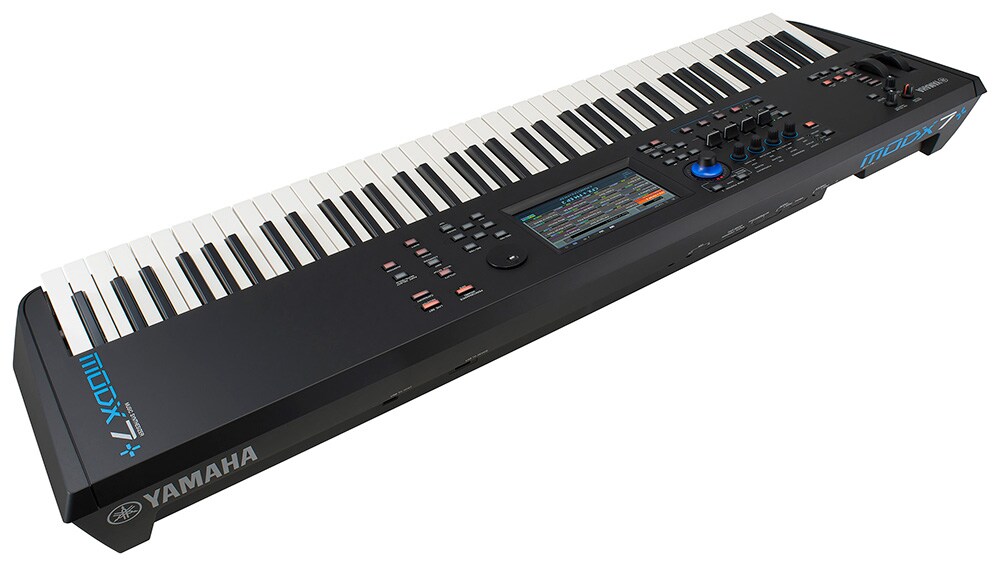

YAMAHA / MODX7+ 76-key workstation synthesizer

In the four years since the release of the original MODX (October 2018), the MODX has undergone numerous OS updates to meet the ever-changing needs of the music scene. The MODX+ inherits all of those updates while also strengthening the sound source performance to further improve expressiveness. The user memory area has also been expanded to accommodate the addition of large-capacity sound libraries that are constantly being expanded. This is the successor to the MODX, with improved basic performance and expressiveness to meet the changing needs of the music scene.

About four years have passed since the release of the first MODX (October 2018), and MODX has been updated with OS (v1.1 → v2.0 → v2.5) in response to the changing needs of the scene.

The new MODX+ inherits all of those updates while strengthening the sound source performance to further improve expressiveness.

The user memory area has also been expanded to accommodate the addition of large-capacity sound libraries that are being added every day.

This is the successor model to the MODX, which has improved basic performance and expressiveness to match the changes in the scene.

There are three main points: overwhelming ""sound"" that breathes life into music. Advanced ""control"" that enables the unique and dynamic expression that artists pursue.

Lightweight, compact ""mobility"" that supports active musical activities.

The MODX+ is a music synthesizer that gives modern keyboardists who perform in a variety of situations, such as stage performance, live streaming, and music production, overwhelming expressiveness

and mobility that can be carried to any site.

■Keyboard
MODX6+: 61-key semi-weighted keyboard (with initial touch)
MODX7+: 76-key semi-weighted keyboard (with initial touch)
MODX8+: 88-key GHS keyboard (with initial touch)

■Sound source section
・Sound source method:
Motion Control Synthesis Engine
AMW2: 8 elements / FM-X: 8 operators, 88 algorithms
・Maximum polyphony:
AWM2: 128 voices (both stereo/mono waveforms), FM-X: 128 voices
・Number of multitimbres:
Built-in sound source 16 parts, audio input part (A/D*1, USB*1)
*1 stereo part
・Waveform memory・
Preset: 5.67GB equivalent (16-bit linear conversion), User: 1.75GB
- Number of performances: 2,227
- Filters: 18 types
- Effects:
Reverb x 12 types, Variation x 88 types,
Insertion (A, B) x 88 types *2, Master effect x 26 types
*2 A/D part insertion is 83 types

Master EQ (5 bands), 1st part EQ (3 bands), 2nd part EQ (2 bands)

■Sequencer section
- Sequencer capacity
Approx. 130,000 sounds (1 pattern or 1 song)

・Store area
Approx. 520,000 notes (pattern), approx. 520,000 notes (song)

・Note resolution: quarter note/480

・Tempo (BPM): 5-300

・Pattern
Number of patterns: 128 patterns

Tracks: 16 sequencer tracks

Recording method:
Real-time replace, real-time overdub

・Song
Number of songs: 128 songs

Tracks: 16 sequencer tracks, tempo track, scene track

Recording method:
Real-time replace, real-time overdub,
Real-time punch

・Playback:
MODX original format, SMF format 0,1

・Arpeggiator
Parts: Up to 8 parts can be on simultaneously
Presets: 10,239 types
User: 256 types

・Motion sequencer:
Lane:
Up to 8+1 systems (8 systems for Parts + 1 system for Super Knob)

■Other

・Number of live sets:
Preset: 256 or more, User: 2,048
・Main controls:
Master volume, A/D input gain knob, USB volume,
Pitch bend wheel, Modulation wheel,
Control sliders x 4, knobs x 4, Super knob, Data dial
Display
7-inch wide VGA TFT color LCD (with touch panel)
・Connection terminals:
[USB TO DEVICE], [USB TO HOST], MIDI [IN]/[OUT], FOOT CONTROLLER [1]/[2], FOOT SWITCH [ASSIGNABLE]/[SUSTAIN], OUTPUT [L/MONO]/[R] (standard phone jack), [PHONES] (stereo standard phone jack), A/D INPUT [L/MONO]/[R] (standard phone jack)
・USB audio interface
Sampling frequency: 44.1kHz
Input/output channels:
Input: 4 channels (2 stereo channels)
Output: 10 channels (5 stereo channels)
・Power consumption: 16W (power adapter (When using PA-150B)

Dimensions and weight
MODX6+: 937(W) x 331(D) x 134(H) mm, 6.6kg
MODX7+: 1,144(W) x 331(D) x 134(H) mm, 7.4kg
MODX8+: 1,333(W) x 404(D) x 160(H) mm, 13.8kg

Accessories
Power adapter (PA-150B or equivalent recommended by Yamaha), warranty card,
Instruction manual, CUBASE AI DOWNLOAD INFORMATION
