CLASSIC PRO / CWE802H

CWE800 series, dual channel receiver and belt pack + headset microphone set. Ideal for speeches, seminars and presentations. Easy setup by simply matching the receiver and transmitter channels. Up to two sets can be used in the same area.

■Specifications
・Bandwidth: 800MHz
・Number of receiving channels: 2ch
・Number of channels that can be used simultaneously: 4
・Antenna method: Diversity
・Antenna: Fixed
・Audio output connector: Phone, XLR
・Range: Approximately 90m (Note: The range of radio waves varies depending on radio wave conditions, the presence or absence of reflection or interference, and the transmission output)
・Power supply: Receiver: DC12V (supplied by the included adapter), Hand microphone: DC3V (2 x 1.5V AA batteries)
・Dimensions (WHD): Receiver: 262 x 42 x 102mm, Beltpack transmitter: 65 x 97 x 25mm
・Weight: Receiver: 410g, Beltpack transmitter: 77g, lavalier microphone: 24g (including tie pin clip and windscreen), cable length: 157cm

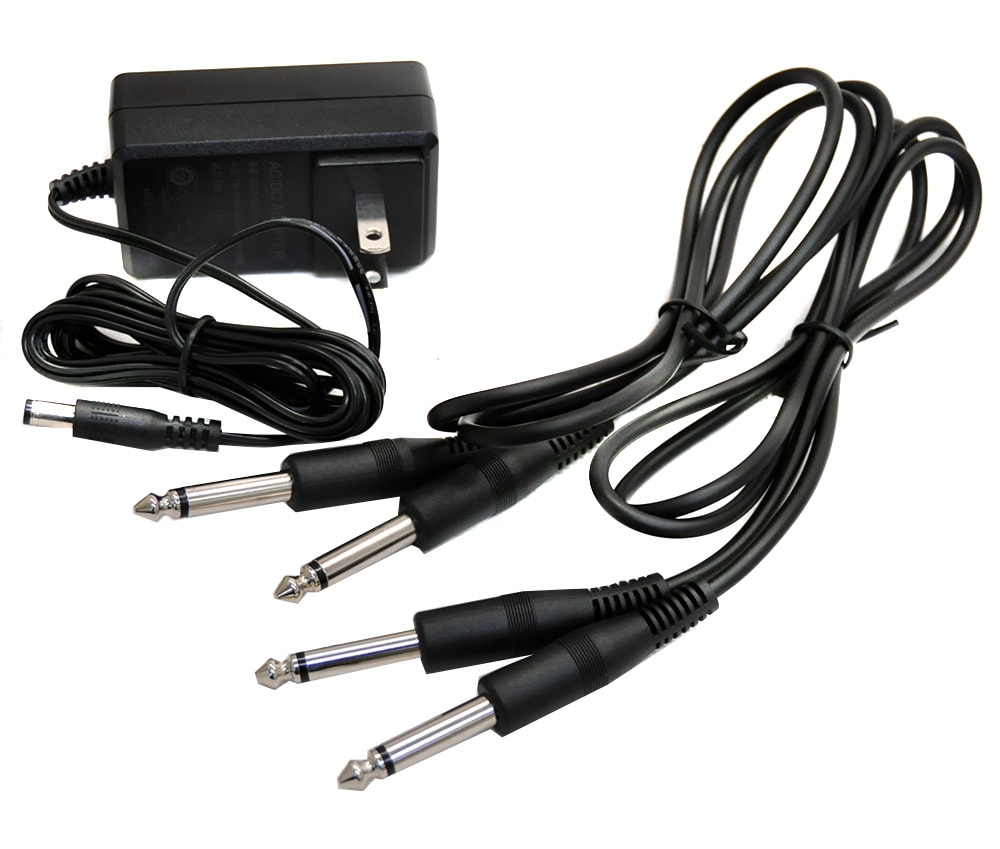

Accessories: power adapter (cable length approx. 180cm), cable included (phone-phone) x 2

■Features

-Select 2 channels to use from 8 channels in the B band. Up to 2 sets (4 waves) can be used in the same area.

-Maximum reach: approx. 90m (Note: The reach of the radio wave varies depending on the radio wave conditions, the presence or absence of reflection or interference, and the transmission output)

-Easy setup by simply matching the receiver and transmitter channels with a button.

-Lavalier microphone comes with tie pin clip and windscreen

-Transmitter is equipped with MUTE switch and GAIN switch.

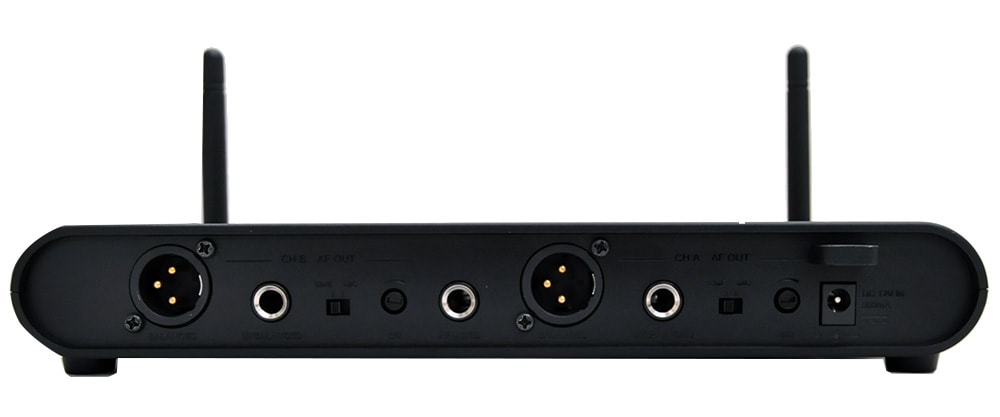

◆Receiver CWE802R

Receiving frequency: Any 8ch from UHF806.125 to 809.750MHz

Transmission method: PLL frequency synthesizer

S/N ratio: >100dB

Spurious response: 70dB (minimum)

Receiving sensitivity: 52dB

AF response: 50Hz-18kHz

T.H.D: <1% (at 1kHz)

Dynamic range: >100dB

Tone signal: 32.768kHz

Audio output: Balanced XLR, unbalanced phone

Power supply: DC12V, current consumption: 520±10mA

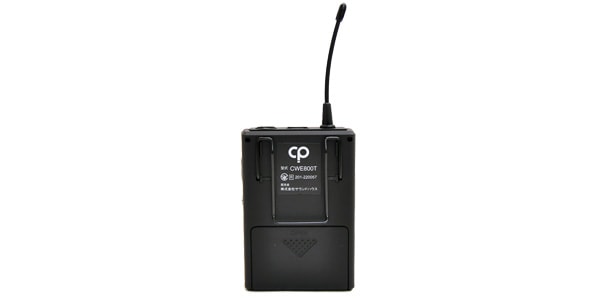

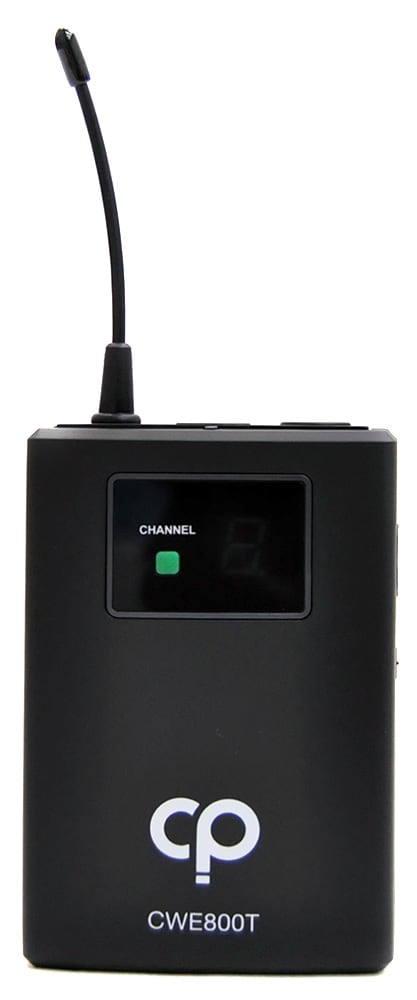

◆Beltpack transmitter (CWE800T x 2 units)

Transmission frequency: B band

Oscillation method: PLL synthesizer

RF output: 10mW (maximum)

Frequency stability: ±0.005%

Gain switching: 0dB, -10dB, -20dB (3 levels)
Tone frequency: 32.768kHz
Spurious radiation: >60dB
Battery: DC3V (2 x 1.5V AA batteries), current consumption: 120±10mA

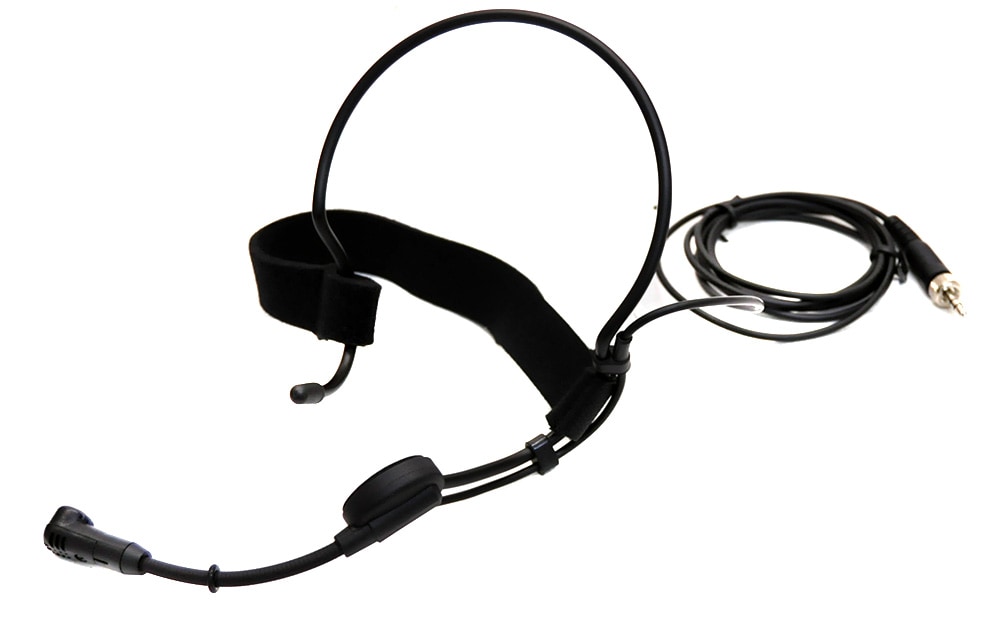

◆CWE7H
Headset microphone for CWE800 series
Type: Unidirectional condenser microphone
Sensitivity: -67 ± 3dB
Frequency response: 100 - 16,000Hz
Signal-to-noise ratio: 60dB
Connector: 3.5mm screw plug

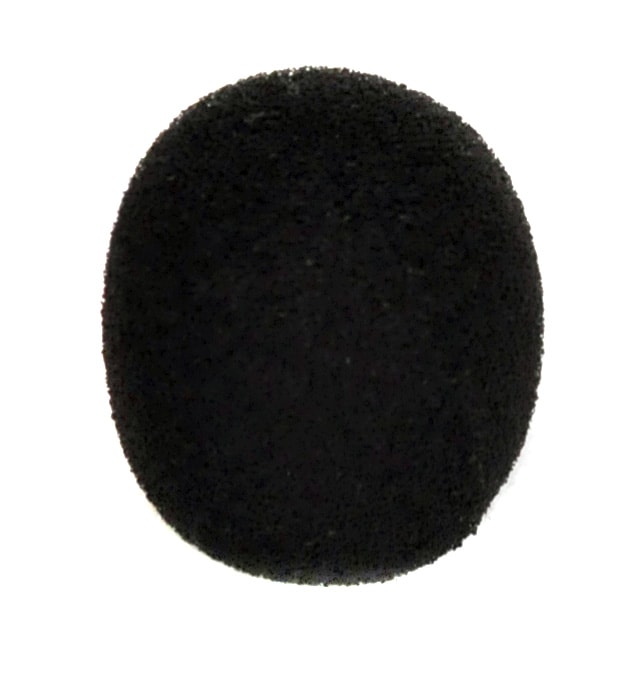

Accessories: Windscreen, adjustable band
