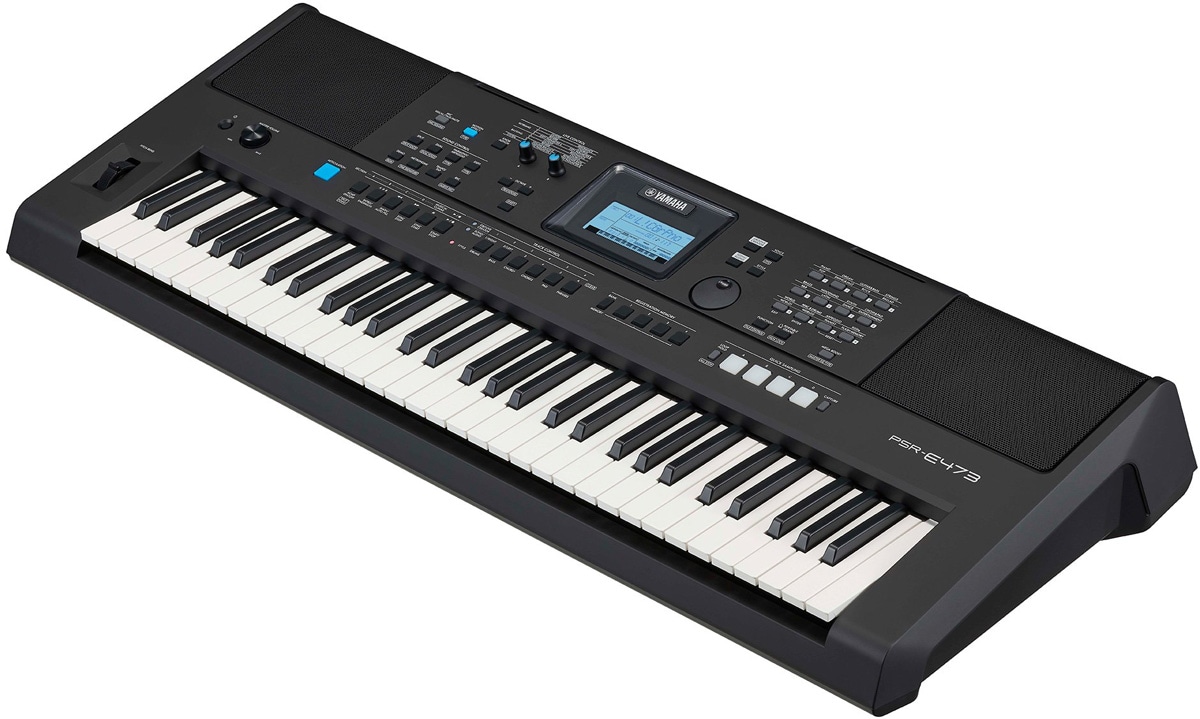

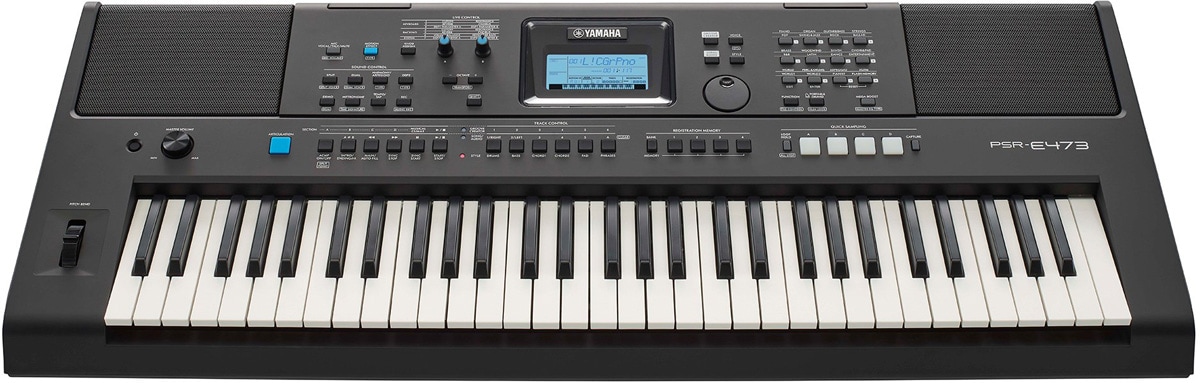

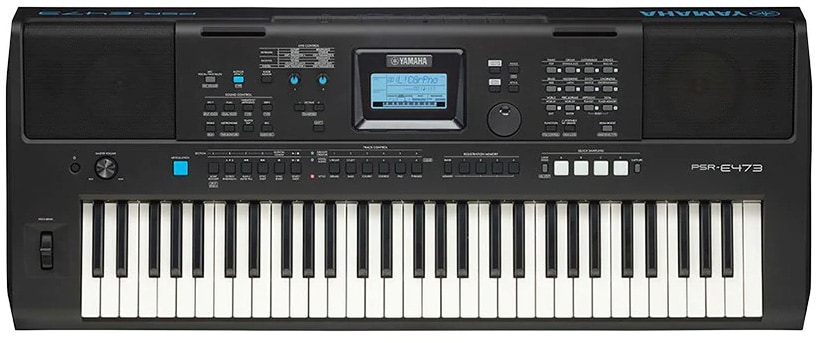

YAMAHA / PSR-E473

A performance-oriented keyboard that combines sound quality comparable to high-end models with expressive power that supports a wide range of genres. It is equipped with a sampling pad that adds excitement to your performance and motion effects that can be applied with the press of a button. It allows for intuitive and free performance. It also supports connection to a microphone and app, covering a wide range of uses.

■Size
Dimensions: Width 992 mm x Height 136 mm x Depth 404 mm
Weight: 7.0 kg (excluding batteries)

■Controllers
Keyboard: 61 touch response keys
Equipped with pitch bend wheel and knobs (2 pieces)
LCD display (with backlight)

■Sound source
Sound source method: AWM stereo sampling
Maximum polyphony: 64
Number of tones: 820 (294 panel tones + 28 drum/SFX kit + 40 arpeggio tones + 458 XGlite tones)

■Effects
DSP1: 41 types
DSP2: 12 types
Reverb: 12 types
Chorus: 5 types
Master EQ: 4 types
Harmony: 26 types

■Functions
Dual
Split
Arpeggio: 152 types
Melody cancel
Articulation (14 Super Articulation Light tones)
Crossfade

■Accompaniment Styles
・Number of preset styles: 290
・Smart chord/multi-finger
・Style on/off, sync start, sync stop, start/stop, intro/ending/rit, main/fill-in, track on/off
・One-touch setting (OTS) Yes
・External styles: 10

■Recording/playback
Number of built-in songs: 30
Number of recorded songs: 10
Number of recording tracks: 6 (5 melodies + 1 style/groove)
Data capacity: Approximately 19,000 notes/10 songs
Playback format: SMF (format 0, format 1)
Recording format: Original format (SMF0 conversion function available)

■USB audio recorder
Recording time: Up to 80 minutes per song (approximately 0.9 GB) *USB flash memory required
Playback: WAV (44.1 kHz, 16 bit, stereo) *USB flash memory required
Recording: WAV (44.1 kHz, 16 bit, stereo) *USB flash memory required

■Quick sampling function

■Function
USB audio interface: 44.1 kHz, 16 bit, stereo
Registration memory: 4 (x8 banks)
Metronome: Tempo 11 to 280
Transpose: -12 to 0 to +12
Tuning: 427.0 to 440.0 to 453.0 Hz (approx. 0.2 Hz increments)
Octave button
Scale: 5 types
Piano button
Motion effect: 57
Mega boost: 2 levels (approx. +3 dB, approx. +6 dB)

■Memory
Built-in memory approx. 1.72 MB
External drive USB flash memory

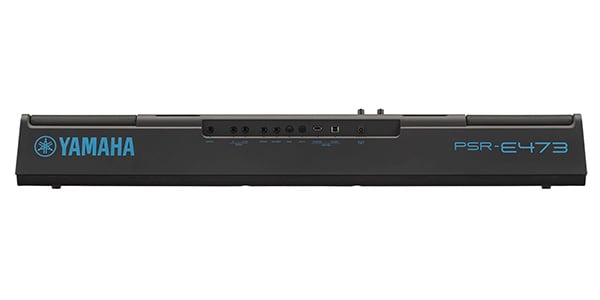

■Connection terminals
DC IN: 12V
Headphones: Standard stereo phone jack
Sustain pedal jack
Microphone input jack
AUX IN Stereo mini jack
OUTPUT Standard phone jack: L/L+R, R
USB TO DEVICE
USB TO HOST

■Amplifier/Speaker
Amplifier output 6 W+6 W
Speakers 12 cm x 2

■Power supply
Power supply Power adapter PA-150B (or equivalent recommended by Yamaha)
Batteries 6 x AA batteries (alkaline batteries/manganese batteries/rechargeable nickel-metal hydride batteries) (sold separately)
Power consumption 13W (when using power adapter PA-150B)
Auto power off Yes (time can be set)

■Accessories

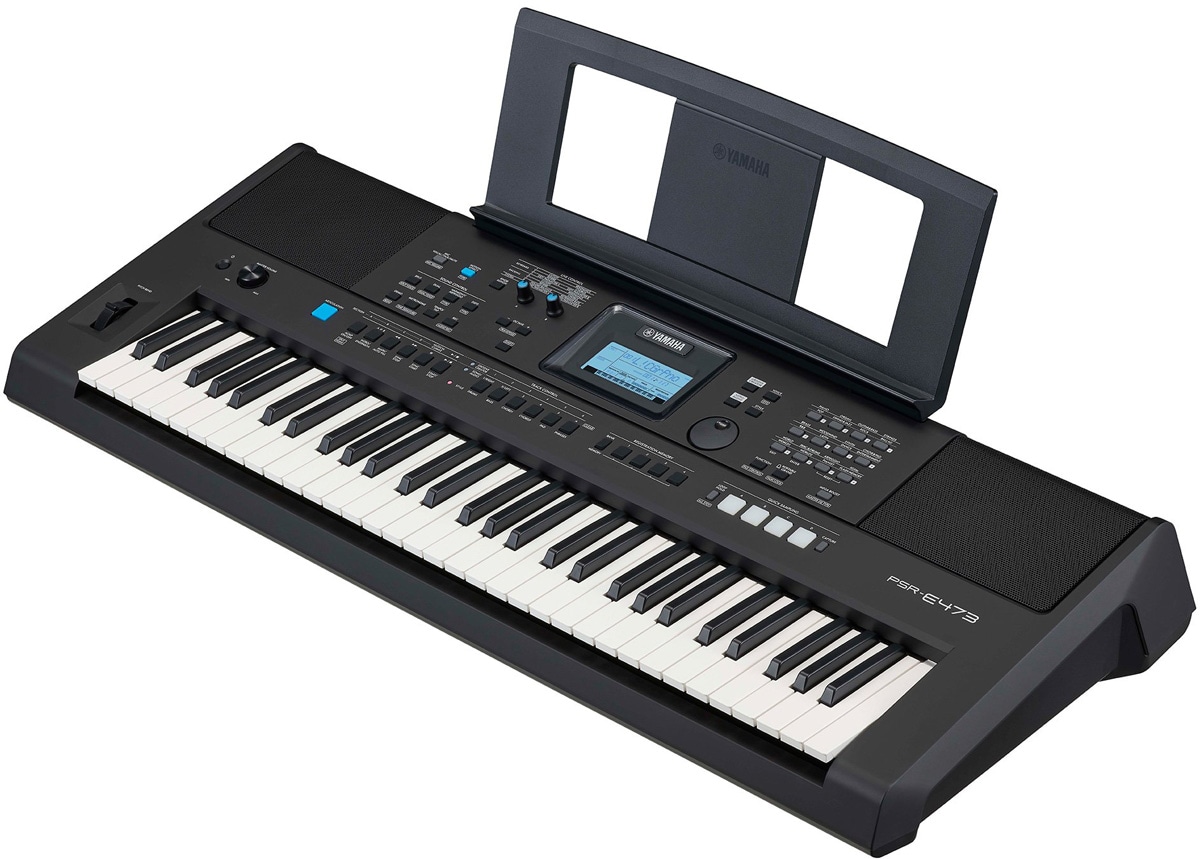

Music stand/music board
Power adapter PA-150B or equivalent recommended by Yamaha
Others Instruction manual (including warranty), Japanese sheet
