Fractal Audio Systems / FM3 for BASS

FM3にベース用プリセット"BASS TONEPACK"をプリインストールした 『FM3 for BASS』が新登場！

■ Specifications
〇 INSTRUMENT INPUTS
- Terminal: Rear 1/4" phone jack
- Impedance: 1 MΩ
-Maximum input level: +16 dBu
〇 ANALOG INPUT 2
- Terminal: 1/4" phone jack (TRS) x 2
- Impedance: 1 MΩ
- Maximum input level: +20 dBu
〇 A/D conversion
- Bit depth: 24 bits
- Sample rate: 48 kHz
- Dynamic range: 114 dB
- Frequency characteristics: 20Hz -20kHz, -0.01 to +0.01 dB
〇 ANALOG OUTPUT S1
- Terminal: XLR male x 2 (GND/LIFT switch)
- Output level: -10 dBV/+4 dBu (parameter setting)
- Impedance: 600 Ω
- Maximum output level: +20 dBu
〇 ANALOG OUTPUT S2
- Terminal: 1/4" phone jack x 2 (Humbuster function compatible)
- Impedance: 600 Ω
- Maximum output level: +20 dBu
〇 HEADPHONE OUTPUT
- Terminal: 1/4" stereo phone jack
- Impedance: 35 Ω
〇 D/A conversion
- Dynamic range: 114 dB
- Frequency response: 20Hz-20kHz, +0/-1 dB
〇 DIGITAL output
- Terminal: S / PDIF: RCA coaxial type
- Audio file format: PCM
- Sample rate: 48 kHz fixed
〇 USB AUDIO
- Standard: USB 2.0
- Number of channels: 4 in, 4 out
- USB audio clock: 48 kHz fixed
〇 MIDI connection
- Input terminal: 5-pin DIN x 1
- Output/Through terminal: 5-pin DIN x 1
〇Pedal connection
- Input terminal: 1/4" phone jack (TRS) x 2
- Pedal: Center wiper 10-100 kΩ (maximum)
- Switch: Supports normally open/normally closed, latch/unlatch
〇 FASLINK II connection
- Terminal: XLR female x 1
*Do not connect to anything other than the FASLINK II terminal of the FC series controller.
〇 Power supply
- Input voltage: 90 --264 VAC, 47 --63 Hz
- Power consumption: 40W or less
■ Size/Weight: 281mm (width) x 103mm (height) x 236mm (depth)/3.22kg

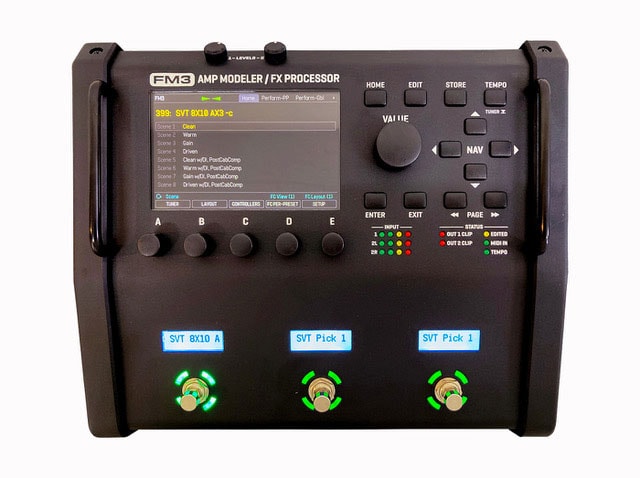

*The picture is for illustration purpose only.
