CLASSIC PRO / CXA046

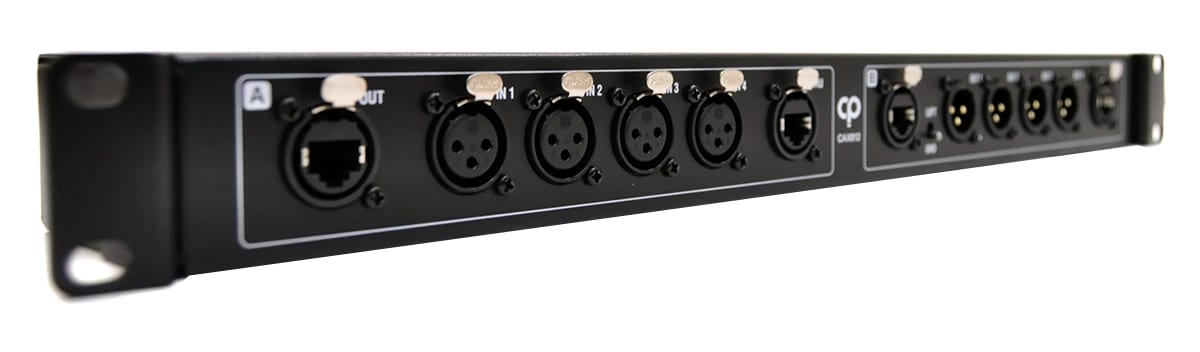

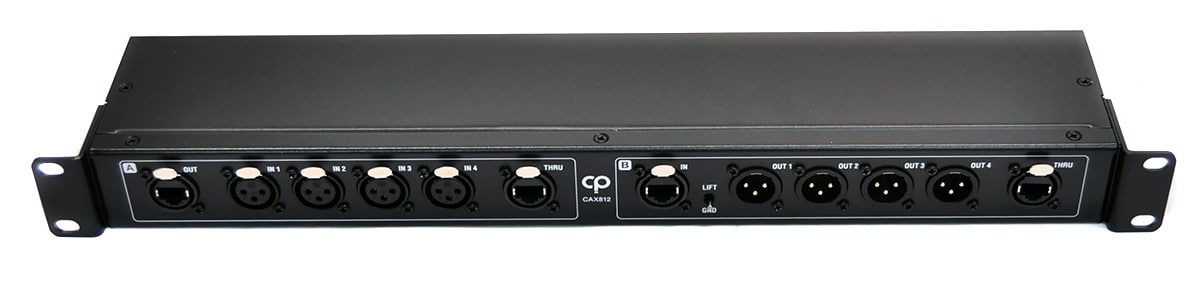

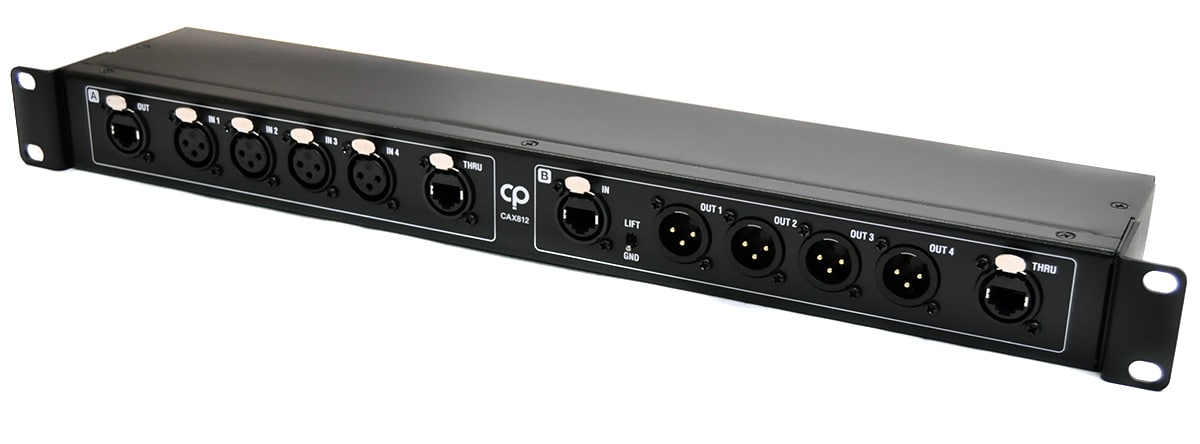

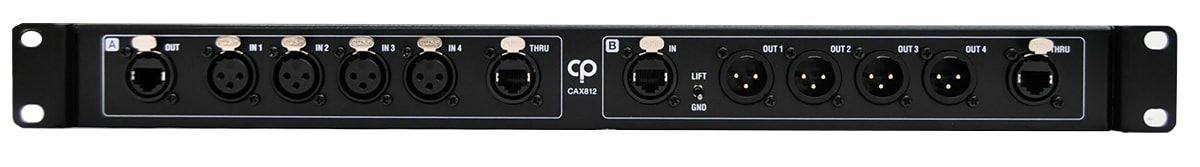

This is an AUDIO/DMX extender equipped with 4 XLR input terminals and 4 XLR output terminals. By connecting it to another CAX series with a LAN cable, it is possible to transmit 2 sets of 4 channels (8 channels in total) of audio signals or DMX signals.

■Audio/DMX multi-cable box ■4 female XLR (input) ■4 male XLR (output) ■1 LAN connector IN, 1 LAN connector OUT CH A: The signal input to the XLR is output from both the LAN OUTPUT and THRU. CH B: The signal input to the LAN IN is output from both the XLR OUTPUT and THRU. ■Ground lift switch (only equipped with output) ■How to use Connect to other CAX series with a LAN cable. *Please use a shielded CAT5e or CAT6 Ethercon cable. *Not compatible with BDM104 and BDF104 as the pin arrangement is different. *Pin arrangement 1: 3+ 2: 3- 3: 2+ 4: 1+ 5: 1- 6: 2- 7: 4+ 8: 4-
