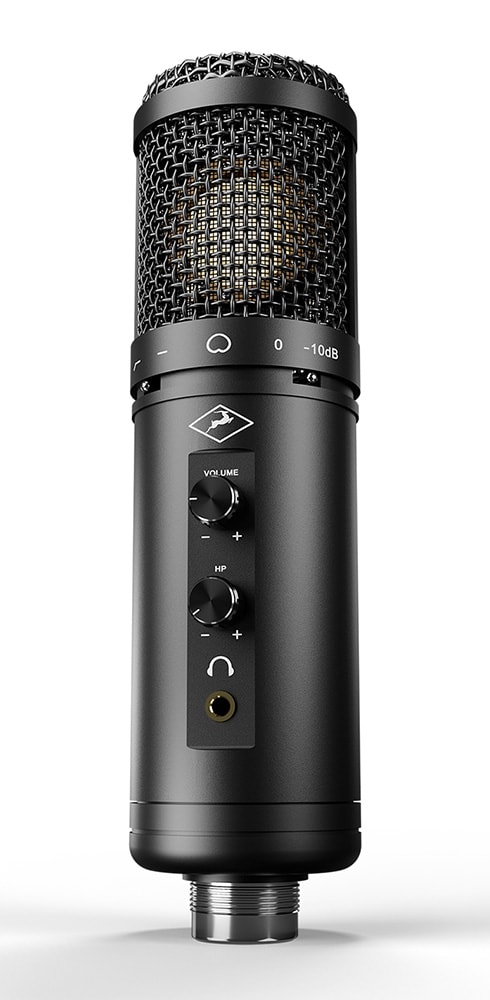

ANTELOPE AUDIO / Axino Synergy Core USB Mic

USB mic with Antelope Audio's onboard mic emulation and Synergy Core effects. Easily realize an all-in-one recording solution.

■ USB microphone
* Before using, you need to register the product on the manufacturer's site and install the dedicated application.

Axino Synergy Core is a groundbreaking recording system that combines a professional condenser microphone with an advanced processing audio interface. Artists and producers can record with incredible accuracy and process audio in real time with this single device. It also includes a collection to take your sound to a new level, including the effects found in Synergy Core and the emulation of classic mics. Featuring Antelope Audio's renowned AD / DA conversion and AFC? Clocking technology, the Axino Synergy Core is an essential audio production powerhouse for home studios, streaming channels and mobile setups.

-Compact bus-powered USB device that integrates a condenser microphone and audio interface
・ Accurate sound is recorded by the large-diameter diaphragm capsule and the gold-sputtered membrane.
・ 24-bit, 192kHz AD / DA conversion function by original 64-bit AFC clocking technology
・ 18 types of onboard microphone emulation by Antelope Audio's original modeling engine
・ Equipped with 10 types of Synergy Core effects, more than 80 types of optional expansions can be purchased separately.
・ Real-time, low-latency monitoring and effect processing

USB condenser microphone in pursuit of sound source accuracy
The Axino Synergy Core is a large-diameter diaphragm microphone designed for detailed recording of the natural characters and sounds of musical instruments and vocalists. The large diameter membrane with gold sputtering has less self-noise, and the cardioid pickup pattern minimizes background noise, allowing you to capture any sound effortlessly. The hybrid amp design, which uses Antelope Audio's well-established discrete preamp technology, delivers clear, uncolored sound.

Your own virtual micro locker
Axino Synergy Core uses Antelope Audio's mic modeling engine to virtually reproduce and record classic mics. Equipped with 18 types of emulation, dynamic microphone, vacuum tube microphone, and FET condenser microphone, you can record and monitor in real time. The system allows you to experiment with flexible workflows and various mic emulations to find the best sound.

Fully optimized audio interface for professionals
The same state-of-the-art technology as Antelope Audio's top audio interface is used in the Axino Synergy Core. The combination of accurate 64-bit AFC? Clocking and state-of-the-art AD / DA conversion provides audio quality that is extremely faithful to the original sound at resolutions up to 24-bit / 192kHz. For high fidelity audio playback, the headphone output is equipped with a DAC chip with 124 dB of headroom.

Expandable Synergy Core Effects Collection
The unique platform "Synergy Core" allows you to take advantage of real-time effects processed by DSPs and FPGAs. The unit is bundled with 10 Synergy Core effects specially selected to enrich any recording, delivering the ultimate sound with compressors, EQs, preamps, dynamic processors and more. You can also buy effects for over 80 analog models at the Antelope Audio Software Store.

Perfect performance for everything
Axino Synergy Core is an intuitive system that can handle streaming, playback, and recording with low latency. This level of performance applies to everything from home recording to streaming to podcasting. It is designed to drive your workflow from multiple angles and to be creative. Whether you're at home or on the go, the Axino Synergy Core is the ultimate recording system for everything.

■ Product specifications
Sound capture
・ Large-diameter diaphragm capsule, gold sputtering membrane, cardioid pick-up pattern
· Best-in-class 24-bit / 192kHz AD / DA conversion, up to 124dB headroom
-64-bit AFC? Clocking technology reproduces sound details at an extremely high level

■ Connectivity and control
-Bus-powered USB 2.0 port can run up to 4 inputs and 4 output channels in a typical DAW using custom macOS and Windows drivers
・ Headphone output for direct monitor equipped with a high-performance DAC chip
・ Physical control of microphone gain and headphone volume
・ Equipped with 10dB pad and high-pass filter hardware switch

■ Functions that improve workflow
-Bus-powered microphone-Power is supplied via USB connection without the need for a microphone preamplifier or audio interface.

・ Real time monitoring with microphone emulation and Synergy Core effect is possible with a latency of 1ms or less.
· Simple preconfigured I / O routing for seamless recording and playback
· Quick access to presets with signal routing, level adjustments, and effect settings
・ Loopback function for streaming

■ Real-time processing
・ Equipped with a modeling engine that simulates a microphone in real time
・ Equipped with 18 types of typical microphone emulation
-Equipped with Synergy Core platform with DSP and FPGA chip
・ Equipped with 10 types of Synergy Core vocal effects, it is possible to purchase more than 80 types of extended functions separately.

List of attached Synergy Core Effects
・ EQ-55A (3-band EQ / HPF / LPF)
・ BAE-1073 (3-band EQ / HPF)
・ BAE-1073MP (microphone / line preamplifier)
・ FET-A76 (FET compressor / limiter amplifier)
・ OPTO 2A (tube optical compressor / limiter)
・ GYRAF GYRATEC IX (dual tube mic preamp with HPF)
・ MASTER DE-ESSER
・ POWERGATE (noise gate)
・ POWEREX
・ AURAVERB

Attached microphone emulation
・ Berlin 47 TU
・ Berlin 49T
・ Berlin 57
・ Berlin 67
・ Berlin 87
・ Berlin K86
・ Berlin M103
・ Berlin M251
・ Berlin V563
・ Hamburg 441
・ Illinois 7B
・ Illinois 57
・ Minnesota 20
・ Tokyo 800T
・ Vienna 12
・ Vienna 112
・ Vienna 414

What is included in the product
・ Axino Synergy Core
・ Table stand
・ Shock mount
・ USB cable
・ Quick start guide
