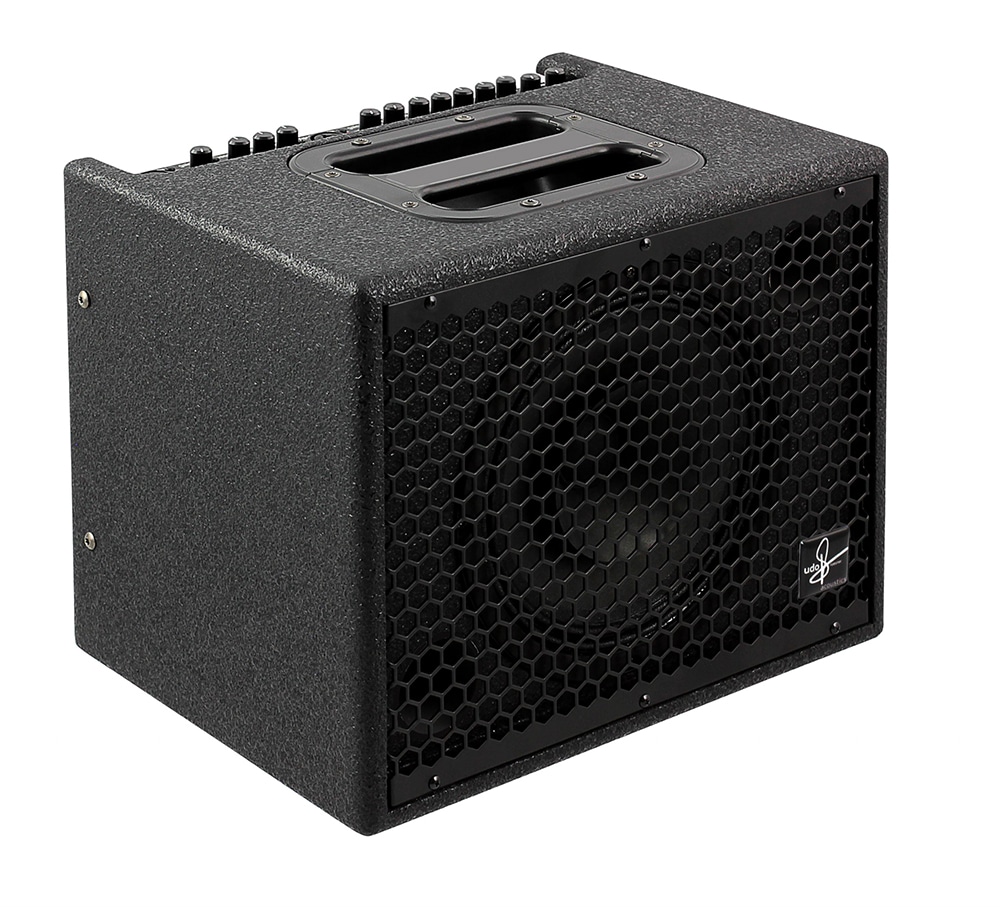

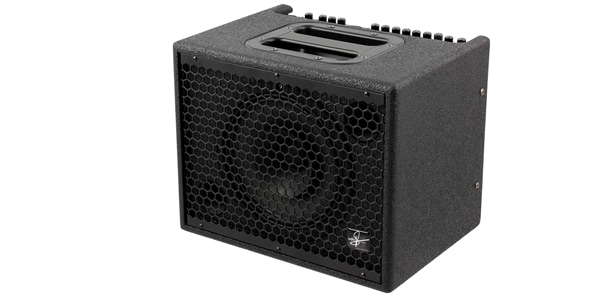

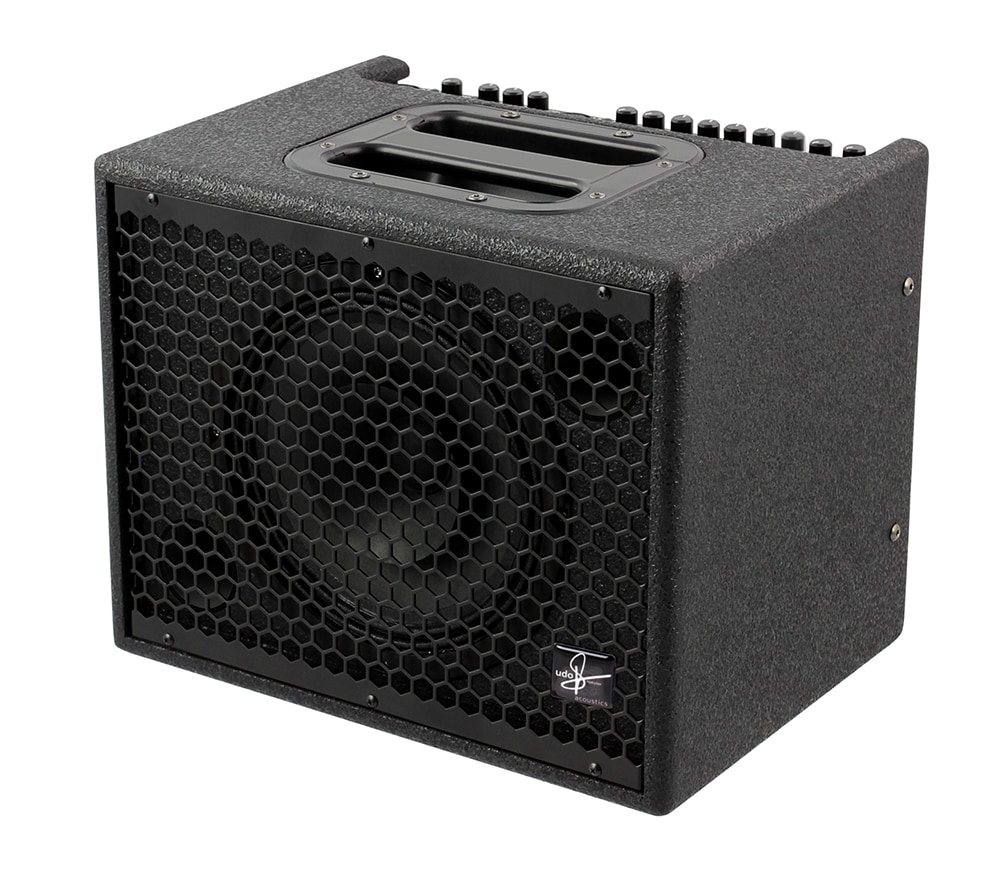

Udo Roesner Amps / Da Capo 75

カスタムメイドの8インチ・ツインコーンタイプ・スピーカーを搭載した、2チャンネルのアコースティック楽器用アンプ。コンパクトながら75Wの出力を誇り、6種類のエフェクトも内蔵しています。

■ Acoustic guitar amplifier
■ Amplifier output: 75W / 4Ω

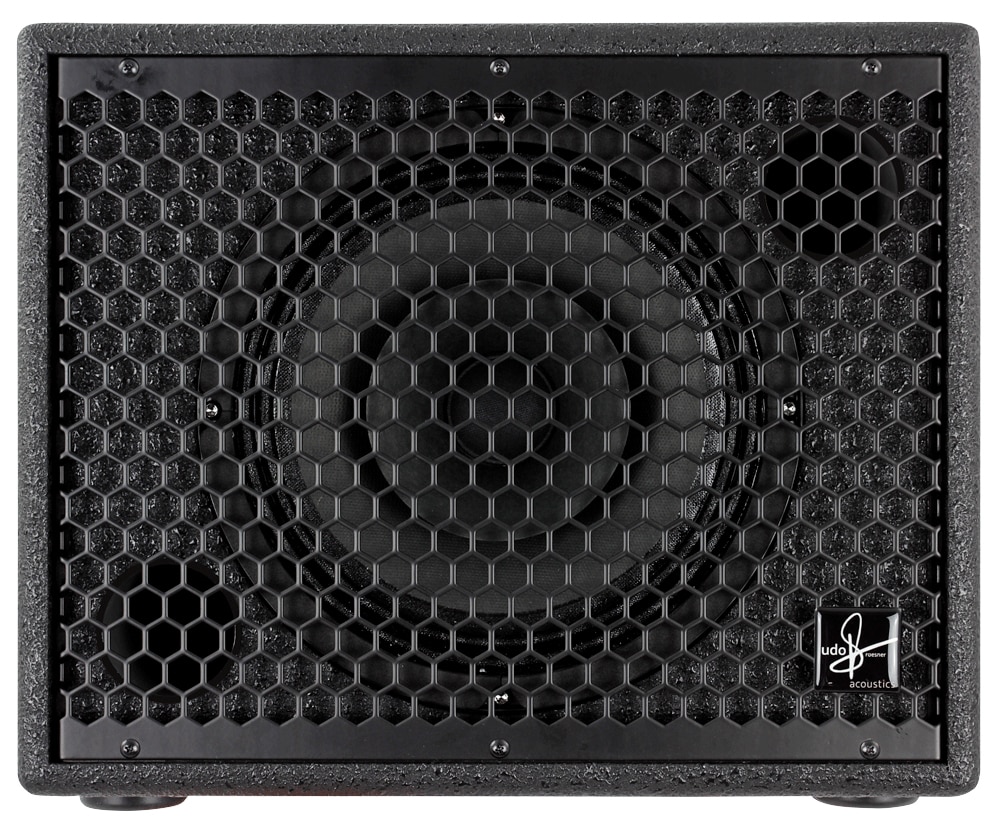

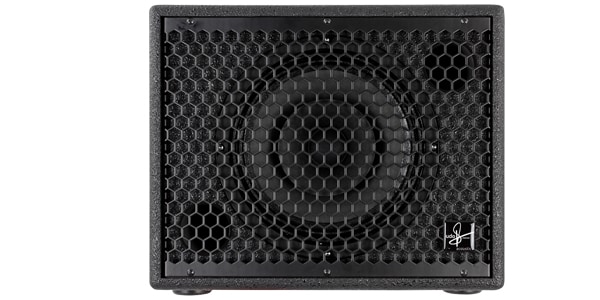

■ Speaker: 8 inches, twin cone full range
■ Cabinet: 12mm plywood
■ Specifications

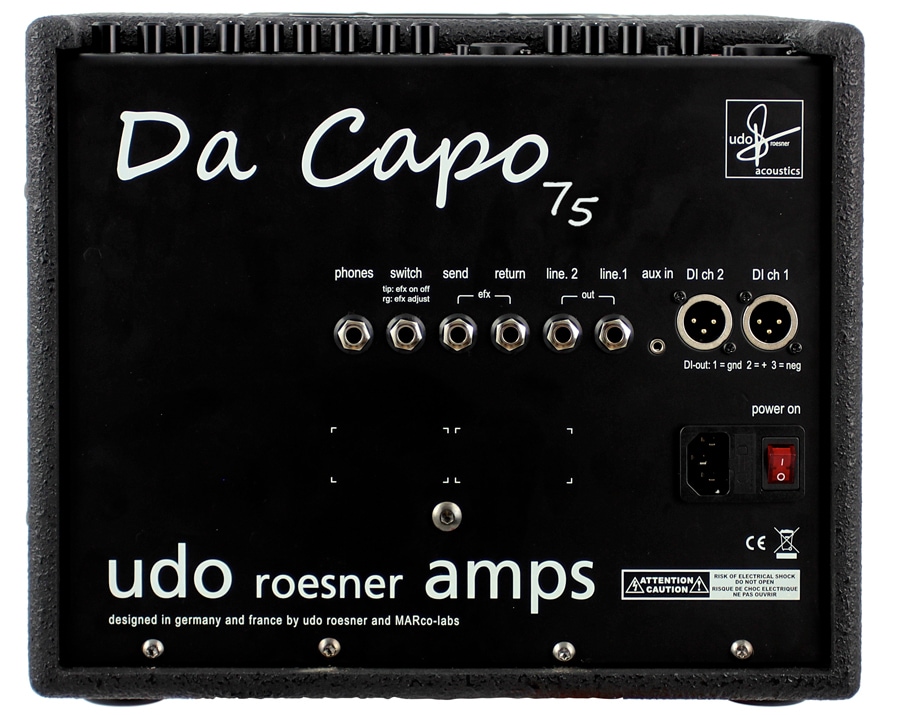

[Input]
-INPUT 1/INPUT 2 common: XLR & 1/4 inch TRS phone combo jack
-Line mode: High impedance jack for musical instruments, unbalanced, line level
Impedance: 2.2MΩ
-Mic mode: XLR balanced / phone jack unbalanced
Impedance (XLR balanced): 1.2kΩ
Impedance (phone jack unbalanced): 2.7kΩ
Phantom power (XLR only): 48V up to 10mA (with short protection circuit)
-Return: 1/4 inch phone jack, unbalanced, premaster
Impedance: 19.7kΩ
-AUX In: 1/8 inch TRS stereo phone jack

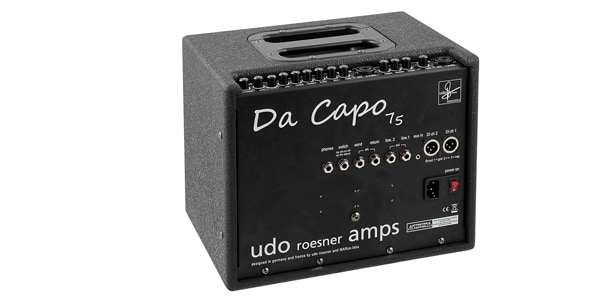

[Output]
-Phones: 1/4 inch TRS stereo phone jack
Impedance: 470Ω
*Monojack cannot be used
*The output from the speaker is muted when headphones are connected.
-Send: 1/4 inch phone jack, unbalanced, premaster
-Line Out 1/Line Out 2: 1/4 inch phone jack, unbalanced, preamp out
-DI Out 1/DI Out 2: 1XLR balance, premaster, post EQ/effect
(1=Grand/2=Hot/3=Cold)

[Foot switch]
-Foot switch: 1/4 inch TRS stereo phone jack
Connect a latch type dual foot switch
(Tip=Built-in effect on/off/Ring = Parameter setting tap n' delay/sleeve=Grand)

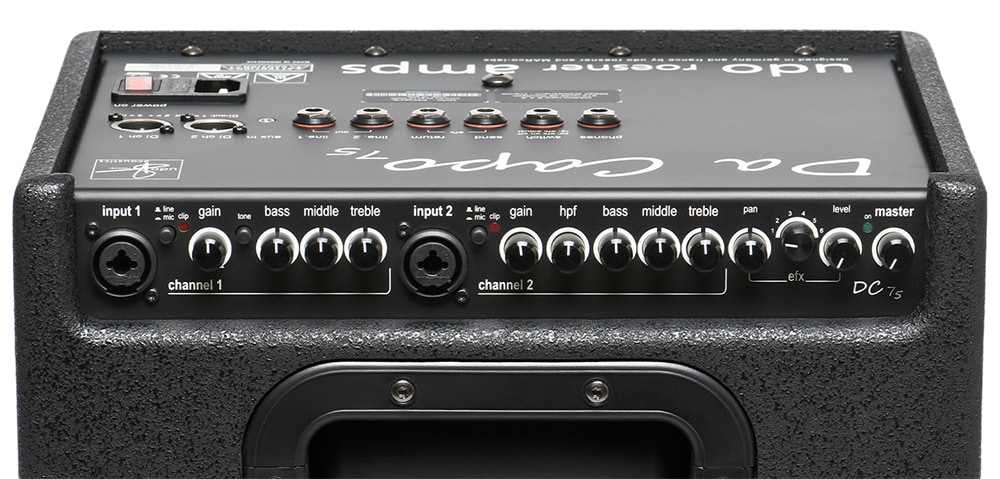

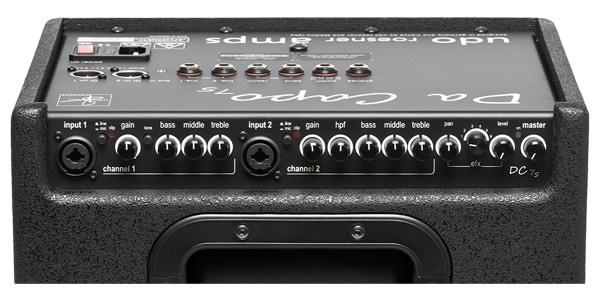

[EQ]
-Ch1
tone: -3dB @ 700Hz, +7dB @8kHz
bass: 8dB @ 100Hz (shelf type)
middle: 6dB @ 800Hz
treble: 8dB @ 10kHz (shelf type)
・ Ch2
hpf filter: 40Hz-350Hz
bass: 8dB @ 100Hz (shelf type)
middle: 6dB @ 800Hz
treble: 8dB @ 10kHz (shelf type)

[Effect]
-Effect presets:
1-reverb short
2-reverb long
3-chorus
4-custom delay
5-my delay
6-tap n'delay

-External Effect: Parallel effect loop
-EFX Pan: Internal effect/Internal effect effect amount setting
■ Size: 265mm (H) x 325mm (W) x 245mm (D)
■ Weight: 7.5kg
■ Accessories: Shoulder bag
*Specifications are subject to change without notice.
