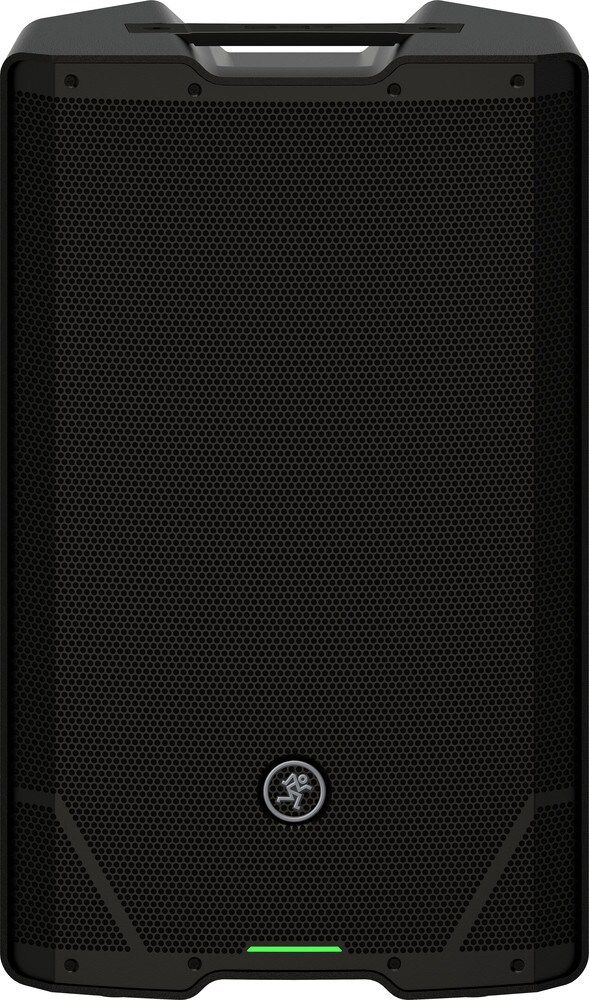

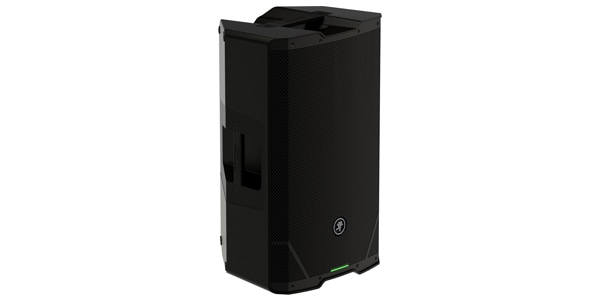

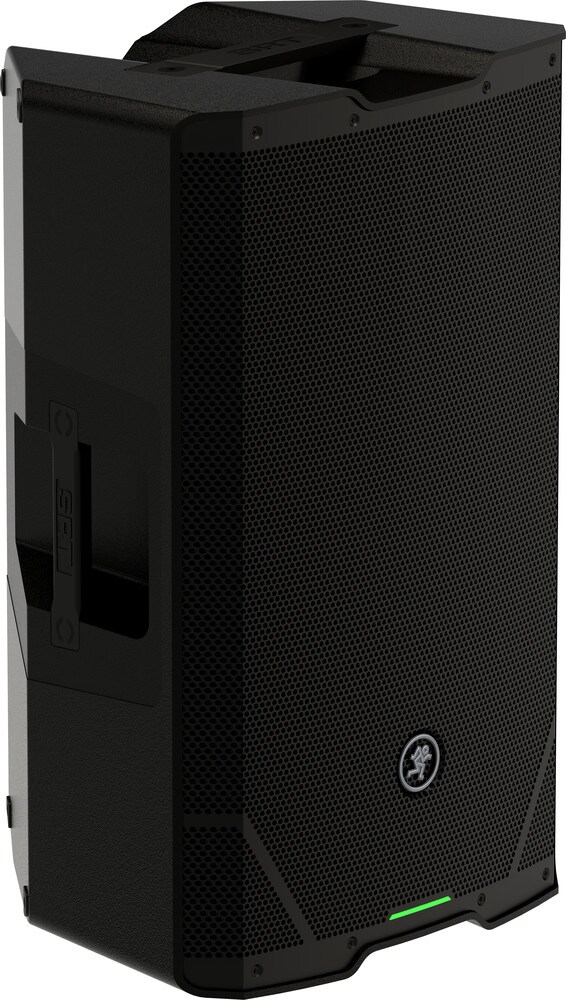

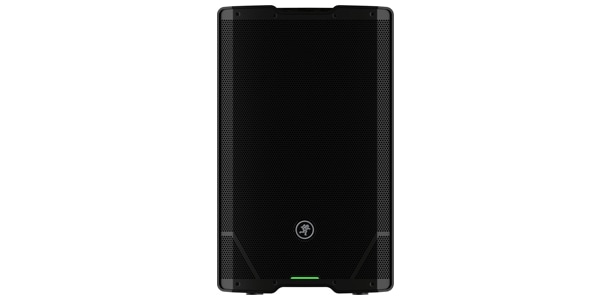

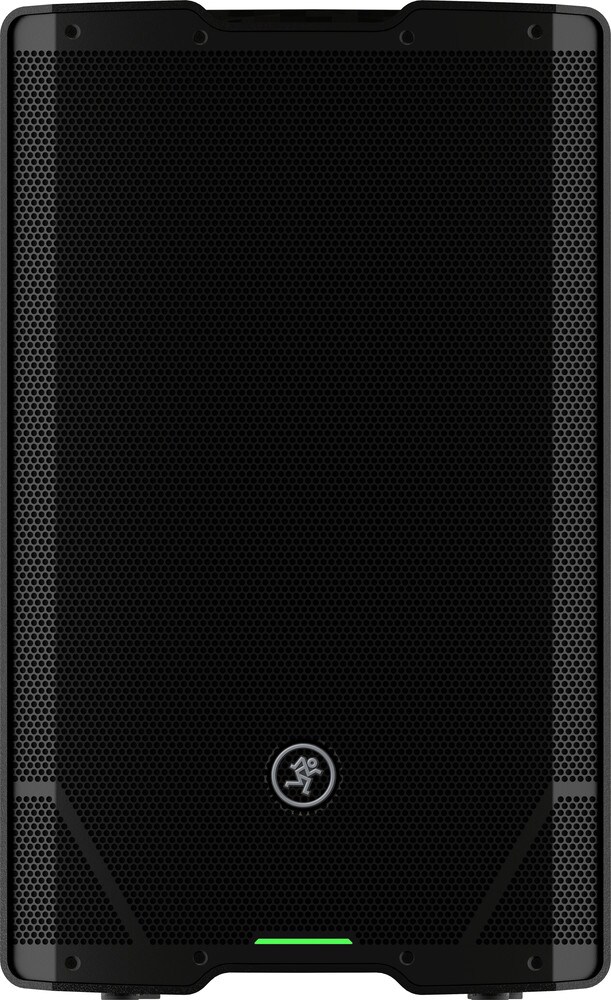

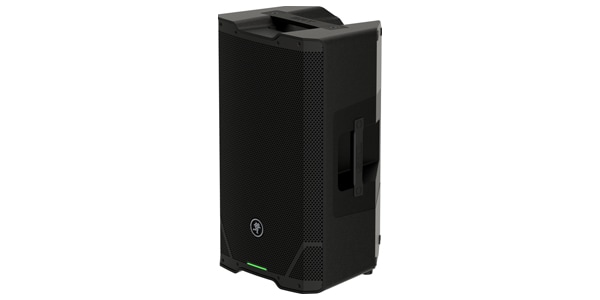

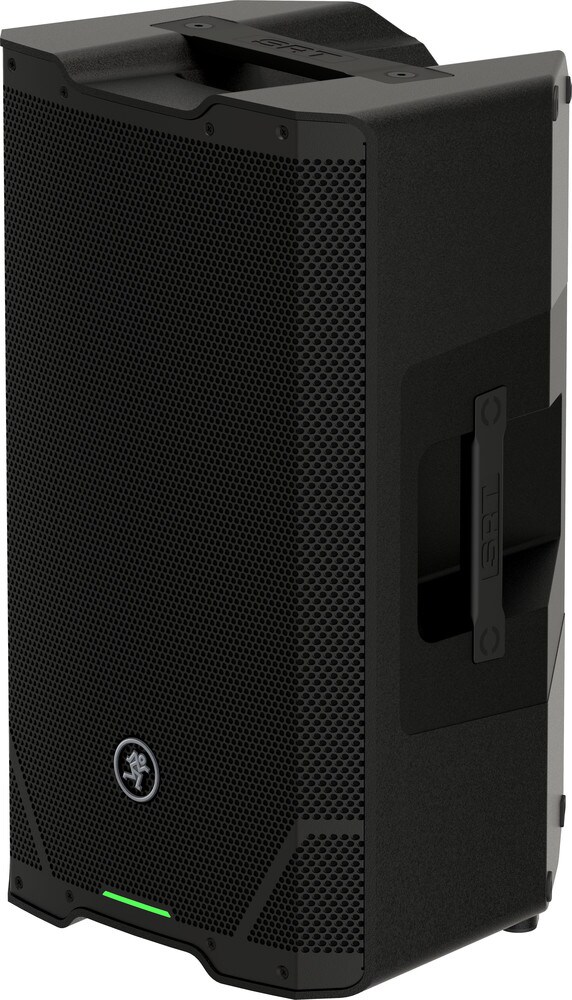

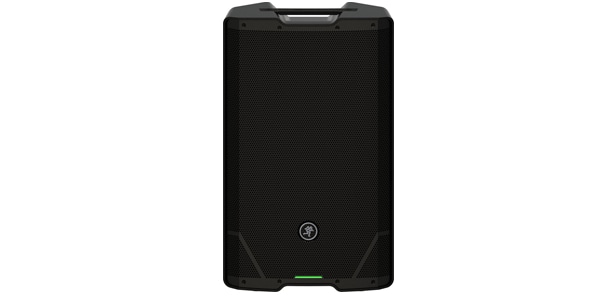

MACKIE / SRT215 powered speaker

The Mackie SRT215 is a 10-inch 2-way powered speaker that has the latest features and operability used in high-end models, and anyone can easily set up according to the site. With the latest sound processing technology, high-power 1600W power amplifiers, and the SRT Mix Control app installed on your Bluetooth device.

■ Powered speaker
■ 15 inch, 2 way
■ 1600W
■ Supports wireless control
■ Bluetooth music can be played
■ Frequency characteristics (-10dB): 42Hz? 20kHz
■ Maximum sound pressure level: 133dB
■ Directivity angle: 90 ° (horizontal) x 60 ° (vertical)

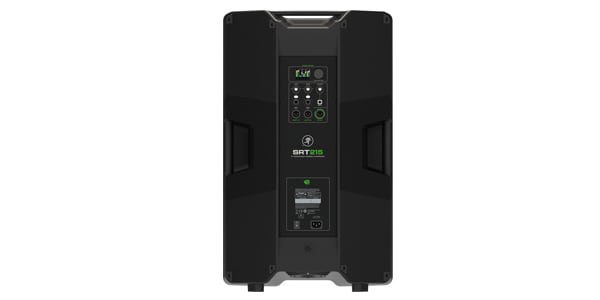

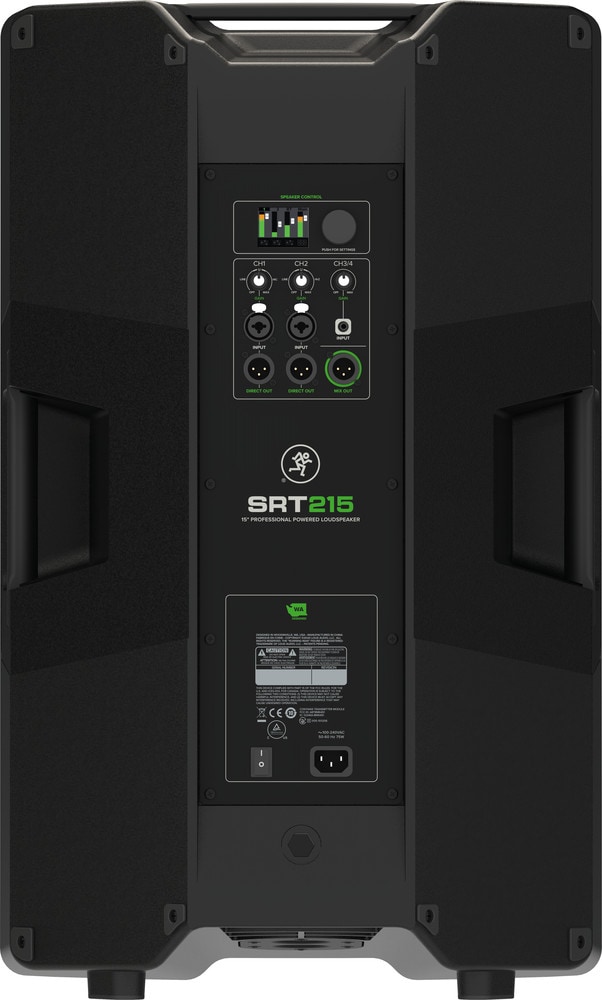

■ Input:
Two independent monaural XLR / TRS combos for mics, lines, instruments and any input
4ch digital mixer equipped with stereo mini AUX input independent of input ■ Output terminal:
Input Ch1, Ch2 Direct out 1 each + Monaural mix out x 1 ■ Installation method: Direct placement, pole / stand mount (angle changeable), floor monitor, vertical suspension (M10 fly point) ■ Power supply: Universal power supply (100? 240) VAC)
■ Dimensions: Height: 732 mm, Width: 447 mm, Depth: 391 mm
■ Weight: 22.2kg
■ 1

Sound faithful to the original sound
The SRT Series 1600W Powered Loudspeaker is a powered loudspeaker that not only boasts higher output than any other speaker in its class, but also has excellent design and operability, and realizes a higher-grade sound.

Rugged design
Mackie's design and development concept "Tank-class rugged" design is not limited to enclosures. Whether it's a full-day event, five spectators, or 500 spectators, the SRT series will continue to play the sound that will liven up the event to the end.

High-end model technology
We've introduced a wealth of cutting-edge technology from Mackie's top models, including Advanced Impulse DSP, input overload protection, Bluetooth wireless streaming and control. A power drowspeaker with state-of-the-art features at an affordable price.

State-of-the-art control technology
You can wirelessly control the built-in 4ch digital mixer that uses a full-color display from the Bluetooth wireless control app SRT Mix Control.

Features
Achieve professional sound
・ 1600W class D power amplifier with highly reliable and stable operation design
-Custom-designed speaker unit for high-intelligibility sound
-Lightweight design, excellent portability, yet "tank-class sturdy" design
・ Universal power supply that uses power factor collection technology to ensure stable drive even in venues where the power supply is unstable

Advanced Impulse DSP Technology
・ Eliminates useless low frequencies, non-sounding mid frequencies, and jarring high frequencies to achieve high-definition sound anywhere in the room.
・ High-precision crossover, phase and speaker driver time alignment, and fine tuning for a well-balanced sound.

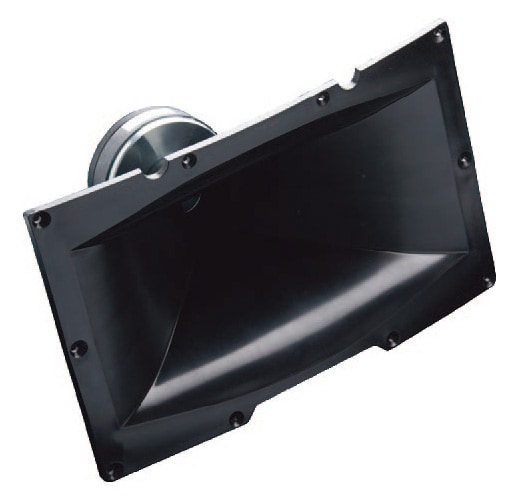

Custom designed Sym-X Horn
・ Minimize distortion and increase output to increase the efficiency of the HF driver unit.
-Provides a flat sound at the crossover point of the high-frequency driver and low-frequency driver, and realizes a smooth mid-high range.
・ Succeeded in drawing out the best performance from the high-frequency driver unit while maintaining flat characteristics at the crossover point.
・ Cover area horizontal 90 ° vertical 60 °
Limiter and protection circuit that does not affect the sound quality and sound balance
-Processing module that monitors and protects the amplifier in real time
・ Sound quality and balance that are not affected even if the limiter is applied to the maximum
-Protection circuit that optimally tunes the audio signal via multi-band compression and limiter to minimize the effect on sound quality and audio output.
・ Input limiter that constantly monitors the input signal

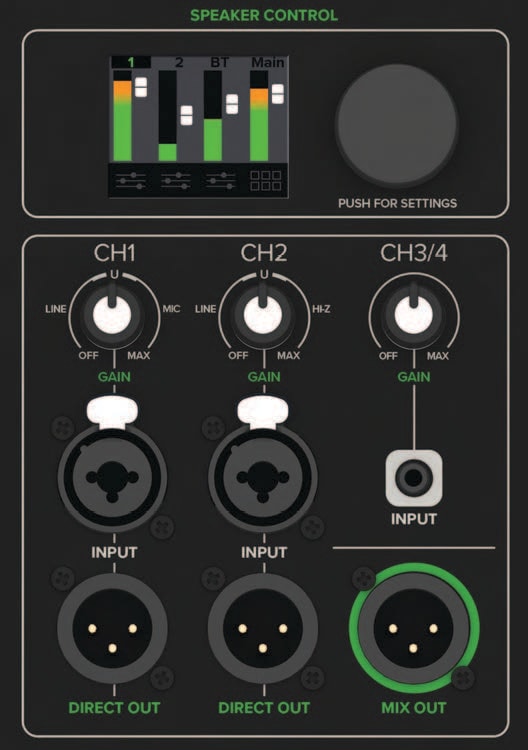

SRT Mix Control Bluetoothコントロール可能な内蔵4chデジタルミキサー
・マイク、ライン、楽器等様々な音源に対応可能な独立した2系統のXLR/TRSコンボ入力
・独立したステレオミニAUX入力
・Bluetooth?対応デバイスから音楽をワイヤレスストリーミング
・瞬時にミキサー、プロセッサーにアクセス可能なシングルノブを搭載し直感的な操作が可能な高解像度フルカラーディスプレイ
・調整可能な各チャンネルのレベルとEQ
・用途や会場に合わせ選択可能なボイシングモード
・ディレイタワー設置時に便利な時間補正ディレイ（最大30m）
・保存可能な最大10パターンのユーザープリセット
・コントラストコントロール可能なスクリーンセーバー
・誤操作を防ぐ4桁のパスコードロック
・変更可能なフロントLED：ON/OFF、レベル監視

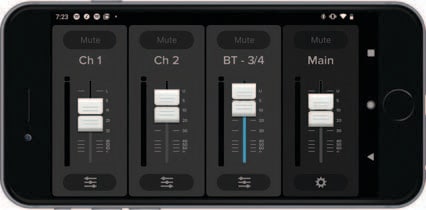

Wireless control of all features with the SRT Connect app
・ All functions and settings such as EQ, level, and preset can be performed wirelessly from a smartphone with the SRT Connect app installed.
・ Two SRT series can be linked and wireless streaming and wireless control can be accessed with one Bluetooth device.
・ Equipped with the latest Bluetooth technology, it is possible to link two speakers up to 100 m apart.
-It can be set not only as a stereo speaker but also as a dual zone mode, and it is also possible to control the speakers installed in two places individually.
・ Instantly set up the optimum sound for anyone

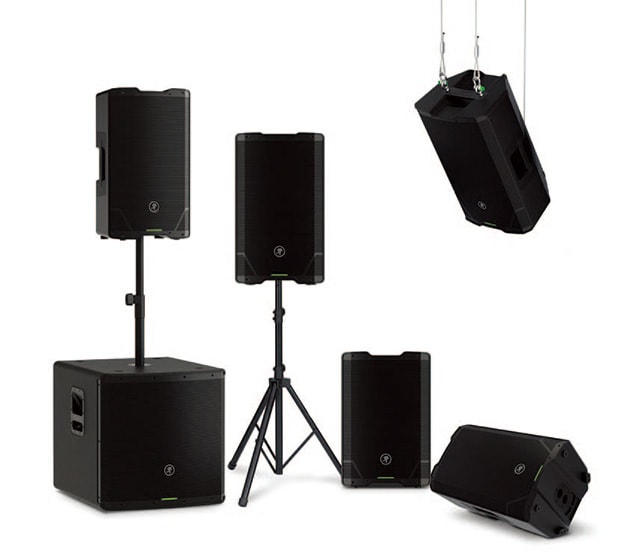

Options for various installations

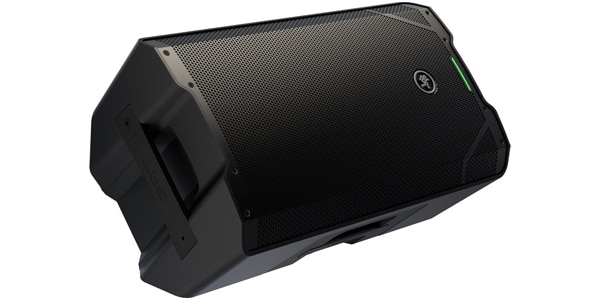

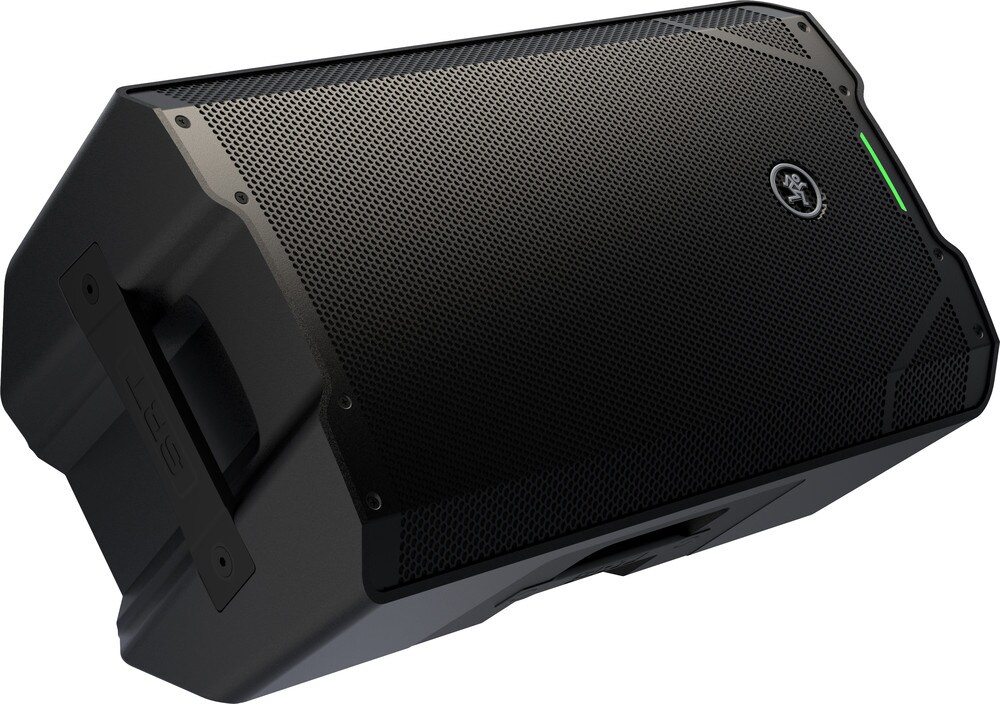

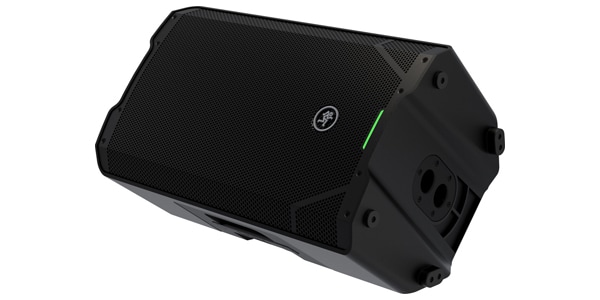

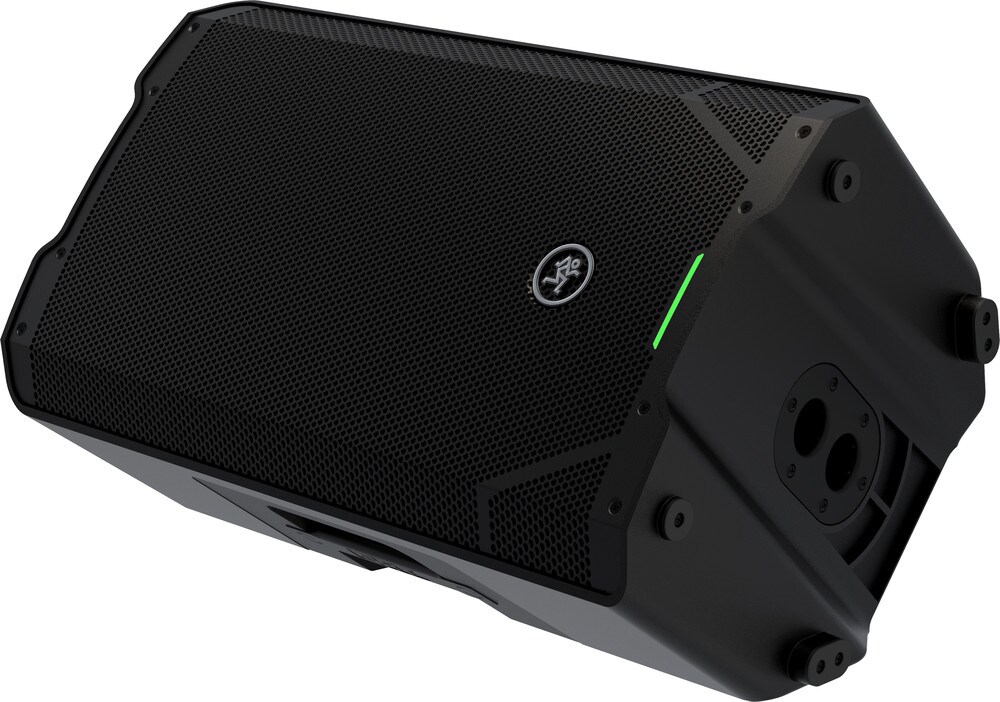

-Dual angle enclosure that can be used as a high performance floor monitor

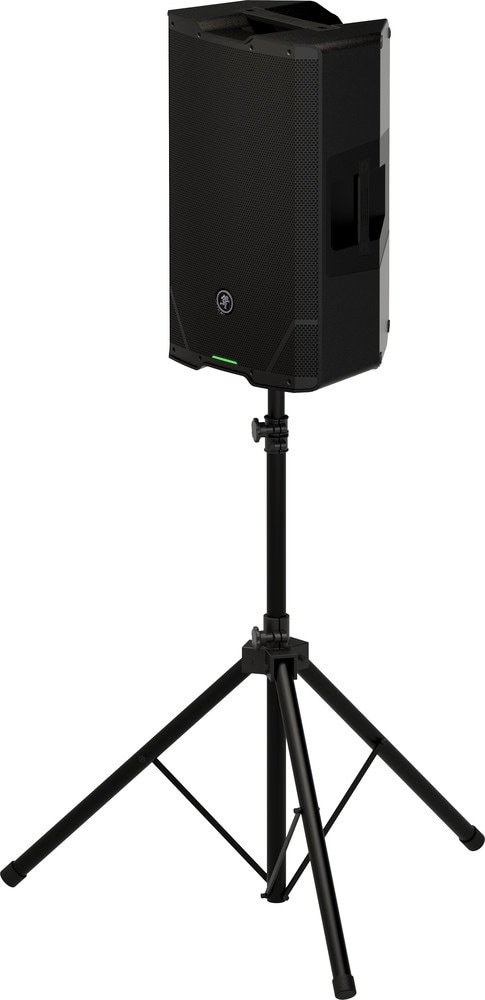

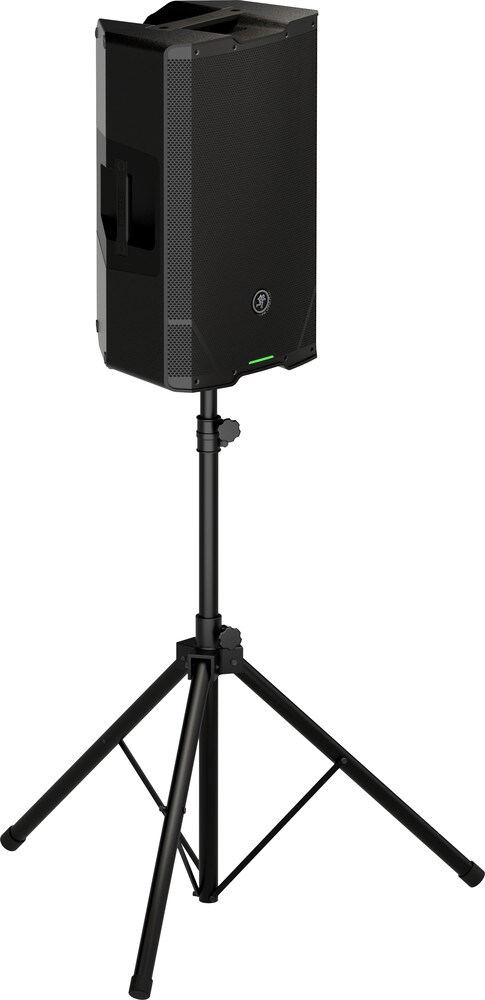

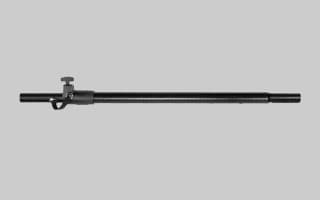

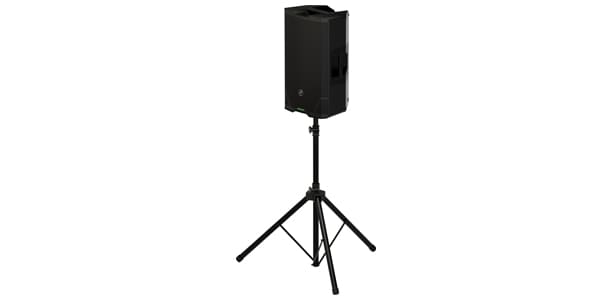

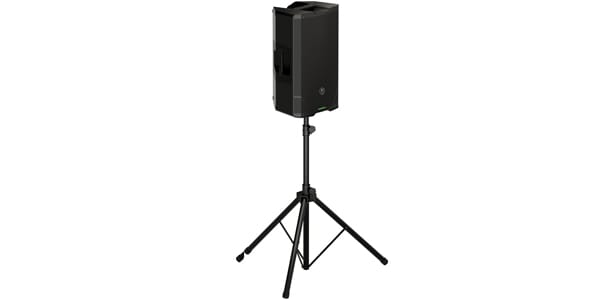

-Two pole mounts with selectable angles (0 °, -7 °) -7 ° mode is effective when installing the speaker in a high place

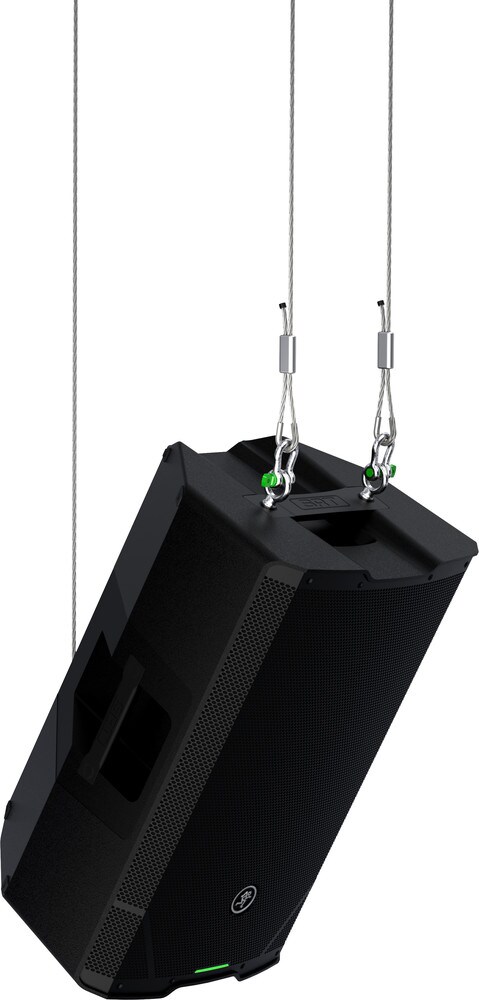

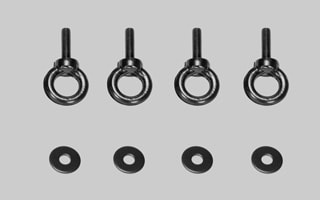

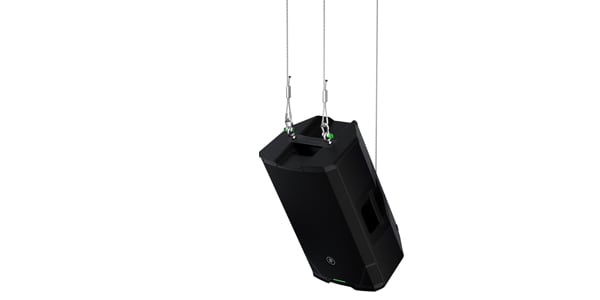

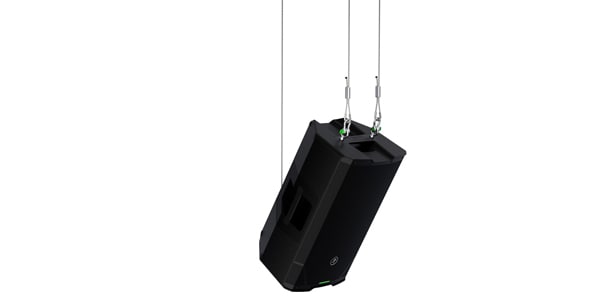

・ M10 fly point that can be installed vertically
