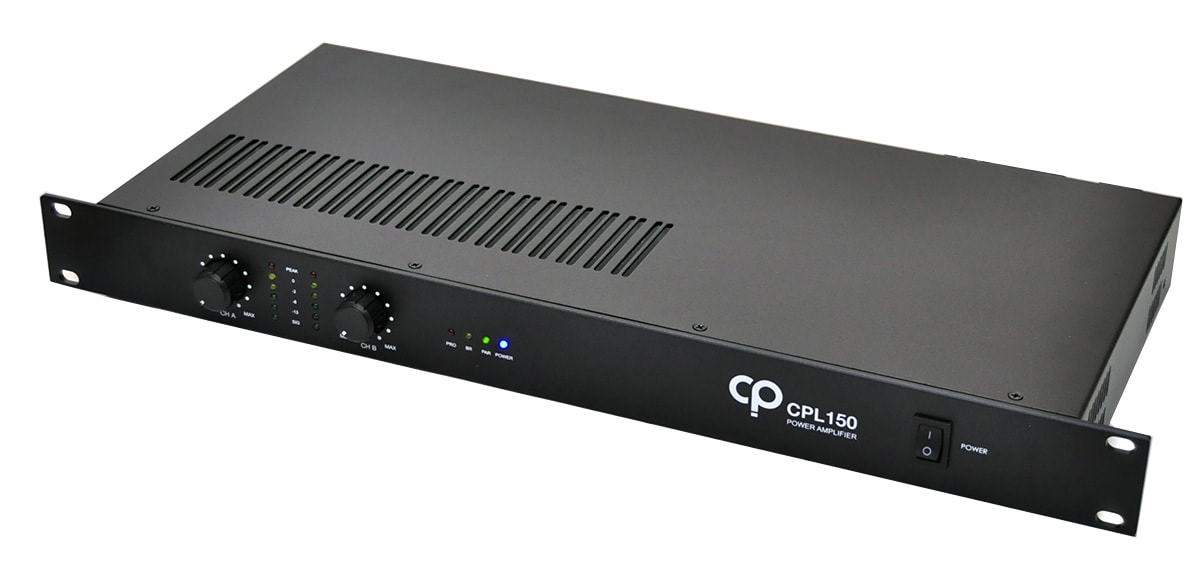

CLASSIC PRO / CPL150 Stereo Power Amplifier

CLASSIC PRO / CPL150, a compact, silent, high-quality stereo power amplifier with high sound quality, is now available.

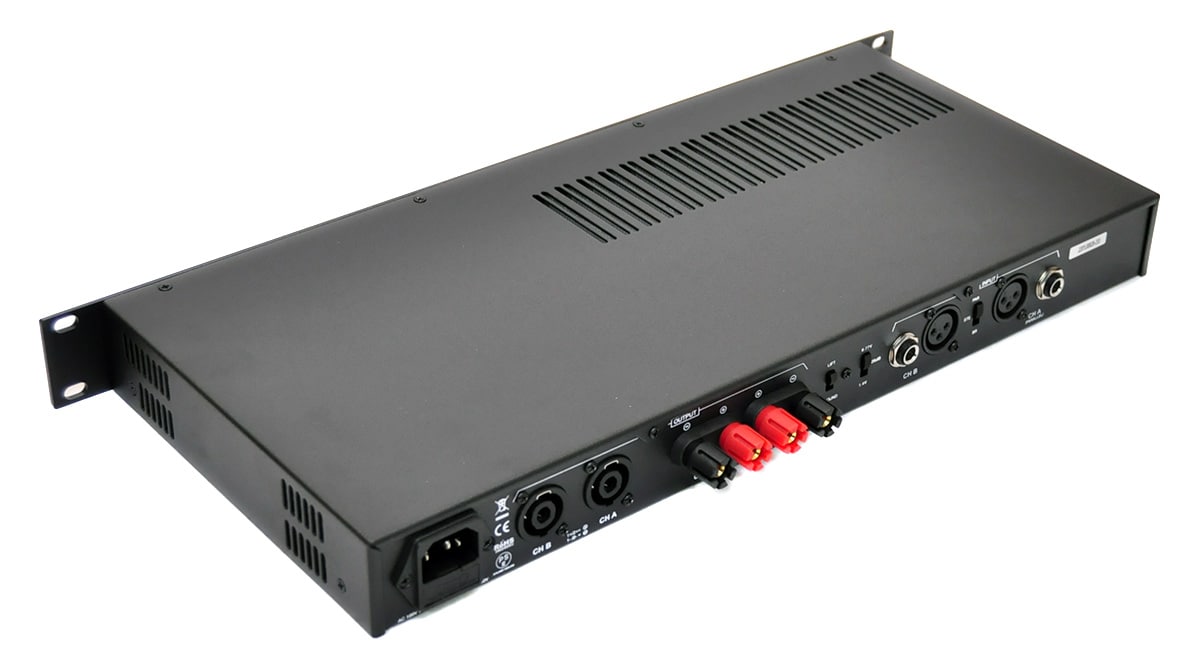

In a space-saving 1U size chassis that can be installed in a small space, it is equipped with a Class AB amplifier that outputs clear sound with a stereo output of 45Wx2 (8Ω). The fanless design is ideal for background music and sound output in spaces where quietness is required, such as stores, restaurants, theaters, and stages. A 6-segment LED meter on the front panel allows the user to check the output level of the amplifier, while the rear panel provides input/output terminals for connection to various devices. The operation mode can be switched between stereo, parallel, and bridge to flexibly meet the needs required in the field.

■Features
- Stereo output: 45Wx2 (8Ω), 75Wx2 (4Ω)
- Bridged output power 150W (8ohm)
- Large heat sink for efficient cooling

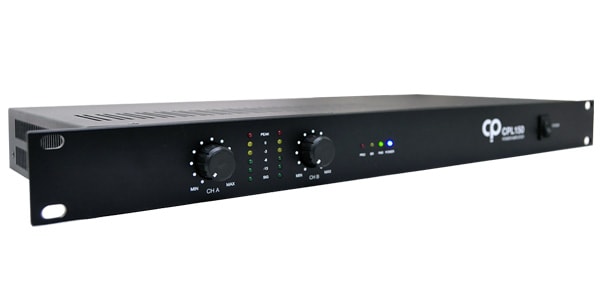

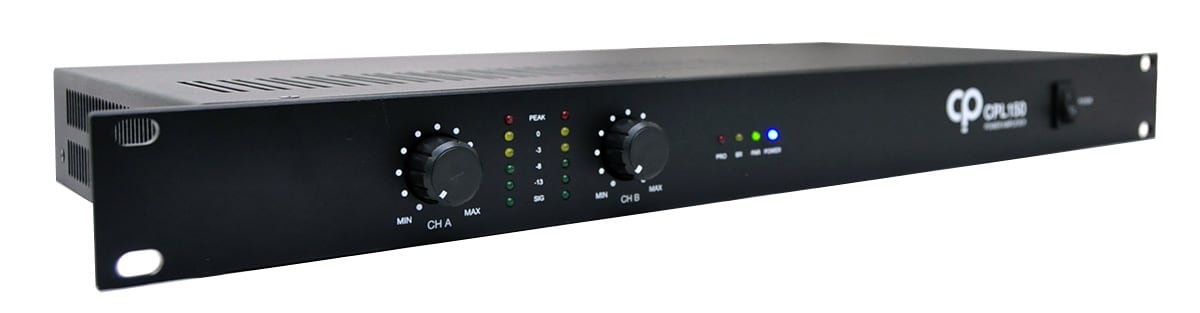

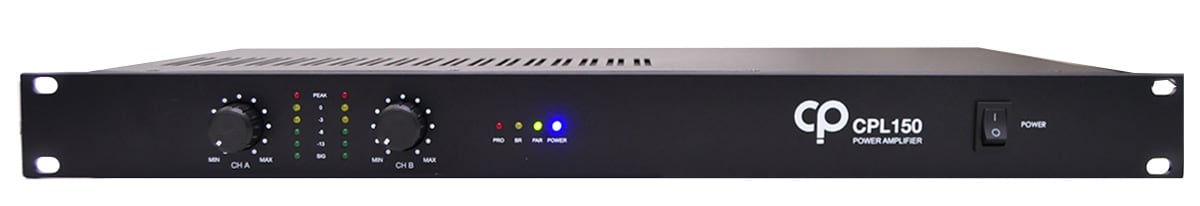

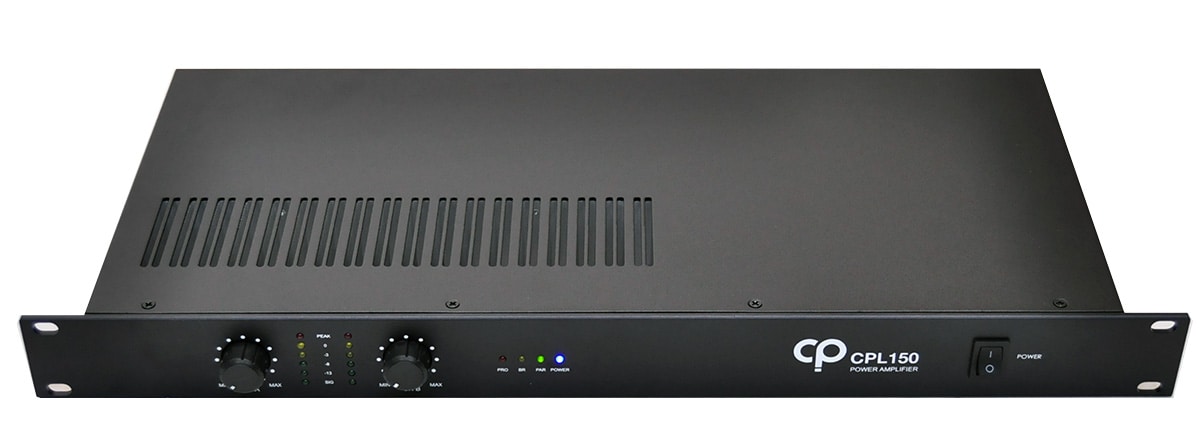

- 6-segment LED meter for checking amplifier output

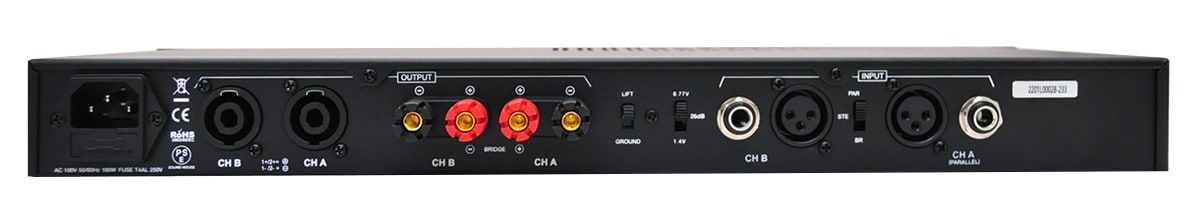

- Balanced XLR/TRS phone input jacks
- Speaker, binding post, and output terminals
- Stereo/parallel/bridge mode switchable
- Fanless design suitable for use in quiet locations
- 1U design for space-saving installation

■Specifications
- Amplifier class: AB
- Input impedance: 20kΩ
- Input Level: 21dBv/9V
- Output:
　Stereo RMS 8Ω: 45Wx2
　Stereo RMS 4Ω: 75Wx2
　Bridge RMS 8Ω: 150Wx1
- Frequency response: 10Hz to 50kHz, -1.5dB
- SN ratio (dBA, RMS): >80dB
- Damping factor (1kHz, 8Ω): 150 or better
- Sensitivity: 0.775V/1.4V/26dB
- Slew rate: 35V/μs
- Crosstalk @ rated power (1kHz, 8Ω): 70dB min.
- Power consumption (1/8POWER): 100W
- Power supply voltage: 100V 50/60Hz

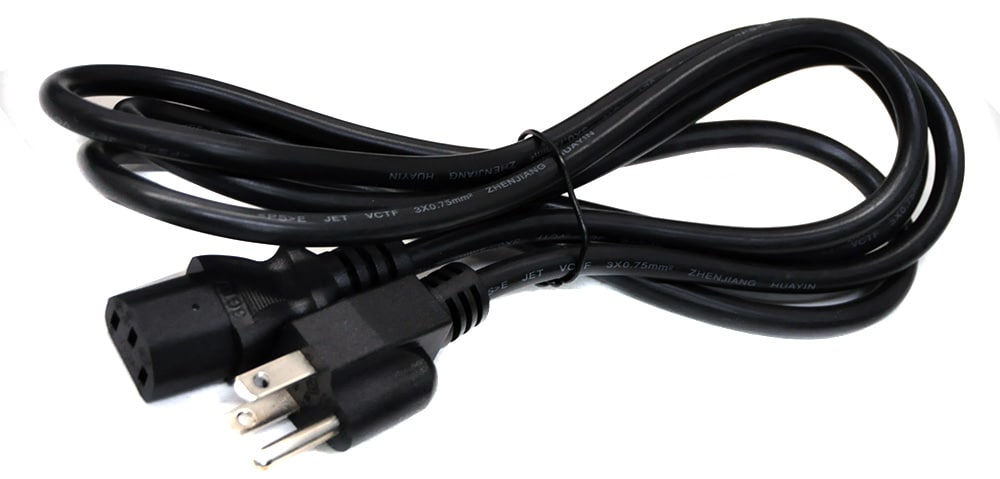

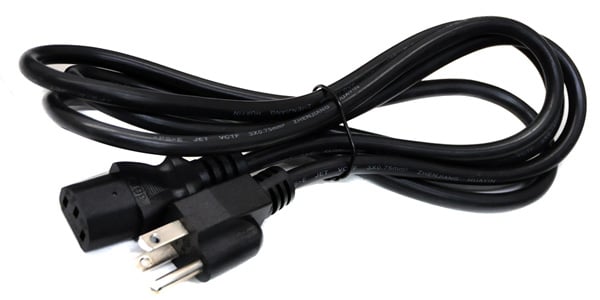

- Power cable: 3-pin
- Fuse: 4A, 250V, slow blow (5x20mm)
- Protection circuits: Short circuit protection, DC protection, Limiter, Thermal protection, Mains power failure protection
- Dimensions (WxHxD): 485x44x250mm (excluding protrusions)
- Weight: 5.4 kg
