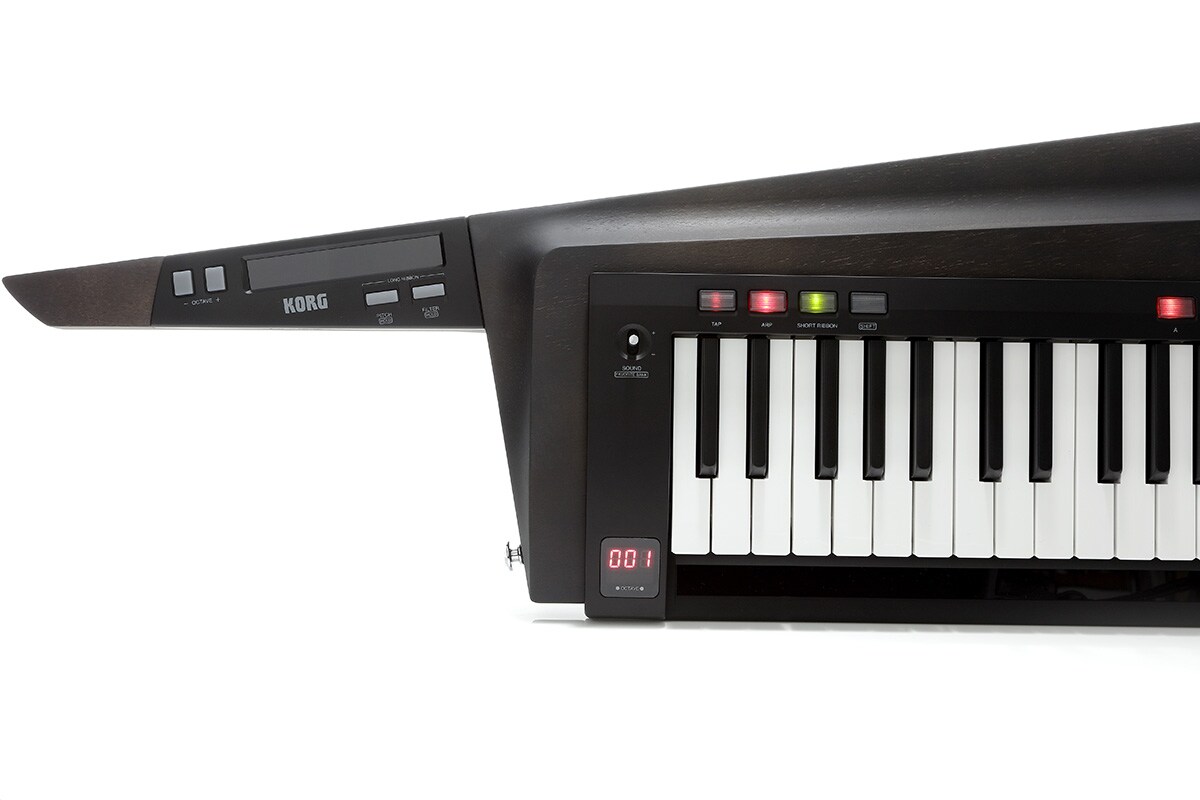

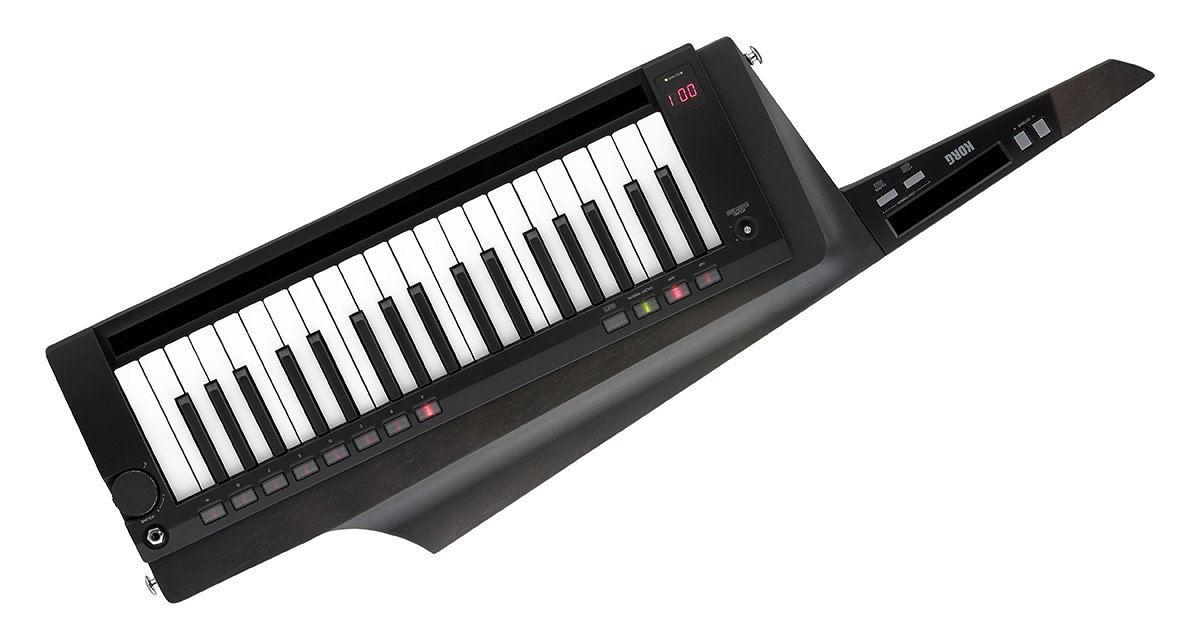

KORG / RK-100S 2BK

The RK-100S, which KORG is proud of and has been very popular since its release. The long-awaited revival is the famous machine that was discontinued although it was regrettable.

The RK-100S, which KORG is proud of and has been very popular since its release. The long-awaited revival is the famous machine that was discontinued although it was regrettable.

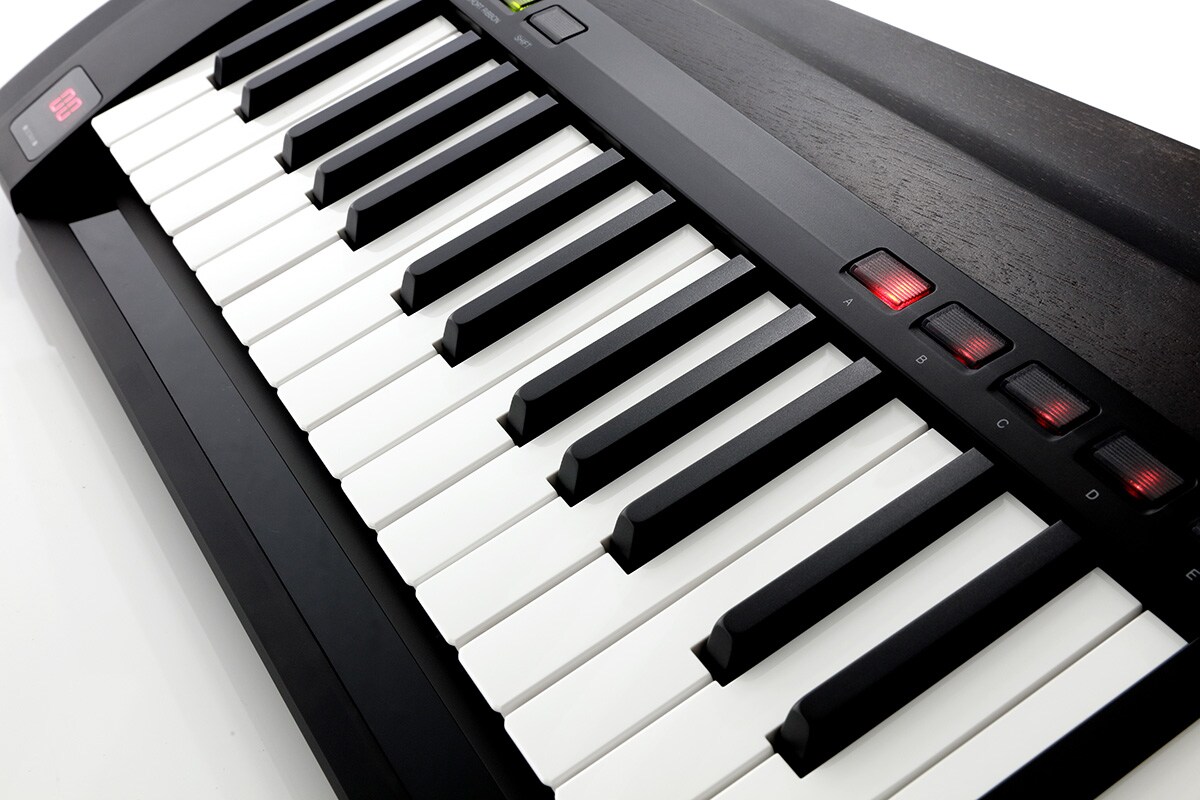

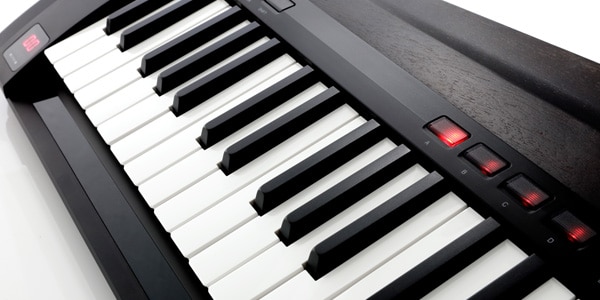

■ Keyboard: 37 keys (slim keyboard, with velocity, no after-touch)
■ Sound source system: MMT (Multiple Modeling Technology)
■ Program:
Number of timbres: Up to 2 (when layer, split, multi)
Maximum number of pronunciations: 8 voices (maximum 4 voices when vocoder is selected)
Synth: 2 oscillators + noise generator
Oscillator 1: Waveform: SAW, PULSE, TRIANGLE, SINE, FORMANT, NOISE, PCM / DWGS, AUDIO IN Modulation: WAVEFORM, CROSS, UNISON, VPM
Oscillator 2: Waveform: SAW, PULSE, TRIANGLE, SINE Modulation: RING, SYNC, RING + SYNC
Wave Shape: Type: DRIVE, DECIMATOR, HARDCLIP, OCT SAW, MULTI TRI, MULTI SIN, SUB OSC SAW, SUB OSC SQU, SUB OSC TR, SUB OSC SIN, LEVEL BOOST
Multimode filter: Filter 1: -24dB / oct LPF ~ -12dB / oct LPF ~ HPF ~ BPF ~ Thru Filter 2: LPF, HPF, BPF
■ Vocoder: 16-band vocoder, each band level / pan variable, formant shift function, formant hold function
■ Effect:
Timber: 2-band equalizer
Master effect: 17 effect algorithms
■ Arpeggiator: UP, DOWN, ALT1 / 2, Random, Trigger (6 types), step arpeggiator function

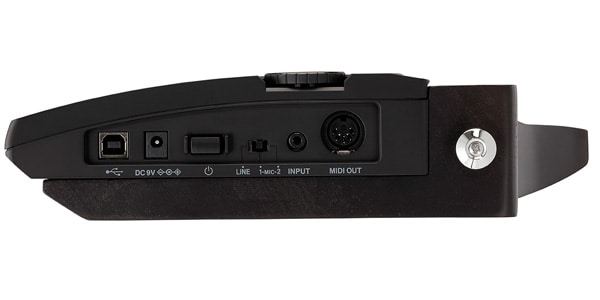

■ Input / output:
Input: Input terminal (monaural microphone (not compatible with plug-in power), combined with line)
Input selector switch:
(MIC2) Mike Input [Gain Hi],
(MIC1) Mike Input [Gain Lo],
(LINE) Line input
(Available microphone: monaural dynamic microphone) Connector: monaural mini jack
Output:
Output terminal (for both headphones and stereo line out)
Maximum output: 25mW + 25mW @ 33Ω load
Connector: φ6.3mm stereo phone jack
■ MIDI: OUT terminal only
■ USB terminal: B terminal

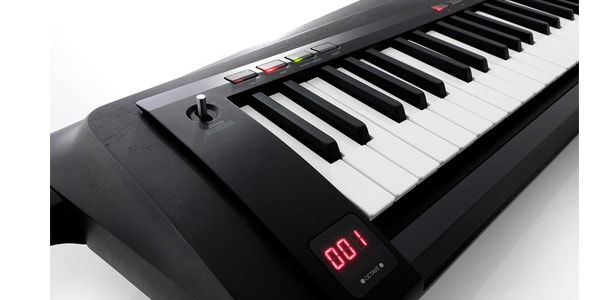

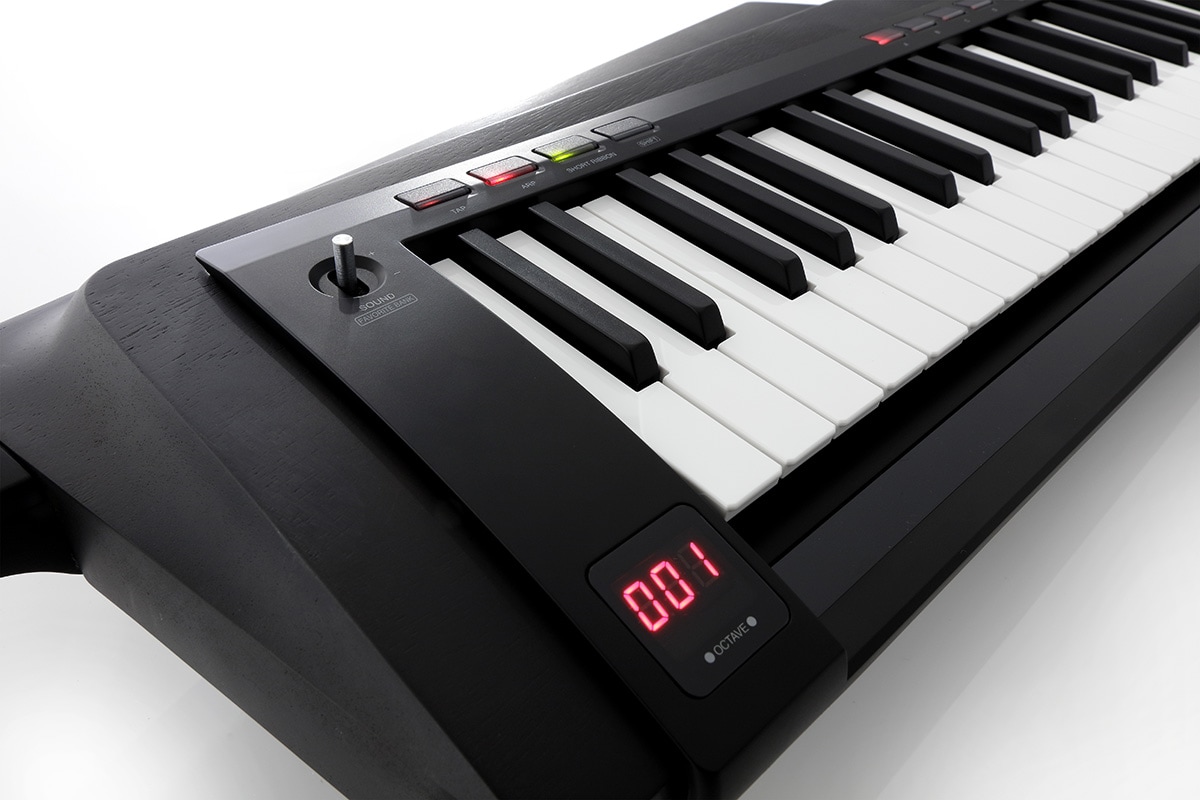

■ Display: 7-segment LED x 3 digits

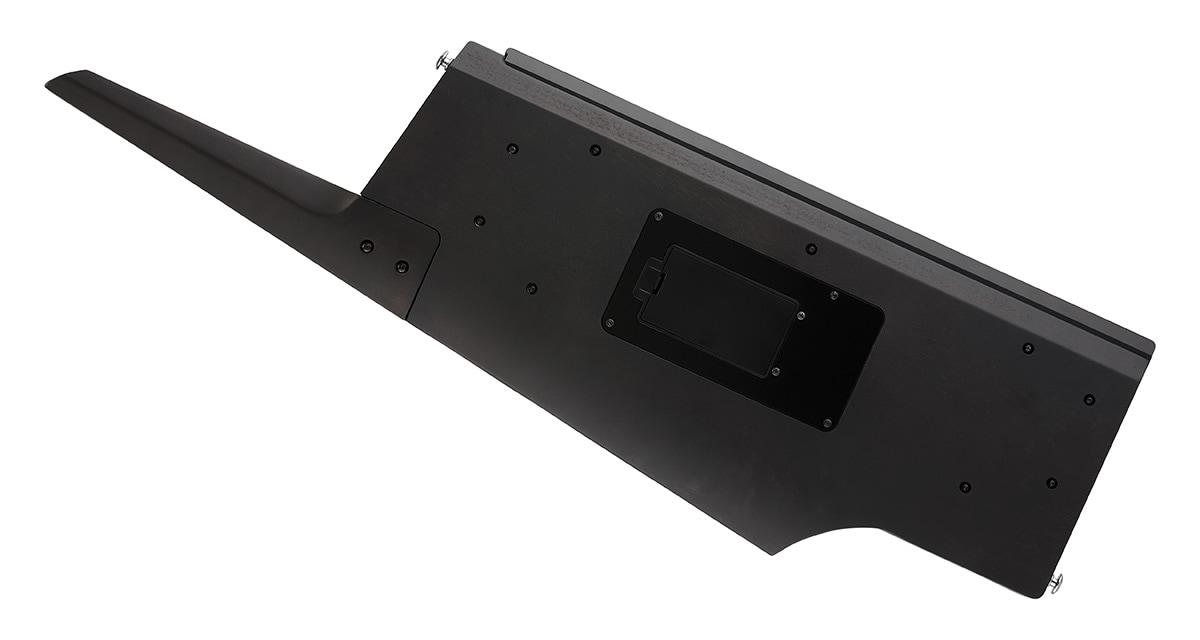

■ Power supply: AA alkaline batteries / nickel-metal hydride batteries x 6, AC adapter (DC9V, optional KA350 sold separately)
■ Battery life: Approximately 8 hours (when using alkaline batteries)
■ External dimensions: 839 (W) x 262 (D) x 74 (H) mm
■ Mass: 3.5kg (including batteries)

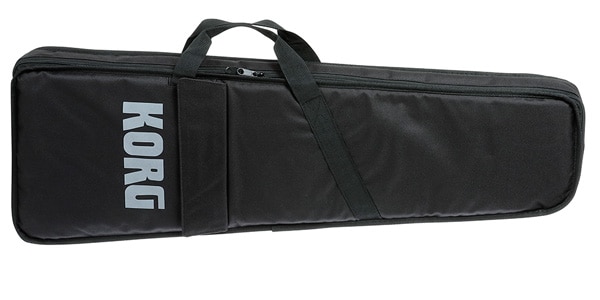

■ Accessories: Strap, soft case, sticker, AA alkaline batteries x 6 (for operation check)
■: Optional accessory AC adapter (KA350)
