Shanling / M3X ハイレゾオーディオプレーヤー
Android ロスレス・オーディオプレイヤー Shanling M3X。4.2 inch 720P のディスプレイを搭載。操作性に優れ、有線・無線を問わず、高音質再生を実現します。
April 9, 2021 (Friday)

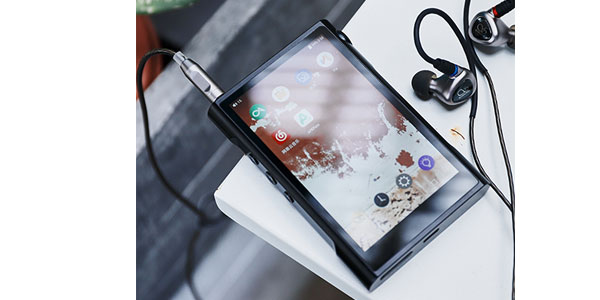

■ Optimal size that fits in your hand
-Beautiful 4.2 inch 720P display. Designed with a length ratio of 3: 2, the M3X body is easy to pick up and easy to operate. In addition, Sharp's 4.2inch high-resolution screen is included to display your favorite album artwork beautifully.
■ High performance and low power consumption
-ES9219C dual DAC. By adopting two state-of-the-art DAC chips "ES9219C" made by ESS at the heart, we have realized improved battery life by high acoustic characteristics and low power consumption, and full decoding of MQA files.
-AVX capacitors. The tantalum capacitor made by AVX is adopted as an acoustic circuit. This component has a large capacity, high stability, and enables powerful low-frequency reproduction.
■ Third Generation FPGA Technology
-+ KDS low phase noise crystal oscillator. The FPGA technology used in high-end models is also used in the M3X. The FPGA runs Shanling's own intellectual property-owned adaptive clock sampling algorithm and accurately receives clock signals from two KDS "low-phase noise crystal oscillators" (45.1584MHz / 49.152MHz) in Japan. We will deliver it.
■ "Super long battery life" that meets your needs
・ Up to 23 hours of continuous playback is possible (when operating a single DAC)
・ Dual DAC operation: Up to 20 hours
・ Balance operation: Up to 19 hours
・ Bluetooth transmission: Up to 46 hours
■ Bring out your MQA library
-The DAC chip "ES9219C" installed in M3X supports full hardware decoding of MQA files. Not only files stored in the internal storage and MicroSD card, but also when used for streaming playback or as a USB-DAC, you can have a "master quality" listening experience as recorded in the studio.
■ Possibility to spread in the palm of your hand
-Android OS + Snapdragon 430. M3X, which uses the Android OS, allows you to freely install and enjoy not only the music playback apps provided by Shanling, but also a wide variety of apps in the app store.
■ Single end + balance
-Powerful headphone output. The M3X has two audio output terminals, a 3.5 mm single-ended output terminal and a 4.4 mm balanced output terminal. When using balanced output with high gain, the output level reaches 240mW (at 32Ω load), and it is possible to easily take the volume even with headphones with large resistance.
■ Hi-Fi listening experience regardless of wired or wireless
-M3X is an interactive wireless audio as a "Bluetooth receiver" that plays music files received from a Bluetooth device, and as a "Bluetooth transporter" that sends music files in the main unit or connected device with a high-quality Bluetooth codec. You can enjoy the experience. You can also use this unit as a USB-DAC when connecting to a PC.
■ Product contents
・ M3X main unit: 1 unit
・ USB cable: 1
・ Protective film: 2 sheets
・ Quick start guide: 1 sheet
・ Product warranty: 1 sheet "
■ Product specifications
・ Body size: 109 * 15.9 * 72 mm
・ LCD: 4.2 inch 1280 * 768 IPS HD screen
・ Weight: 168g
・ OS: Android 7.1
-Supported formats: DSF / DFF / ISO / DXD / APE / FLAC / WAV / AIFF / AIF / DTS / MP3 / WMA / AAC / OGG / ALAC / MP2 / M4A / AC3 / M3U / M3U8 / OPUS / ISO
-Supported formats: PCM up to 384 kHz / 32 bit, DSD native playback up to 11.2 MHz
・ Gain setting: 2 steps (Low / High)
-Built-in capacity: 32GB internal storage (up to 2TB can be expanded with a MicroSD card)
・ DAC chip: ES9219C x2
・ Digital filter: You can choose from two different filters
・ Bluetooth version: 4.2
-Transmittable codec: LDAC / LHDC / aptX HD / aptX / SBC
-Receivable codec: LDAC / SBC
-Maximum battery operating time: 23 hours (single-ended-single DAC), 19 hours (balanced)
Battery capacity: 3200mAh
◇ Single-ended output
-Maximum output level: 80mW @ 32Ω (when operating single DAC), 101mW @ 32Ω (when operating dual DAC)
・ Frequency characteristics: 20Hz-40kHz (0.5dB)
・ Crosstalk: 75 dB @ 32Ω
・ S / N ratio: 121 dB
-Noise floor:> 114dB (1.8μV)
◇ Balanced output
・ Maximum output level: 240mW @ 32Ω
・ Frequency characteristics: 20Hz-40kHz (0.5dB)
・ Crosstalk: 115 dB @ 32Ω
・ S / N ratio: 121 dB
-Noise floor:> 112dB (2.4μV)
■ Optimal size that fits in your hand
-Beautiful 4.2 inch 720P display. Designed with a length ratio of 3: 2, the M3X body is easy to pick up and easy to operate. In addition, Sharp's 4.2inch high-resolution screen is included to display your favorite album artwork beautifully.
■ High performance and low power consumption
-ES9219C dual DAC. By adopting two state-of-the-art DAC chips "ES9219C" made by ESS at the heart, we have realized improved battery life by high acoustic characteristics and low power consumption, and full decoding of MQA files.
-AVX capacitors. The tantalum capacitor made by AVX is adopted as an acoustic circuit. This component has a large capacity, high stability, and enables powerful low-frequency reproduction.
■ Third Generation FPGA Technology
-+ KDS low phase noise crystal oscillator. The FPGA technology used in high-end models is also used in the M3X. The FPGA runs Shanling's own intellectual property-owned adaptive clock sampling algorithm and accurately receives clock signals from two KDS "low-phase noise crystal oscillators" (45.1584MHz / 49.152MHz) in Japan. We will deliver it.
■ "Super long battery life" that meets your needs
・ Up to 23 hours of continuous playback is possible (when operating a single DAC)
・ Dual DAC operation: Up to 20 hours
・ Balance operation: Up to 19 hours
・ Bluetooth transmission: Up to 46 hours
■ Bring out your MQA library
-The DAC chip "ES9219C" installed in M3X supports full hardware decoding of MQA files. Not only files stored in the internal storage and MicroSD card, but also when used for streaming playback or as a USB-DAC, you can have a "master quality" listening experience as recorded in the studio.
■ Possibility to spread in the palm of your hand
-Android OS + Snapdragon 430. M3X, which uses the Android OS, allows you to freely install and enjoy not only the music playback apps provided by Shanling, but also a wide variety of apps in the app store.
■ Single end + balance
-Powerful headphone output. The M3X has two audio output terminals, a 3.5 mm single-ended output terminal and a 4.4 mm balanced output terminal. When using balanced output with high gain, the output level reaches 240mW (at 32Ω load), and it is possible to easily take the volume even with headphones with large resistance.
■ Hi-Fi listening experience regardless of wired or wireless
-M3X is an interactive wireless audio as a "Bluetooth receiver" that plays music files received from a Bluetooth device, and as a "Bluetooth transporter" that sends music files in the main unit or connected device with a high-quality Bluetooth codec. You can enjoy the experience. You can also use this unit as a USB-DAC when connecting to a PC.
■ Product contents
・ M3X main unit: 1 unit
・ USB cable: 1
・ Protective film: 2 sheets
・ Quick start guide: 1 sheet
・ Product warranty: 1 sheet "
■ Product specifications
・ Body size: 109 * 15.9 * 72 mm
・ LCD: 4.2 inch 1280 * 768 IPS HD screen
・ Weight: 168g
・ OS: Android 7.1
-Supported formats: DSF / DFF / ISO / DXD / APE / FLAC / WAV / AIFF / AIF / DTS / MP3 / WMA / AAC / OGG / ALAC / MP2 / M4A / AC3 / M3U / M3U8 / OPUS / ISO
-Supported formats: PCM up to 384 kHz / 32 bit, DSD native playback up to 11.2 MHz
・ Gain setting: 2 steps (Low / High)
-Built-in capacity: 32GB internal storage (up to 2TB can be expanded with a MicroSD card)
・ DAC chip: ES9219C x2
・ Digital filter: You can choose from two different filters
・ Bluetooth version: 4.2
-Transmittable codec: LDAC / LHDC / aptX HD / aptX / SBC
-Receivable codec: LDAC / SBC
-Maximum battery operating time: 23 hours (single-ended-single DAC), 19 hours (balanced)
Battery capacity: 3200mAh
◇ Single-ended output
-Maximum output level: 80mW @ 32Ω (when operating single DAC), 101mW @ 32Ω (when operating dual DAC)
・ Frequency characteristics: 20Hz-40kHz (0.5dB)
・ Crosstalk: 75 dB @ 32Ω
・ S / N ratio: 121 dB
-Noise floor:> 114dB (1.8μV)
◇ Balanced output
・ Maximum output level: 240mW @ 32Ω
・ Frequency characteristics: 20Hz-40kHz (0.5dB)
・ Crosstalk: 115 dB @ 32Ω
・ S / N ratio: 121 dB
-Noise floor:> 112dB (2.4μV)
