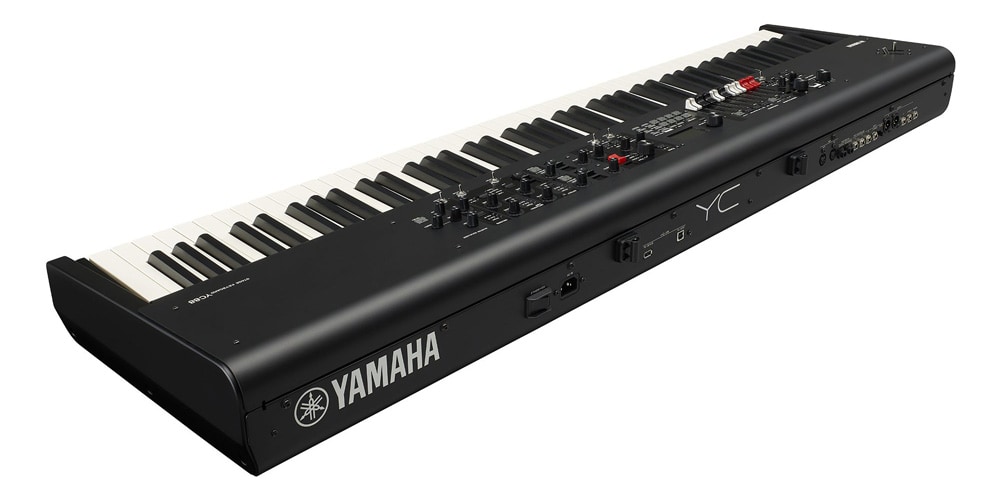

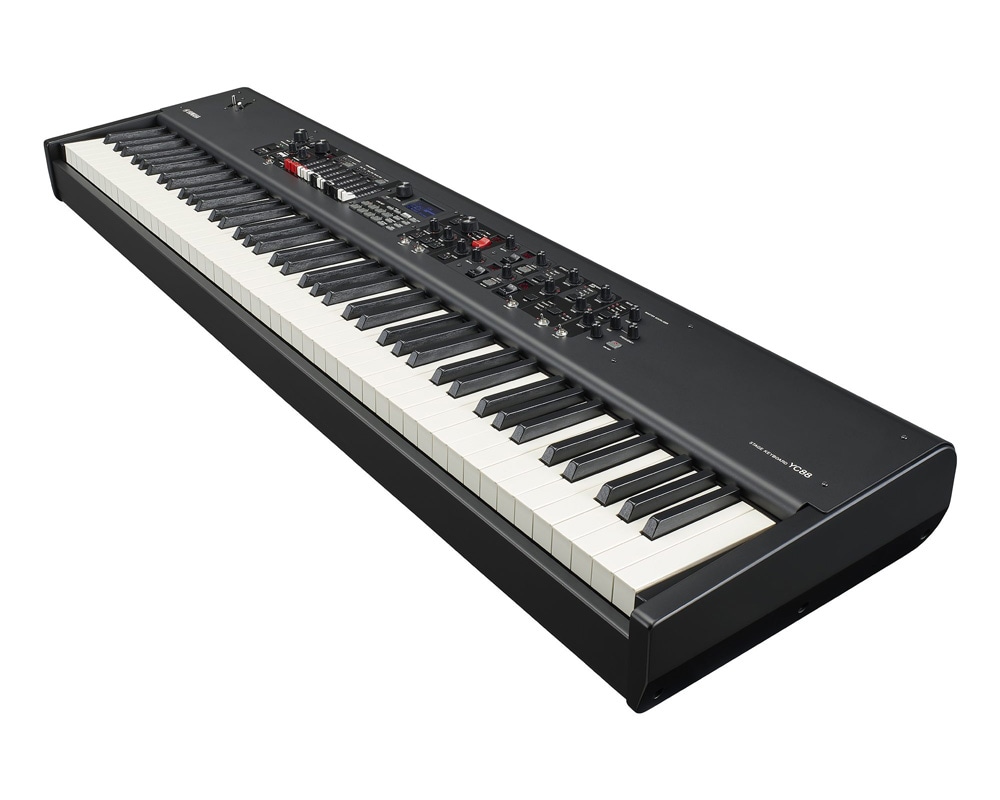

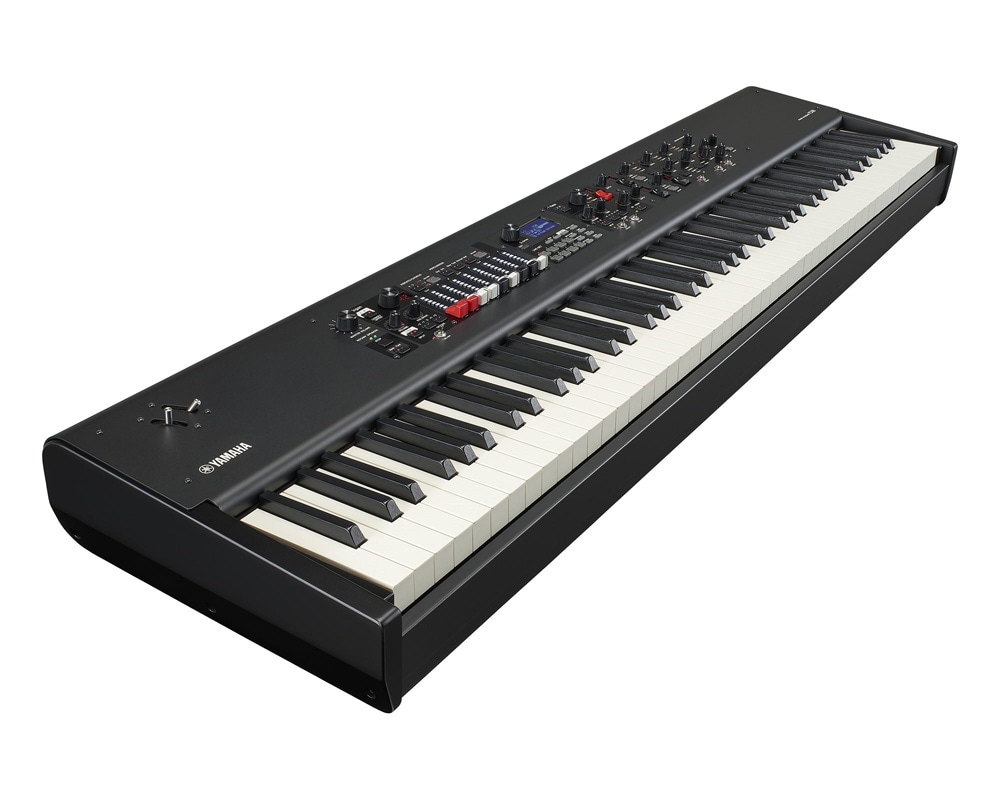

YAMAHA / YC88 ステージキーボード

.

■ Outline of specifications
【keyboard】
Number of keys: 88 keys
Keyboard type: NW-GH3 keyboard (wooden ivory-like / ebony-like finish, grade hammer 3)
Velocity: ○
Aftertouch:-

【controller】
・ Pitch bend: ○
・ Modulation: ○
・ Sustain pedal compatible: ○ (half damper compatible)
・ Expression pedal compatible: ○

[Sound source section]
・ Oscillator type: VCM Organ, AWM2, FM
・ Voice mode: Polyphonic
・ Maximum polyphony: 128 sounds
* Number of live set sounds 160 (preset live set sounds: 88)
* Number of voices 149 (Organ: 6 / Keys: 143)

【display】
Full dot LCD (128 x 64 dots)


【effect】
Organ 1 system (pre-drive)
Key A 2 system (1:32 type, 2:32 type)
Key B 2 systems (1:32 type, 2:32 type)
Effect: 32 types
Speaker / Amplifier: 6
Type (Rotary speaker: 2
Type, amp: 4 types)
Reverb Master Equalizer: 3
Band (MID: frequency can be changed)

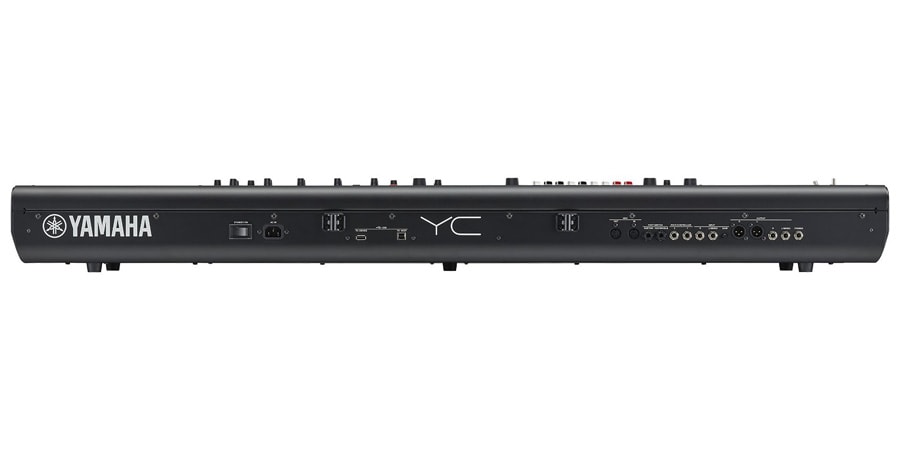

[Output terminal]
・ Main: ○ L / MONO, R unbalanced (1/4 "TS phone), L / R balanced (XLR)
・ Headphones: ○ Stereo standard (6.3mm TRS phone)

[Input terminal]
・ Voice input: ○ L / MONO, R unbalanced (1/4 "TS phone)
FOOT CONTROLLER [1] / [2]
FOOT SWITCH [SUSTAIN] / [ASSIGNABLE]

[External cooperation]
-MIDI: IN / OUT /-
・ USB-MIDI: ○
・ SYNC:-/-
* USB [TO HOST] / [TO DEVICE]

[Main body]
・ Width: 129.8cm
・ Depth: 36.4cm
・ Height: 14.2 cm
・ Mass: 18.6kg

【power supply】
Rated power supply AC100V 50/60 Hz
Power consumption 15W

【accessories】
Instruction manual x 1
Warranty x 1
Power cord x 1
2P-3P converter x 1
Foot pedal FC3A x 1
