ZOOM / AM7

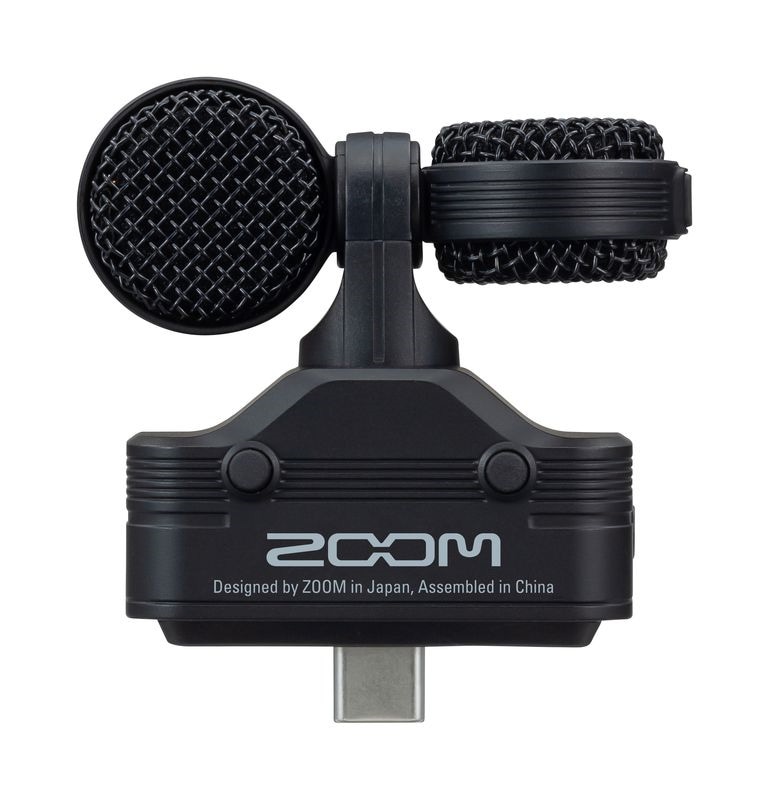

The ZOOM Am7 is a model for Android devices of the extremely popular mid-side stereo microphone ``iQ7'' for iPhone/iPad.

Equipped with a USB Type-C connector, it can be used as a high-quality external stereo microphone simply by connecting it to a compatible Android device*. It adopts a Mid-Side stereo microphone that combines a unidirectional Mid microphone and a bidirectional Side microphone, and by varying the volume of the Side microphone, you can freely control the spread of the stereo sound image (stereo width). It has a stereo width adjustment switch, and you can switch between three types: the standard ""90 °"", the wider ""120 °"", and the ""M-S"" that allows you to adjust the stereo width later, to perform stereo recording according to the purpose. In addition, the unique microphone rotation mechanism keeps the correct stereo positioning even when shooting videos with the smartphone held horizontally. The free app ""Handy Recorder"" available from Google Play allows you to record high-quality linear PCM, edit audio, process effects, and share recorded files.

※ For the latest information on Android devices compatible with Am7, please check the Am7 product details page.

・High-quality stereo microphone for Android devices with USB Type-C connection
・Mid-Side stereo method allows you to freely adjust the stereo direction angle from 30° to 150°
・Designed to withstand sound pressure of up to 120dB SPL, which is less likely to distort even at high volumes
・Equipped with microphone GAIN knob, headphone output, level LED, and stereo width adjustment switch

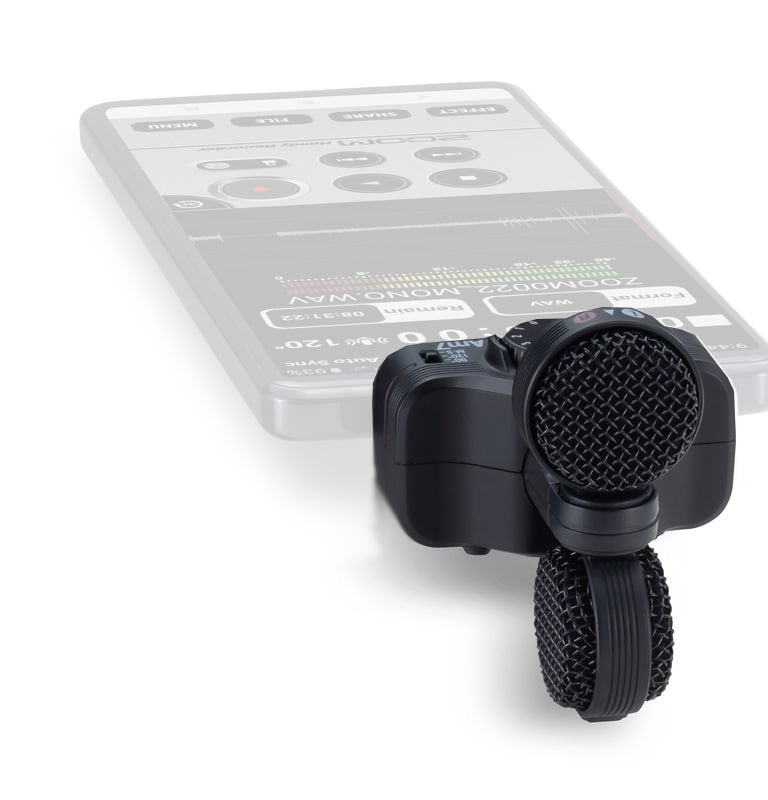

・Microphone rotation mechanism allows you to record in the correct stereo position even when shooting videos with your smartphone held horizontally
・Compatible with most Android apps that use external microphone input
・Free app ``Handy Recorder'' allows linear PCM recording, effect processing, and audio editing
・Windscreen (sponge) included, reduces wind noise
・Case adjuster (included) allows you to connect ``Am7'' while the smartphone case is attached
・Powered by USB power supply from the connected Android device
・External dimensions (WxDxH)/weight: 54.5 x 57.5 x 28.1mm, 31.8 g (main unit only)

[Microphone: Specifications]
■ Method M-S stereo microphone (90°/120°/M-S)
■Maximum input sound pressure 120 dBspl
■Input gain +3 to +43 dB
■Sound quality 44.1 kHz/16 bit, 48 kHz/16 bit
■Power supply Powered from connected device
■Terminal USB Type-C connector
■Stereo mini jack (combined line output/headphone output)
■Dimensions 54.5 (W) x 57.2 (D) x 26.5 (H) mm
■Weight 31.8 g

■Included items
・'Am7' MS stereo microphone
・Windscreen
・Instruction manual
