ALBIT / TC-1

This is a tube sound converter developed with the theme of transforming your sound into a tube sound just by connecting it. It is possible to convert the sound of digital devices and amplifiers that do not have vacuum tubes into a tube sound.

■Tube sound converter
■Vacuum tubes: 12AX7 x 1 (selected product), 12AU7 x 1 (selected product)

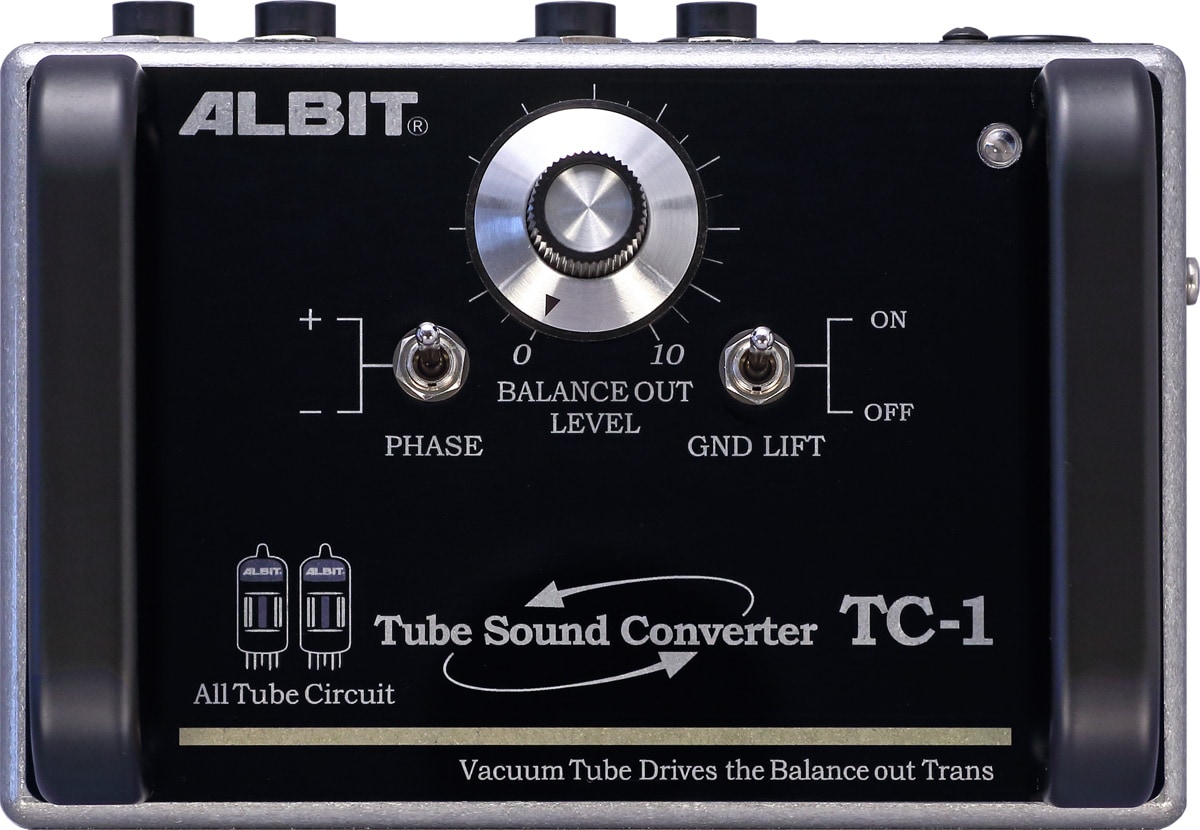

■Controls: BALANCEOUT LEVEL
■Switches: PHASE, GND LIFT

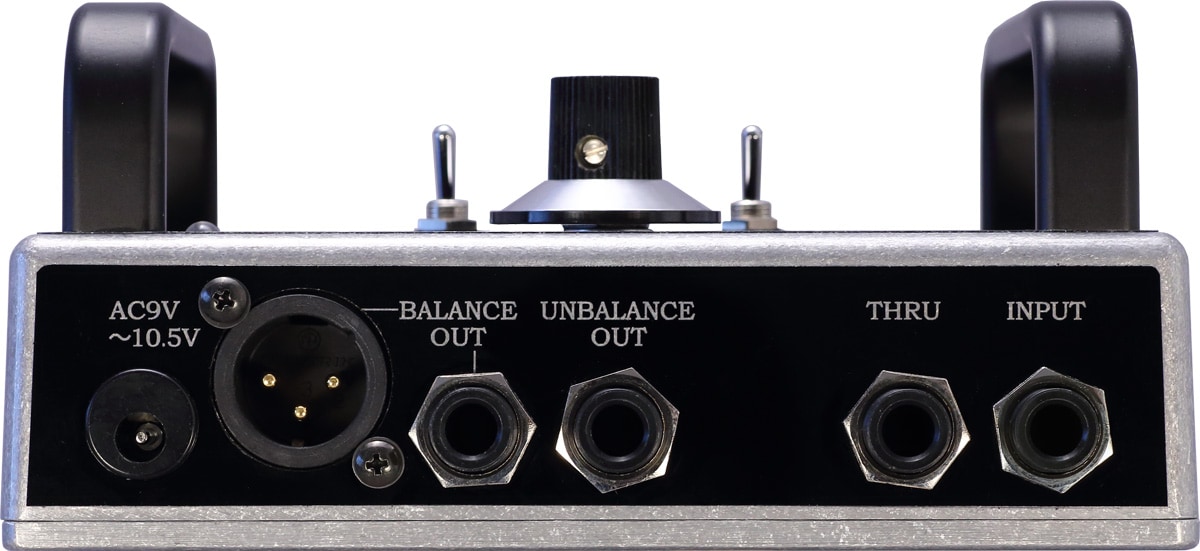

■Terminals: INPUT, THRU, UNBALANCE OUT, BALANCE OUT, AC9V-AC10.5V
■External dimensions: 150mm (W) x 116mm (D) x 71mm (H)
■Weight: 600g
■Power supply: AC9V-10.5V (dedicated power adapter)
■Accessories: Dedicated power adapter, instruction manual, warranty card

Comprised of a full tube circuit equipped with two 12AX7 and 12AU7 vacuum tubes, in addition to the UNBALANCE OUT that converts the signal input from the INPUT directly into a tube sound, the BALANCE OUT operates with an ideal circuit that drives a line transformer with a vacuum tube. It has a wide dynamic range and can be used in a variety of locations. It can also be used as a vacuum tube D.I., making it a versatile product.
