IK MULTIMEDIA / AXE I/O Solo Audio Interface

IK MULTIMEDIA / AXE I/O Solo is the perfect audio interface for recording guitar. Comes with a reliable 3-year Sound House warranty!

■USB audio interface
■2IN/5OUT

Recording gear for authentic sound
A compact premium interface essential for guitarists
AXE I/O (2 IN/5 OUT), developed under the concept of ""for guitarists,"" has been a hot topic among many guitarists since its release. AXE I/O SOLO (2 IN/3 OUT) is a compact premium interface that condenses the specifications of AXE I/O into a compact body and an affordable price.

AXE I/O SOLO is developed based on IK's 20 years of analog modeling and hardware research, evolving guitar recording to something faster, easier, and higher quality than ever before.

The ultimate channel carefully thought out for guitar
AXE I/O SOLO is equipped with three circuit topologies. This allows you to get the best sound for any type of guitar, pickup, and playing style.

Pickup Selection
PASSIVE
This circuit amplifies the input from passive pickups with the best tone. It is compatible with everything from low-output vintage pickups to the latest humbuckers.
ACTIVE
When using active pickups, you can get a direct, clean sound by bypassing unnecessary gain stages.
AXE I/O SOLO is equipped with the same Z-TONE circuit as AXE I/O, which has become a hot topic for its continuously adjustable input impedance, and the input impedance can be adjusted between 2.2 kΩ (BOLD) and 1MΩ (SHARP).

Increasing the impedance value (turning it to the SHARP side) will produce a sharper, more crisp sound, and decreasing it (turning it to the BOLD side) will produce a softer, thicker sound.

■Features
2 IN / 3 OUT USB audio interface
ACTIVE / PASSIVE pickup selector switch
JFET / PURE mode selector switch
Z-TONE with continuously adjustable input impedance
AMP OUT terminal with ground lift
High-resolution Class A microphone preamp
24-bit / 192 kHz support
Frequency specificity for wide range reproduction
Best-in-class A/D D/A and superior analog circuit design
Ultra-low noise floor for delicate vocals and loud guitars
Made in Italy from design to manufacturing
■Specifications
Quantization: 24-bit A/D conversion, 24-bit D/A
Conversion sampling frequency: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Computer connection: USB B-Type 2.0

Line output 1-2 (monitor)
Output jack: Balanced standard phone TRS x 2 (electronically floating balanced output specification)
Output impedance: 150 Ω balanced / 75 Ω unbalanced
Output level: 0 dBFS = +13.5 dBu
Frequency response: 1 Hz to 46 kHz ±0.5 dB (at 96 kHz sampling)
Dynamic range: 113 dB (A)
THD @ -1 dBFS: 0.001%
THD+N: -103 dB(A) @-1 dBFS
Channel crosstalk: 112 dB (A)

Line output 3 (amplifier output)
Output jack: Unbalanced standard phone TS (floating, ground lift possible)
Output impedance: 75 Ω
Output level: 0 dBFS = -3 dBu
Frequency response: 20 Hz to 42 kHz ±0.5 dB (at 96 kHz sampling)
Dynamic range: 106 dB (A)
THD+N: -93 dB (A)

Stereo Headphone Output
Output Jack: Standard stereo phone TRS, operates as a virtually ideal current source until clipping (0 Ω)
Maximum output level: +9 dBu, 50 Ω load (approximately 95 mW)
Frequency response: 4 Hz to 42 kHz ±0.5 dB (at 96 kHz sampling)
Dynamic range: 111 dB (A)
THD+N: -102 dB (A)

Instrument Input
Input Jack: Unbalanced standard phone TS, multi-topology instrument preamp
Input impedance (PASSIVE mode): 1 MΩ to 2.2 kΩ variable
Input impedance (ACTIVE mode): 10 kΩ
Input level (minimum gain): 0 dBFS = +12.5 dBu
Input level (maximum gain): 0 dBFS = -19 dBu
Frequency response: 6 Hz to 42 kHz ±0.5 dB (at 96 kHz sampling)
Dynamic range: 117 dB (A)
THD (PURE mode): 0.002%
THD (JFET mode): 0.5%

Microphone input
Input jack: Combo type, balanced XLR (pin 2 hot)
Microphone preamp: Class-A discrete differential amplifier
Input impedance: 4 kΩ differential
Input level (min gain): 0 dBFS = +9 dBu
Input level (max gain): 0 dBFS = -44 dBu
Frequency response: 7 Hz to 32 kHz ±0.5 dB (at 96 kHz sampling)
Dynamic range: 116 dB (A)
THD+N: -106 dB (A) @ -10 dBFS
Phantom power: +48 V

Line input
Input jack: Combo type, balanced standard phone TRS (tip hot)
Line amplifier: Class-A discrete differential receiver
Input impedance: 20 kΩ differential
Input level (min gain): 0 dBFS = +26 dBu
Input level (max gain): 0 dBFS = -27 dBu
Frequency response: 7 Hz to 32 kHz ±0.5 dB (at 96 kHz sampling)
Dynamic range: 117 dB (A)
THD+N: -104 dB (A) @ -10 dBFS

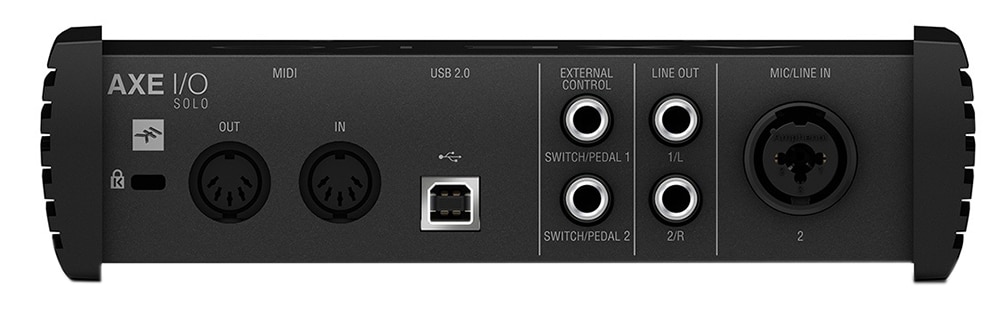

Other inputs and outputs
MIDI IN/OUT (5-pin DIN)
USB terminal: B-Type
Pedal input: Standard phone TRS x 2

Contents
AXE I/O SOLO main unit
USB A to USB B cable (1.5 m)

Dimensions and weight
19.5 cm x 19.5 cm x 5.3 cm
1.0 kg

*For the latest operating environment, please refer to the Compatibility section at the bottom of the manufacturer's website.

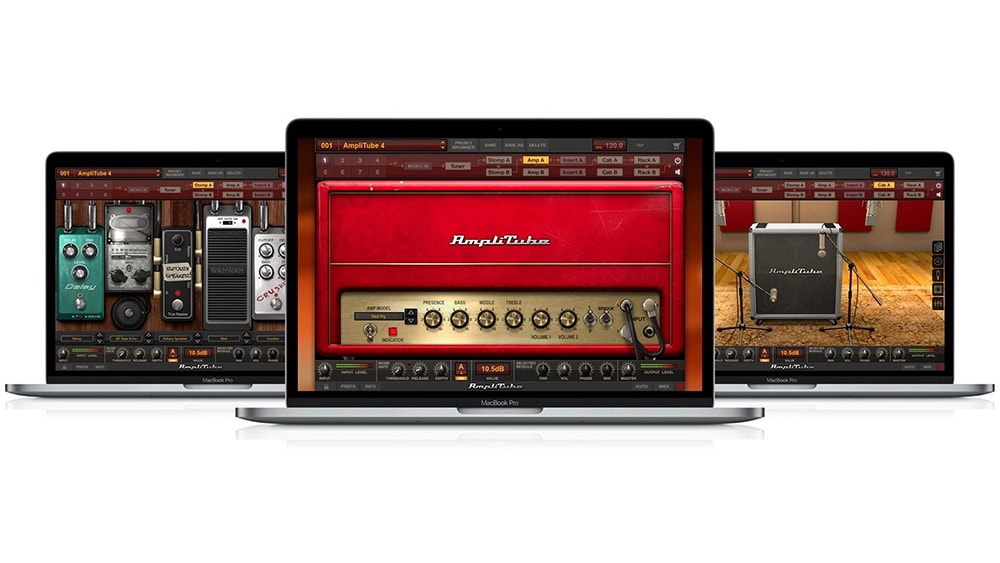

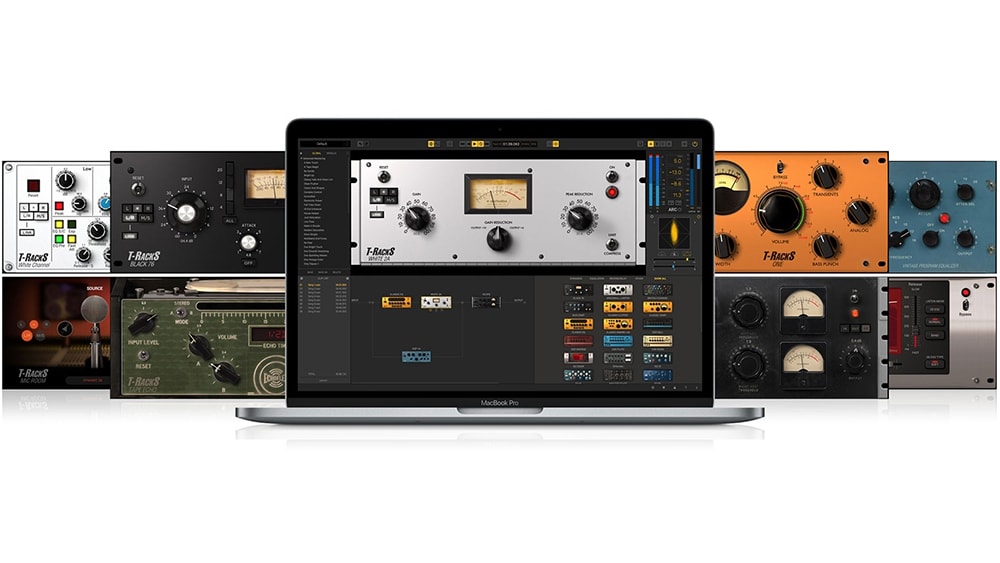

*By registering the product using the number printed on the enclosed card, the included software will be registered on your manufacturer's product page along with AXE I/O Solo.
