Electro-Voice/ELX200-15P-W powered speaker

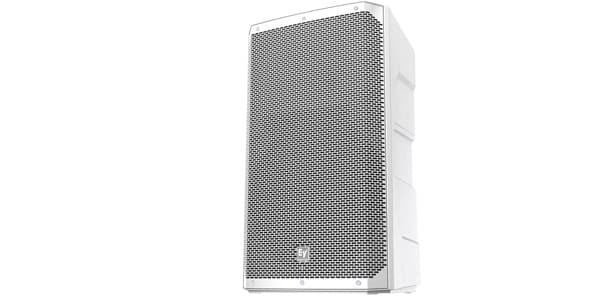

Electro-Voice / ELX200-15P-W powered speaker

Variations

The ELX200-15P-W is a 2-way full-range powered speaker characterized by its powerful, distortion-free sound. It utilizes Electro-Voice's patented SST waveguide design, achieving accurate directivity, minimal distortion, and maximum acoustic performance. Two handles on the top and side allow for easy mounting to speaker stands. It features a QuickSmartDSP interface. Available in white.

■White

■Type: 2-Way Full-Range

■Frequency Response: 55 Hz - 16 kHz (-3dB)

■Amplifier Output: 1200W

■Maximum Output Sound Pressure Level: 132dB

■Woofer Unit: EVS-15M

■Driver: DH-1C 1-inch Titanium Compression Driver

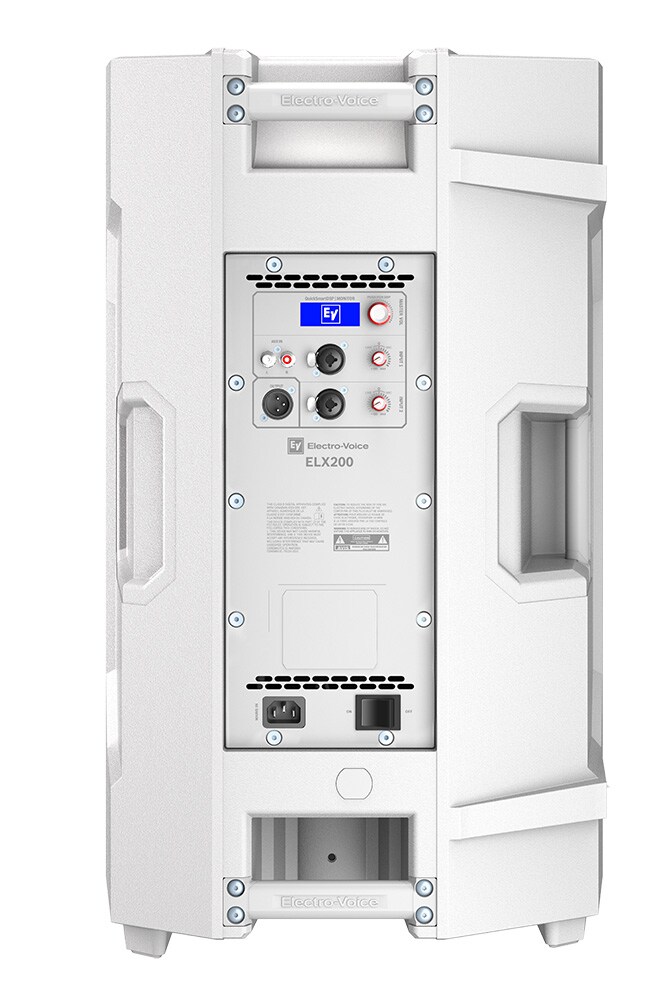

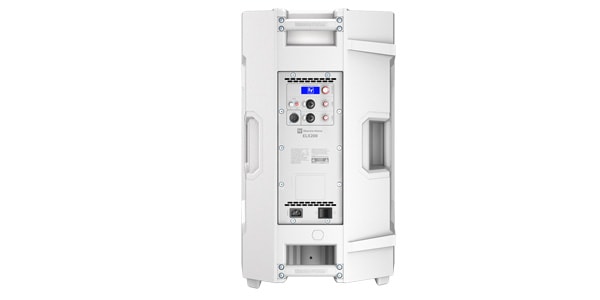

■Input Terminals: (1) Stereo RCA Input, (2) XLR/TRS Combo Jack

■Output Terminal: (1) XLR

■Stand Mount: Yes (35mm)

■Dimensions: Width 42.3 x Height 71.0 x Depth 38.4 cm

■Weight: 18.9 kg

■Notes:

■Nominal Directivity Angle (Horizontal x Vertical): 90° x 60°

■Crossover Frequency: 1600Hz

■Enclosure: Composite

■ELX200 Series

Lightweight and compact, yet delivers powerful sound

* Equipped with the latest QuickSmartDSP function

* Employs SST waveguide design

Achieves accurate directivity, minimal distortion, and maximum acoustic performance

* Three handles

Easy to carry and mount on speaker stands

* Three suspension points; can also be fixed in place with a separately sold wall bracket

* Lightweight

Full-range models use a composite enclosure.

■EV QuickSmart Mobile - Wireless Control App -

Android & iOS compatible smartphone/tablet app

* Intuitive operation allows settings and control from your mobile device

* Uses Bluetooth Low Energy (BTLE) technology to control up to 6 ELX200 powered speakers

* Allows setting QuickSmartDSP Mode and EQ settings

* Gain / Mute

* EQ

* System Presets (Mode, Location)

* Filters (Crossover Frequency)

* Allows batch settings and control via group settings

* System Monitoring Function

* Clipping, limit alerts, and speaker connection loss alerts

* This product is made to order and is expected to take at least 3 months. Cancellations are not accepted after order confirmation. Please inquire about delivery time before ordering.
