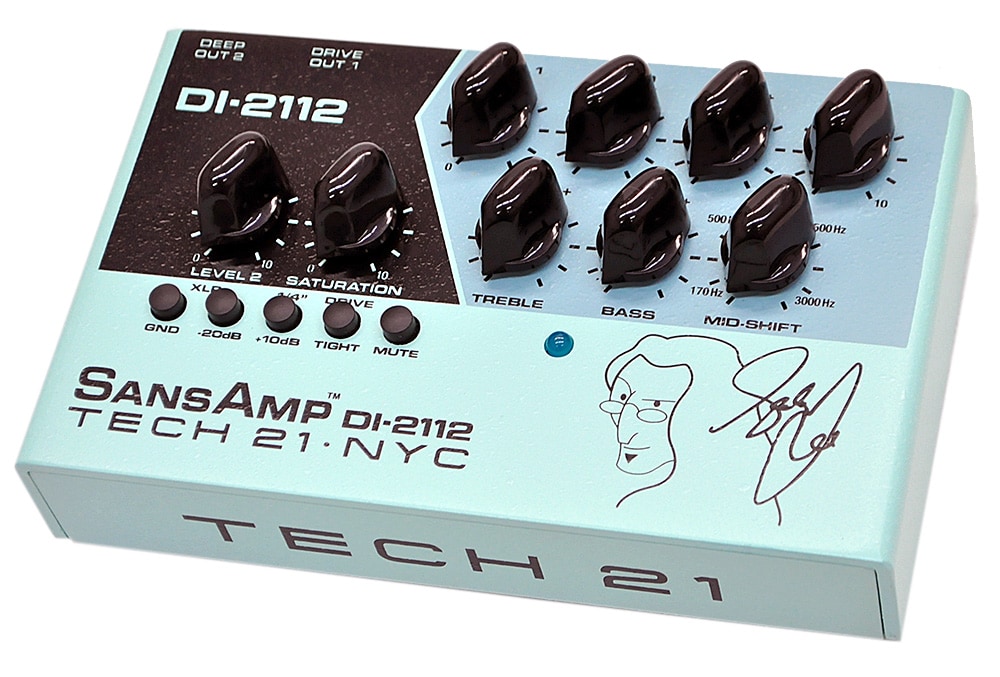

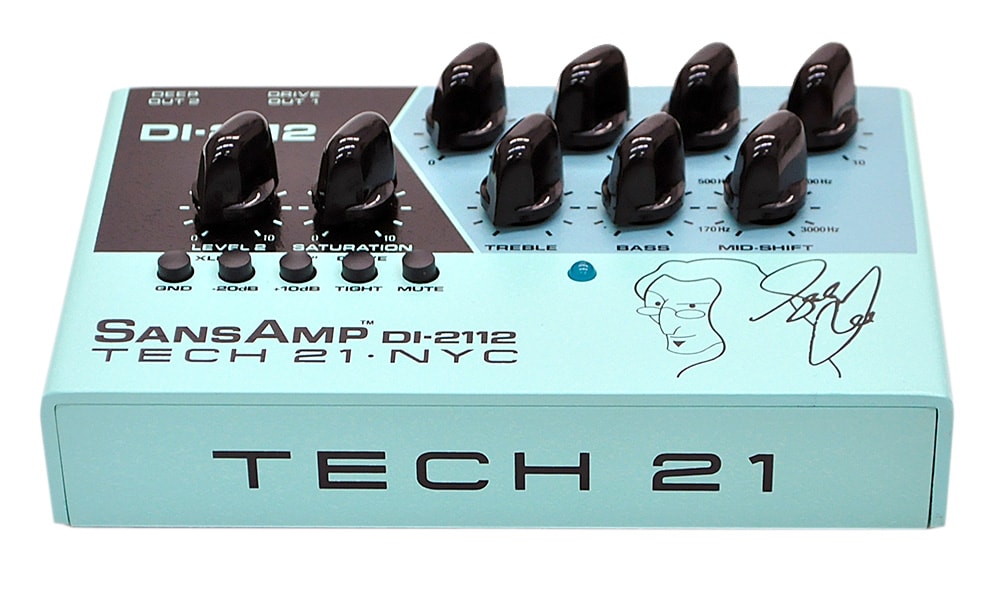

TECH21 / DI-2112

TECH21 bass preamp pedal, Geddy Lee signature model

■Bass preamp
■Geddy Lee signature model

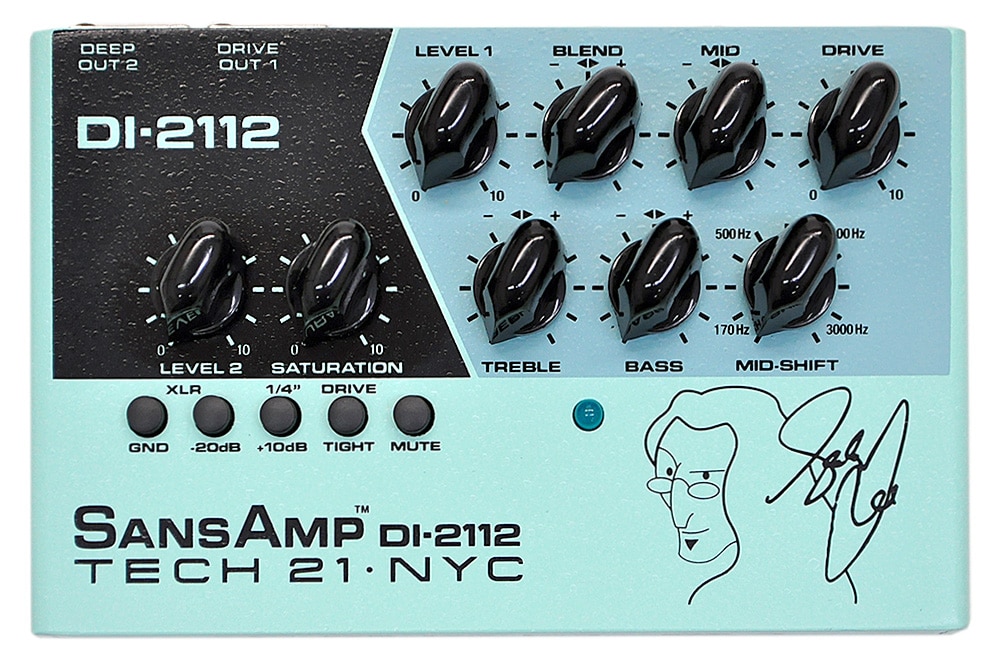

■Controls
LEVEL1: Adjusts the output level of the DRIVE section
LEVEL2: Adjusts the output level of the DEEP section
BLEND: Adjusts the blend ratio between the dry signal and the SansAmp circuit
DRIVE: Adjusts the amount of gain and overdrive
MID-SHIFT: Controls the center frequency band from 170Hz to 3.0kHz.
MID: Boost or cut the frequency selected with MID-SHIFT
TREBLE/BASS: BASS: 80Hz/TREBLE: 3.2kHz boost or cut
SATURATION: Adjusts the overall gain and amount of overdrive
■Switches
XLR Level Selector Switch
Ground Lift Switch
MUTE SWITCH
TIGHT
■Input terminal: 1/4-inch 1meg Ohm input

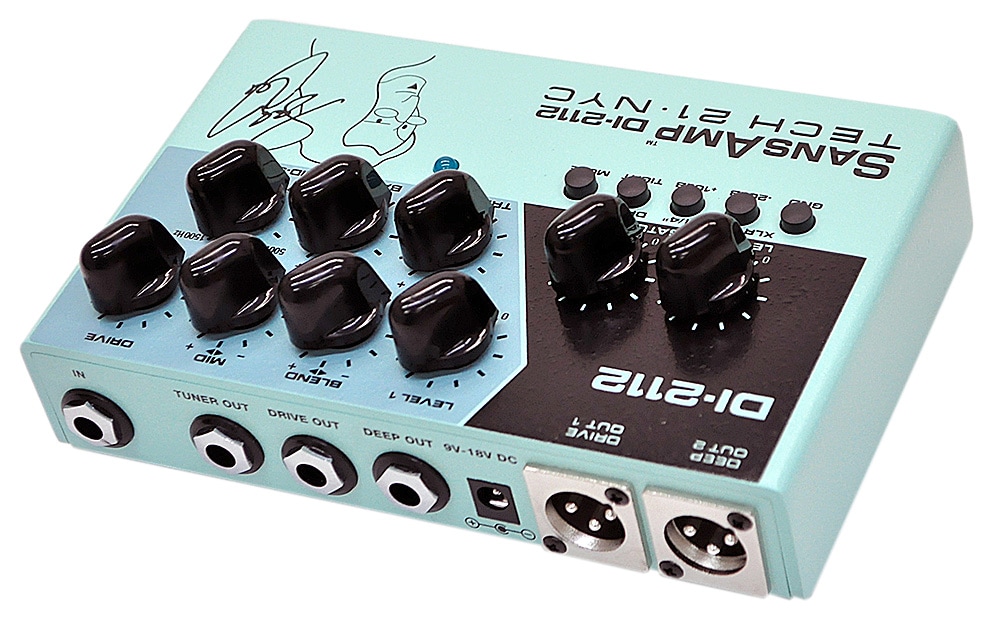

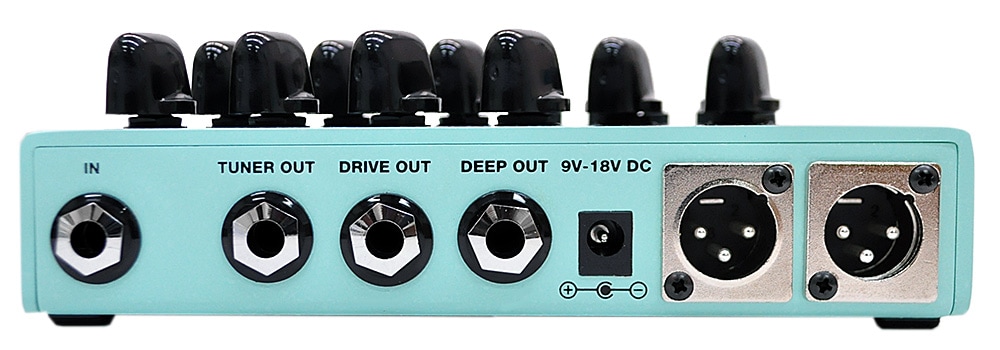

■Output terminals
Tuner out 1/4"" phone output
Drive out 1/4"" phone output Drive out XLR output
Deep out 1/4"" output
Deep XLR output
■Dimensions: 160 x 100 x 40 mm
■Weight: Approx. 538g

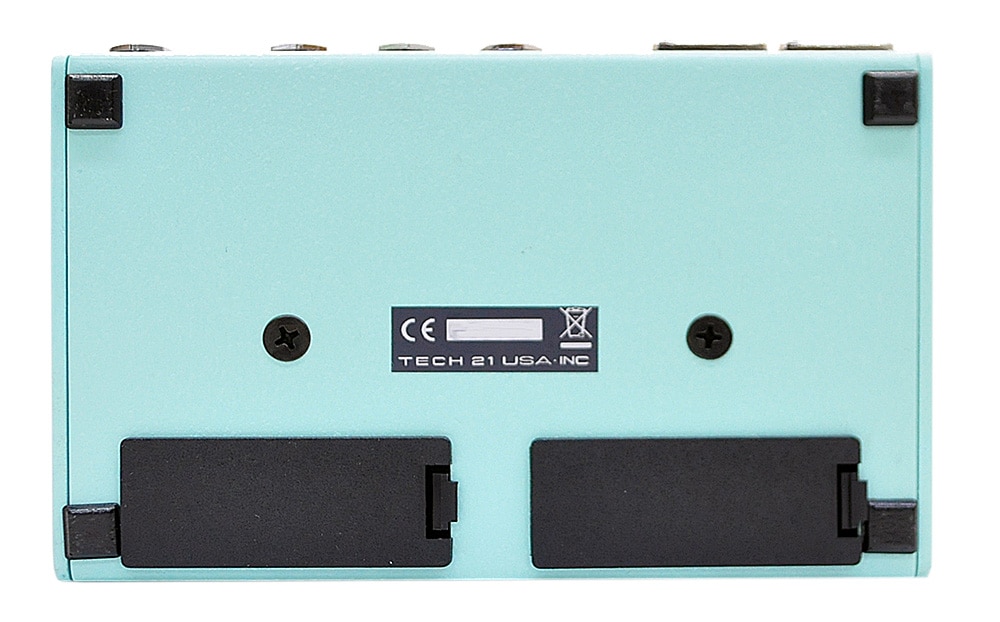

■Power supply: Powered by 18V power supply (sold separately) or two 9V alkaline batteries (sold separately).
