Saramonic / SmartRig+ Audio interface for smartphones and SLR cameras

Audio interface for single-lens reflex cameras with 3.5mm jacks, Android smartphones, and iPhones. Equipped with a combo jack that can connect XLR and phone plugs (guitar compatible) and two 3.5mm microphone inputs. The XLR input can supply phantom power as well as dynamic microphones, so you can use a full-fledged condenser microphone as a smartphone microphone. Comes with a 3-year Sound House warranty!

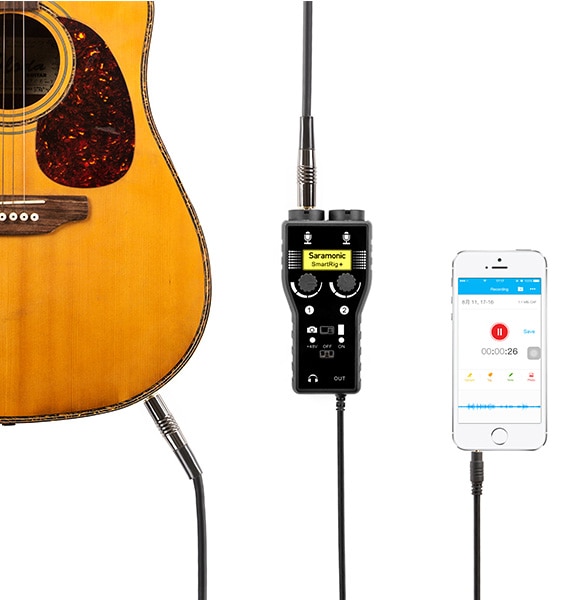

SmartRig+ simplifies your recording workflow by connecting professional microphones and guitars (or other instruments) to your smartphone, tablet, DSLR or camcorder. Two independent channels allow you to connect multiple microphones or guitars and control their gain simultaneously. The interface also features three types of inputs to suit any setup: two XLR microphone inputs, two 1/4"" (6.35mm) guitar inputs, and two 1/8"" (3.5mm) jack inputs, so you can connect any instrument or microphone. The output is a standard 1/8"" (3.5mm) cable that can be connected to devices such as smartphones and cameras.

The microphone is supplied with 48V phantom power and has a 3.5mm headphone output for sound monitoring. (*Real-time monitoring is not possible when connected to a smartphone) Two gain controls make it easy to set accurate levels. You can switch between mono and stereo output modes as needed. Powered by a single 9V battery.


-Audio interface for smartphones and SLR cameras (audio conversion adapter)
-Two independent input channels
-2 x XLR/6.35mm combo jack inputs
-2 x 3.5mm (TRS) microphone inputs
-Switch between smartphone (TRRS) output and camera, camcorder, and recorder (TRS) output
-3.5mm headphone output jack for monitoring
-48v phantom power switch
-Mono/stereo switch


Frequency response: 20 Hz to 20 Khz, +/-0.5 dB
THD: 0.01% @ <1 kHz, -30 dBu input
Signal to noise ratio: 80 dB @ 1 kHz, -30 dBu input
Input 1: 1 x Mic input (XLR), 1 x Guitar input (6.35mm standard), 1 x 3.5mm input
Input 2: 1 x Mic input (XLR), 1 x Guitar input (6.35mm standard)
Output: 1 x 3.5mm CAB LINE
Gain: +20 dB to Infinity
Phantom power: 48V
Power requirements: 9V alkaline or lithium battery
Dimensions: 12cm x 4cm x 4cm
Weight: 130g (excluding battery)
