■ Guitar amp load box/attenuator
A passive reactive load box. You can load a tube amp with a load close to the electrical parameters of a real guitar cabinet speaker (impedance 8 ohms).

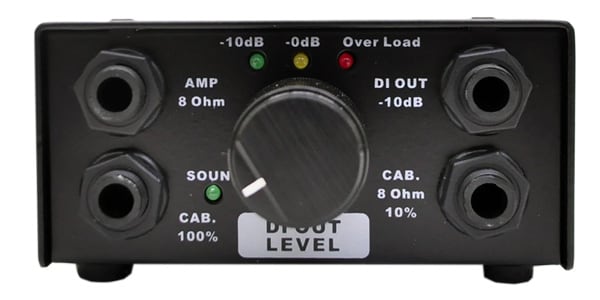

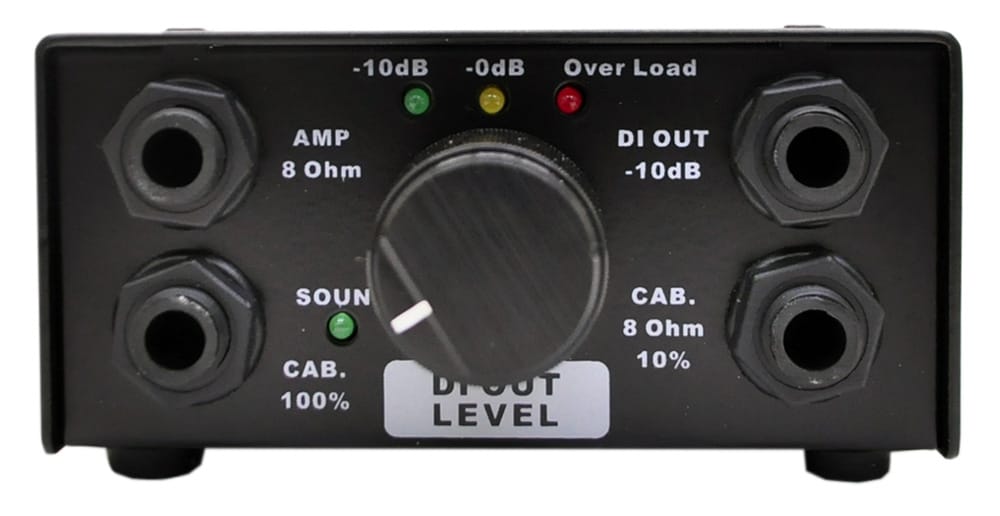

The maximum input from the amplifier is 15W. Only when you connect the external cabinet to the "CAB 100%" socket and use PE-15 as DI, the internal load is turned off and the maximum input is 150 watts. If an external guitar cabinet is plugged into the "CAB 10%" socket, the cabinet will play 10% of the output from the amplifier.
・Weight: 700 g
・Dimensions (Casing only) W 100mm H 46mm L110mm
・Impedance 8 Ohm
・Max power (internal load) 15 Watts
・AMT PE-15 1
・Instruction manual 1
・Warranty card 1
