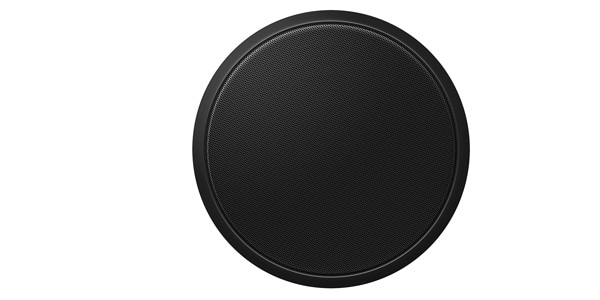

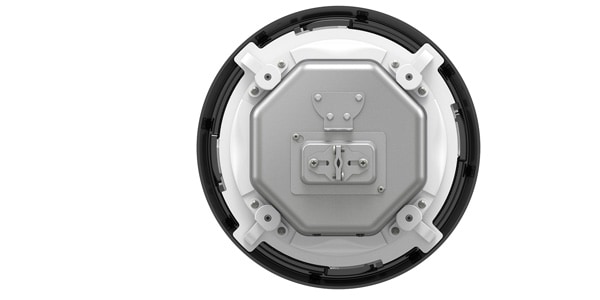

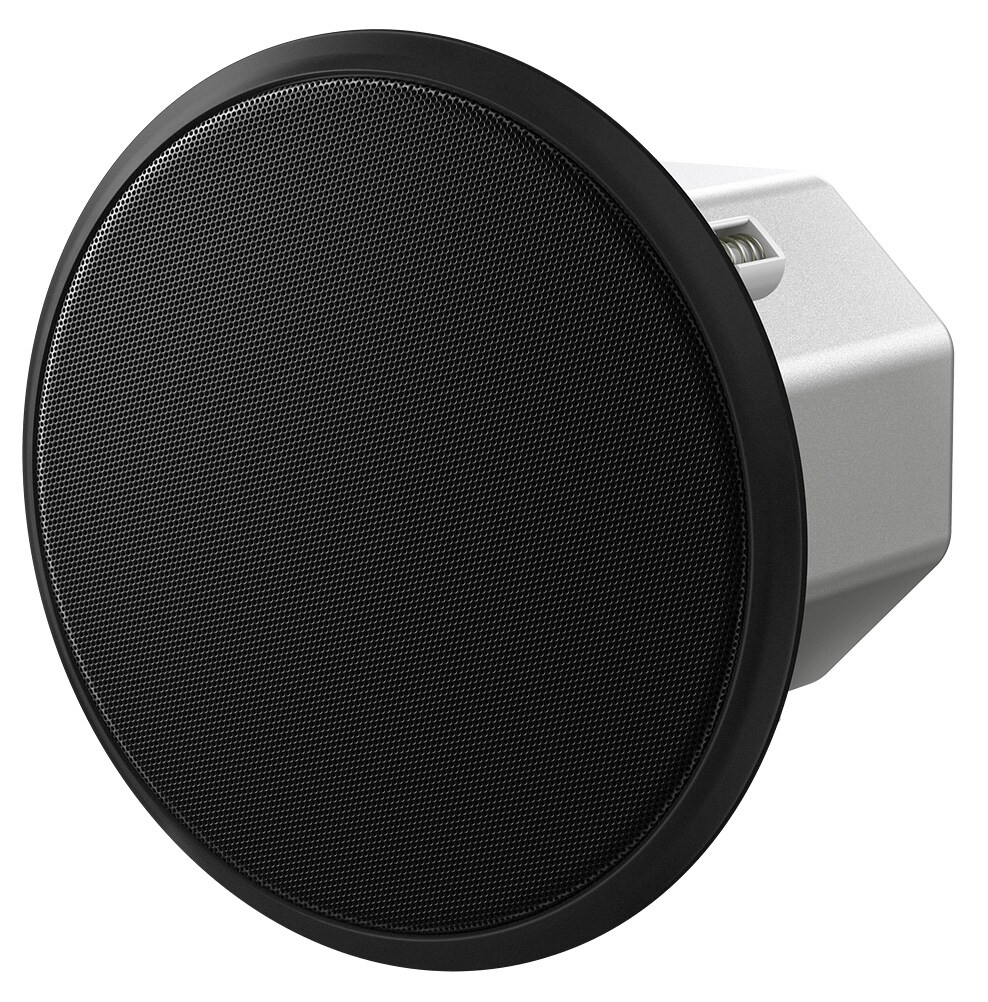

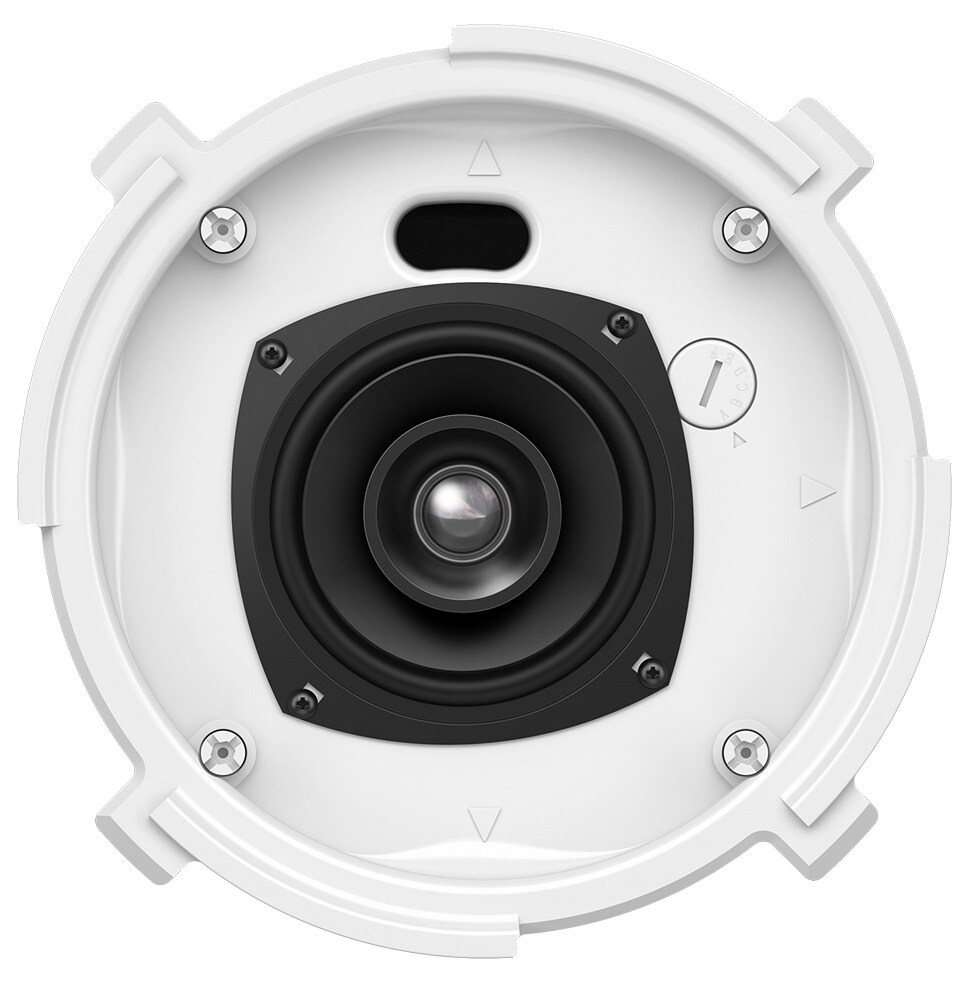

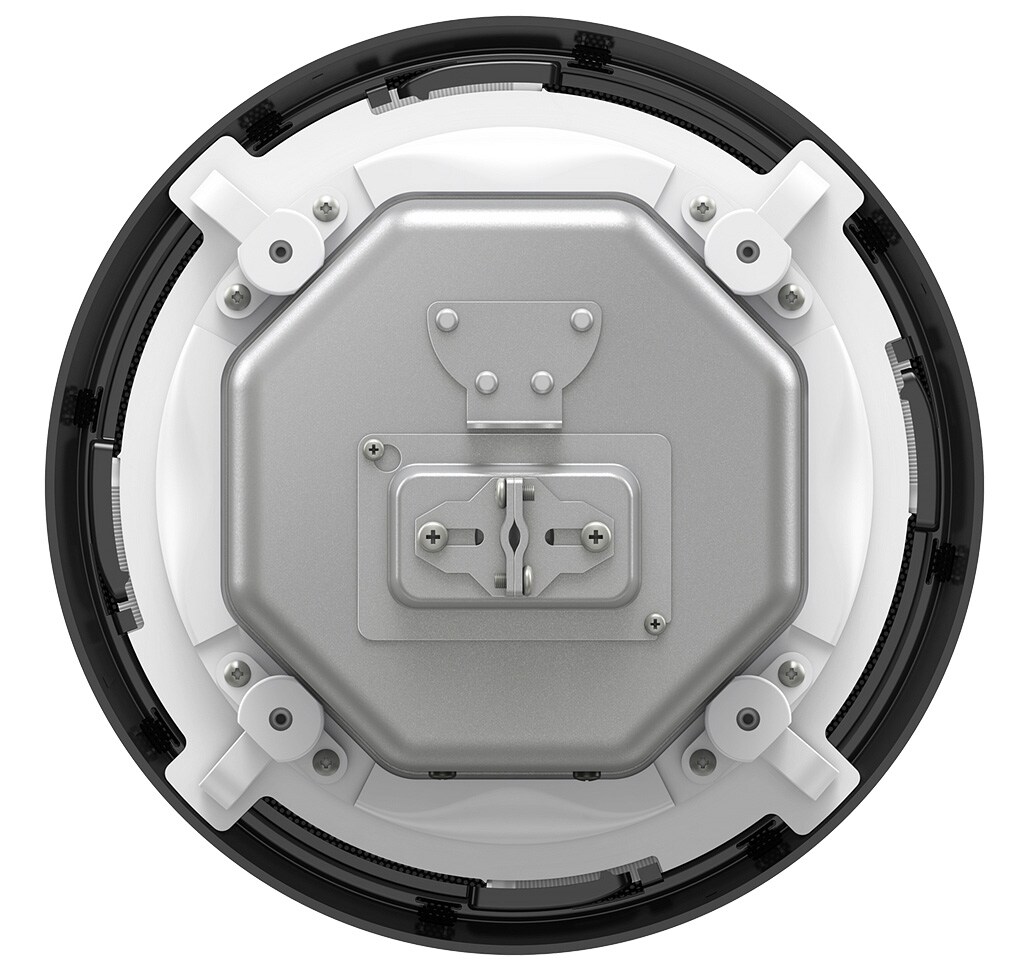

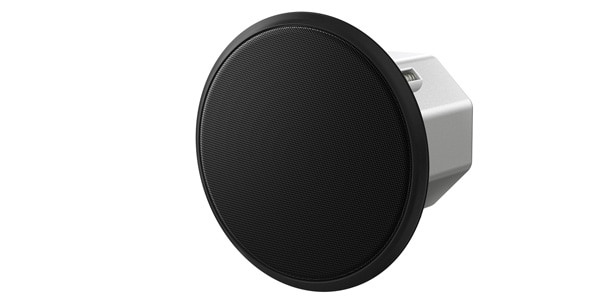

Pioneer DJ/CM-C54T 4-inch embedded ceiling speaker black pair

Pioneer DJ / CM-C54T 4-inch embedded ceiling speaker black pair

メーカーサイト商品ページ

Variations

4 inch embedded ceiling speaker, directivity angle 120°, sensitivity (1W, 1m) 86dB, rated impedance 16Ω, black

■ 4 inch
■ Embedded ceiling speaker
■ Directional angle 120°
■ Sensitivity (1W, 1m) 86dB
■ Rated impedance 16Ω
■ Compatible with 100V / 70V
■ Black
■ Pair

■ Frequency characteristics (-10dB): 85Hz-20kHz
■ Direction angle: 120°
■ Sensitivity (1W, 1m): 86dB
■ Rated impedance 16Ω
■ Allowable input: (RMS / Program) 30W / 60W
■ Transformer tap
70V 30W / 15W / 7.5W / 3.7W
100V 30W / 15W / 7.5W

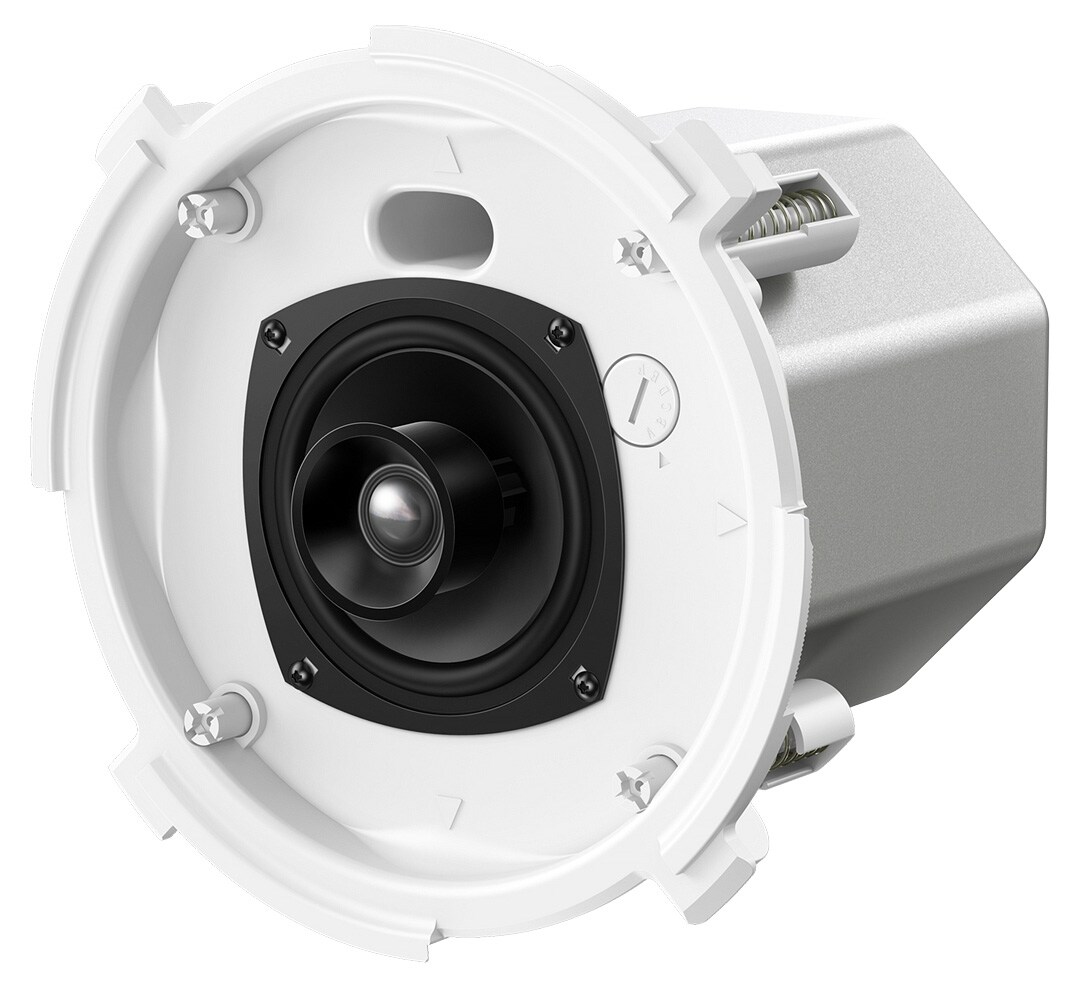

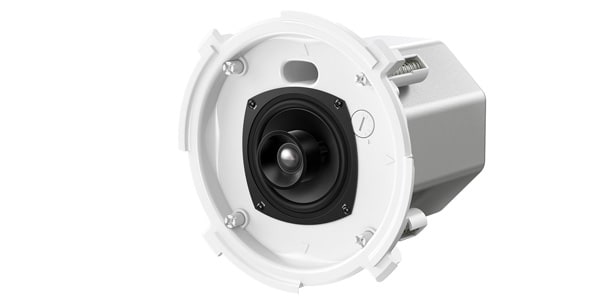

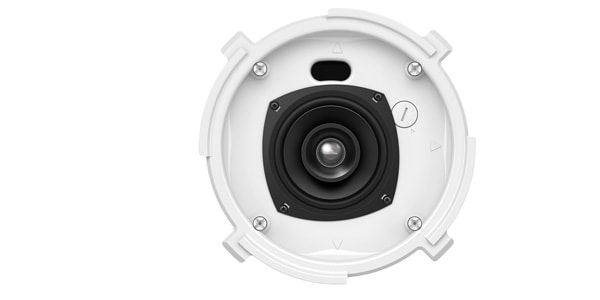

■ Driver configuration
LF 4 inch cone
HF 3/4 inch dome tweeter
■ Input terminal: 4-pin Euroblock
■ Color: black
■ Maximum dimensions (W x H): 240 mm x 210 mm (9.45 x 8.27 inches)
■ Weight / pc: 2.6 kg

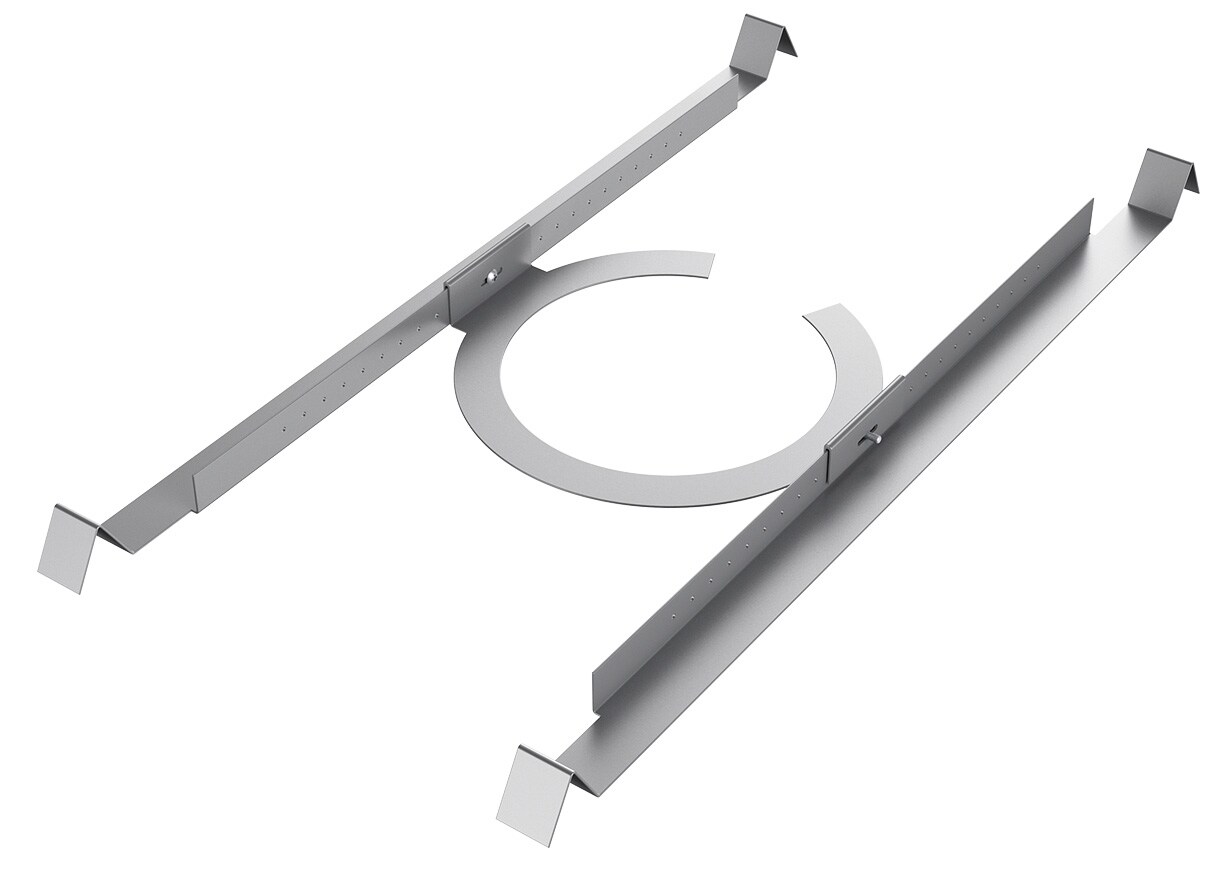

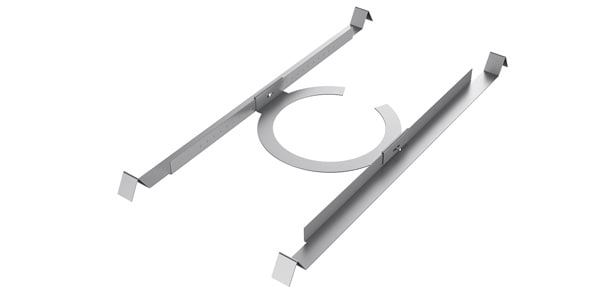

■ Accessories: C-ring, tile bridge, Euroblock connector, ceiling drilling template
■ One pair
