LABGRUPPEN / CA601

This is a 1-channel power amplifier for equipment made by LABGRUPPEN. Maximum output is 60W.

■Amplifier for facilities
■1ch
■60W
■Supports Lo-Z/Hi-Z

＜Main features＞
■ 1×60W commercial amplifier with Lo-Z (4Ω, 8Ω) and Hi-Z (70V, 100V) switching
■ Direct Drive Constant Power Technology provides excellent audio performance and reliability, as well as a significant reduction in current consumption, making it Energy Star v3.0 compliant
■ 1×60W (4Ω) / 1×60W (8Ω) / 1×60W (Hi-Z 70V) / 1×60W (Hi-Z 100V)
■ Equipped with HPF (80Hz) (On/Off)
■ Simple operation with volume, bass, and treble controls on the front panel
■ Fanless natural cooling system
■ Remote volume adjustment possible with optional equipment

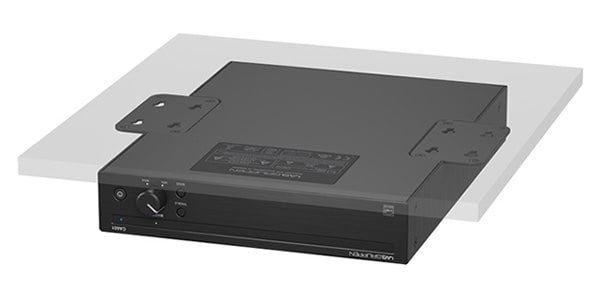

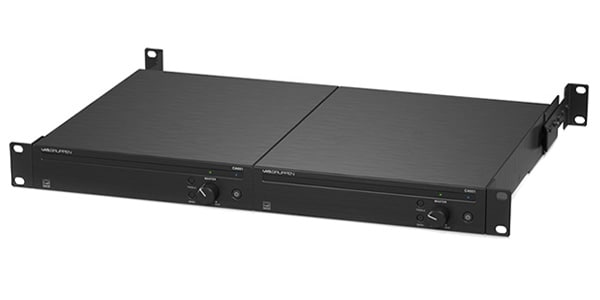

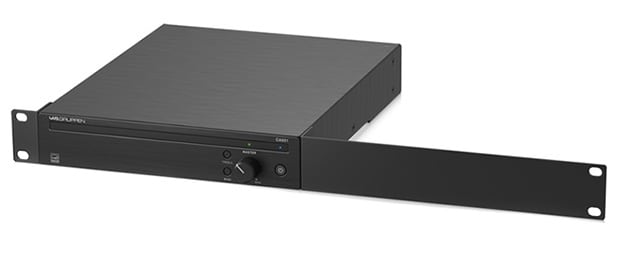

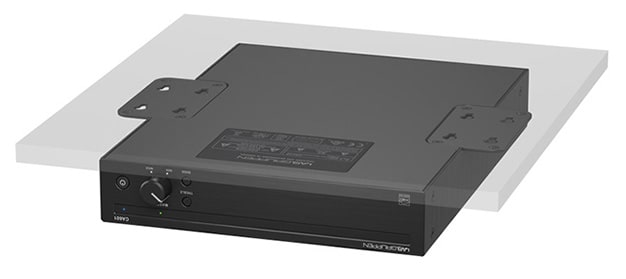

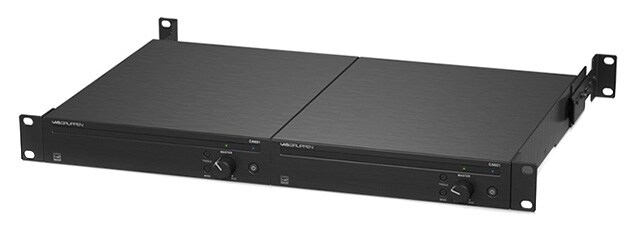

■ Mounting kit included for mounting to EIA racks and shelves, etc.

＜Technology＞
■ Direct Drive Constant Power Technology:
The Direct Drive Power Technology, newly developed for the CA Series, not only provides superior audio performance and reliability, but also significantly reduces current consumption. This results in reduced long-term operating costs.
■ Voltage Peak Limiter (VPL):
By switching the DIP switch on the rear panel, the VPL and amplifier gain are automatically optimized according to the load of the connected speakers.
■ Simple operation:
Simple operation with volume/bass/treble knobs on the front panel


[General]
■ Number of output channels: 1
■ Maximum output: 1 x 60W (4Ω) / 1 x 60W (8Ω) / 1 x 60W (70V) / 1 x 60W (100V)
■ Minimum load impedance: 4Ω mode: 4Ω 8Ω mode: 8Ω 70V mode: 82Ω 100V mode: 166Ω
■ Limit voltage/amplifier gain: 4Ω mode: 22Vpeak/22dB 8Ω mode: 31Vpeak/25dB 70V mode: 100Vpeak/35dB 100V mode: 141Vpeak/38dB
■ Tone control: Bass ±10dB (100Hz) Treble ±10dB (10kHz)
■ Controls:
Front: Power button, Gain control, Tone control (Bass/Treble)

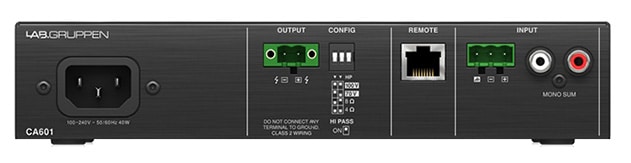

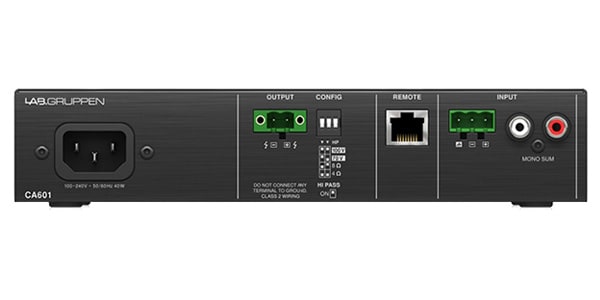

Rear: Load setting (4Ω/8Ω/70V/100V), 80Hz High Pass Filter (On/Off)
■ Tone controls: Bass ±10dB (100Hz) Treble ±10dB (10kHz)
■ Indicators:
Power: On (Blue)
Master: SIgnal (Green LED) >12.3mV (-36dB) Limit (Red LED) Input Clip, Output Limit, Fault (Red LED) Overheat, DC Fault, Over Current, etc.

[System]
■ Input: 1 x 3-pin 5.08mm Euroblock connector, 1 x RCA stereo summed
■Input impedance: 10kΩ (unbalanced/RCA), 20kΩ (balanced)
■Input sensitivity: {Balanced} 1.23V (+4dBu) {RCA} 0.62V (-2dBu)
■Maximum input level: 9.75V (+22dBu)
■Output: 1×2-pin 5.08mm Euroblock connector
■Output circuit type: Class-D
■Remote connector: 1×RJ45 connector

【Audio】
■Distortion rate (1/8 rated power): <0.05%
■Frequency response: 20Hz - 20kHz, +0.5/-1dB
■Dynamic range: >97dBA
■High-pass filter: 80Hz HPF

【Circuit protection】
■Cooling: Natural cooling (fanless)
■ Power amplifier protection: Thermal Protection, Over Current Protection, DC Protection, High Frequency Protection
■ Load protection: Controlled Start and Shutdown behavior, DC Fault Protection

【Power supply】
■ Nominal voltage: 100 - 240V, 50/60Hz
■ Fuse: T 3.15A L 250V
■ Power consumption (1/8 rated power @4Ω): 40W
■ Main connector: Standard IEC connector

【Dimensions/weight】
■ Dimensions: W218mm×H44mm×D299mm
■ Weight: 2.2kg
