LABGRUPPEN / CA1201

代理店サイト商品ページ

Variations

Amplifier for Installation, 1ch, 120W, Lo-Z / Hi-Z compatible

[General]
■ Number of output channels: 1
■ Maximum output: 1 x 120W (4Ω) / 1 x 120W (8Ω) / 1 x 120W (70V) / 1 x 120W (100V)
■ Minimum load impedance: << 4Ω mode >> 4Ω << 8Ω mode >> 8Ω << 70V mode >> 41Ω << 100V mode >> 82Ω
■ Limit voltage / amplifier gain: << 4Ω mode >> 31Vpeak / 25dB << 8Ω mode >> 44Vpeak / 28dB << 70V mode >> 100Vpeak / 35dB << 100V mode >> 141Vpeak / 38dB
■ Tone control: 《Bass》 ± 10dB (100Hz) 《Treble》 ± 10dB (10kHz)
■ Controls:

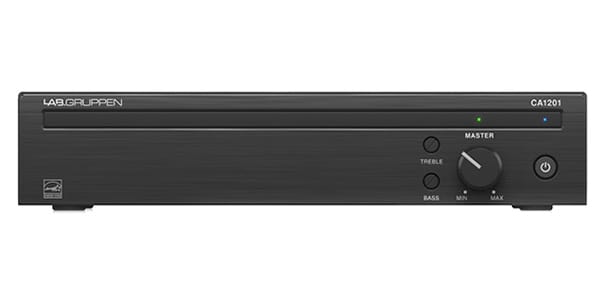

<< Front >> Power button, Gain control, Tone control (Bass / Treble)
<< Rear >> Load setting (4Ω / 8Ω / 70V / 100V), 80Hz High Pass Filter (On / Off)
■ Tone control: Bass ± 10dB (100Hz) Treble ± 10dB (10kHz)
■ Indicators:
Power supply: On (Blue)
Master: 《SIgnal (Green LED)》> 12.3mV (-36dB) 《Limit (Red LED)》 Input Clip, Output Limit, 《Fault (Red LED)》 Overheat, DC Fault, Over Current etc

【system】

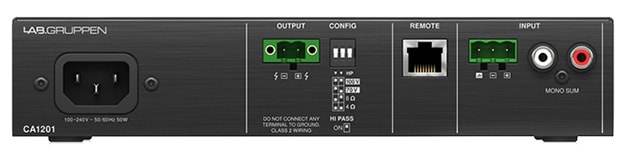

■ Input: 1 x 3-pin 5.08mm Euroblock connector, 1 x RCA stereo summed
■ Input impedance: 10kΩ (unbalanced / RCA), 20kΩ (balanced)
■ Input sensitivity: 《Balanced》 1.23V (+ 4dBu) 《RCA》 0.62V (-2dBu)
■ Maximum input level: 9.75V (+ 22dBu)
■ Output: 1 x 2-pin 5.08mm Euroblock connector
■ Output circuit type: Class-D
■ Remote connector: 1 x RJ45 connector

【audio】
■ Distortion rate (1/8 rated power): <0.05%
■ Frequency characteristics: 20Hz-20kHz, + 0.5 / -1dB
■ Dynamic range:> 97dBA
■ High-pass filter: 80Hz HPF

[Circuit protection]
■ Cooling: Natural air cooling (fan-less)
■ Power amp protection: Thermal Protection, Over Current Protection, DC Protection, High Frequency Protection
■ Road protection: Controlled Start and Shutdown behaviour, DC Fault Protection

【Power supply】
■ Nominal voltage: 100-240V, 50 / 60Hz
■ Fuse: T 3.15A L 250V
■ Power consumption (1/8 rated power @ 4Ω): 50W
■ Main connector: Standard IEC connector

[Dimensions / weight]
■ Dimensions: W218mm × H44mm × D299mm
■ Weight: 2.3kg
