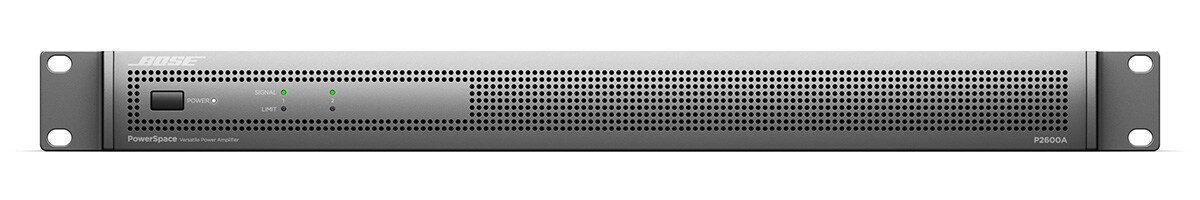

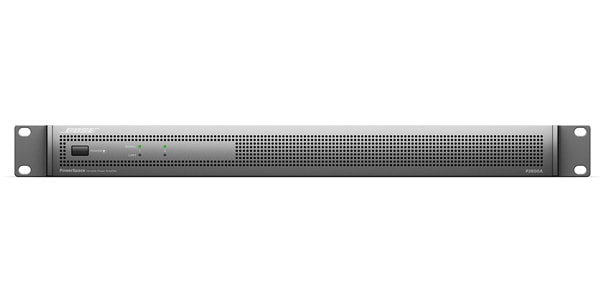

BOSE / PowerSpace P2100A Power Amplifier

Equipped with AmpLink input. Supports Bose DSP's low-latency uncompressed multi-channel digital audio with a single CAT 5 cable. Supports both low-impedance and high-impedance transmission.

■Power Amplifier

■1000W x 2 (4-8Ω)

■1U

■6.6kg

PowerSpace amplifiers are ideal for enhancing sound and expanding zones in any commercial space, offering reliable, clear output and digital connectivity. Featuring Bose AmpLink inputs, they support low-latency, uncompressed digital audio multichannel from Bose DSP with a single CAT 5 cable. The PowerSpace P21000A delivers 1000 W/channel, offering a wide output range and providing full-channel output for low-impedance/high-impedance transmissions without the need for bridging. It can also provide double output to a single zone. The PowerSpace amplifier, a simple and straightforward upgrade for commercial spaces, delivers the output and performance that meets your needs.




■ Achieves 1000 W/channel

- Compatible with Bose speakers and controls, enabling the configuration of full sound systems for commercial spaces.

■ Equipped with Bose AmpLink input

- Provides simple multi-channel digital audio connection to compatible DSPs, eliminating signal interruptions and interference.

■ Flexible impedance settings

- Provides full-channel output for low-impedance (4-8Ω) / high-impedance (70/100V) transmission without the need for bridging.

■ I-Share output

- Combines the current of two channels to achieve double the output level.

■ Auto standby mode

- Switches to standby mode when the audio signal falls below a threshold, saving energy. Recovers from standby mode upon receiving an audio signal.



Retail Stores

Restaurants, Bars

Accommodation Facilities

Conference Centers

Schools

Lobbies and Foyers



■Amplifier Output: 2 x 1000 W (THD+N < 0.04%, 1 kHz, 4-8 Ω, 70/100V)
■I-Share Mode Output: 1 x 2000 W (2-4 Ω, 70/100V)

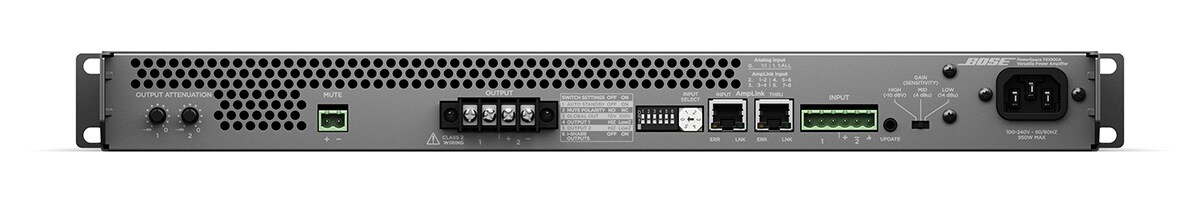

■Input Terminal: 6-pin Euroblock

■Output Terminal: 4-pin Terminal Block

■Operating Temperature Range: 100 V to 264 VAC: +40 °C to 0 °C

■Storage Temperature Range: +70 °C to -40 °C

■Dimensions (H × W × D): 44 mm x 483 mm x 414 mm

■Weight: Approx. 6.6 kg (13.7 lb)

■Packaging Weight 8.6 kg (18.1 lb)
