BOSE / PowerSpace P4150+

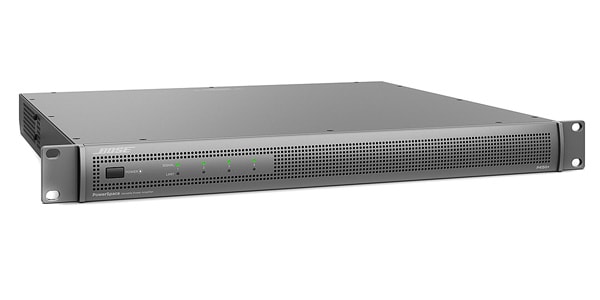

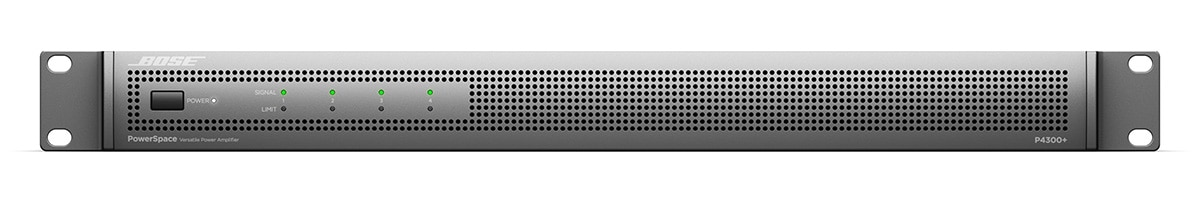

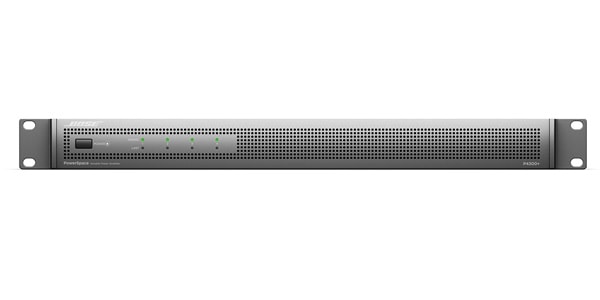

The PowerSpace P4150+ is a 4-channel power amplifier. It features power output and DSP in a 1RU size. Compatible with Bose speakers and controls, it can be used to configure a full sound system for commercial spaces.

■ 4-channel power amplifier

■ 150W x 4 (4-8Ω)

■ 1U

■ 6.6kg

■ Built-in DSP

The Bose PowerSpace P4150+ amplifier, a 4-channel amplifier combining power and DSP in a 1RU size, enables rapid installation. At the heart of a comprehensive platform of speakers, control, and software, the Bose PowerSpace+ amplifier features a setup workflow that allows for the rapid and efficient construction of superior commercial sound systems. The built-in configuration utility and browser-based intuitive UI clearly display common tasks, allowing for quick system construction, reduced installation time, and increased setup accuracy. Once installed, Bose's proprietary algorithms allow users to assign desired functions using optional interfaces such as the ControlCenter zone controller. The PowerSpace+ model, with its user-friendly amplifier and DSP package, easily delivers high-quality sound for commercial spaces.



■ Achieves 150 W/channel

- Compatible with Bose speakers and controls, enabling the configuration of a full sound system for commercial spaces.

■ Built-in DSP

- Features SmartBass processing, routing, level control, delay, limiter, Bose speaker EQ, input EQ, and area EQ.

■ PowerSpace Setup Utility

- Easy setup with a browser-based, intuitive UI that allows for real-time control, including signal and temperature monitoring.

■ Opti-voice Paging

- Automatically attenuates playback sound when a page signal is input, enabling smooth paging even during music playback.

■ Integrated Features for Easy Installation in Commercial Spaces

- Dedicated input for telephone/microphone paging (600 Ω), hold music and line-level AUX output (600 Ω), NO/NC mute connection.

■ Flexible Impedance Settings

- Provides full-channel output for low-impedance (4-8 Ω) / high-impedance (70/100 V) transmission without the need for bridging.

■ I-Share Output

- By combining the currents of two channels, twice the output level is achieved.

■ Auto Standby Mode

- When the audio signal falls below a threshold, it switches to standby mode, saving energy. Recovers from standby mode upon receiving an audio signal.

■ Intuitive Operation

- Easily adjust volume and switch sound sources with the optional ControlCenter zone controllers (CC-1, CC-2, CC-3).



Retail Stores

Restaurants, Bars

Accommodation Facilities

Conference Centers

Schools

Lobbies and Foyers



■ Amplifier Output: 4 x 150 W (THD+N < 0.04%, 1 kHz, 4-8 Ω, 70/100V)
■ I-Share Mode Output: 2 x 300 W (2-4 Ω, 70/100V) (I-Share available for each channel pair)

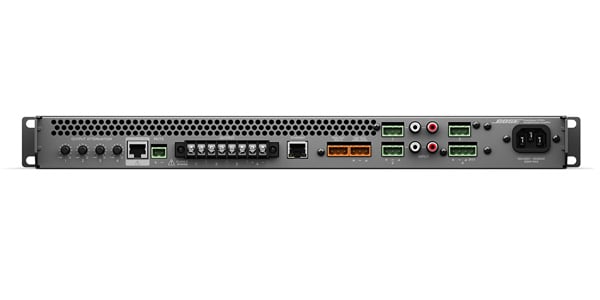

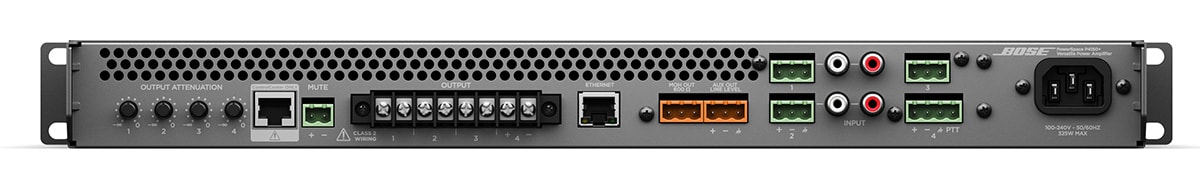

■ Input Terminals: 3 x 3-pin Euroblock, 1 x 4-pin Euroblock

■ Output Terminals: 8-pin Terminal Block

■ Operating Temperature Range: 100 V to 264 VAC: +40 °C to 0 °C

■ Storage Temperature Range: +70 °C to -40 °C

■Dimensions (H × W × D): 44 mm x 483 mm x 414 mm

■Weight: Approx. 6.6 kg (14.6 lb)

■Packaged Weight: Approx. 8.6 kg (19.0 lb)
