KORG / SV-2S 73鍵 ステージ・ビンテージ・ピアノ

With a new speaker system, you can immediately produce sound anywhere. The faithful reproduction of classic keyboard sounds, beautiful piano sounds, and effects that add warmth and three-dimensionality give you freedom of expression. The intuitive and easy-to-use panel is useful on the stage.

◎Sound reproduced by advanced sampling technology
◎Operation panel that can be understood immediately
◎Original vacuum tube circuit that adds warmth and distortion
◎RH3 keyboard that enables delicate expression
◎Speaker system installed

■ Keyboard
・73 keys (E to E) velocity sensitive RH3 (Real Weighted Hammer Action 3) keyboard
・Touch control: 8 types of touch curve
・Tuning: transpose, fine tuning, tuning curve

■ Sound
・Sound source system: EDS-X (Enhanced Definition Synthesis-eXpanded)
・Maximum polyphony: 128 notes
・Multi sound source: Layer, split
・Factory sound: 72 (6 basic sounds x 2 sets 6 variations)
・EP1 (Vintage): MK I Suitcase, MK I Stage, MK II Suitcase, MK II Stage, MK V Stage, The MK V Stage, Dyno EP, Dyno EP Bright, Wurly, Wurly Classic, Wurly Dark, Wurly Bright
・EP2 (Various): FM Piano 1, FM Piano 2, FM Piano 3, FM Piano & Pad, Pianet T, Pianet N, Hybrid Piano, Hybrid Tine, Wurly & Strings, FM & Strings, MK II & Pad, FM & Pad
・Piano 1 (Acoustic): German Grand, German Classic, Italian Grand, Italian Bright, Japanese Grand, Japanese Bright, Austrian Grand, Austrian Classic, Japan Upright, Upright Bright, German Upright, Rock Piano
・Piano 2 (Various): Electric Grand, German Mono, KORG M1 Piano, KORG SG-1D, Digital Piano, Electra Piano, Tack Piano, Honky-Tonk, Piano & Strings, Piano & Pad, Piano & Synth, Piano & Brass
・Clavier: Clav AC, Clav AD, Clav BC, Clav BD, Harpsichord, Harpsichord Oct, Perc.Organ, Rock Organ, Jazz Organ, Vox Organ, Church Organ, Pipe Organ
・Other: Full Strings, Classic Strings, Tape Strings, Strings & Voices, Warm Pad, Bright Pad, Orchestra, Pizzicato & Glock, Brass, Synth Brass, Pad/Mini Lead, Pad/Synth Lead
・Favorite sound: 64 (8 banks x 8 variations) for customized storage

■ Effect
・Structure: 6 independent systems (5 effects + 1 total effect)
・Equalizer: bass, mid, treble
・Pre-effects: Red Comp, Treble Boost, U-Vibe, Vibrato, Tremolo, VOX Wah (Pedal Control)
・Amp model: Cabinet model including clean, twin, tweed, AC30, boutique, organ amp, Valve Reactor circuit/vacuum tube 12AX7 (ECC83)
・Modulation: Classic Chorus, Black Chorus, Orange Phaser, Small Phaser, Flanger, Rotary (Slow/First Control)
・Ambient: Room, plate, hall, spring, tape echo, stereo delay (tap tempo)
・Total effect*: Stereo mastering limiter, stereo limiter
*This effect can be edited only in SV-2 Editor.

■ Control panel
・Sound selection: 2 knobs (type, variation (combined with knobs and switches for bank switching))
・Favorite sound selection: 8 switches (bank switching also uses the sound type knob)
・Effect control: Equalizer 1 switch (on/off), 3 knobs (bass, mid, treble)
・Pre-effects: 2 switches (on/off, auto/pedal), 3 knobs (type, speed, intensity)
・Amp model: 1 switch (on/off), 2 knobs (type, drive)
・Modulation effect: 2 switches (on/off, rotary speaker rotation speed "fast/slow" switching), 3 knobs (type, speed, intensity)
・Ambient: 2 switches (on/off, TAP for stereo delay), 2 knobs (type, depth)
・Volume: 1 master volume knob
・Switch: 4 switches (transpose, local off, touch, function)
・Demonstration songs: 72 songs (one for each preset sound)

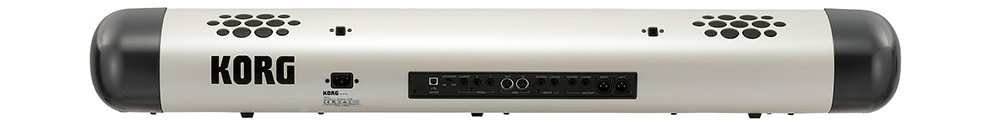

■ Connection terminal
・Audio output: L, R (XLR?2, balanced) + L/MONO, R/MONO (1/4" terminal, unbalanced)
・Audio input: L/MONO, R/MONO
・MIDI: IN / OUT
・USB: Type B (also used as MIDI interface, compatible with USB 2.0)
・Damper pedal: (Damper pedal DS-2H included, DS-1H sold separately)
・Pedal 1: Foot switch (PS-1, PS-3 sold separately)
・Pedal 2: Volume/Expression (XVP-20, EXP-2 sold separately) or Foot switch (PS-1, PS-3 sold separately)
・Headphones: Headphone output (1/4" terminal stereo, front panel)

■ Amplifier (SV-2S only)
・Speaker: 2 x 2.5 inch speaker, 2 x 3 inch with passive radiator, box construction
・Amplifier output: 2 x 15W

■ Main standards
・Power: Built-in switch type adapter, AC100-240V, 50/60Hz
・Power consumption: 25W
・External dimensions (not including music stand): SV-2S (73key)1,143 (W) x 347 (D) x 157 (H) mm
・Mass (not including music stand): SV-2S (73key) 18.3kg

■ Other
・Accessories: music stand, power cord, damper pedal (DS-2H)
・Sold separately: Dedicated keyboard stand ST-SV1, dedicated carrying bag CB-SV1 73 (for 73-key model only), damper pedal DS-1, HEXP/VOL pedal XVP-20, foot controller XP-2, pedal・Switch PS-3, PS-1
