KORG / PBADRD

KORG's popular pedal tuner, Pitchblack Advance, now in sparkle red. With a highly visible display with four different display methods, ultra-high precision tuning with accuracy up to ±0.1 cents, true bypass, and other features, this tuner is loved by professionals and amateurs around the world, and will brighten up any pedal board.

■Guitar/bass pedal tuner
■Pitchblack Advance series
■Sparkle Red
■Features
・4 types of display methods with the highest visibility
・Ultra-high precision tuning with accuracy up to ±0.1 cents
・True bypass specification
・DC out that can be branched to other effects (only when using adapter)
■Specifications
・Scale: 12-tone average
・Scale measurement range: E0 (20.60Hz) to C8 (4186Hz)
・Reference pitch range: A4 = 436 to 445Hz (1Hz steps)
・Measurement accuracy: ±0.1 cents
・Input impedance 1MΩ (tuner on)
・Display modes: Regular, strobe, half strobe, mirror

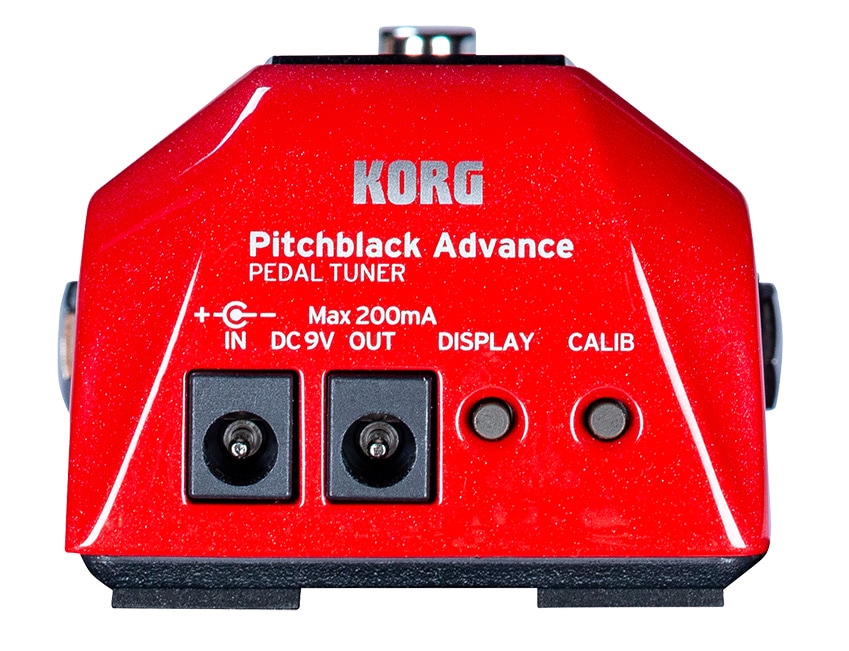

・Connection terminals: INPUT (mono standard jack), BYPASS (mono standard jack), DC 9V IN, DC 9V OUT
■Power supply: 9V dry cell battery (6F22/6LR61) or DC9V center negative adapter KA181 (sold separately)
■Current consumption: Maximum 20mA
■Dimensions: 68(W)x111(D)x47(H)mm (including rubber feet)
■Weight: 257g (including battery)

*Image is for illustrative purposes only.
*The battery is also used as a power source for retaining settings, and retains calibration and display mode settings. When the battery is removed from the unit or the battery reaches the end of its life, the calibration is reset to 440Hz and the display mode setting is reset to regular.
When the battery is nearing the end of its life, the TUNER ON/OFF LED flashes. Replace with a new battery as soon as possible.
*The calibration setting is retained even when the power is off. However, if the battery is removed or the AC adapter is unplugged, it will return to the factory setting (440Hz). Also, even if the battery is connected, if you plug in an AC adapter that is not supplying power, the settings will return to the factory settings.
