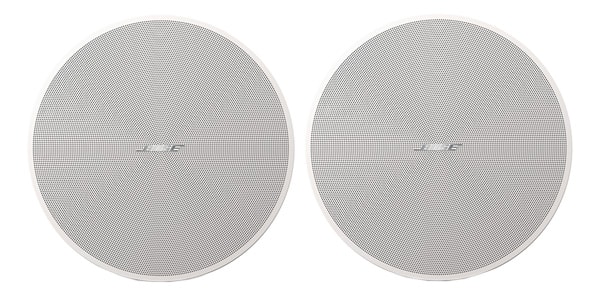

BOSE / DesignMax DM5C PAIR WHT

Embedded ceiling speaker, 5.25 inch, 50W, 8Ω / 100V / 70V compatible, white, pair, M

■ Ceiling-embedded speaker
■ 5.25 inches
■ 50W
■ 8Ω / 100V / 70V compatible
■ White
■ Pair
■ M


■ Frequency characteristics (+/- 3 dB): 70 to 17,000 Hz
■ Frequency range (-10 dB): 65-20,000 Hz
■ Nominal coverage (horizontal x vertical): 160 ° conical
■ Allowable input (continuous): 50 W
■ Allowable input (peak): 200 W
■ Maximum sound pressure level @ 1m: 103 dB
■ Sensitivity (SPL / 1W @ 1 m): 86 dB
■ Impedance: 8Ω (during transformer bypass)
■ Transformer tap
70V: 3, 6, 12, 25, 50 W, bypass
100V: 6, 12, 25, 50 W, bypass
