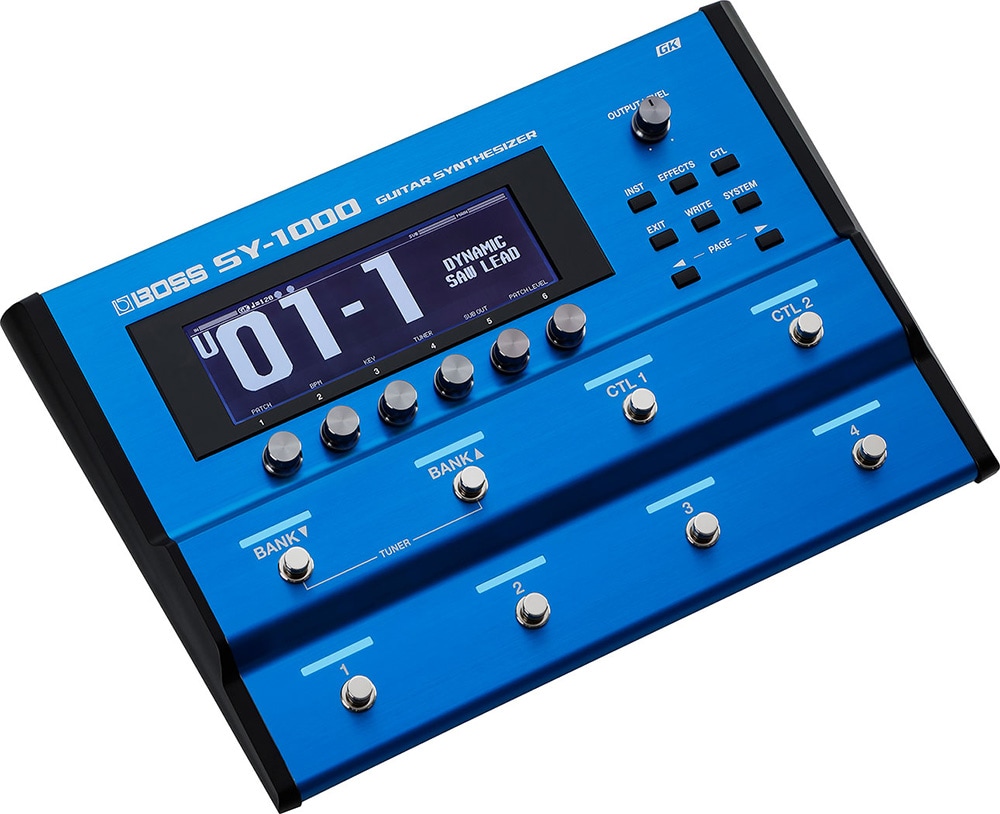

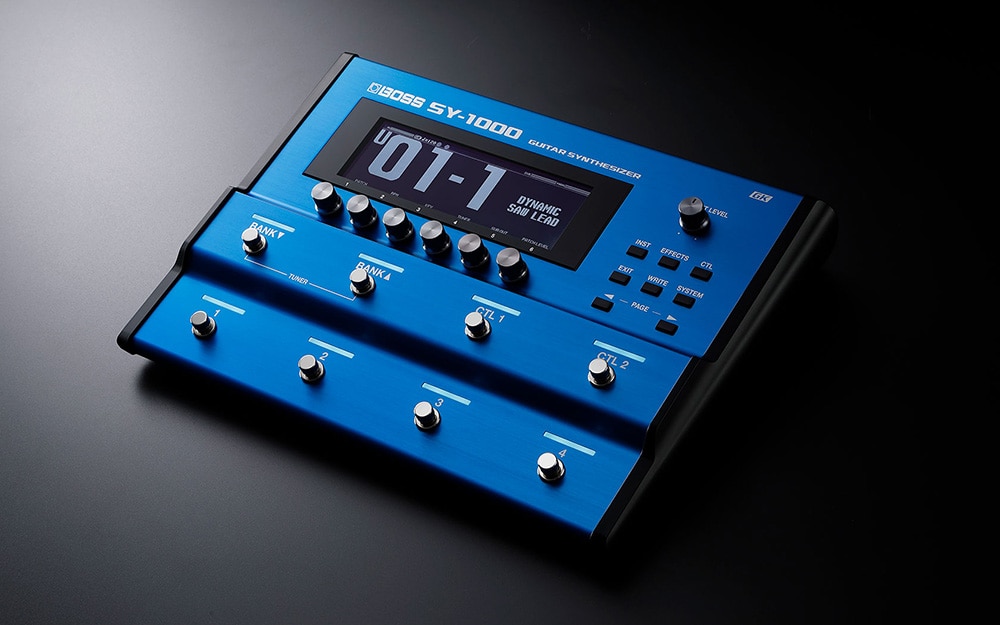

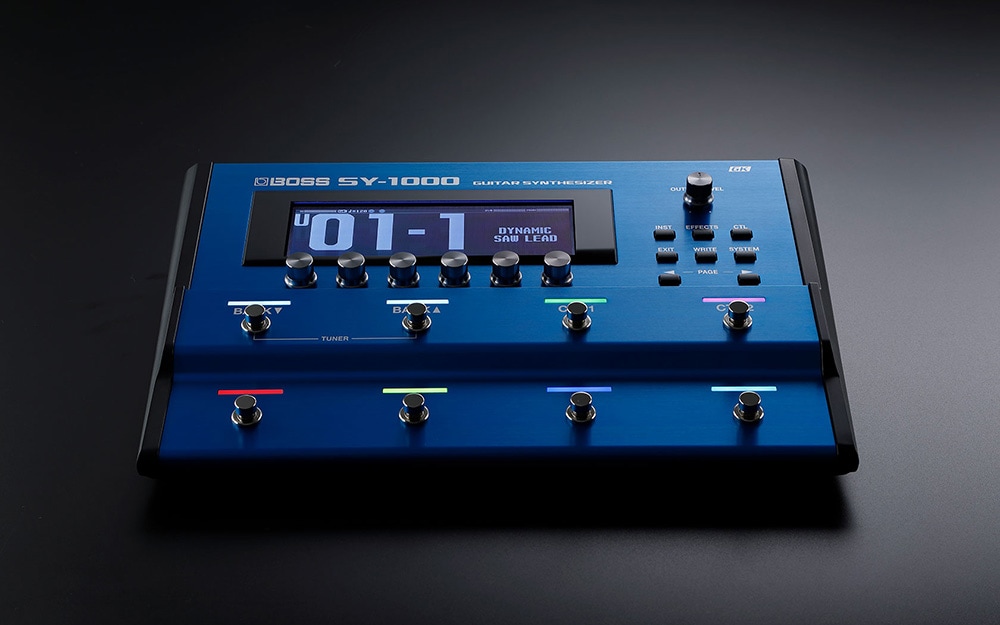

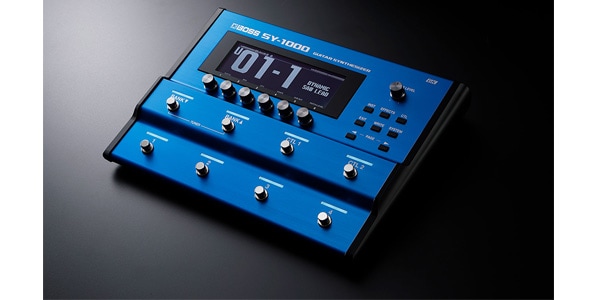

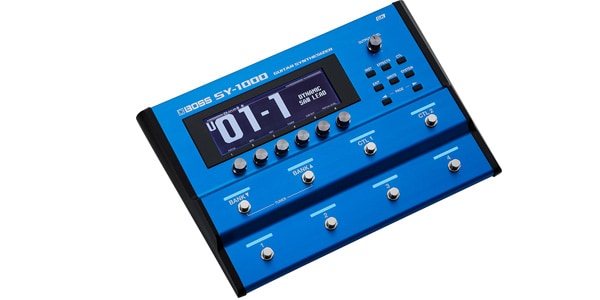

BOSS / SY-1000

The latest model with unprecedented performance by combining a DSP with 6 times the processing power of the SY300, and the GK pickup with the newly developed sound engine.

■ Guitar effector
■ Guitar synthesizer
■ Number of instrument parts: 3 parts
■ Instrument type
[Guitar mode]
Guitar synth: 3 types (DYNAMIC SYNTH, OSC SYNTH, GR-300), electric guitar + amp modeling: (guitar = 13 types, amp = 31 types)
Acoustic + amp modeling: (acoustic = 10 types, amp = 31 types), electric bass + amp modeling: (bass = 3 types, amp = 31 types)
Bio guitar modeling: 13 types, poly FX: 5 types
[Bass mode]
Bass synth: 3 types (DYNAMIC SYNTH, OSC SYNTH, ANALOG GR), electric bass + amp modeling: (bass = 11 types, amp = 31 types)
AC bass + amp modeling: (AC bass = 1 type, amp = 31 types), electric guitar + amp modeling: (guitar = 3 types, amp = 31 types)
Poly FX: 5 types

■ Alternate tuning
[Guitar mode]
Open tuning (D, E, G, A), drop tuning (D to A), D-MODAL, NASHILLE, semitone shift (-12 to +12), user tuning,
12-string guitar function
[Bass mode]
Semitone shift (-12 to +12), user tuning, 12-string bass function

■ Effect: Over 150 types
Patch memory Guitar mode: 200 (preset) + 200 (user), bass mode: 200 (preset) + 200 (user)
■ AD conversion Divided pickup: 32-bit + AF method, normal pickup: 32-bit + AF method
* AF method (Adaptive Focus method) is a method unique to Roland / Boss that dramatically improves the SN ratio of the AD converter.
■ DA conversion: 32 bits
■ Sample rate: 48kHz
■ Regular input level GUITAR INPUT: -10dBu, RETURN: -10dBu
■ Maximum input level GUITAR INPUT: + 16dBu, RETURN: + 8dBu
■ Input impedance GUITAR INPUT: 1M Ω, RETURN: 1M Ω
Standard output level MAIN OUTPUT (L / PHONES, R / MONO): -10dBu, SUB OUTPUT (L, R / MONO): -10dBu, SEND: -10dBu
■ Output impedance: MAIN OUTPUT (L / PHONES, R / MONO): 44 Ω, SUB OUTPUT (L, R / MONO): 1k Ω, SEND: 1k Ω
■ Recommended load impedance MAIN OUTPUT (L / PHONES, R / MONO): 10 kΩ or more * PHONES connection: 44 Ω or more
SUB OUTPUT (L, R / MONO): 10kΩ or more, SEND: 10kΩ or more
Controls: BANK ▼ switch, BANK ▲ switch, CTL1 to 2 switch, 1 to 4 switch, POWER switch, INST button, EFFECTS button, CTL button, EXIT button,
WRITE button, SYSTEM button, PAGE button, 1-6 knobs, OUTPUT LEVEL knob
■ Display: Graphic LCD (512 x 160 dots, with backlight)

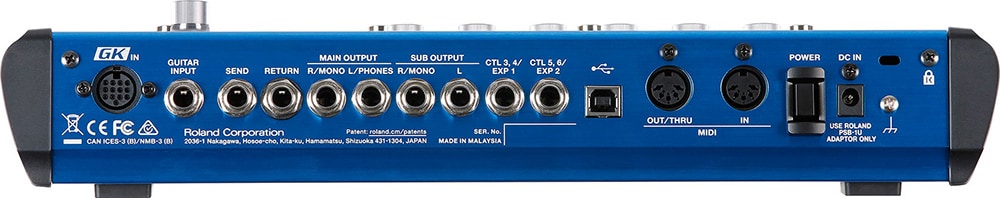

■ Connection terminal GK IN terminal: 13-pin DIN type, GUITAR INPUT terminal, SEND terminal, RETURN terminal, MAIN OUTPUT (L / PHONES, R / MONO) terminal,
SUB OUTPUT (L, R / MONO) terminals: standard type, CTL3, 4 / EXP1 terminals, CTL5, 6 / EXP2 terminals: TRS standard type,
USB COMPUTER terminal: USB B type (High-Speed ​​USB, audio, MIDI compatible), MIDI (IN, OUT / THRU) terminal, DC IN terminal
■ Power supply: AC adapter
■ Current consumption: 800mA
■ Outer dimensions: 345 (width) x 245 (depth) x 67 (height) mm
■ Weight (excluding AC adapter): 2.5kg
■ Accessories: AC adapter (PSB-1U + AC cord set), instruction manual, "Safety precautions" leaflet, warranty card, Roland user registration card
■ Sold separately: Divided pickup: GK-3 (for guitar), GK-3B (for bass), GK cable: GKC-5 (5 m), GKC-10 (10 m)
Foot switch: FS-5U, FS-5L, FS-6, FS-7 Expression pedal: EV-30, FV-500L, FV-500H, Roland EV-5
Unit selector: Roland US-20 AC adapter (PSB-1U) * Please specify PSB-100 when purchasing.
* 0dBu = 0.775Vrms
